MSI VENTUS GeForce RTX 4070 SUPER 12G 2X OC NVIDIA 12 GB GDDR6X
Couldn't load pickup availability
- 2505 MHz / 21 Gbps
- 12GB GDDR6X

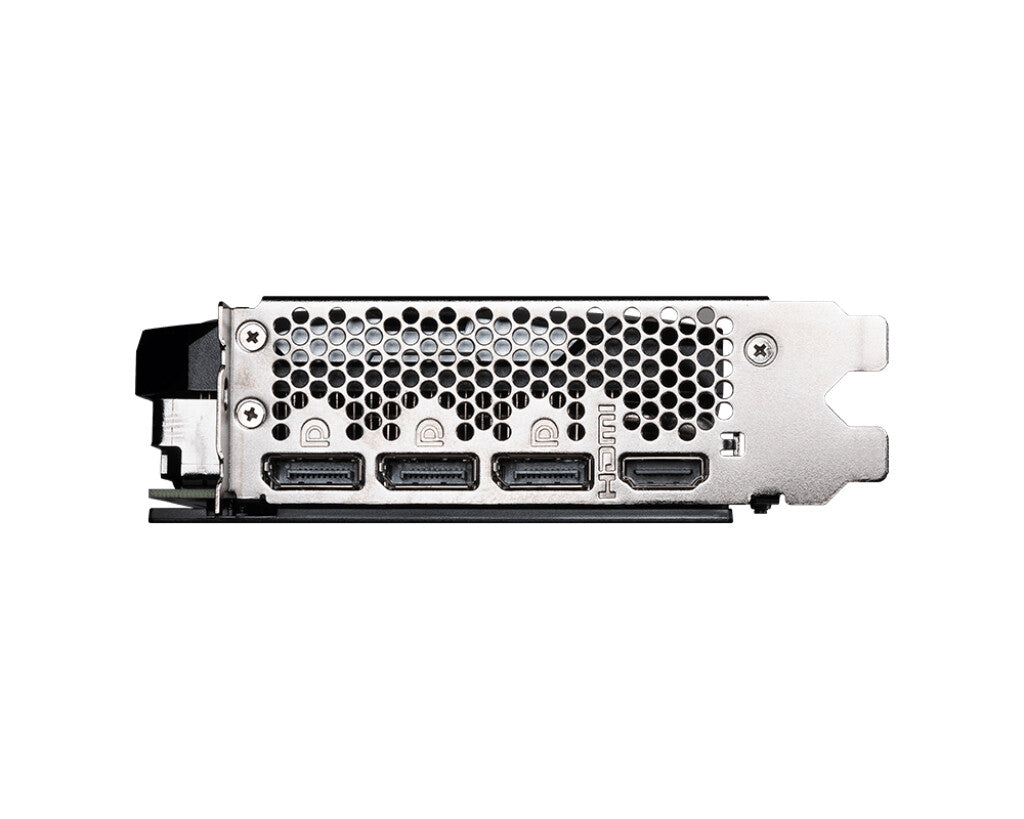

- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise

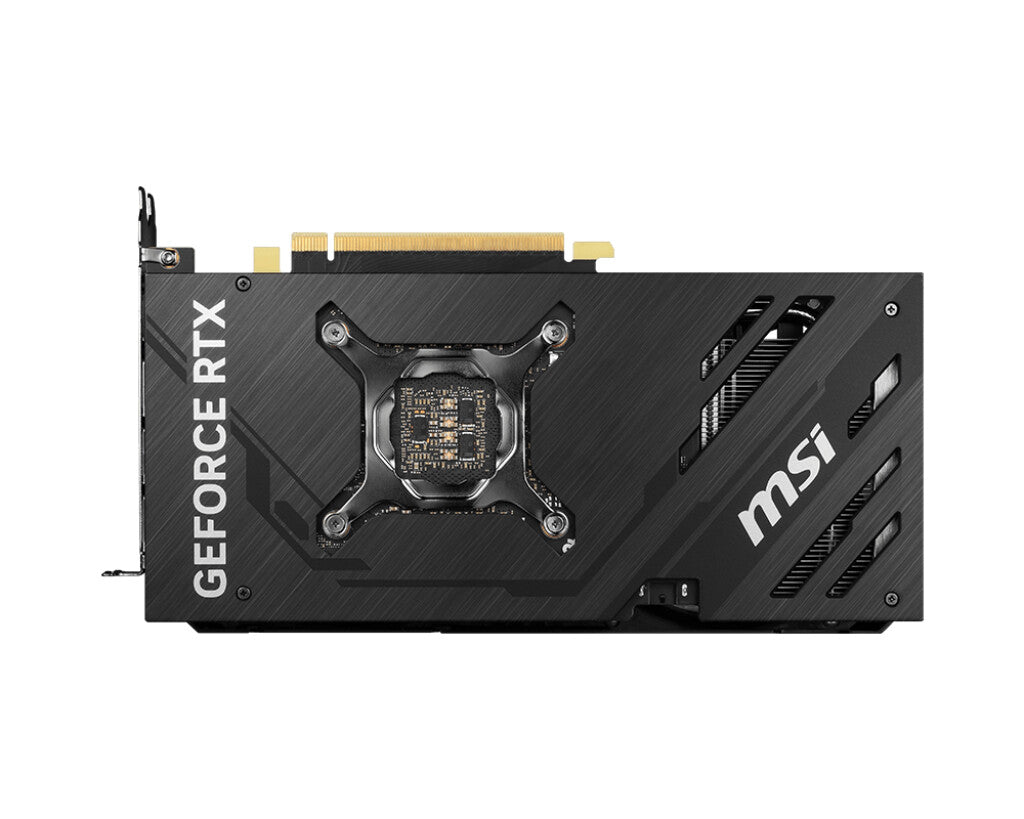

- The reinforcing backplate features a flow-through design that provides additional ventilation
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
REVOLUTIONARY
DUAL-FAN THERMAL

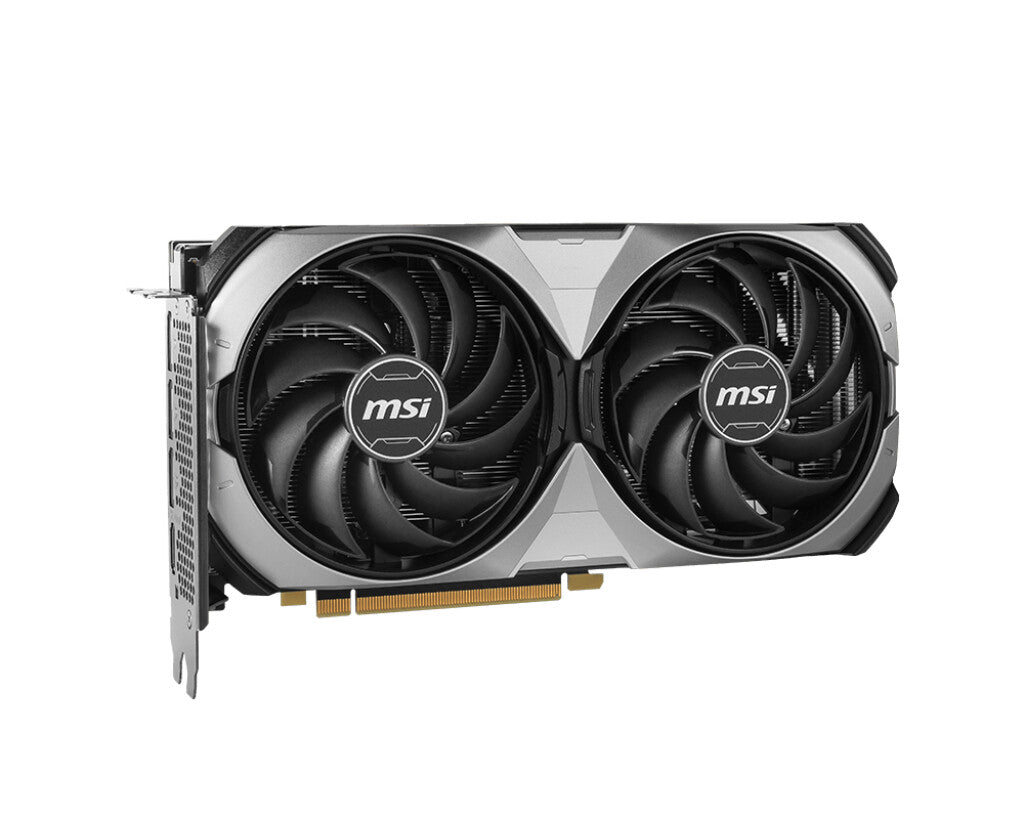

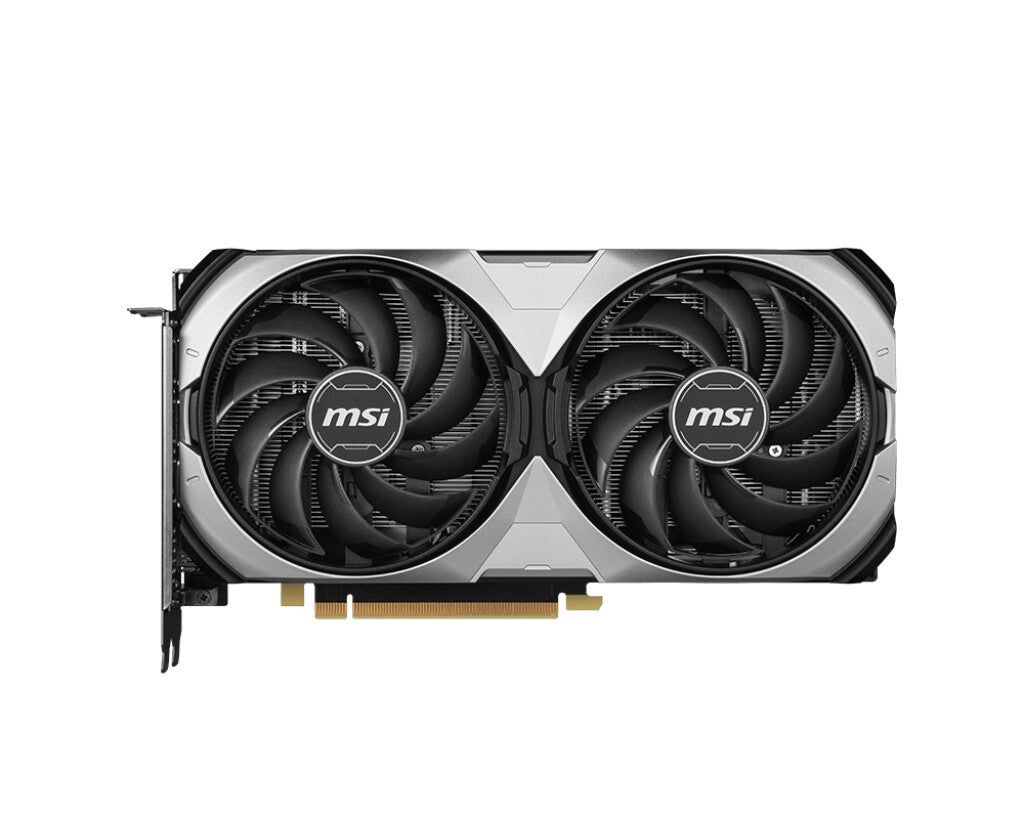

Two fans on a huge heatsink ensures a cool and quiet experience.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2505 MHz |
| Processor frequency | 2520 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Silver |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | External |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (typical) | 220 W |
| Minimum system power supply | 650 W |
| Weight & dimensions | |
|---|---|
| Height | 125 mm |
| Depth | 43 mm |
| Length | 242 mm |
| Weight | 680 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 998 g |
| General | |
|---|---|
| Product family | VENTUS |
