Ubiquiti UniFi USW-ENTERPRISE-24-POE-EU network switch Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) White
iFrame
£848.99
Couldn't load pickup availability
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support

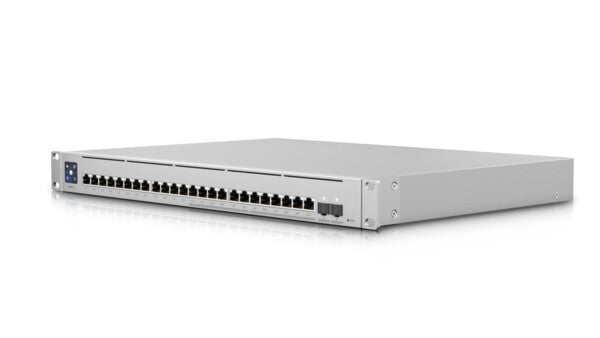

The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,5000 Mbit/s |
| 10G support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Forwarding rate | 92.25 Mpps |
| Switching capacity | 124 Gbit/s |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (max) | 550 W |
| Power consumption (typical) | 34.2 W |
| Input current | 8.5 A |
| DC input voltage | 52 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) power per port | 34.2 W |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.2 kg |
| Height | 43.7 mm |
| Depth | 325 mm |
| Width | 442.2 mm |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
