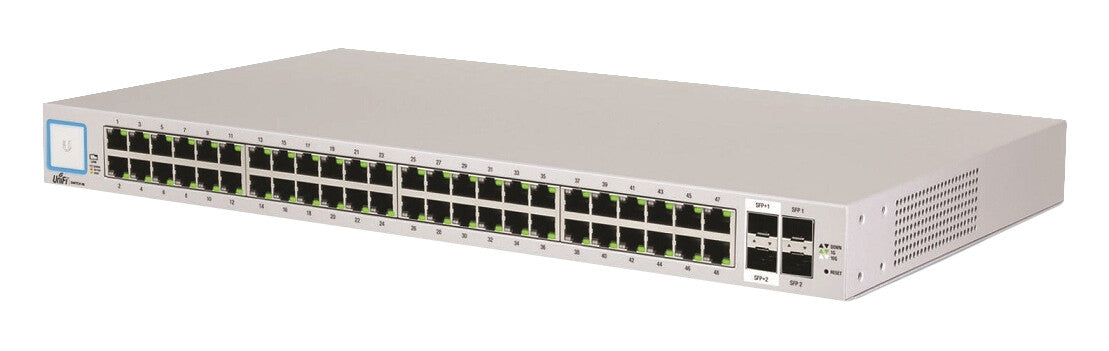

Ubiquiti UniFi US-48-500W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Couldn't load pickup availability
- Managed
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- Switching capacity: 140 Gbit/s
- 1U Rack mounting
- Power over Ethernet (PoE)
Powerful Enterprise Switch Models
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Flow control support | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Throughput | 104.16 Mpps |
| Switching capacity | 140 Gbit/s |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Silver |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 48 dB |
| Power | |
|---|---|
| Power consumption (max) | 500 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 34.2 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.3 kg |
| Height | 44.5 mm |
| Depth | 374.6 mm |
| Width | 485 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
