Cisco IE-2000U-4TS-G network switch Managed Fast Ethernet (10/100) Black
Couldn't load pickup availability
- Managed Web-based management BRIDGE-MIB (RFC1493), BGP4-MIB (RFC1657), CISCO-CABLE-DIAG-MIB, CISCO-BULK-FILE-MIB, CISCO-CDP-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONF-MAN-MIB, CISCO-DATA-COLLECTION-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-ETHERNET-ACCESS-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IETF-DOT3-OAM-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IPLSA-ETHERNET-MIB, CISCO-PAGP-MIB, CISCO-PAE-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-IMAGE-MIB, CISCO-LAG-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-RTTMON-MIB, CISCO-STACK-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB(RFC2737), ETHERLIKE-MIB, IEEE8021-PEA-MIB, IEEE8023-LAG-MIB, IF-MIB (RFC 1573), IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, PIM-MIB, RFC1213-MIB (MIB-II), RMON-MIB (RFC 1757), RMON2-MIB (RFC 2021), SNMP-FRAMEWORK-MIB (RFC2571), SNMP-MPD-MIB (RFC 2572), SNMP-NOTIFICATION-MIB (RFC 2573), SNMP-TARGET-MIB (RFC 2573), SNMPv2-MIB (RFC 1907), SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574), SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575), TCP-MIB (RFC 2012), UDP-MIB (RFC 2013)
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 4
- MAC address table: 8000 entries Switching capacity: 7.6 Gbit/s
- Access Control List (ACL)

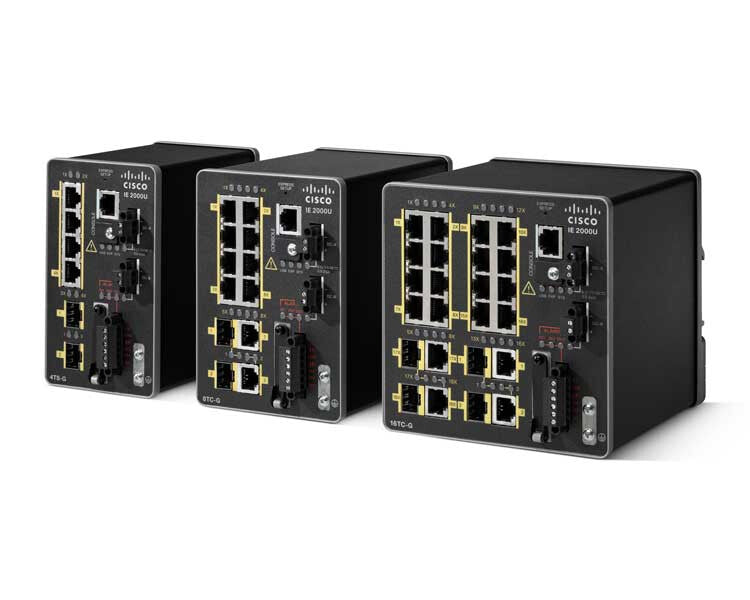

The Cisco Industrial Ethernet (IE) 2000U Series Switch is a rugged, compact, DIN-rail-mountable switch optimized for use in transmission and distribution power substations and distribution generation facilities like wind and solar farms.
Cisco Industrial Ethernet 2000U (IE 2000U) Series Switches work in the harsh environments common in transmission and distribution substations, including small cabinets in space-constrained locations such as pole tops. The Cisco IE 2000U uses Cisco IOS Software, the operating system that powers millions of Cisco switches worldwide.
Primary features include:
- Rugged industrial design and substation compliance (meets IEC 61850-3 and IEEE 1613 standards for utility substation environments)
- Advanced capabilities to support mission-critical substation applications such as supervisory control and data acquisition (SCADA) and IEC 61850 Generic Object-Oriented Substation Events (GOOSE) messaging
- Support for Precision Timing Protocol (PTP) applications based on IEEE 1588 v2 standards
Cisco IE 2000U Series Switches provide:
- Hitless failover protocol support based on the IEC 62439-3 standard (the Parallel Redundancy Protocol and High-Availability Seamless Redundancy)
- Support for the Resilient Ethernet Protocol (REP) and Flex Links for fast reconvergence in ring and hub-and-spoke topologies
SmartPort templates for one-touch global and port-level macros to simplify switch deployments
The IE2000U can be easily managed by Cisco Industrial Network Director, a network management system purpose built for industrial applications that uses the complete capabilities of the Cisco Industrial Ethernet product family to make the network easily accessible to non-IT operations personnel.
Use the rugged Cisco IE 2000U switches along with the CGS 2520 Connected Grid Switches and the Cisco 2000 Series Connected Grid Router
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| USB 2.0 ports quantity | 1 |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Number of VLANs | 1005 |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Throughput | 5.66 Mpps |
| Switching capacity | 7.6 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, SSH |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | BRIDGE-MIB (RFC1493), BGP4-MIB (RFC1657), CISCO-CABLE-DIAG-MIB, CISCO-BULK-FILE-MIB, CISCO-CDP-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONF-MAN-MIB, CISCO-DATA-COLLECTION-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-ETHERNET-ACCESS-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IETF-DOT3-OAM-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IPLSA-ETHERNET-MIB, CISCO-PAGP-MIB, CISCO-PAE-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-IMAGE-MIB, CISCO-LAG-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-RTTMON-MIB, CISCO-STACK-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB(RFC2737), ETHERLIKE-MIB, IEEE8021-PEA-MIB, IEEE8023-LAG-MIB, IF-MIB (RFC 1573), IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, PIM-MIB, RFC1213-MIB (MIB-II), RMON-MIB (RFC 1757), RMON2-MIB (RFC 2021), SNMP-FRAMEWORK-MIB (RFC2571), SNMP-MPD-MIB (RFC 2572), SNMP-NOTIFICATION-MIB (RFC 2573), SNMP-TARGET-MIB (RFC 2573), SNMPv2-MIB (RFC 1907), SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574), SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575), TCP-MIB (RFC 2012), UDP-MIB (RFC 2013) |
| Design | |
|---|---|
| Electromagnetic compatibility | EN 55024 (CISPR 24), AS/NZS CISPR 24, KN 24, IEC61000-4-2 (Criteria A - Class 2), IEC61000-4-3/ENV50204 (Criteria A), IEC61000-4-4 (Criteria A/Criteria B), IEC61000-4-5 (Criteria B), IEC61000-4-6 (Criteria A), FCC Part 15 Class A, EN 55022 Class A(CISPR22 Class A), ICES-003 Class A, EN 300 386, VCCI Class A, AS/NZS CISPR22 Class A, CNS 13438 Class A, KN 22 Class A CE Marking |
| Safety | UL508, CSA C22.2 No. 142, UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Product colour | Black |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 979280 h |
| Flash memory | 1024 MB |
| Internal memory | 256 MB |
| Memory type | DRAM |
| Power | |
|---|---|
| Power consumption (max) | 15 W |
| Power consumption (typical) | 9.5 W |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4600 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -50 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.22 kg |
| Height | 115 mm |
| Depth | 80 mm |
| Width | 130 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
