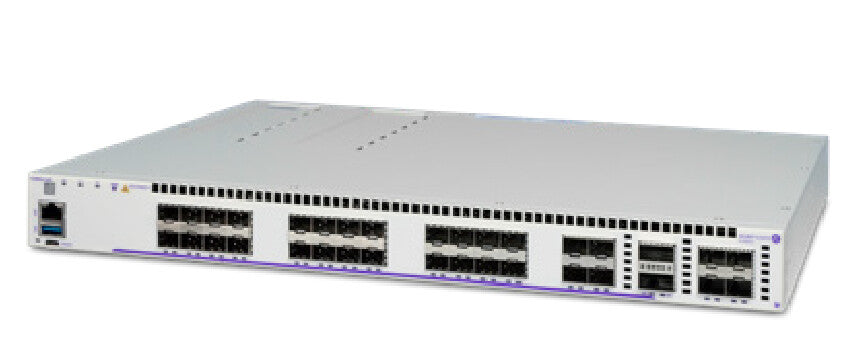

Alcatel-Lucent Enterprise OS6860N-U28-EU network switch L3 1U Grey
Couldn't load pickup availability
- L3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Console port: Micro-USB
- 10G support
- MAC address table: 64000 entries Switching capacity: 728 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC
Alcatel-Lucent OmniSwitch 6860s are high performance and high availability switches that offer unmatched features in terms of quality of service (QoS), mobility, programmability and security for network edge deployments. The OmniSwitch 6860 family enables seamless mobility for users and devices with a high degree of integration between the wired and wireless LAN. The family includes support for next generation wireless LAN standards, Wi-Fi 6 and 802.11ac wave 2 and mix of uplink speeds up to 100G. With best-in-class 95W IEEE 802.3bt compliant support, OmniSwitch 6860 switches are ready for newest PoE and IoT devices, be it the pan-tilt-zoom camera or Wi-Fi 6 access points. The OmniSwitch 6860 family is the first in the industry to offer application monitoring and visibility for network analytics making it ready to meet the evolving business needs of enterprise networks. These switches run on the widely deployed and field-proven Alcatel-Lucent Operating System (AOS) offering programmability, industry leading network automation features and maximum investment protection.
| Management features | |
|---|---|
| MIB support | Y |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP28 ports quantity | 4 |
| Console port | Micro-USB |
| Installed SFP+ modules quantity | 4 |
| Installed SFP modules quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| 10G support | Yes |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 541.7 Mpps |
| Switching capacity | 728 Gbit/s |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 222502 h |
| Flash memory | 16000 MB |
| Internal memory | 4000 MB |
| Power | |
|---|---|
| Power consumption (max) | 141 W |
| Power consumption (typical) | 96 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Heat dissipation | 481.1 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 350 mm |
| Width | 440 mm |
