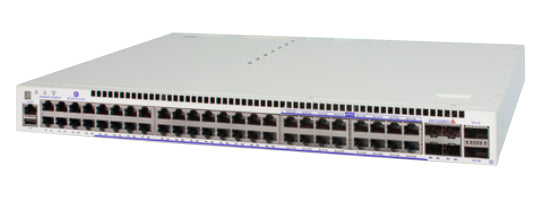

Alcatel-Lucent Enterprise OmniSwitch 6560 Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Stainless steel
£504.99
Couldn't load pickup availability
- 24-port and 48-port, Power over Ethernet (PoE), non-PoE for fixed small form factor pluggable (SFP+) 10-G-ready interfaces
- Support for 10 GigE stacking or 20 GigE stacking
- Support for IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant PoE
- Internal modular AC redundant power supplies
The Alcatel-Lucent OmniSwitch 6560 Stackable Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11 ac devices, 10GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It uses the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed and eco-friendly networks.
| Management features | |
|---|---|
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| QSFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | Stacked VLAN, Tagged VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Static route | Yes |
| Throughput | 226 Mpps |
| Switching capacity | 336 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Stainless steel |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 296000 h |
| Noise level | 55 dB |
| Flash memory | 2000 MB |
| Internal memory | 2048 MB |
| Power | |
|---|---|
| Power consumption (max) | 89 W |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 920 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 303 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.67 kg |
| Height | 44 mm |
| Depth | 350 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
