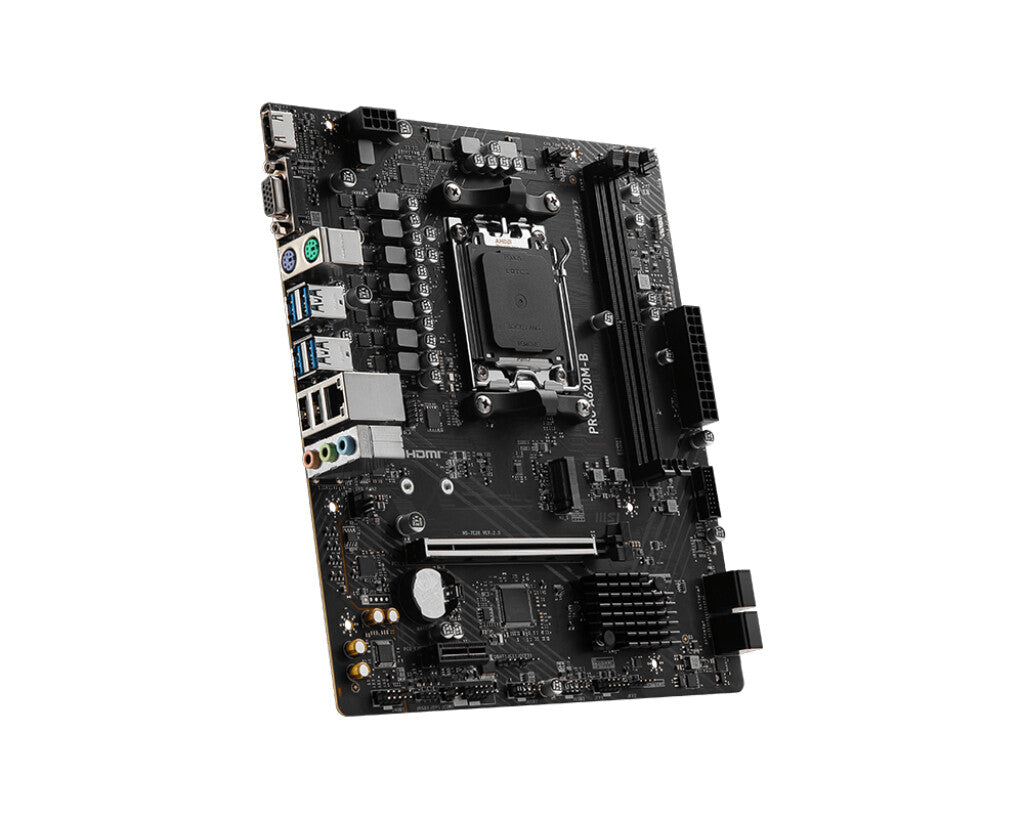

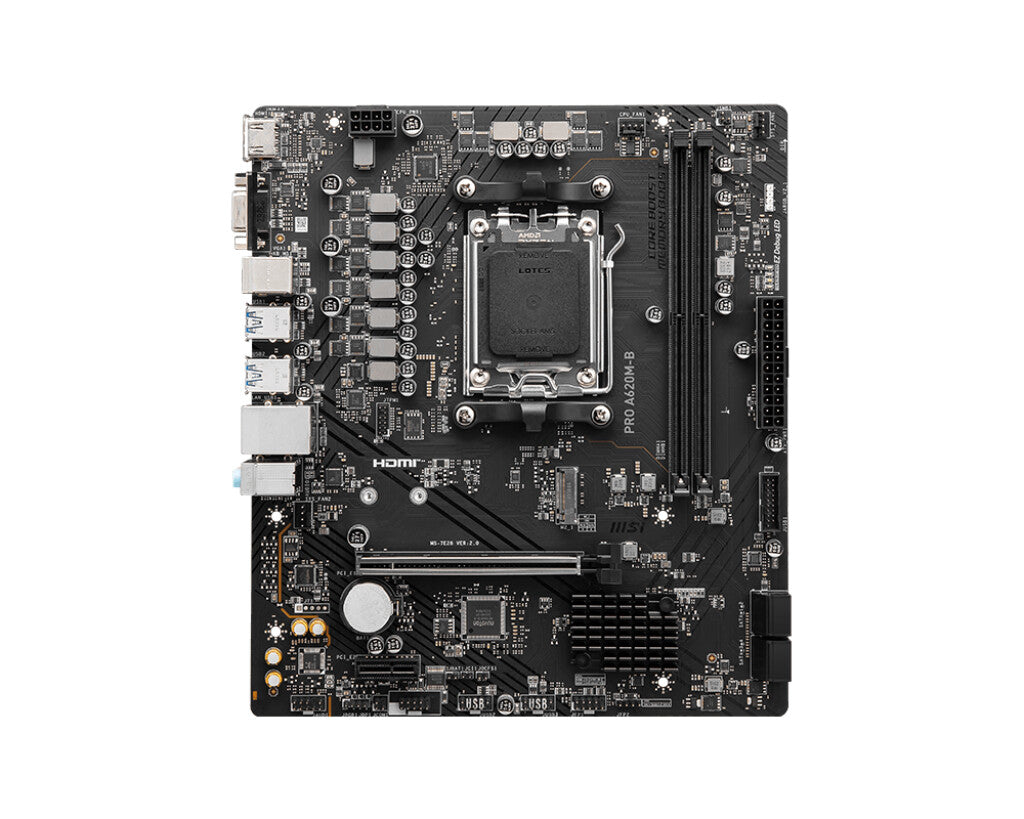

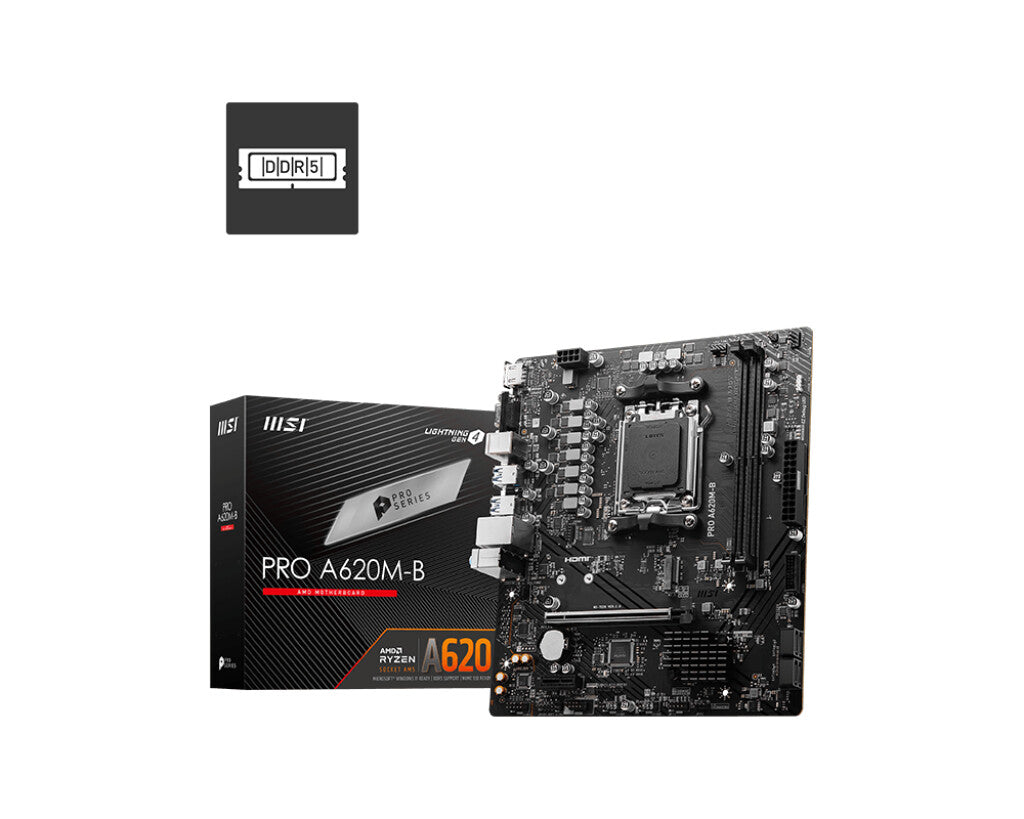

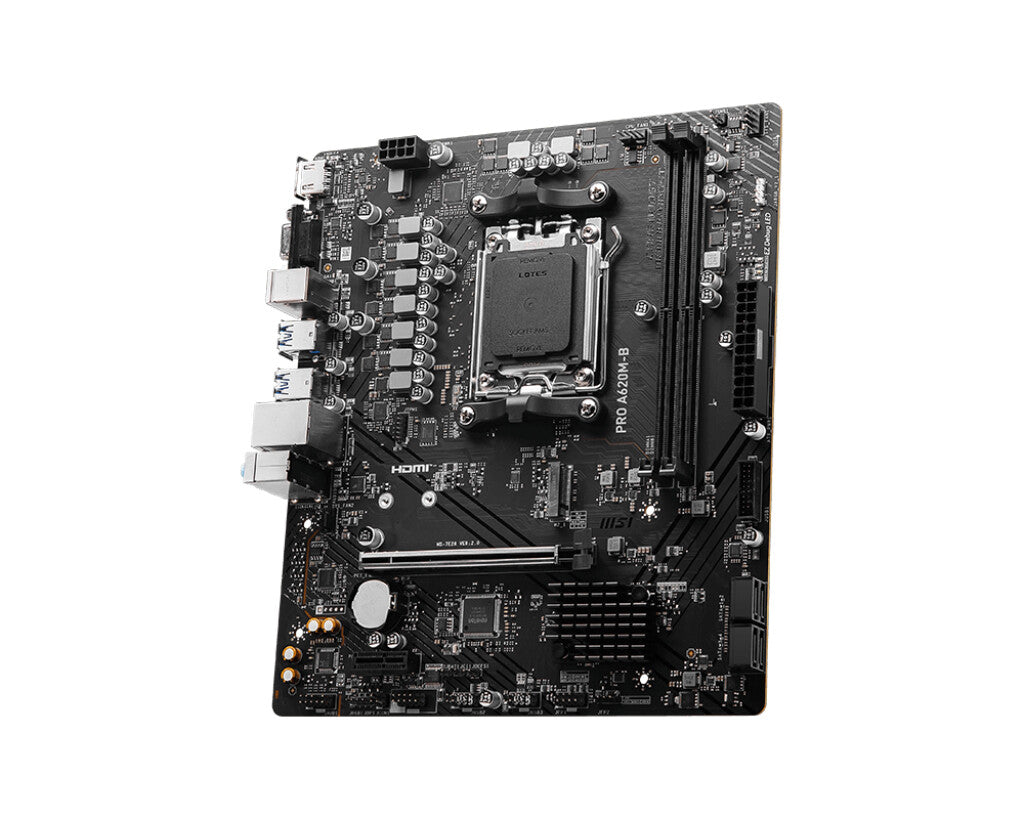

MSI PRO A620M-B motherboard AMD A620 Socket AM5 micro ATX
£79.99
Couldn't load pickup availability
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Supported processor sockets | Socket AM5 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 6800 MHz |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, PCI Express, SATA |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 4 |

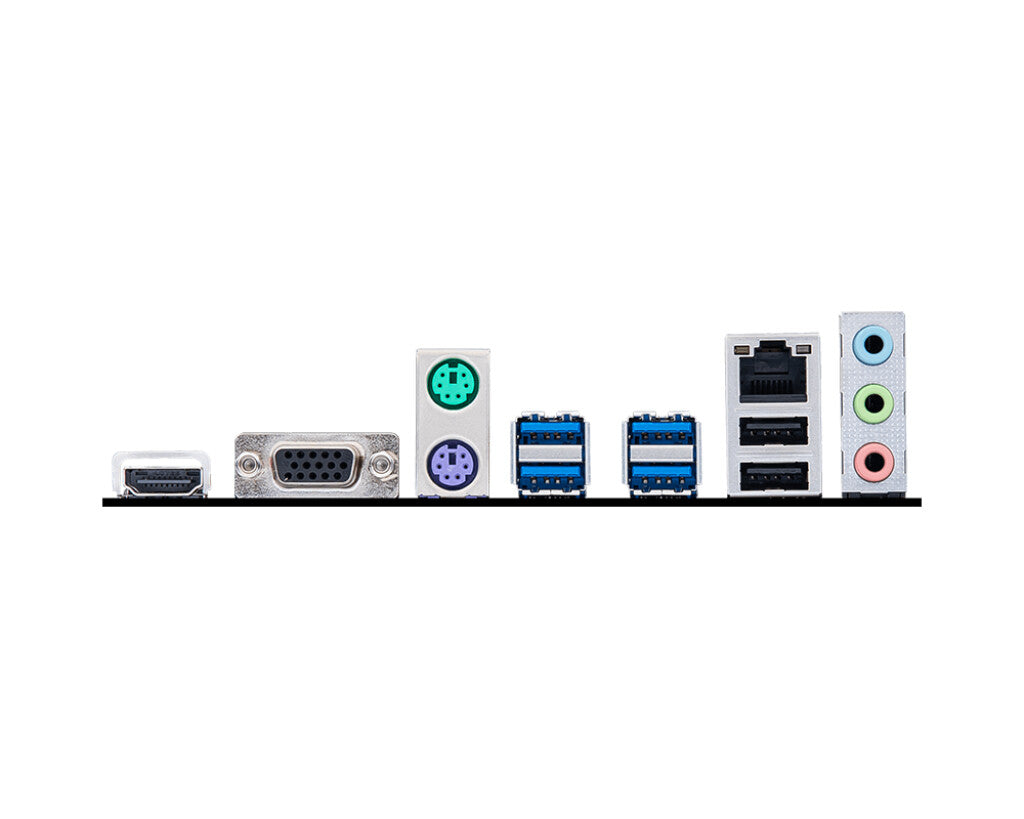

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| COM ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H, Realtek RTL8125-BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Active |
| Power source type | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Weight & dimensions | |
|---|---|
| Depth | 243.8 mm |
| Width | 2115 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
