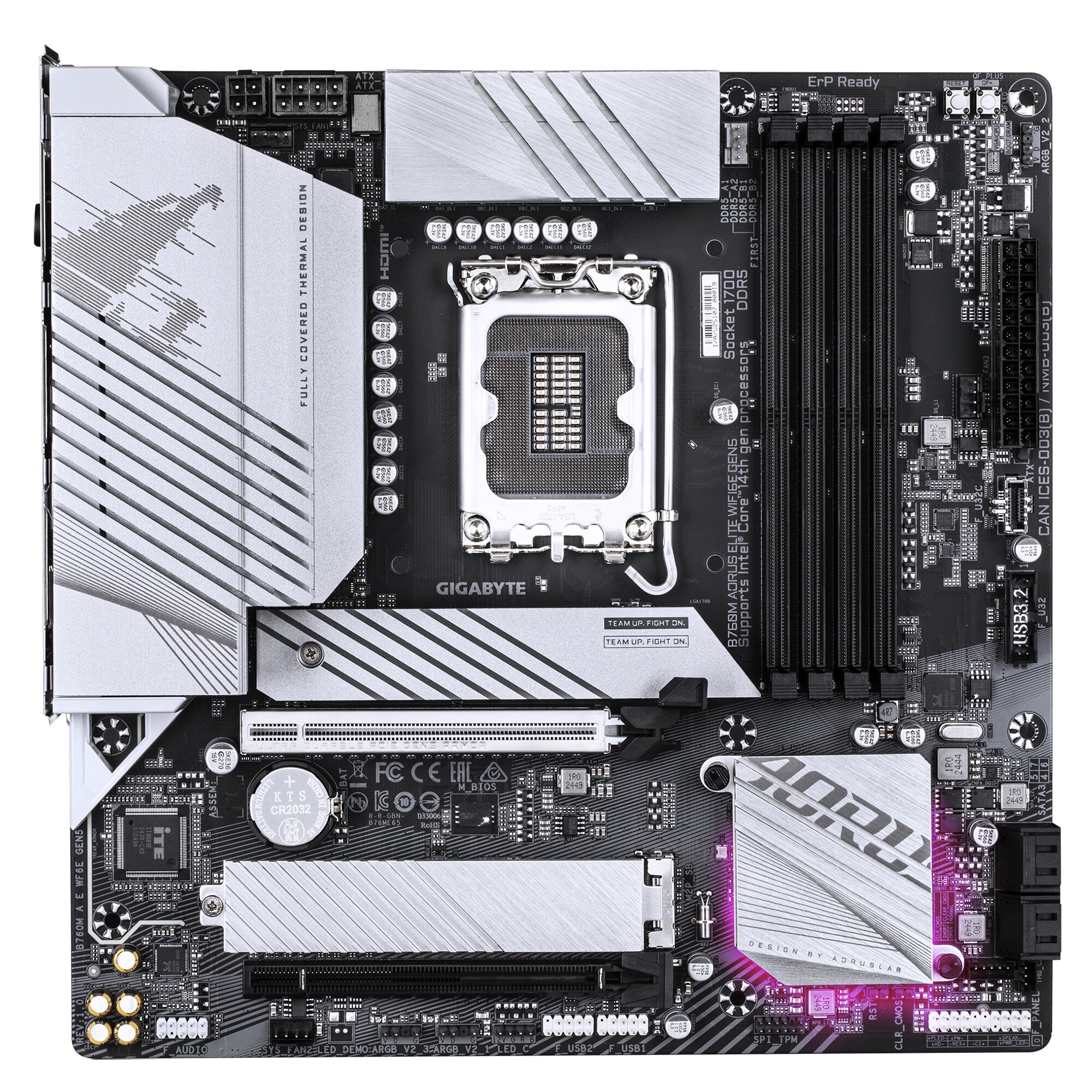

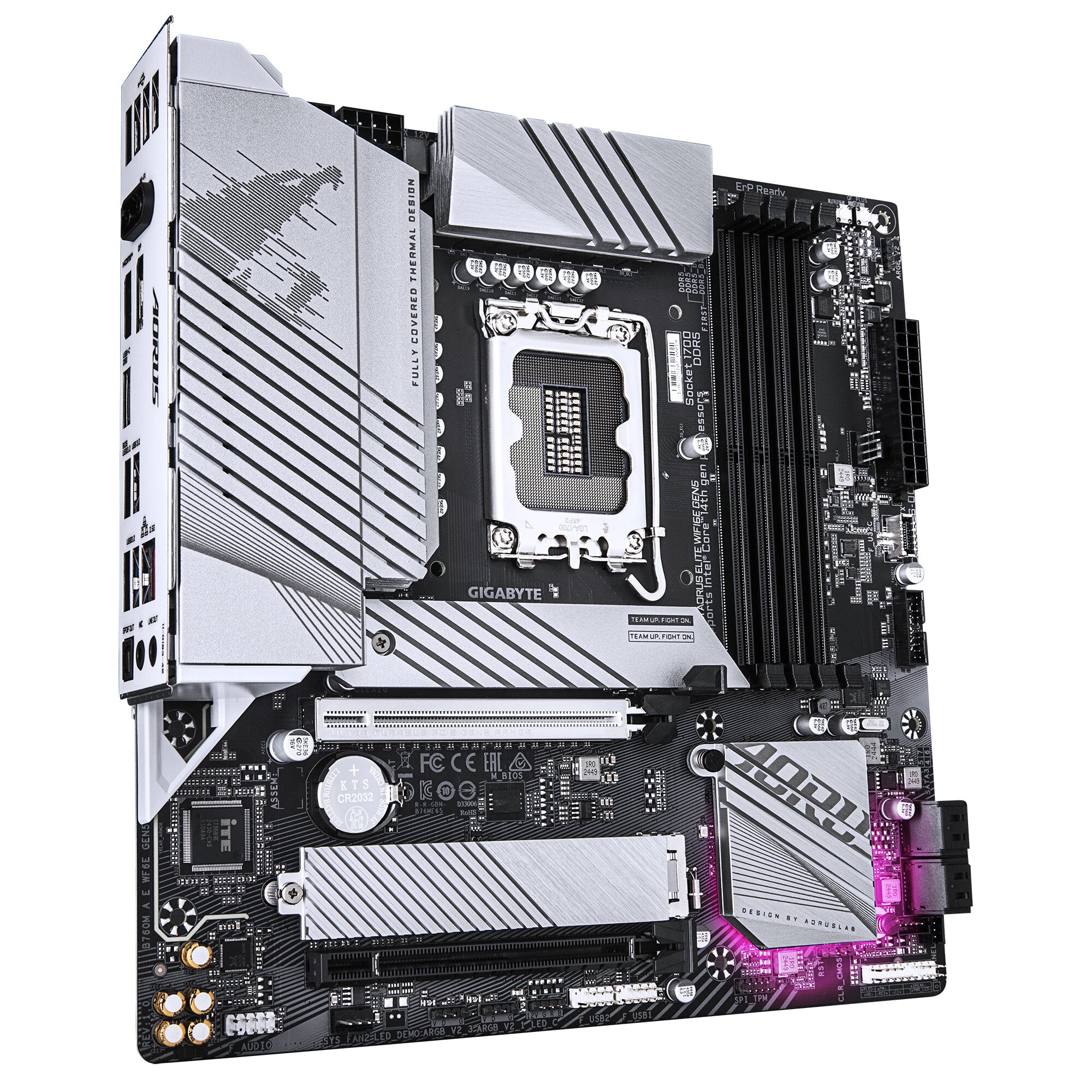

GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2x2
iFrame
£157.99
Couldn't load pickup availability
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel Core 14th/ 13th /12th processors
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance: Twin 12*+1+1 Phases Hybrid VRM Solution
- Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

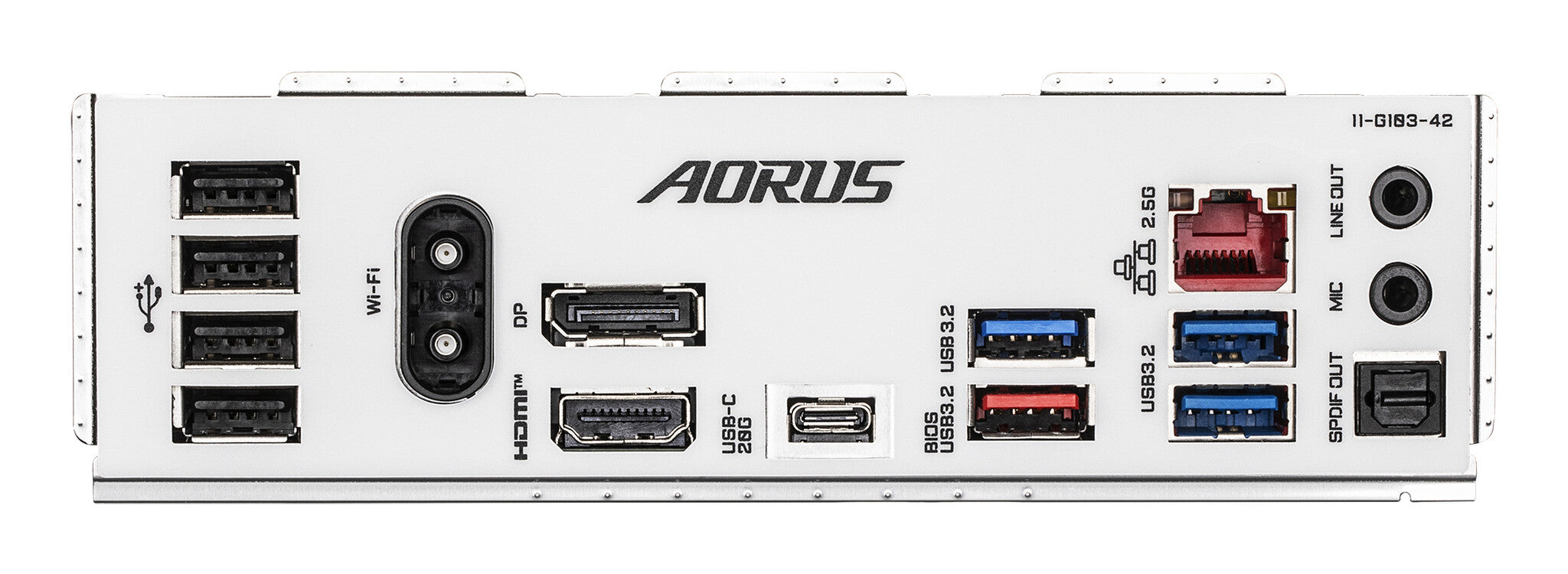

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Digital audio optical out | 1 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Passive |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220-VB |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Packaging data | |
|---|---|
| Package weight | 1.75 kg |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Antenna included | Yes |
| Screws included | Yes |
| Batteries included | Yes |
| Other features | |
|---|---|
| Weight | 1.33 kg |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
