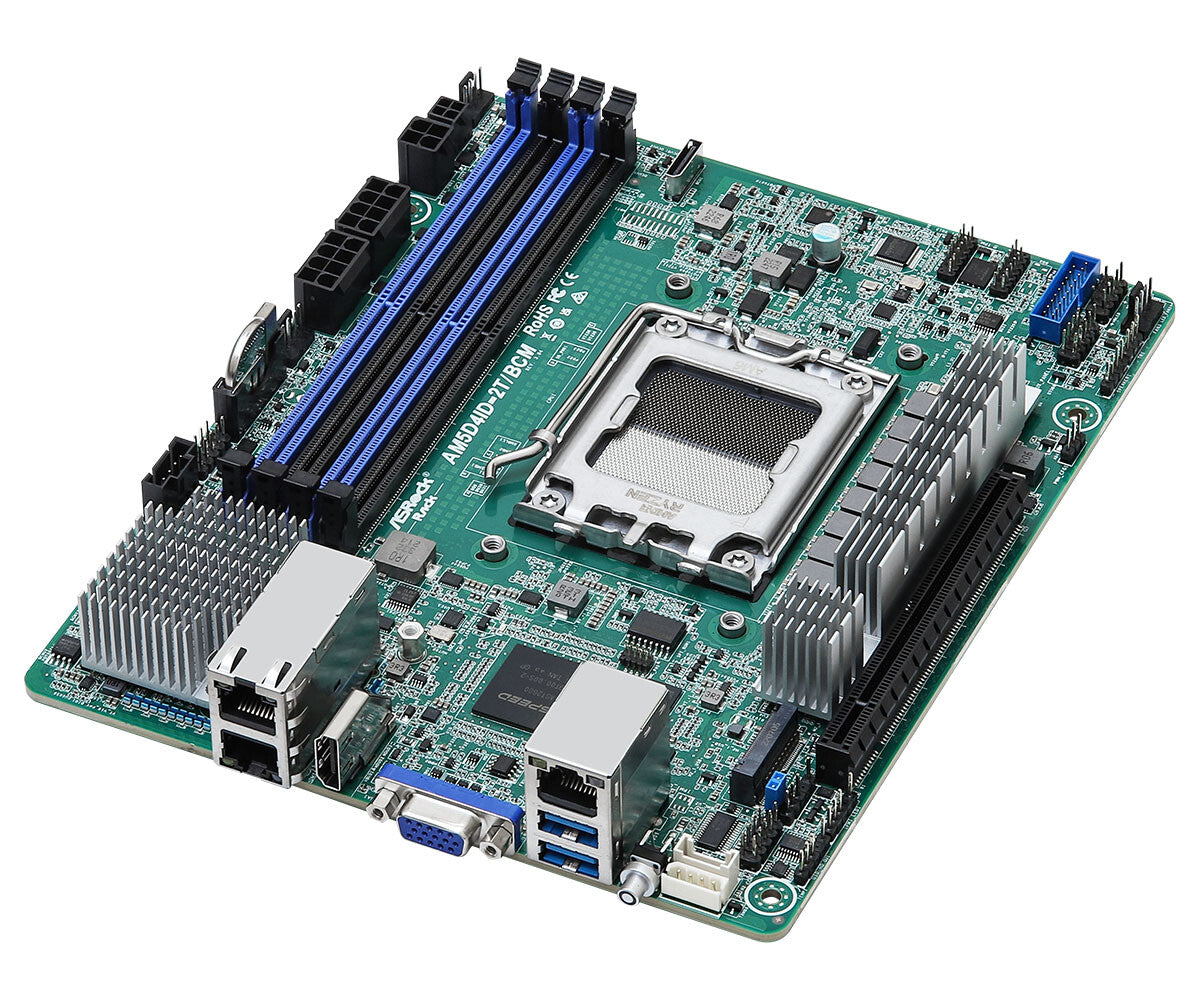

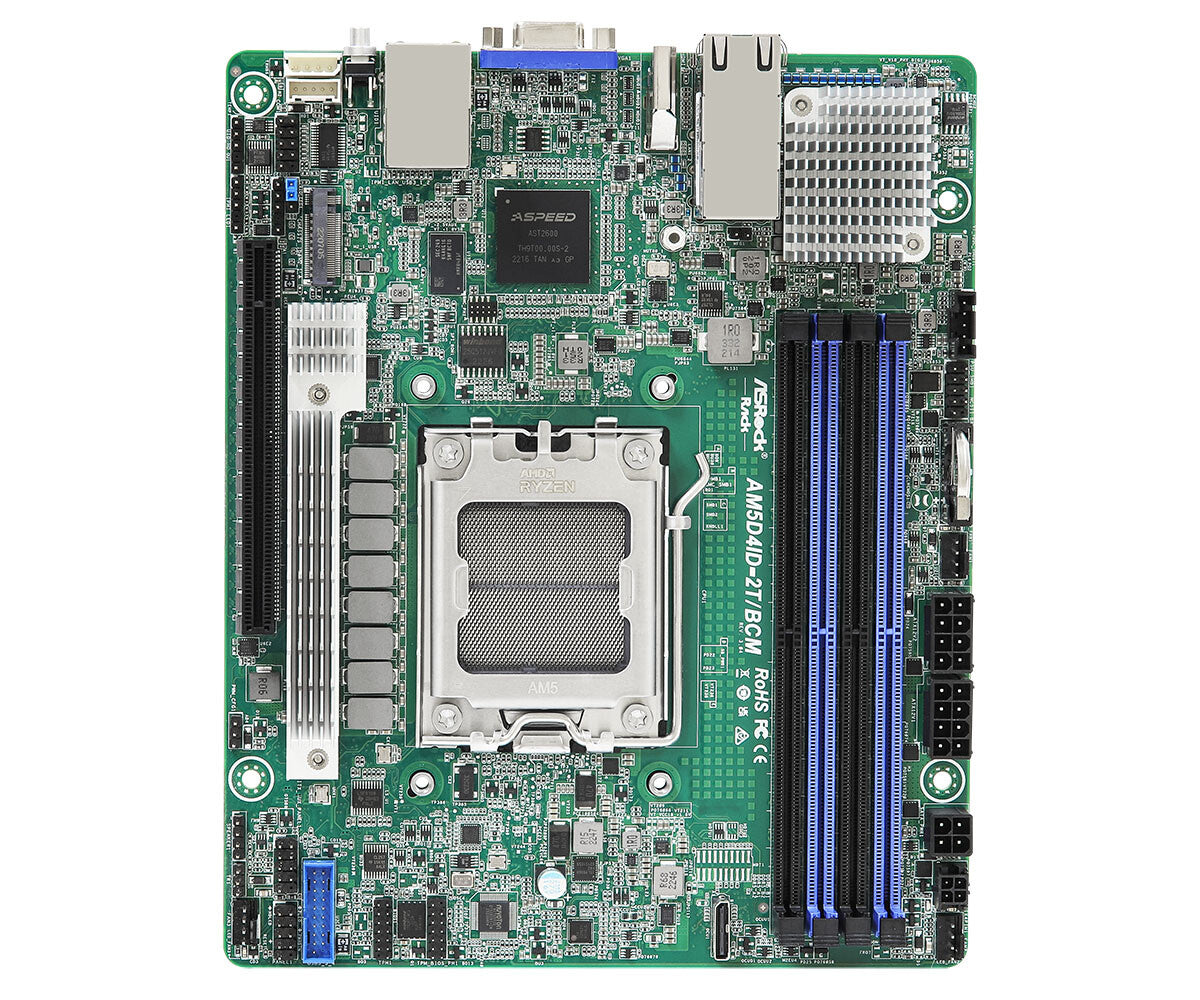

Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX
£505.99
Couldn't load pickup availability
- Deep mini-ITX (6.7"x 8.2")
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x2)
- Supports 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 1 HDMI
- Remote management (IPMI)
AM5D4ID-2T/BCM
- Deep mini-ITX (6.7"x 8.2")
- Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x2)
- Supports 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 1 HDMI
- Remote management (IPMI)
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Supported memory clock speed (max) | 5200 MHz |
| Supported memory clock speeds | 3600,5200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory voltage | 1.1 V |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

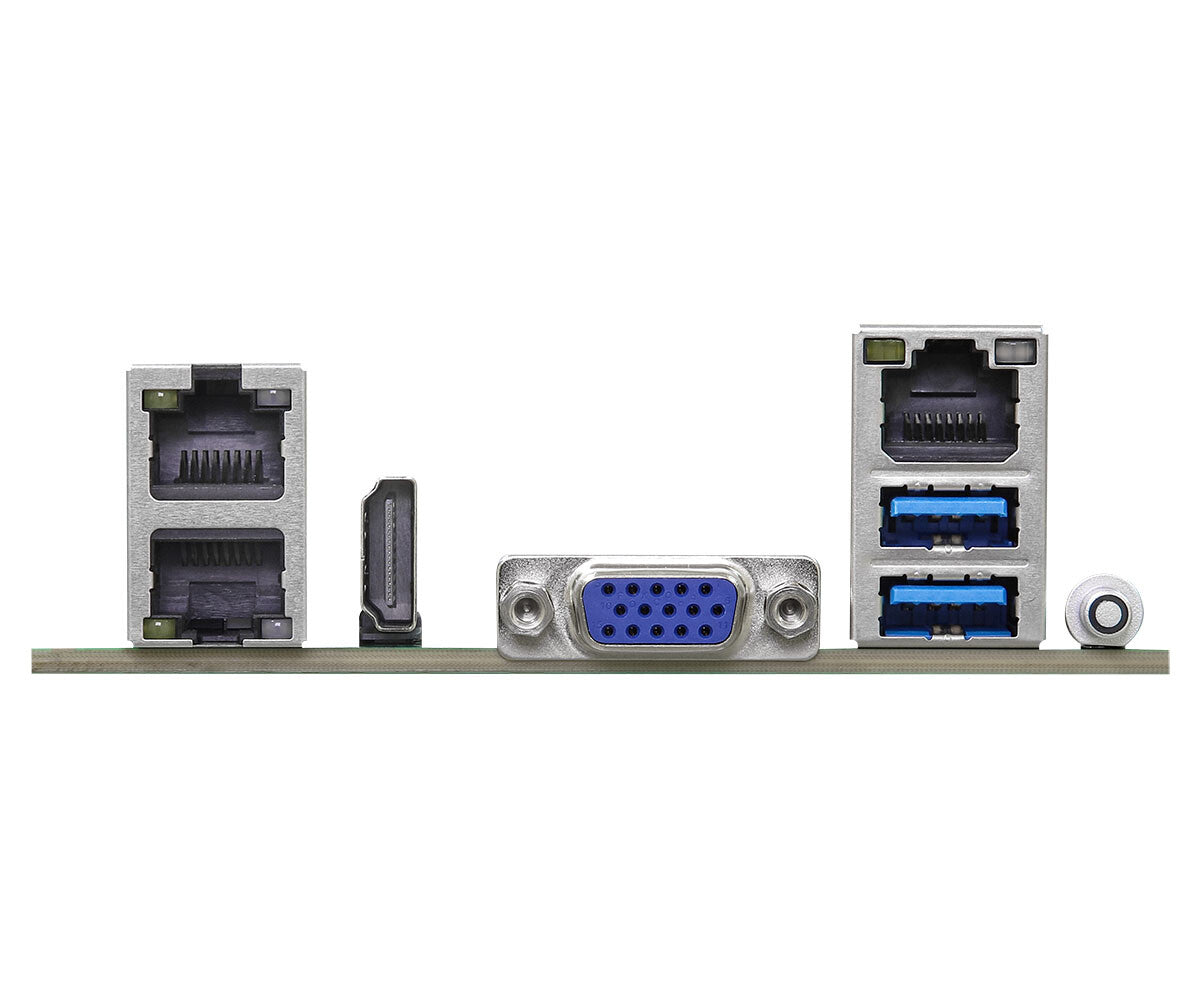

| Rear panel I/O ports | |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Network | |
|---|---|
| LAN controller | Broadcom BCM57416 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Ubuntu 22.04 |
| Motherboard chipset | KNOLL3 X300 |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Component for | Server |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.3 |
| ACPI version | 5.1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Depth | 208.3 mm |
| Width | 170.2 mm |
