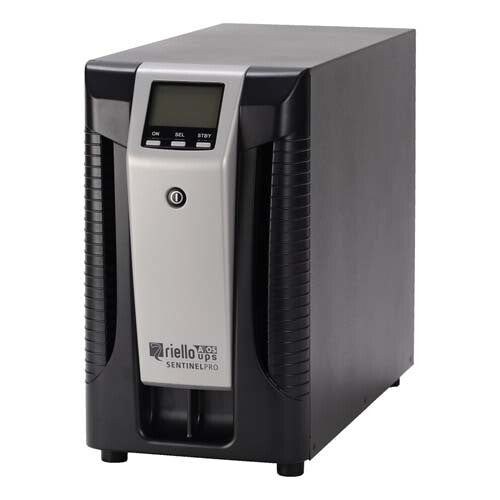

Riello Sentinel Pro 3000 uninterruptible power supply (UPS) 3 kVA 2400 W 9 AC outlet(s)
Couldn't load pickup availability
- 3 kVA 2400 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Mini Tower Black
SENTINEL PRO is the latest evolution of the successful Riello Dialog Plus online UPS. This latest development has been designed with the environment in mind and is part of the Riello ECO Line of UPS.
SENTINEL PRO is an on-line double-conversion UPS offering the highest levels of reliability and protection for critical servers, voice and data processing IT systems.
In terms of communications, each Sentinel Pro has a built-in mimic panel with an LCD to show input and output voltages, and battery charge status. The inverter is a totally new design, fully microprocessor controlled and constructed to achieve the highest levels of operating efficiency and configuration options. SENTINEL PRO UPS also have USB communication ports as standard, with a built-in expansion slot for additional adapters, protocol converters and relate contact cards.
The UPS is highly efficient. SENTINEL PRO is designed to save energy and has a power-off push-button feature to reduce energy consumption to zero, when no load is connected or switched off.
| Features | |
|---|---|
| Auto-restart | Yes |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Noise level | 40 dB |
| EMI/RFI noise filtering | Yes |
| Input current Total Harmonic Distortion (THD) | 7% |
| Crest factor | 3:1 |
| Input power factor | 0.99 |
| Efficiency | 98% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Surge energy rating | 300 J |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 240 V |
| Input operation voltage (min) | 220 V |
| Waveform | Sine |
| Output power | 2400 W |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| AC outlets quantity | 9 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Cold start | Yes |
| Battery recharge time | 4 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Cooling type | Active |
| Product colour | Black |
| Form factor | Mini Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 6000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | EN 620040-2, CE, GS/NEMKO |
| Safety regulation & standards | |
|---|---|
| Safety | EN 62040-1 |
| Weight & dimensions | |
|---|---|
| Weight | 28 kg |
| Height | 333 mm |
| Depth | 446 mm |
| Width | 190 mm |
| Packaging data | |
|---|---|
| Package weight | 31.2 kg |
| Package height | 470 mm |
| Package depth | 585 mm |
| Package width | 325 mm |
