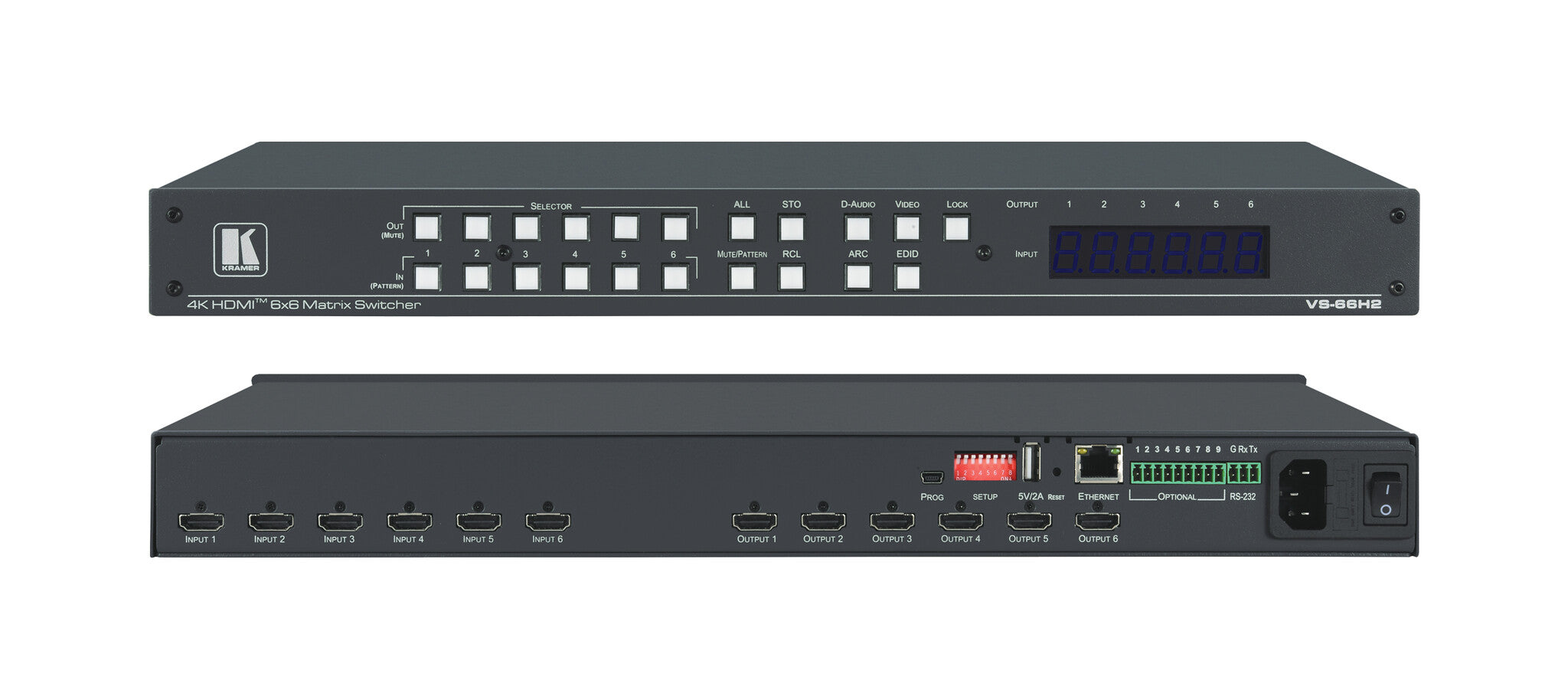

Kramer Electronics VS-66H2 AV matrix switcher Built-in display
£2,716.99
Couldn't load pickup availability
- Resolutions up to 4K60 (4:4:4)
- Independent digital audio routing
- Step–In over HDMI
- Active source detection for priority, last–connected automatic and manual switching
VS−66H2 is a high−performance 6x6 matrix switcher for 4K@60Hz (4:4:4) HDR signals and digital audio routing. It reclocks and equalizes the signals and can route any one of 6 HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−66H2 offers unmatched audio flexibility where any embedded digital audio input can be routed to any digital output in addition to six ARC sources to produce an equivalent 12x12 audio matrix.
| Features | |
|---|---|
| Extended display identification data (EDID) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 3D | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| Product type | AV matrix switcher |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Housing colour | Black |
| Display | |
|---|---|
| Display type | LCD |
| Built-in display | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB connector type | Mini-USB B, USB Type-A |
| HDMI output ports quantity | 6 |
| HDMI input ports quantity | 6 |
| Power | |
|---|---|
| Input current | 0.6 A |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 3.3 kg |
| Package height | 107 mm |
| Package depth | 330 mm |
| Package width | 525 mm |
| Weight | 2.4 kg |
| Height | 43.6 mm |
| Depth | 183 mm |
| Width | 436.4 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
