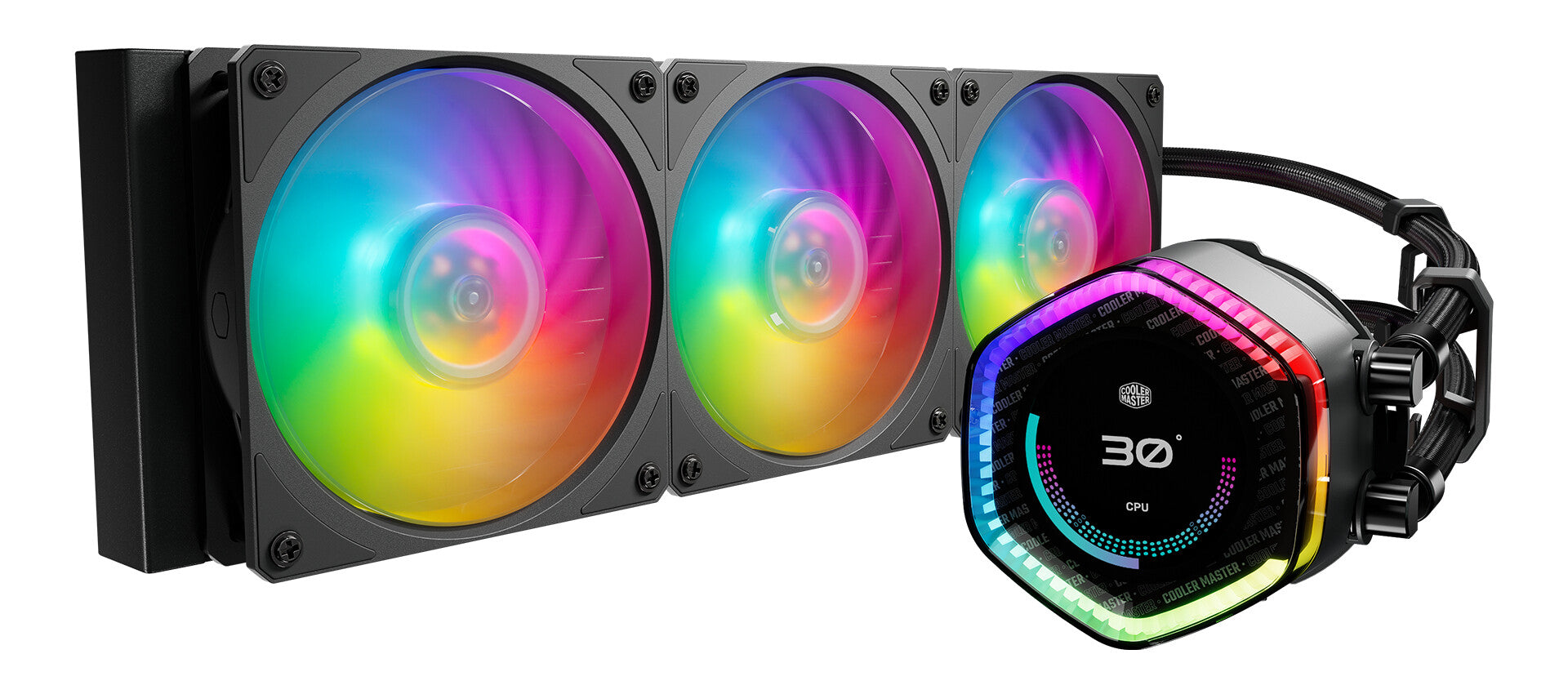

Cooler Master MasterLiquid 360 ION Processor All-in-one liquid cooler 12 cm Black 1 pc(s)

Cooler Master MasterLiquid 360 ION Processor All-in-one liquid cooler 12 cm Black 1 pc(s)

Cooler Master

iFrame
×
£169.99
Stock Available: 3
  • Processor All-in-one liquid cooler 12 cm
  • Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
  • 75.2 cfm 3.63 mmH2O Loop Dynamic Bearing (LDB)
  • Pulse-width modulation (PWM) support
  • 120 x 120 x 25 mm
  • Black
  • 1 pc(s)

Experience Cooling in High Definition

Cooler Master's latest flagship performance cooler, the MasterLiquid 360 Ion, is our first liquid cooler to feature an LCD display. The MasterLiquid 360 Ion gives you total display customization with top-tier cooling specs.

Gen X Dual Chamber Design

Our signature dual chamber pump has been refined for enhanced cooling synergy. Our impeller uses a single-piece design with improved structural strength and stability. The graphite ceramic shaft is highly sturdy and temperature resistant.

2.1-inch LCD Screen

The Ion's pump features a 2.1-inch LCD screen, fully customizable with our MasterCtrl software. Meanwhile, Our ARGB halo lighting has been designed with the Cooler Master's signature aesthetic in mind.

Highly Customizable and Compatible

Built-in features such as controllable ARGB lighting and automatic PWM adjustment are compatible with all major motherboards and allow for in-depth customization.

Mobius 120P ARGB fans

Pre-installed with three Mobius 120P ARGB fans for unmatched cooling performance. The interconnecting fan blades have been designed with a balanced P/Q curve suitable for both air and liquid cooling.

IN-HOUSE DESIGNED RADIATOR

A low-profile radiator with superior fin density and high-performance fans rapidly dissipates heat.

TUBE CLIPS INCLUDED

Included tube clips made to fit the AIO tube not only improve and strengthen your cooling setup, but they can also help with cable management.

ECO-FRIENDLY PACKAGING WITH ENHANCED PROTECTION

Building off the modular packaging of our Atmos cooler, the Ion's packaging features 30% reduced volume and an optimized internal cushioning structure.

USING EPDM + IIR COMPOSITE MATERIALS

Our AIO cooler uses ERPDM and IIR composite materials to lower the evapotranspiration rate and water flow resistance, at the same time, improve the air tightness and bendability

Performance
Fan's mean time to failure (MTTF) 200000 h
Pump's mean time to failure (MTTF) 210000 h
Fan speed (max) 2400 RPM
Fan speed (min) 0 RPM
Quantity per pack 1 pc(s)
Pump connector 4-pin
Pump noise level 20 dB
Fan noise level (max) 30 dB
Bearing type Loop Dynamic Bearing (LDB)
Pulse-width modulation (PWM) support Yes
Maximum air pressure 3.63 mmH2O
Airflow 107.1 m³/h
Maximum airflow 75.2 cfm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Fan diameter 12 cm
Type All-in-one liquid cooler
Suitable location Processor
Design
Fan connector 4-pin
Illumination colour Multi
Illumination LED Yes
Number of fans 3 fan(s)
Radiator material Aluminum
Product colour Black
Power
Safety current 0.35 Ah
Pump voltage 12 V
Fan voltage 12 V
Fan current 0.18 A
Pump power consumption 6.75 W
Rated voltage 12 V
Weight & dimensions
Package weight 3.12 kg
Package height 136 mm
Package depth 410 mm
Package width 211 mm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Weight 2 kg
Pump height 6.57 cm
Pump depth 8.83 cm
Pump width 8.36 cm
Radiator height 2.72 cm
Radiator depth 39.4 cm
Radiator width 12 cm
General
Product family MasterLiquid
Other features
Country of origin China
Logistics data
Products per master (outer) case 4 pc(s)
Master (outer) case height 300 mm
Master (outer) case length 430 mm
Master (outer) case width 430 mm
