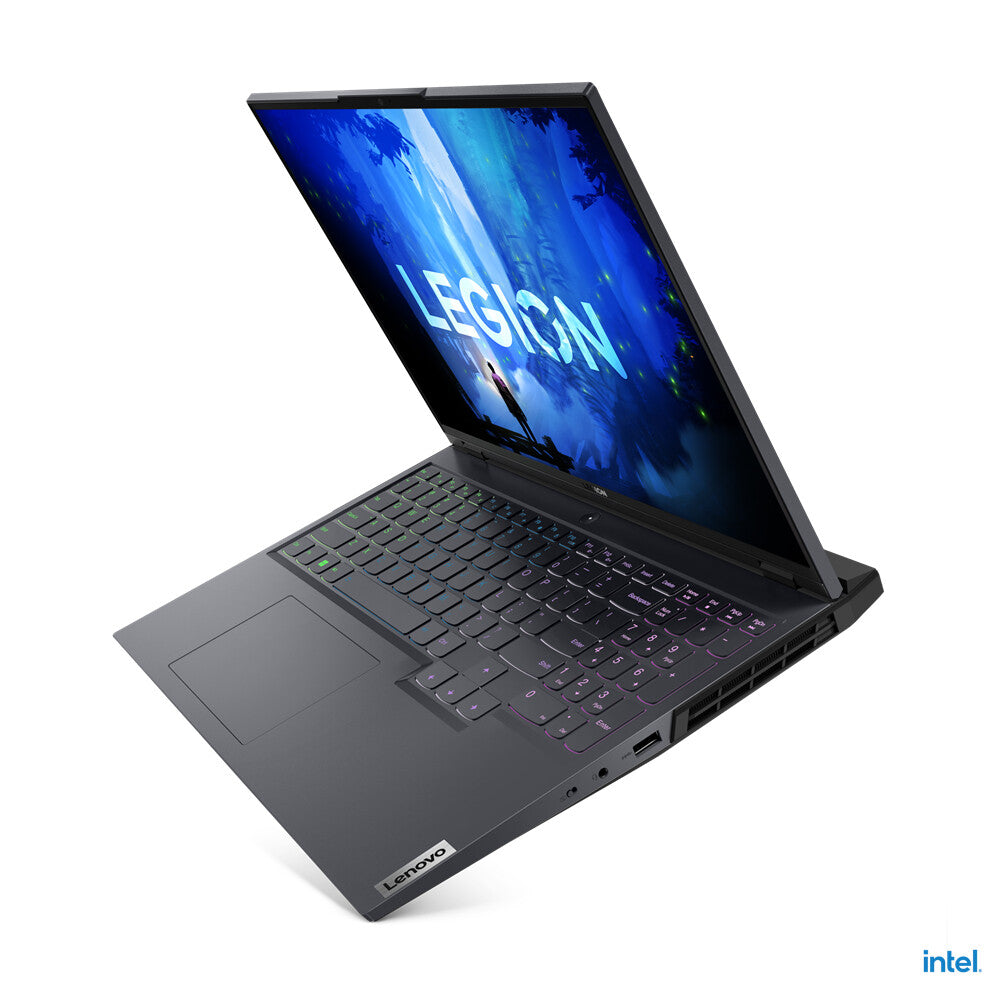

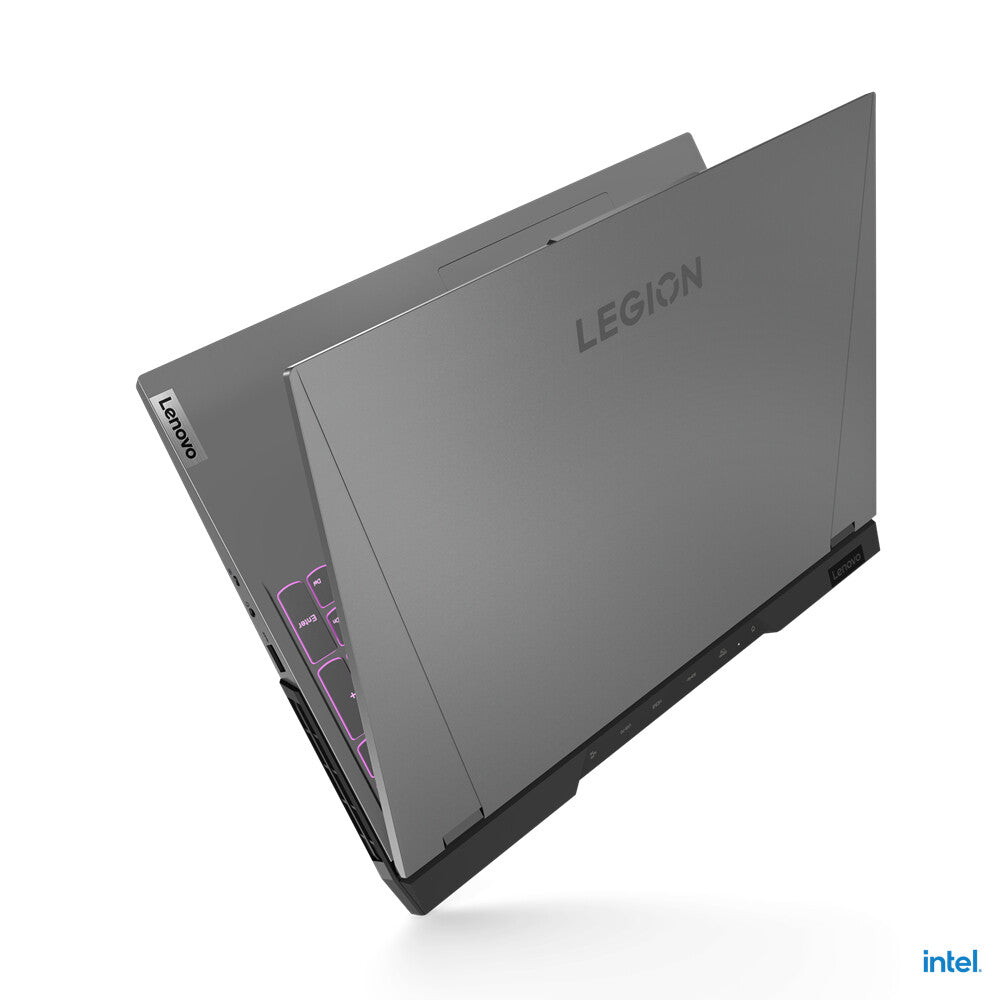

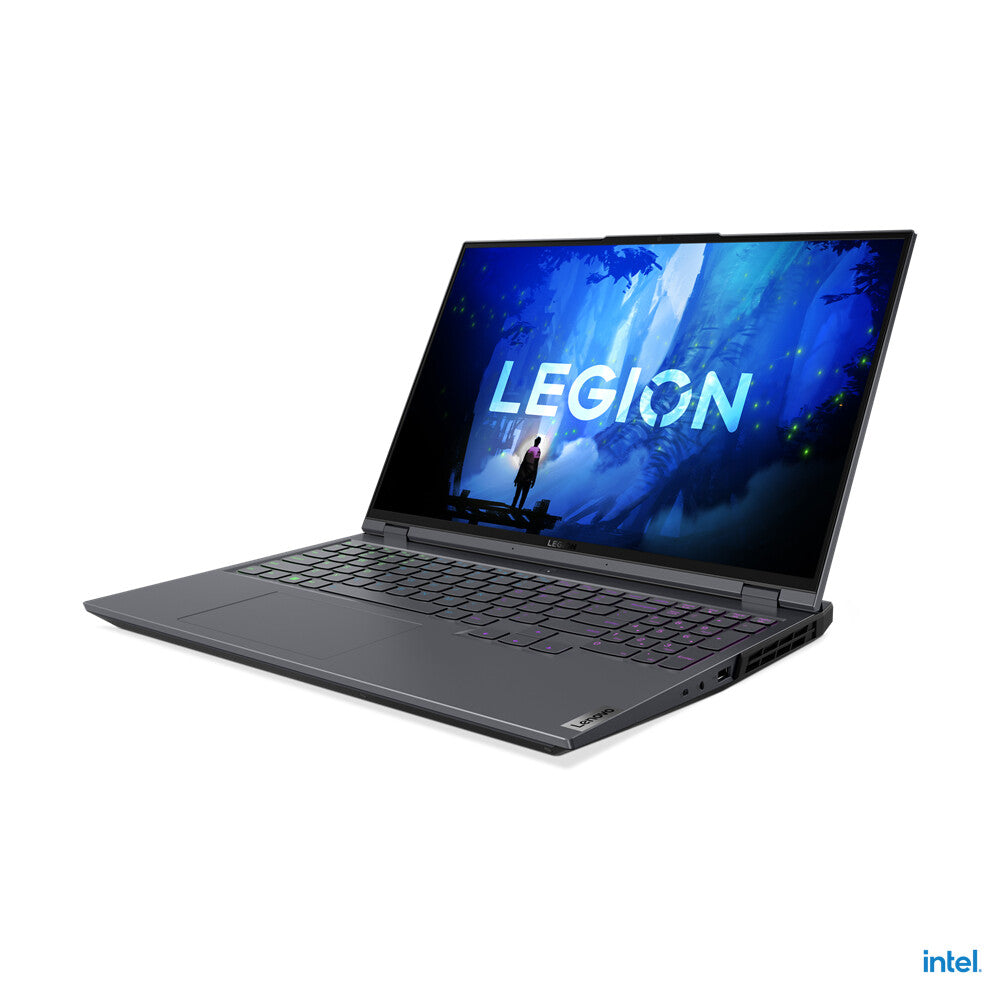

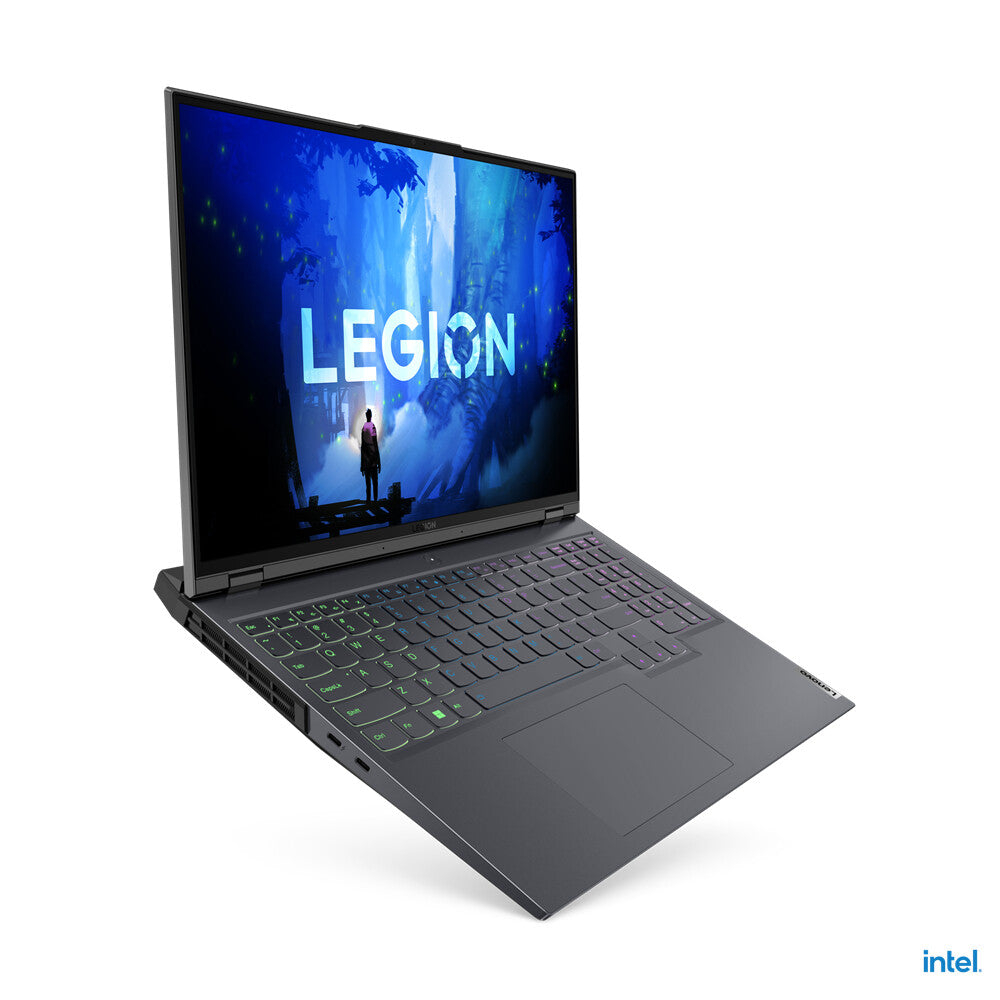

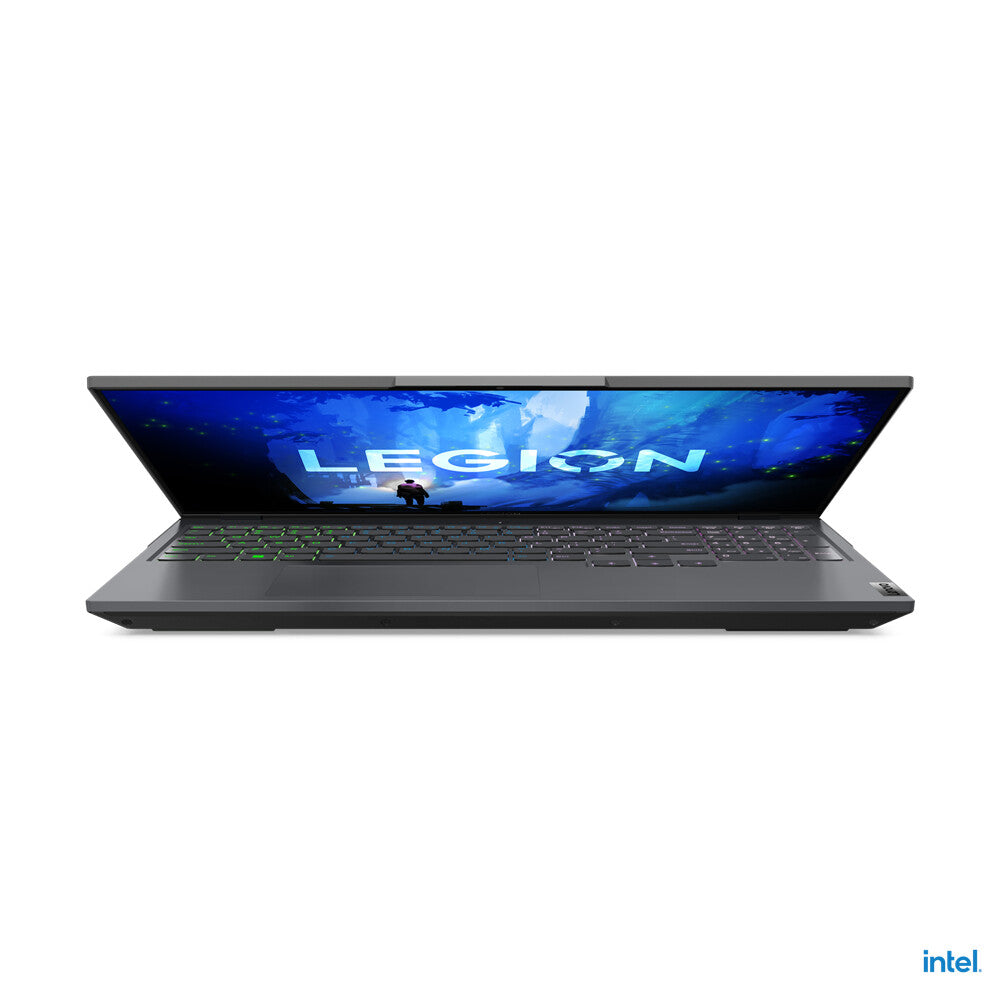

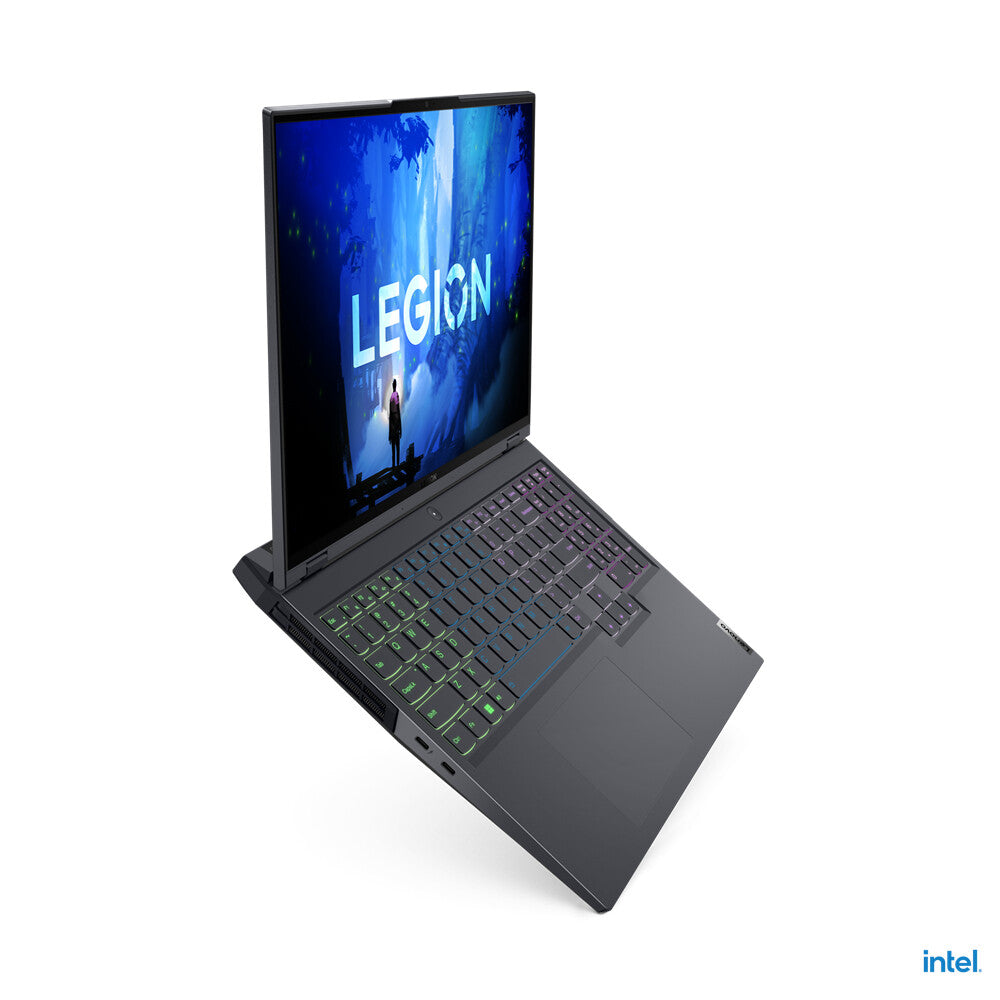

Lenovo Legion 5 Pro 16IAH7H Intel® Core™ i7 i7-12700H Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6 (802.11ax) Windows 11 Home UK English Grey
£1,671.99
Couldn't load pickup availability
- Intel Core i7-12700H, 14C (6P + 8E)/20T, P-core 2.3/4.7GHz, E-core 1.7/3.5GHz, 24MB
- 2x 8GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 3070 8GB , Boost Clock 1620MHz, TGP 150W
- Windows 11 Home
Bigger, better, & born to conquer
Decimate the competition with up to 12th Gen Intel® Core™ processors, the latest NVIDIA® GeForce RTX™ graphics, and the awesome Legion AI Engine, auto-detecting and auto-optimizing your in-game performance. Vanquish all your foes in stunning, precise WQHD+. And with a sleek Storm Gray or Glacier White chassis, the only other decision you’ll need to make is your trophy’s colour.
| Design | |
|---|---|
| Market positioning | Gaming |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Storm Grey |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, DisplayHDR 400 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:10 |
| LED backlight | Yes |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Efficient-core boost frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 14 |
| Processor model | i7-12700H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Performance | |
|---|---|
| Motherboard chipset | Intel SoC |
| Keyboard | |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | Office |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery life (max) | 6.55 h |
| Battery capacity | 80 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| DC-in jack | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 300 W |
| Security | |
|---|---|
| Password protection type | HDD, Power on, Supervisor |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | No |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 19.9 mm |
| Depth | 264.4 mm |
| Width | 359.9 mm |
| Weight | 2.49 kg |
| General | |
|---|---|
| Product family | Legion |
| Product series | Pro 5 |
