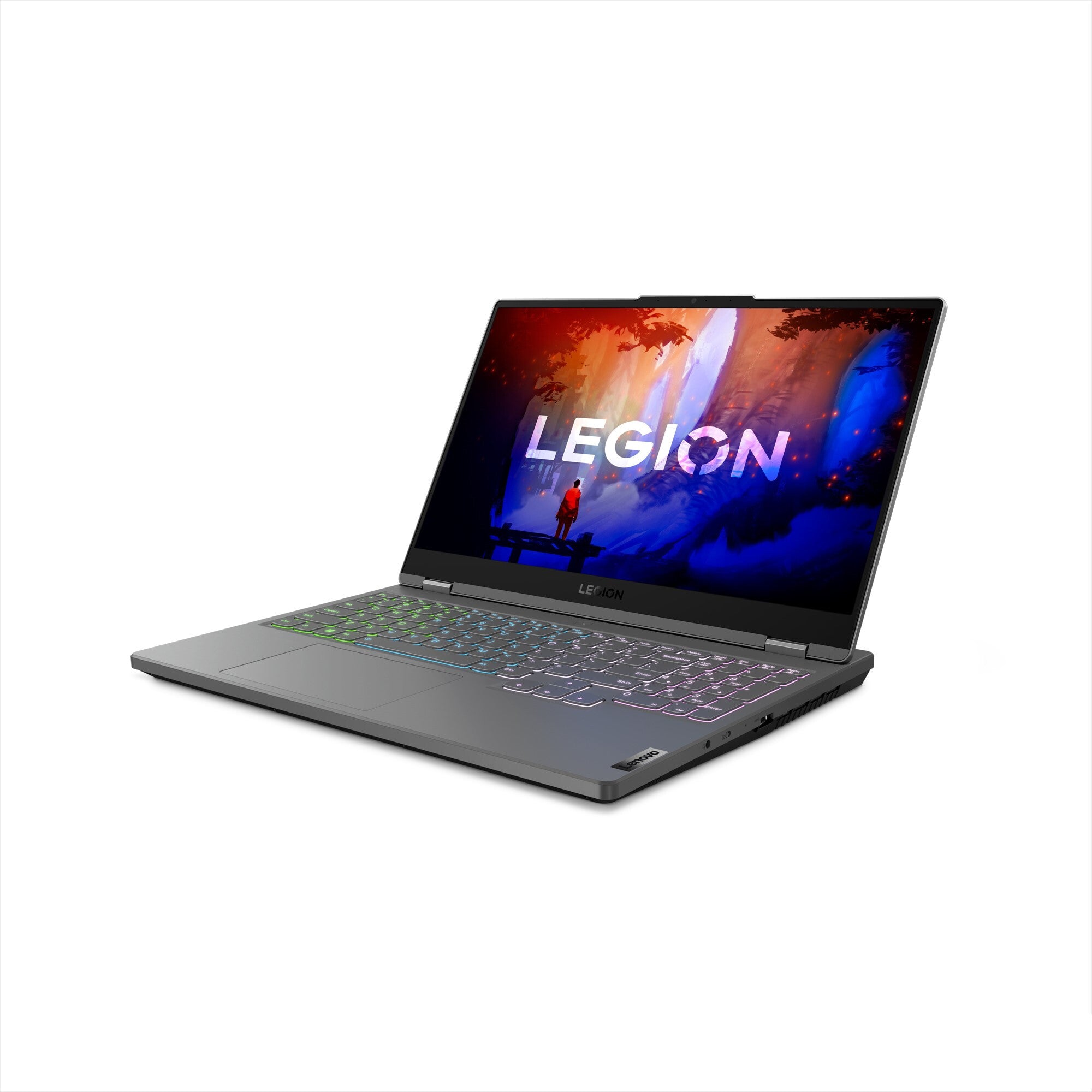

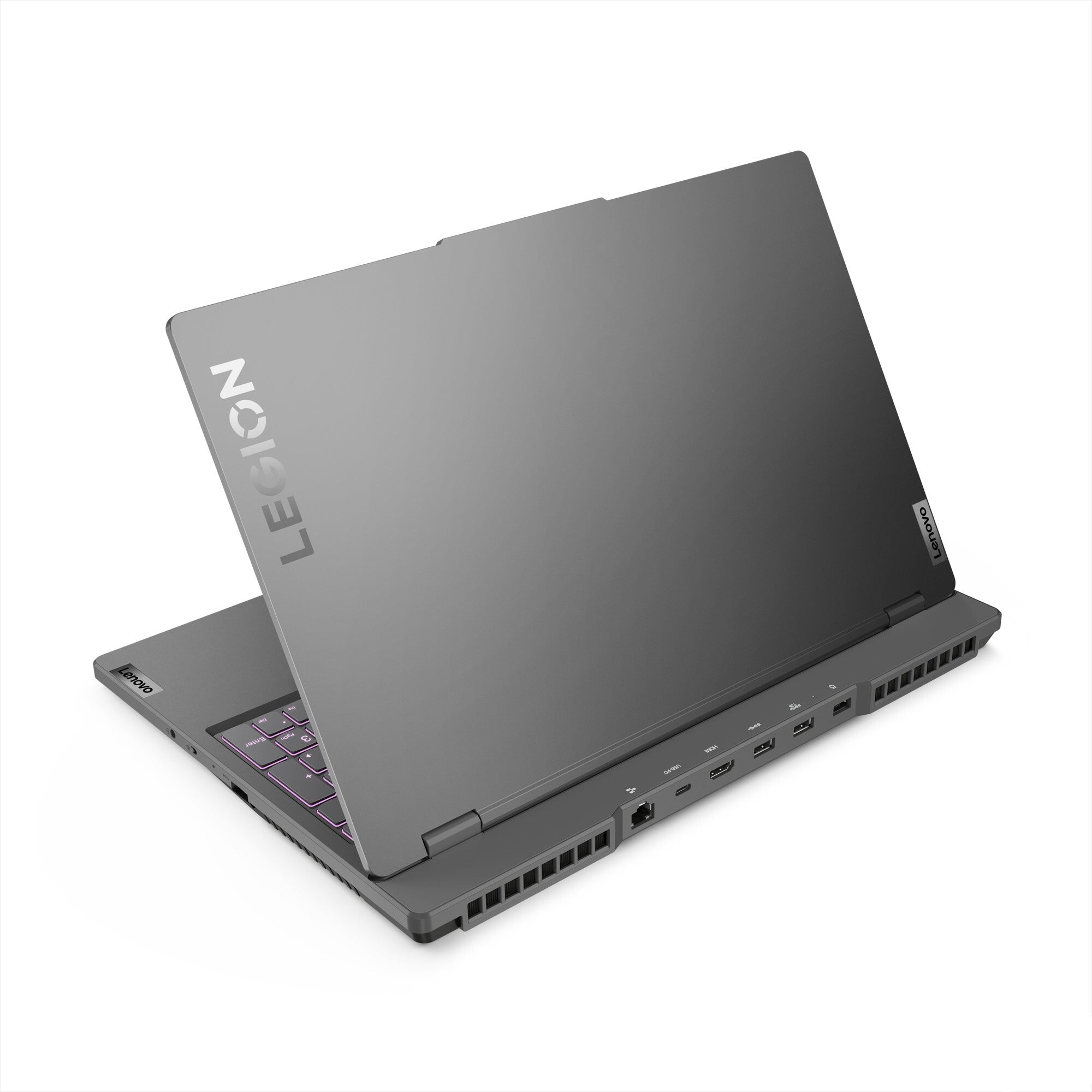

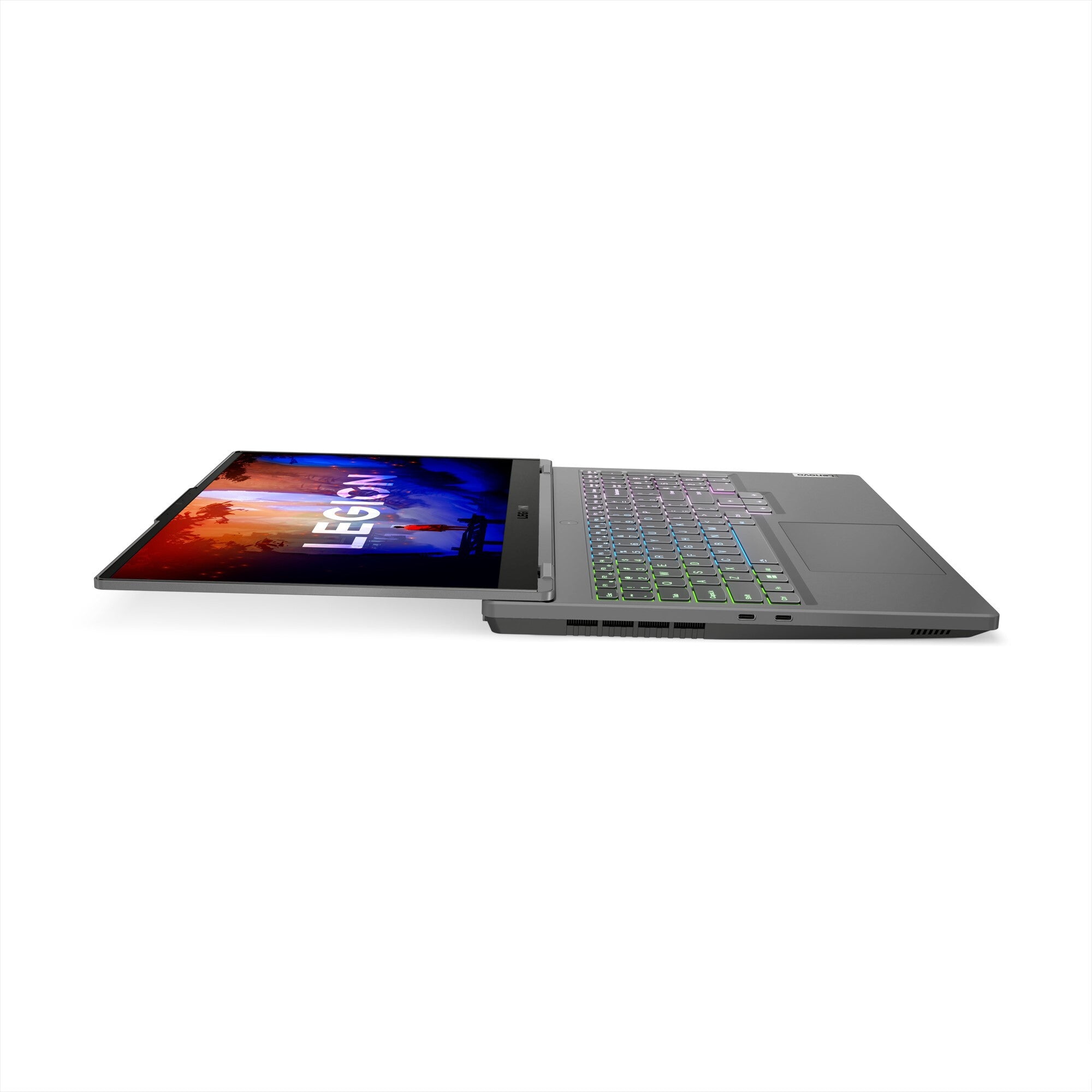

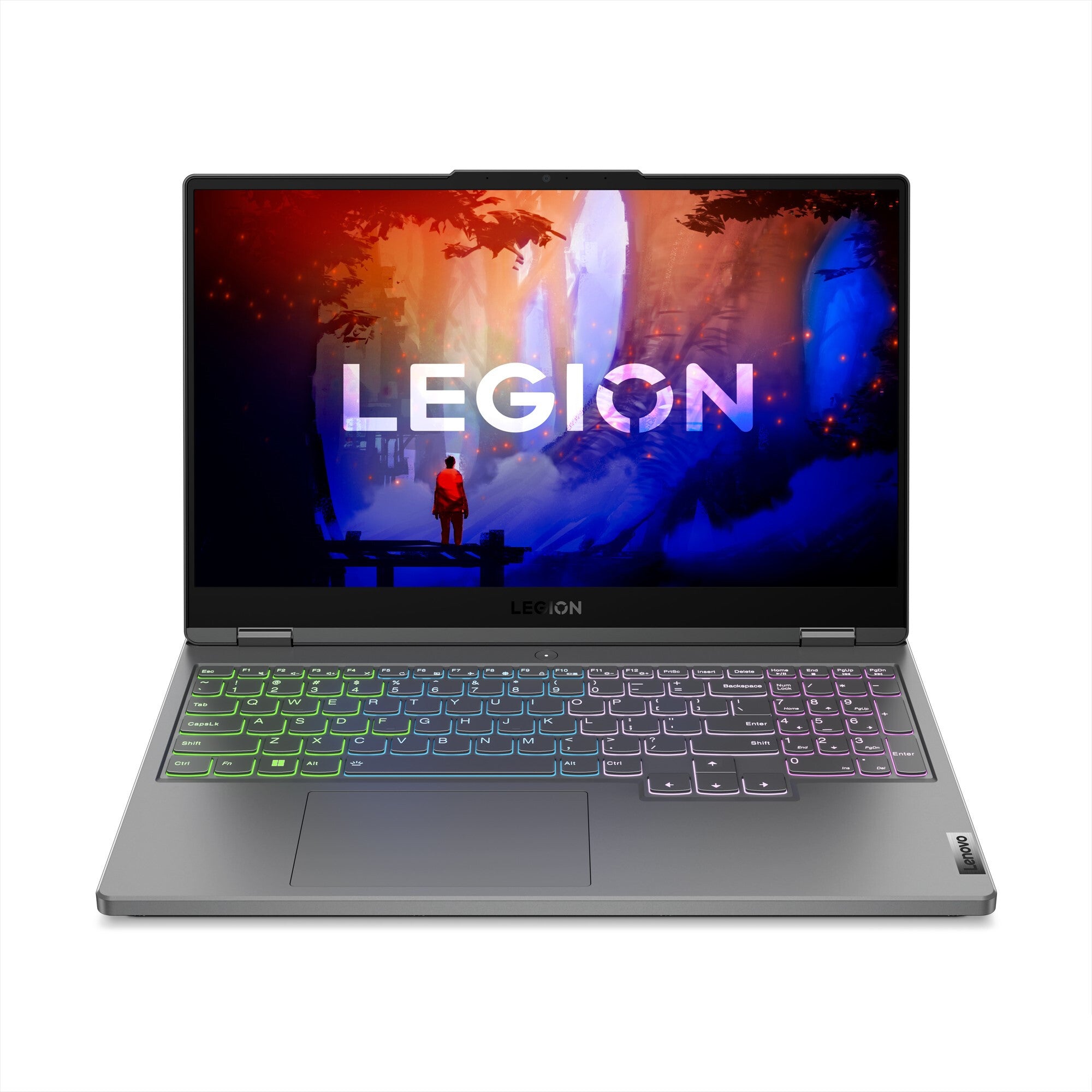

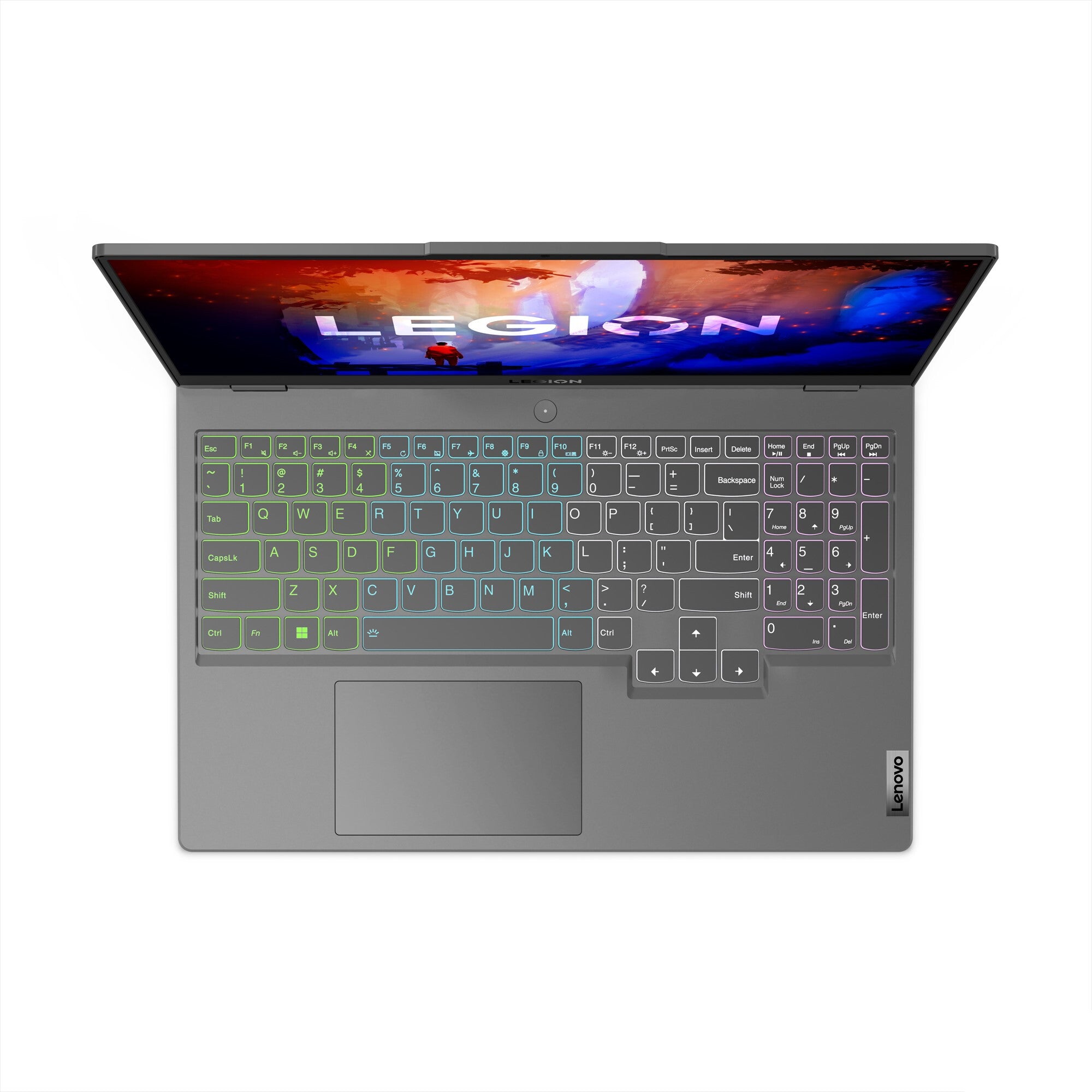

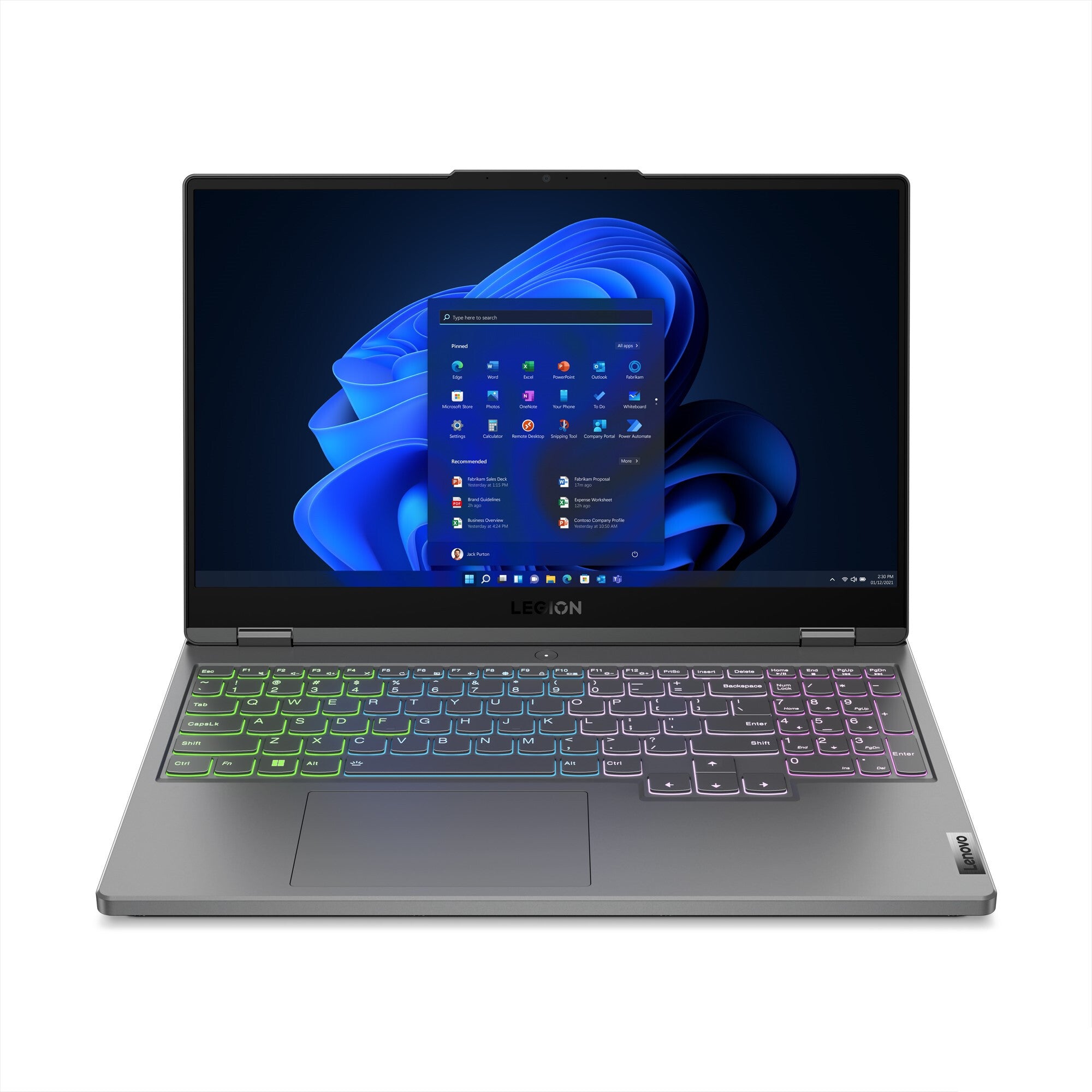

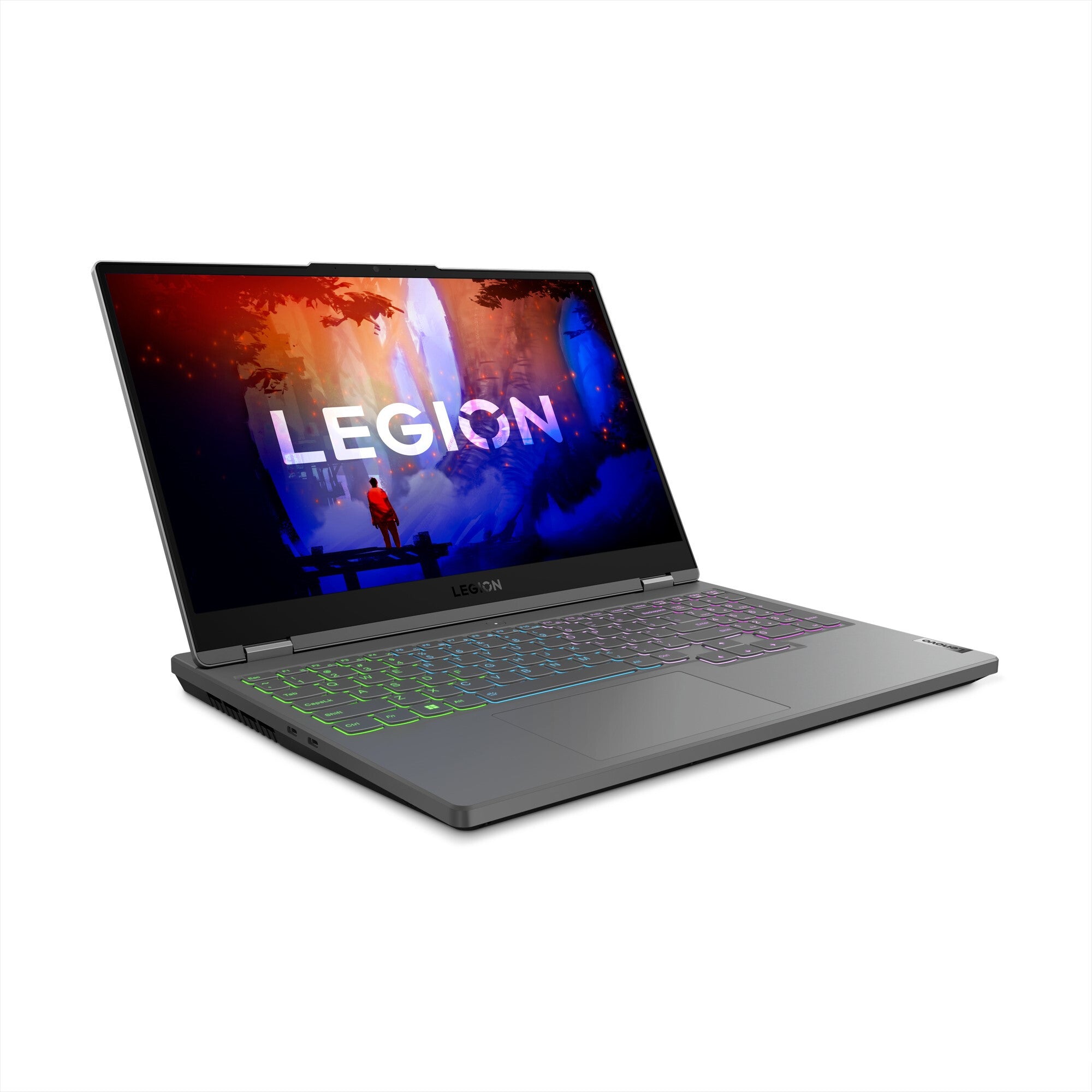

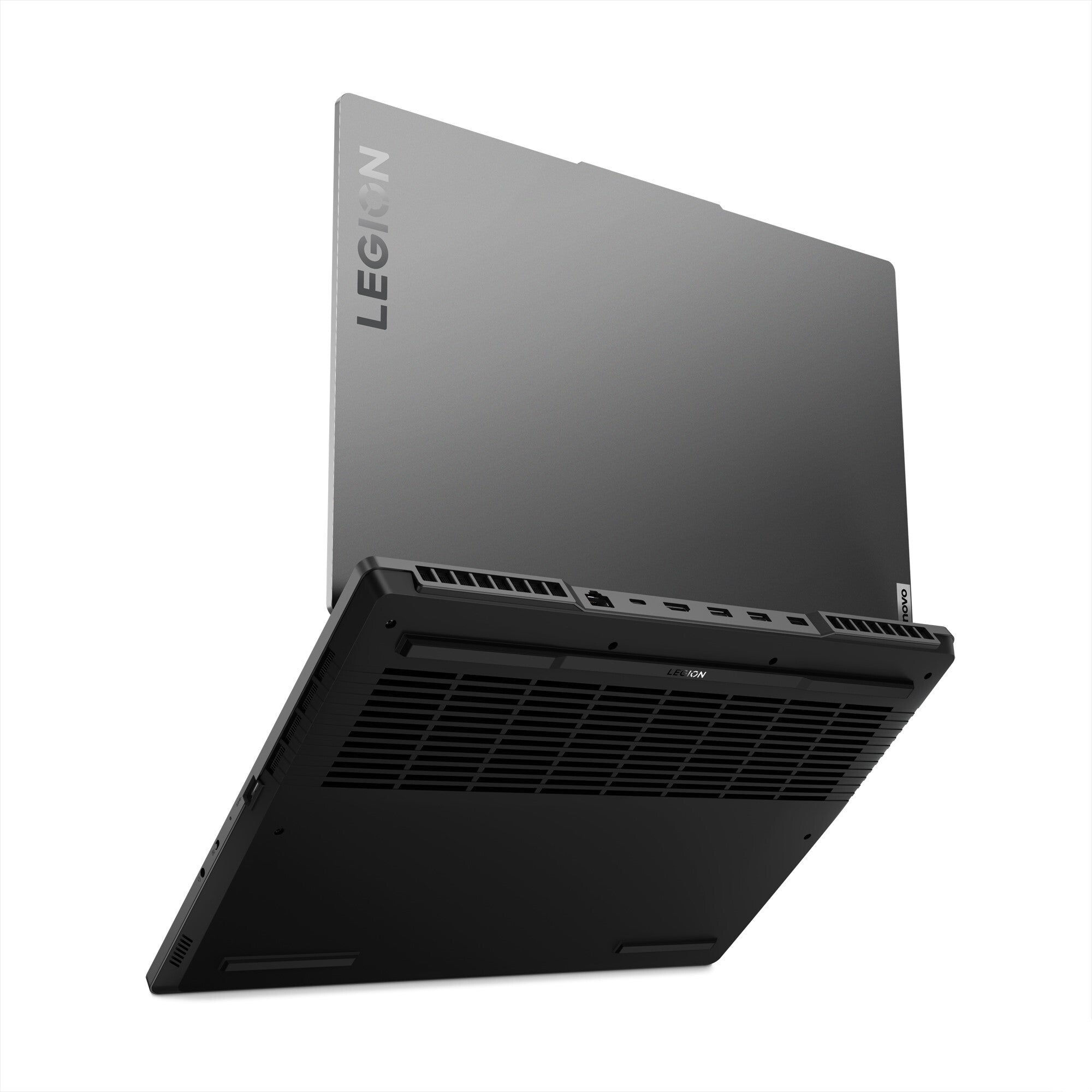

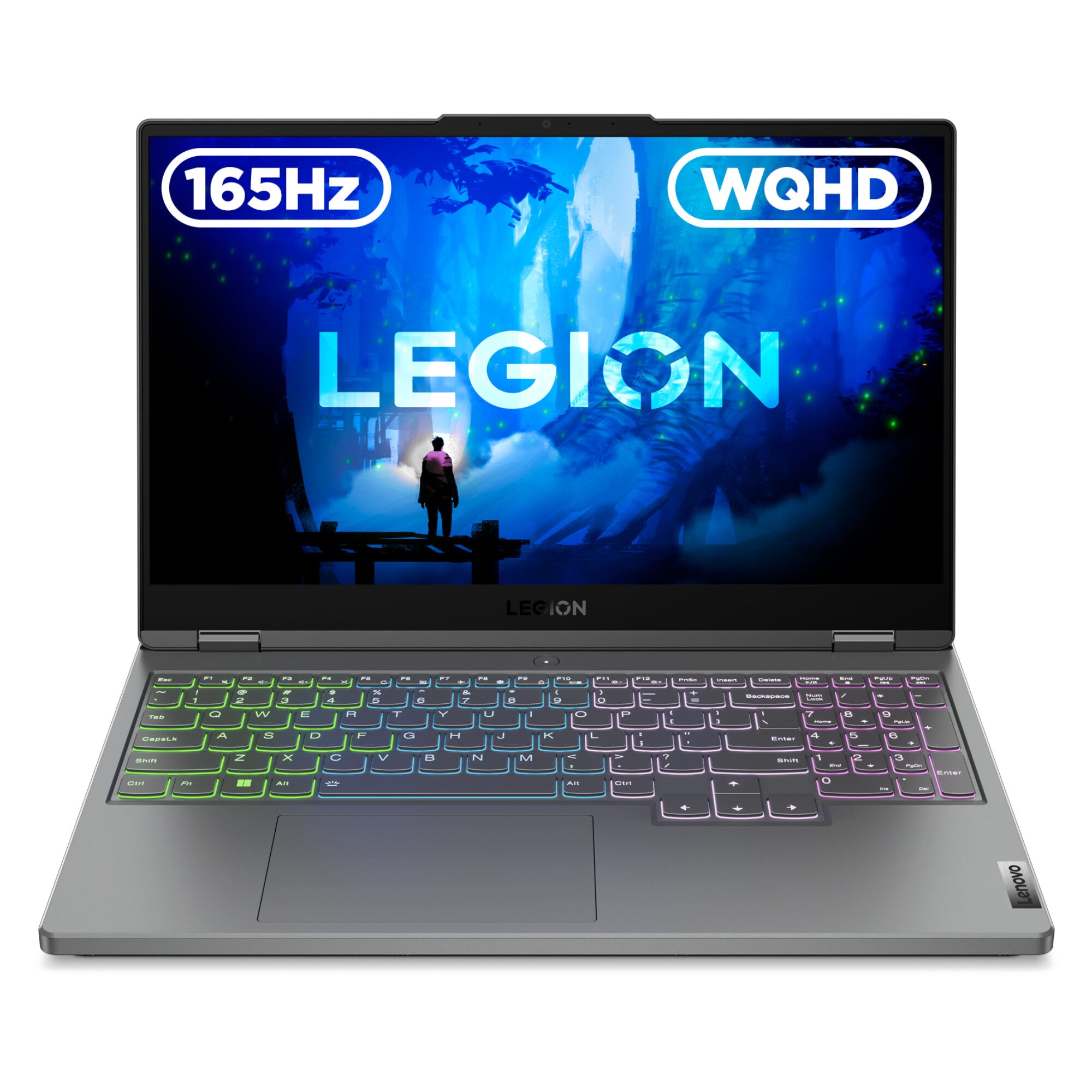

Lenovo Legion 5 15ARH7H AMD Ryzen™ 7 6800H Laptop 39.6 cm (15.6") Wide Quad HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E (802.11ax) Windows 11 Home UK English Grey
£1,745.99
Couldn't load pickup availability
- AMD Ryzen 7 6800H (8C/16T, 3.2/4.7GHz, 4MB L2/16MB L3)
- 2x 8GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 3070 Ti 8GB , Boost Clock 1485MHz, TGP 140W
- Windows 11 Home 64
Purpose-built for gamers
- Play with purpose on the latest AMD Ryzen™ 6000 Series processors
- Enjoy AAA graphics with NVIDIA® GeForce RTX™ 30 series GPUs
- Experience next-gen performance from DDR5 memory
- Execute quick reflexes on a 15.6″ screen with up to WQHD resolution & 165Hz refresh rate
- Overclock your game without burning out with Legion Coldfront 4.0 cooling
| Design | |
|---|---|
| Country of origin | China |
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Colour name | Storm Grey |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision |
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| LED backlight | Yes |
| Panel type | IPS |
| HD type | Wide Quad HD |
| Touchscreen | No |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor cache type | L3 |
| Processor cache | 16 MB |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 8 |
| Processor model | 6800H |
| Processor generation | AMD Ryzen 6000 Series |
| Processor family | AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | NVMe, PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon 680M |
| On-board GPU manufacturer | AMD |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 Ti |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Nahimic Audio |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Performance | |
|---|---|
| Motherboard chipset | AMD SoC |
| Keyboard | |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | Office |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery life (max) | 10.8 h |
| Battery capacity | 80 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| AC adapter power | 300 W |
| Security | |
|---|---|
| Password protection type | Power on, Supervisor, HDD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | ErP Lot 3RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Weight & dimensions | |
|---|---|
| Height | 20 mm |
| Depth | 262.4 mm |
| Width | 358.8 mm |
| Weight | 2.4 kg |
| Packaging data | |
|---|---|
| Package weight | 4.5 kg |
| Package height | 86 mm |
| Package depth | 344 mm |
| Package width | 541 mm |
| General | |
|---|---|
| Product family | Legion |
| Product series | 5 |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992.c |
| Harmonized System (HS) code | 8471300000 |
