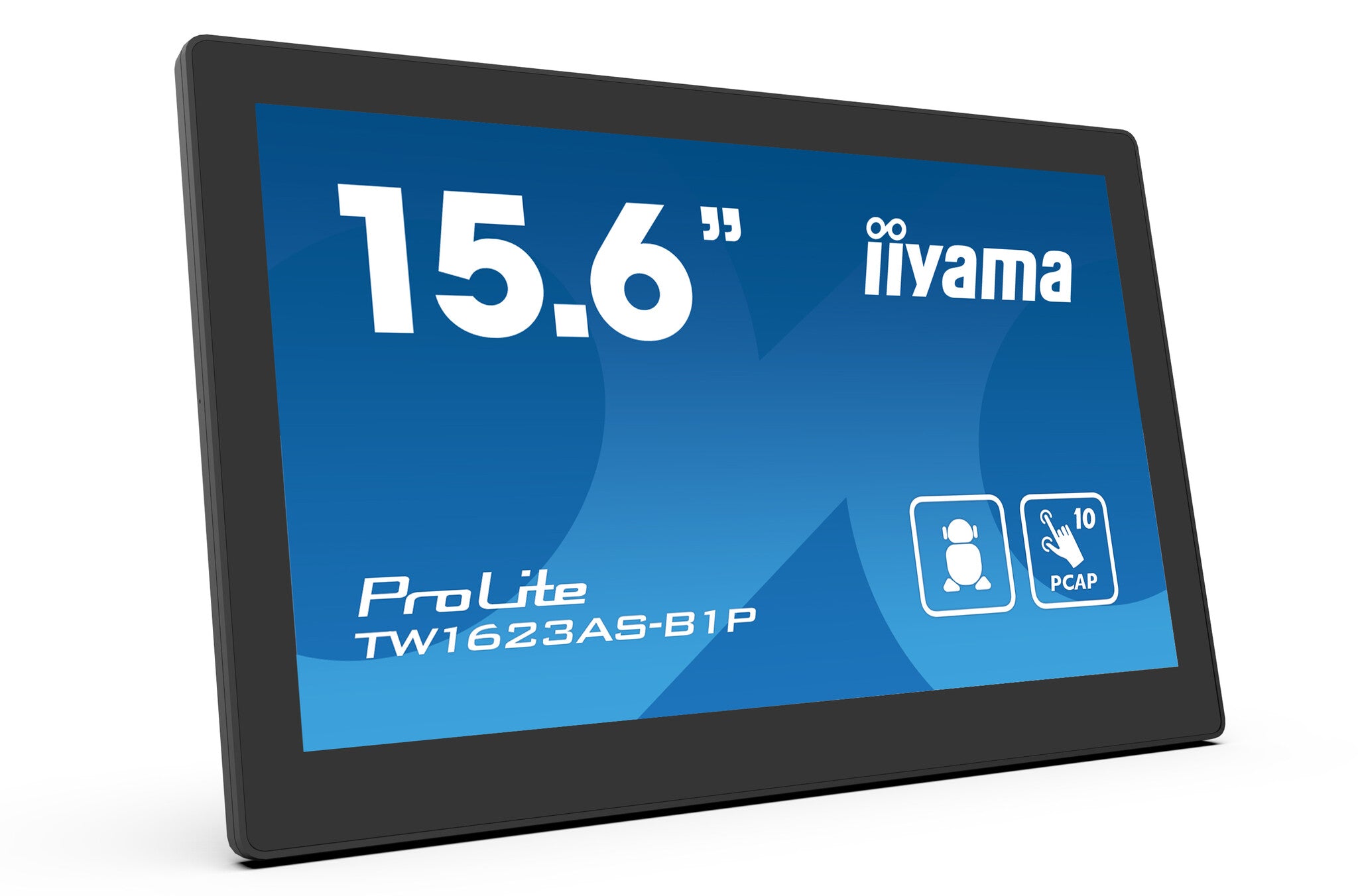

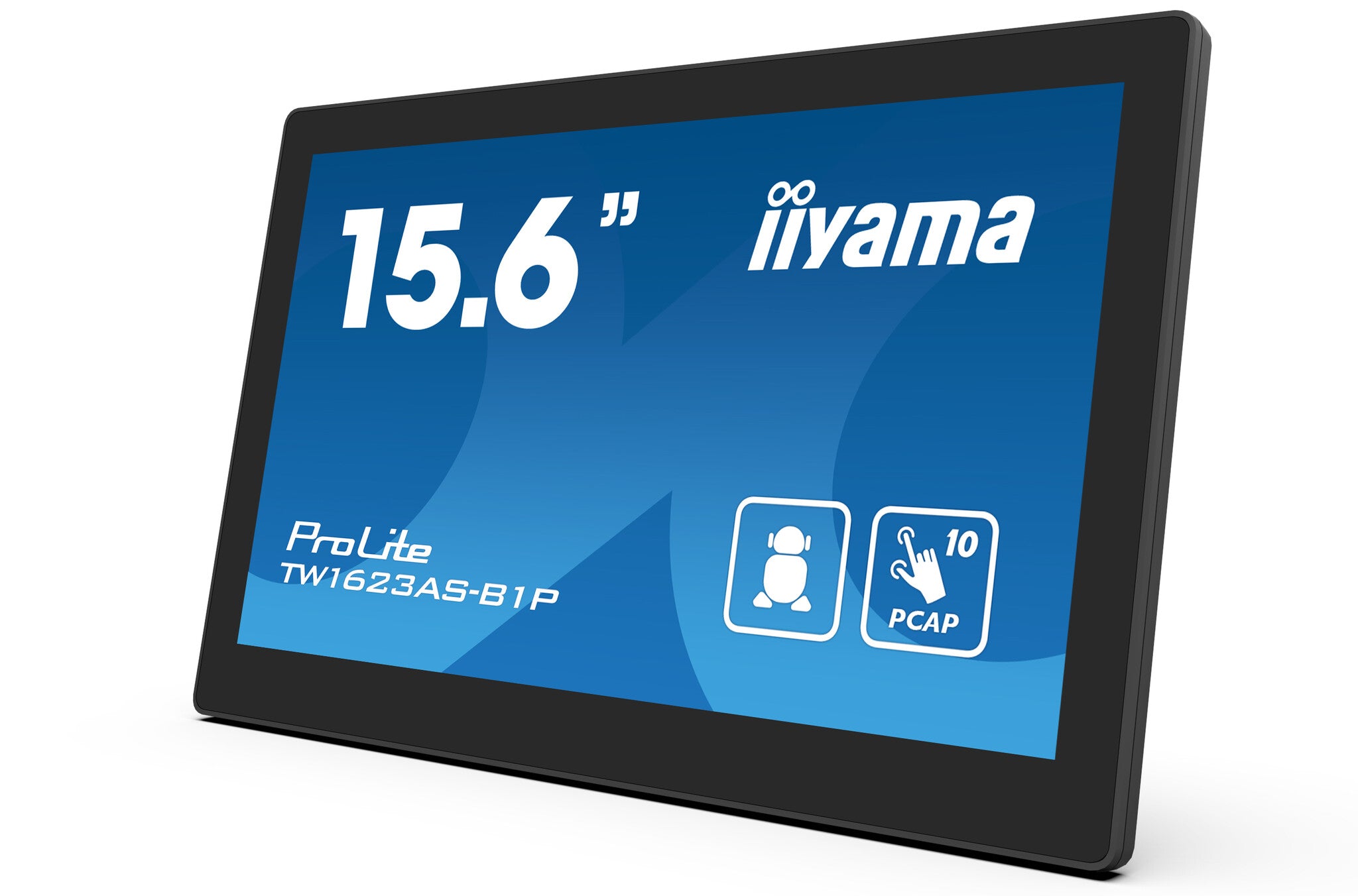

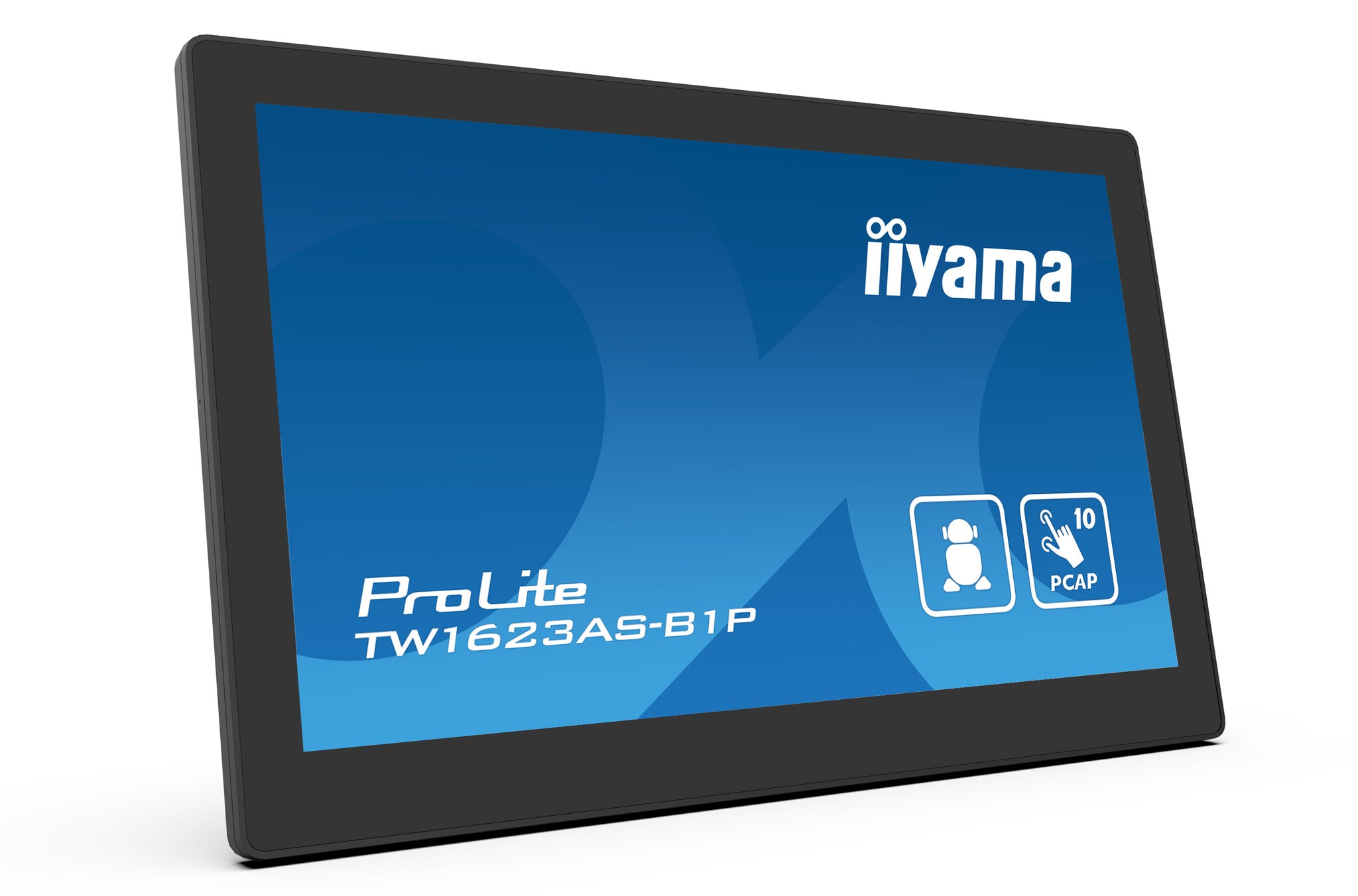

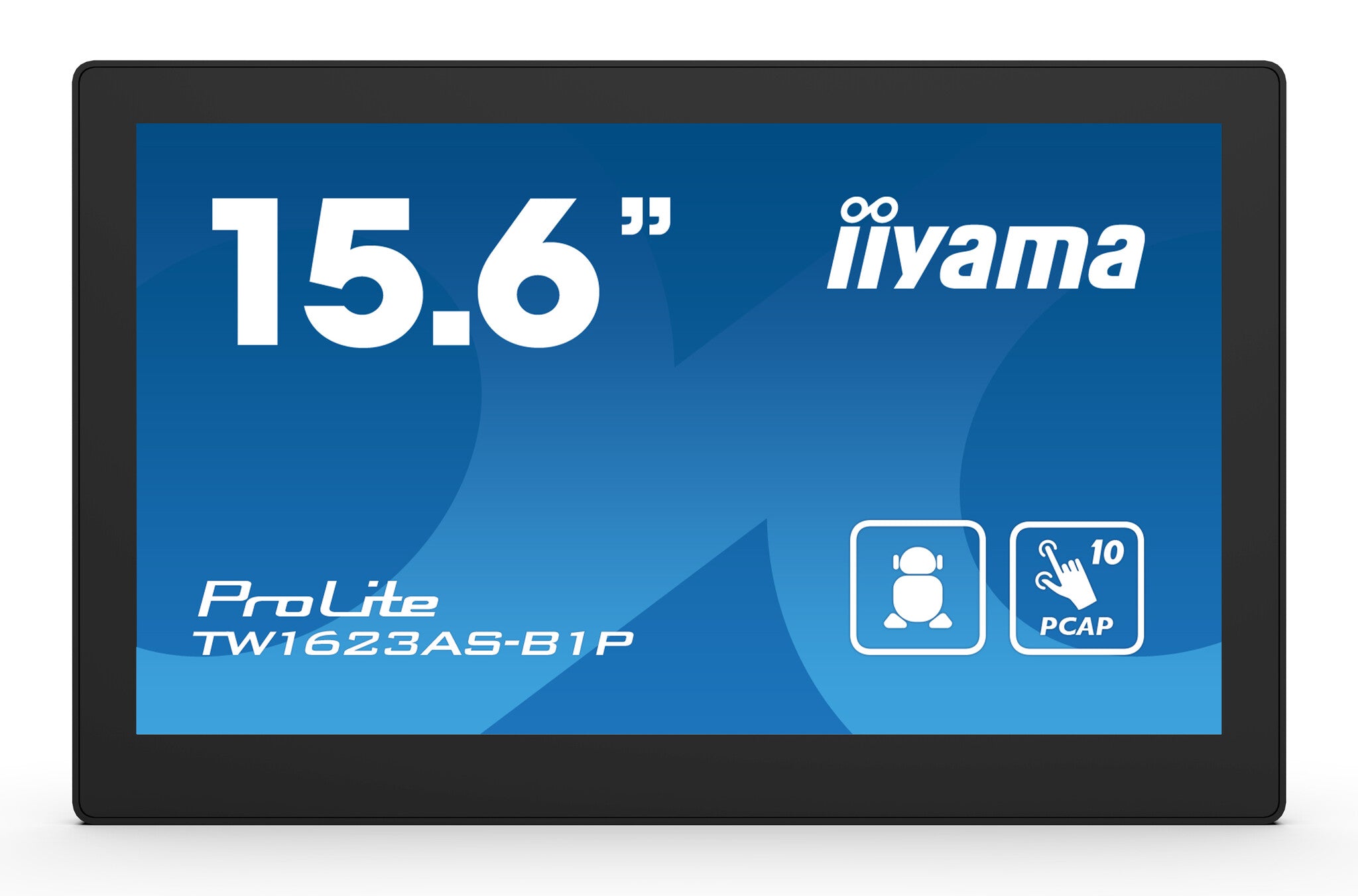

iiyama TW1623AS-B1P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Double Full HD Touchscreen Black
iFrame
£317.99
Couldn't load pickup availability
- Touchscreen 39.6 cm (15.6") IPS
- Double Full HD 1920 x 1080 pixels 16:9
- 30 ms 450 cd/m² 1000:1
- 24 W
The ProLite TW1623AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.
| Display | |
|---|---|
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Display diagonal (metric) | 39.5 cm |
| Viewable size, vertical | 19.4 cm |
| Viewable size, horizontal | 34.4 cm |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Contrast ratio (typical) | 1000:1 |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 30 ms |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| HD type | Double Full HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Performance | |
|---|---|
| Operating system version | 13 |
| Operating system installed | Android |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 1.8 mm |
| Front bezel colour | Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Microphone in | Yes |
| Audio input | Mini Jack |
| HDMI ports quantity | 1 |
| USB Touch port | Yes |
| USB version | 2.0 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 1.5 kg |
| Height (with stand) | 244 mm |
| Depth (with stand) | 30.5 mm |
| Width (with stand) | 387 mm |
| Packaging data | |
|---|---|
| Package weight | 2.4 kg |
| Package height | 295 mm |
| Package depth | 477 mm |
| Package width | 477 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Power adapter included | Yes |
| Other features | |
|---|---|
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Package volume | 2400 cm³ |
| Ethernet LAN (RJ-45) ports | 1 |
| Placement supported | Indoor |
| Multi-touch | Yes |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Built-in processor | Yes |
| USB ports quantity | 3 |
| Thin Client | |
|---|---|
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor model | RK3568 |
| Processor architecture | ARM Cortex-A55 |
| Processor family | ARM Rockchip |
| Logistics data | |
|---|---|
| Pallet net height | 120 cm |
| Pallet net length | 176 cm |
| Pallet net width | 100 cm |
| Products per pallet | 150 pc(s) |
