Ubiquiti Dream Wall gateway/controller 1000, 10000 Mbit/s
iFrame
£967.99
Couldn't load pickup availability
- Integrated Enterprise WiFi6 (4x4 MIMO)
- Full UniFi OS and UniFi application support
- 3.5+ Gbps routing
- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
- 4.7" touchscreen for management
- Integrated 128 GB SSD & pre-installed 512 GB microSD card
All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.
| Design | |
|---|---|
| LED indicators | Power, Yes |

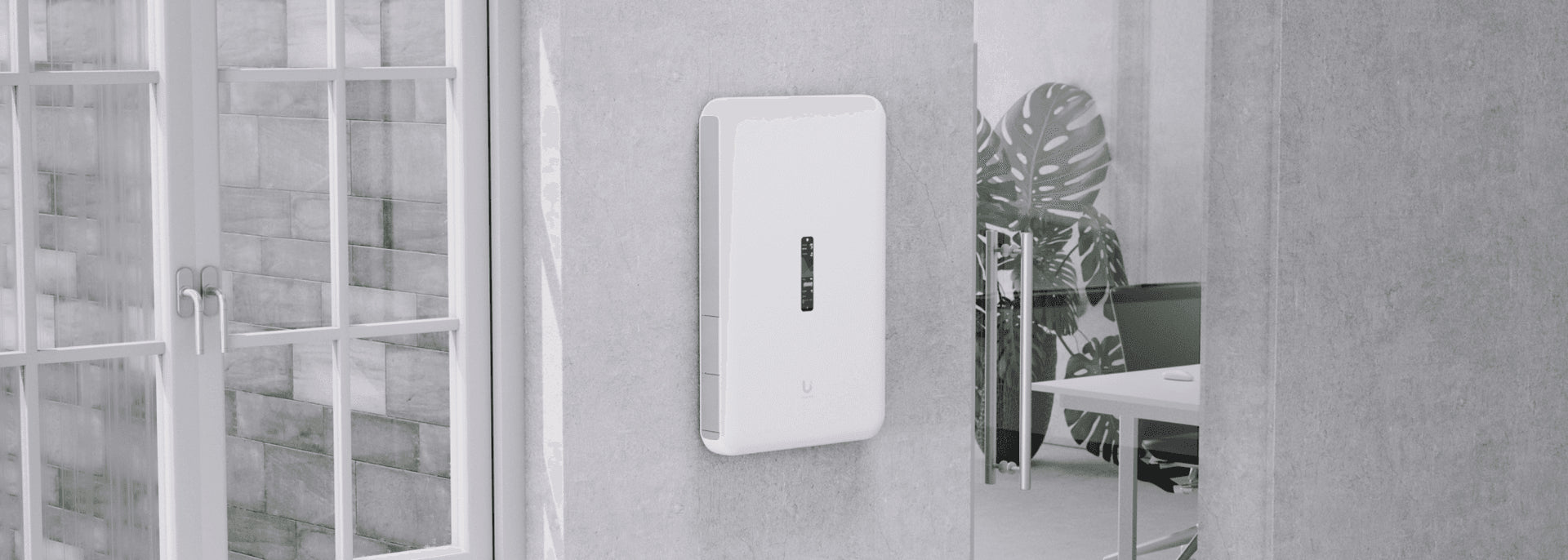

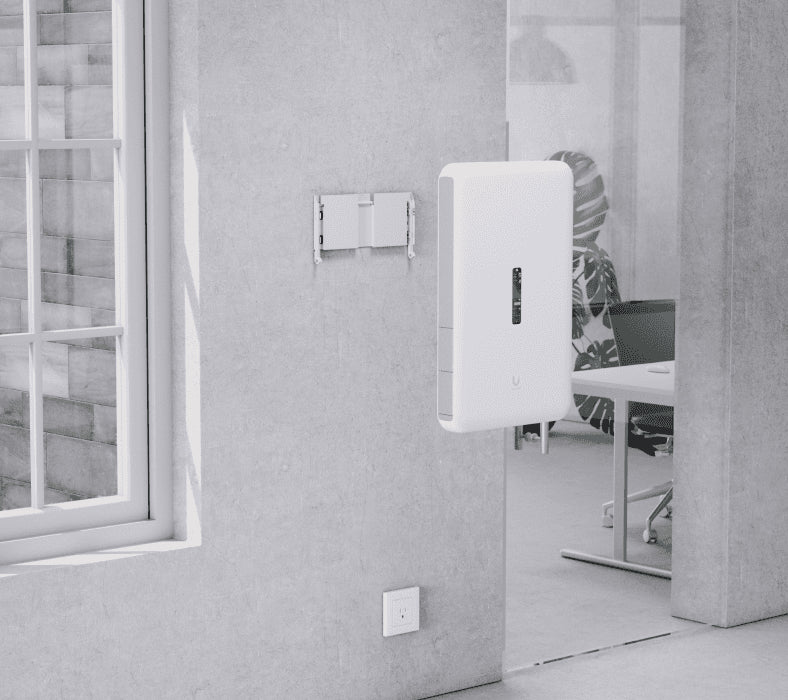

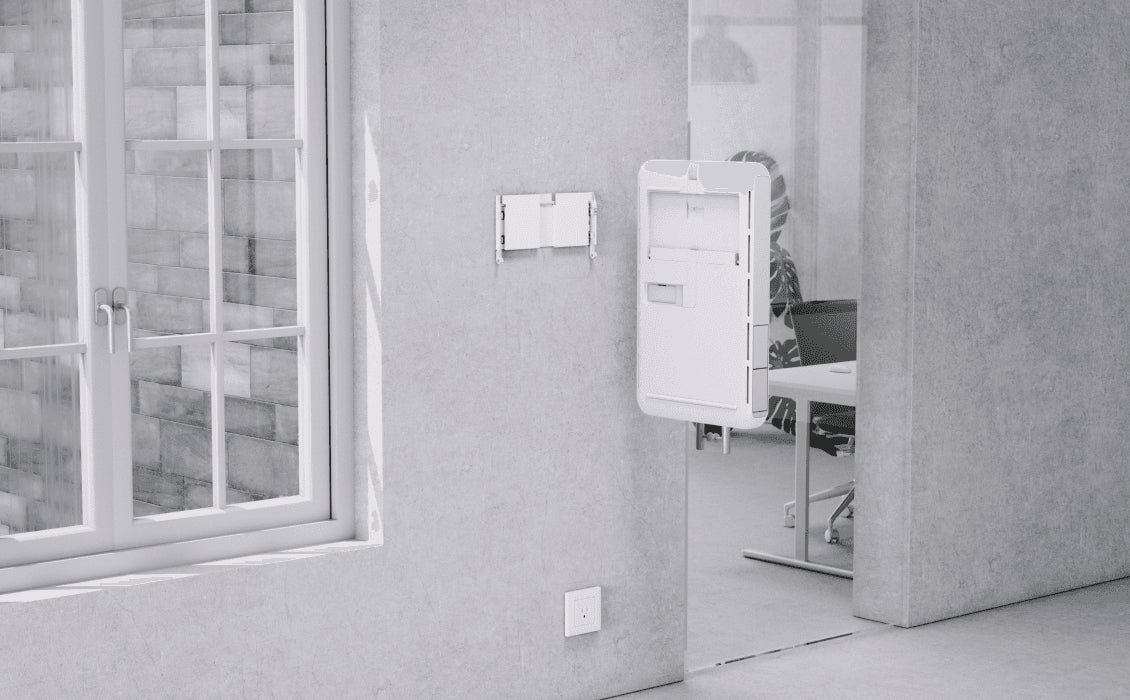

| Mounting type | Wall mounting |
| Enclosure material | Metal |
| Product colour | White |
| Features | |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| SSD capacity | 128 GB |
| Internal memory | 4000 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor frequency | 1.7 MHz |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Display type | LCD |
| Control display unit | Yes |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Security | |
|---|---|
| VLAN support | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45), SFP |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Power supply | 550 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 7 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 532 W |
| Weight & dimensions | |
|---|---|
| Weight | 8.6 kg |
| Width | 549 mm |
| Depth | 62 mm |
| Height | 342 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
