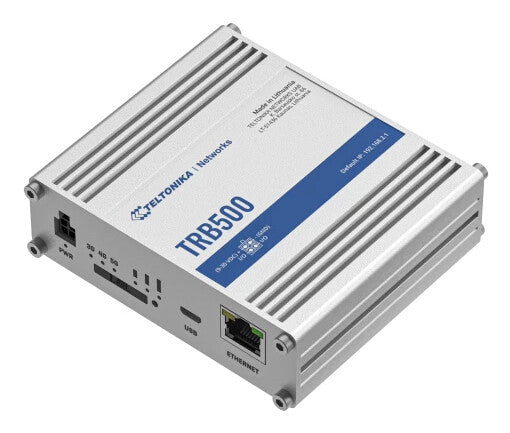

Teltonika TRB500 gateway/controller 10, 100, 1000 Mbit/s
iFrame
£341.99
Couldn't load pickup availability
- The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios
- This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO
- TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices
INDUSTRIAL 5G GATEWAY
TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with ultra-low latency. Backward compatibility with 4G and 3G networks enables future-proofing solution infrastructures even in areas where 5G is not yet available.
| Design | |
|---|---|
| International Protection (IP) code | IP30 |
| LED indicators | LAN, Power, Signal strength, Status |
| Mounting type | DIN-rail/Wall mounting |
| Enclosure material | Aluminum |
| Product colour | Stainless steel |
| Features | |
|---|---|
| Short Message Service (SMS) | Yes |
| Antennas quantity | 4 |
| Antenna connector type | SMA |
| Antenna type | External |
| Performance | |
|---|---|
| Flash memory | 512 MB |
| Internal memory | 256 MB |
| Processor frequency | 1500 MHz |
| Built-in processor | Yes |
| Control display unit | No |
| Protocols | |
|---|---|
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Routing protocols | NHRP, BGP, EIGRP, OSPFv2, RIP-1, RIP-2 |
| Network | |
|---|---|
| Dynamic DNS (DDNS) | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
|---|---|
| DoS attack prevention | Yes |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| VLAN support | Yes |
| MAC address filtering | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Number of simultaneous SIM cards | 1 |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Management features | |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Power | |
|---|---|
| DC input voltage | 9 - 30 V |
| Power consumption (max) | 6 W |
| Weight & dimensions | |
|---|---|
| Weight | 241 g |
| Width | 100 mm |
| Depth | 93.4 mm |
| Height | 30 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), Micro-USB |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
