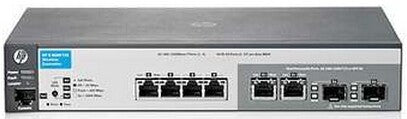

HPE MSM720 gateway/controller
Couldn't load pickup availability
Working in unison with HP MSM access points, the HP MSM Controller Series delivers high-performance
networking solutions. The enhanced architecture scales to 802.11n without requiring controller
replacement. Robust identity- and roles-based user account profiles, as well as Virtual Service
Communities (VSCs) with independently configurable Quality of Service (QoS), authentication, encryption, and VLAN support, deliver intelligence to the network edge. Scalable from small to larger deployments, the MSM wireless controllers support a fast-roaming capability. Wireless security is comprehensive with support for internal and external authentication, authorization, and accounting (AAA) servers, built-in stateful firewall, per-user VLAN mapping, and authentication.
- Ease of use, scalability, and redundancy.
- Enhanced architecture for flexible network design.
- IEEE 802.11a/b/g/n AP and access device support.
- Comprehensive WLAN security.
- Appliance and blade form factors.
| Features | |
|---|---|
| Plug and Play | Yes |
| Network | |
|---|---|
| Wireless connection | Yes |
| Data transfer rate | 1 Gbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Supported data transfer rates | 10/100/1000Mbit/s |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| Power | |
|---|---|
| Input frequency | 50 / 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
| Power requirements | 100-240 |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 254 x 159.5 x 44.5 mm |
| Weight | 1.64 kg |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 45 °C |
| Certificates | |
|---|---|
| Certification | FCC part 15 Class A, EN 55022 Class A, CISPR22 Class A, ICES-003 |
| Safety | UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1 |
