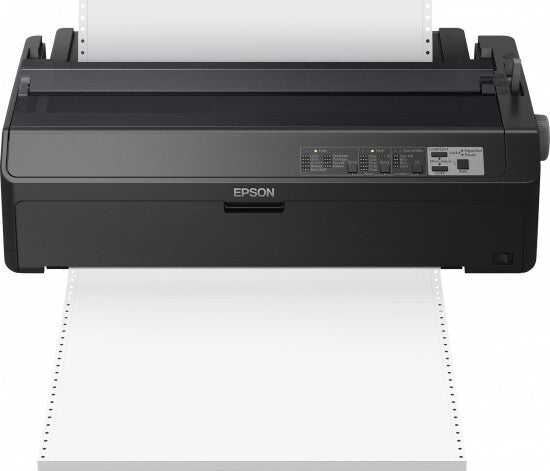

Epson LQ-2090II dot matrix printer 550 cps
Couldn't load pickup availability
- Fast print speed: USD speed of 550 characters per second at 10 characters per inch
- Increased reliability: Mean time between failure of 25,000 power-on hours
- Flexible printing: 24-pin, 136-column dot matrix printer
- Increased number of copies: Now original plus six copies
- Same consumables: Uses the same ribbons as existing models
Fast 24-pin, 136-column dot matrix printer that offers outstanding reliability and an extremely low TCO.
The LQ-2090II is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers an incredibly low TCO.
Fast print speed
The LQ-2090II offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.
Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.
Same consumables
This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.
| Printing | |
|---|---|
| Built-in barcodes | Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E |
| Character density | 10 cpi |
| Character pitch | 10 cpi |
| Maximum print speed | 550 cps |
| Maximum printing width (columns) | 136 |
| Paper handling | |
|---|---|
| Single sheet thickness range | 0.065 - 0.014 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.46 mm |
| Continuous paper thickness range | 0.12 - 0.46 mm |
| Paper tray media types | Envelopes, Labels |
| Features | |
|---|---|
| Country of origin | Indonesia |
| Sound pressure level (printing) | 55 dB |
| Buffer size | 128 KB |
| Ports & interfaces | |
|---|---|
| Standard interfaces | Parallel, USB |
| Endurance | |
|---|---|
| Mean time between failures (MTBF) | 25000 h |
| Print head life | 400 million characters |
| Print head | 24-pin |
| Power | |
|---|---|
| Power consumption (typical) | 49 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 5 - 35 °C |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 9.4 kg |
| Height | 177 mm |
| Depth | 375 mm |
| Width | 612 mm |
| Packaging data | |
|---|---|
| Package weight | 12.2 kg |
| Package height | 295 mm |
| Package depth | 735 mm |
| Package width | 451 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per pallet | 14 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross height | 4.59 m |
| Products per pallet layer | 2 pc(s) |
| Pallet gross length | 120 cm |
| Products per pallet layer (UK) | 3 pc(s) |
| Pallet width (UK) | 100 cm |
| Products per pallet (UK) | 21 pc(s) |
| Pallet height (UK) | 4.59 m |
| Pallet length (UK) | 120 cm |
