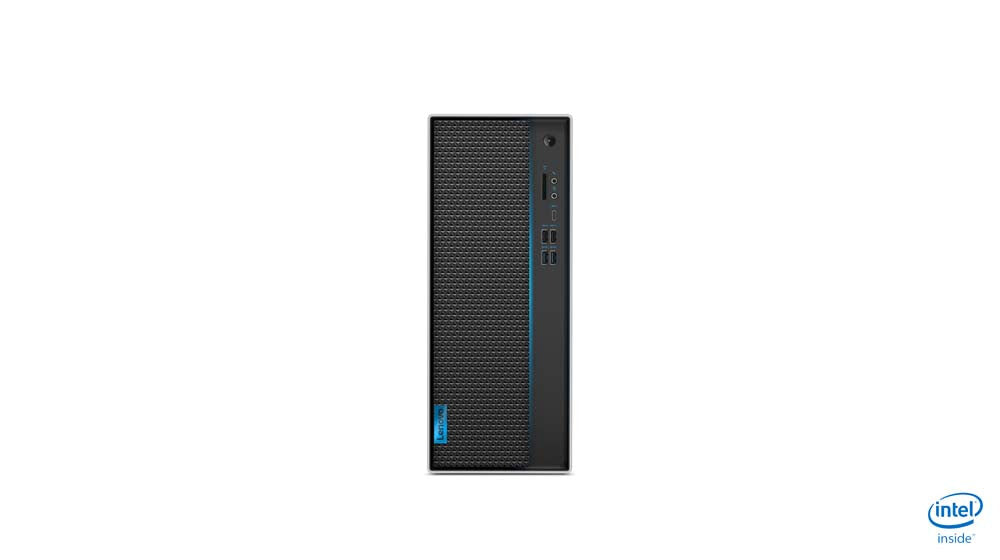

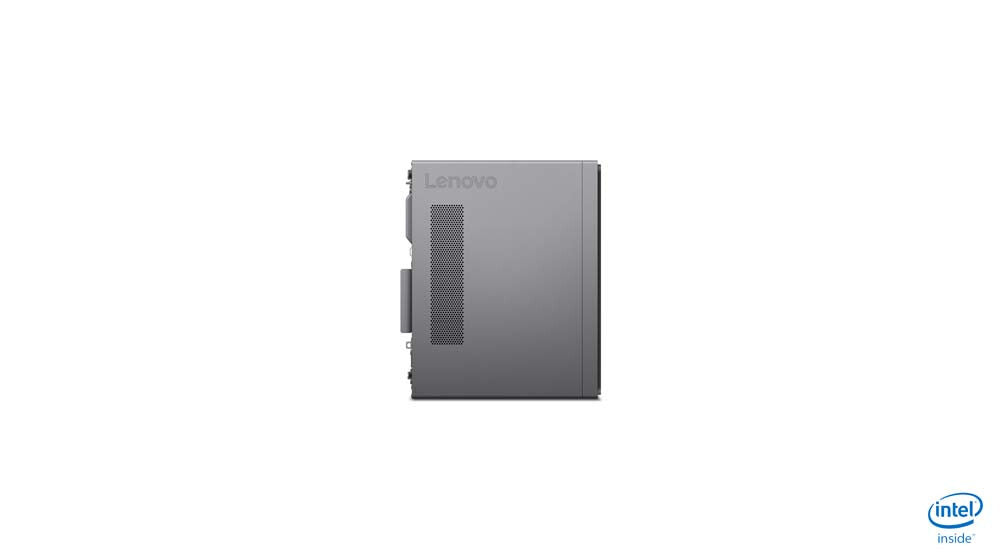

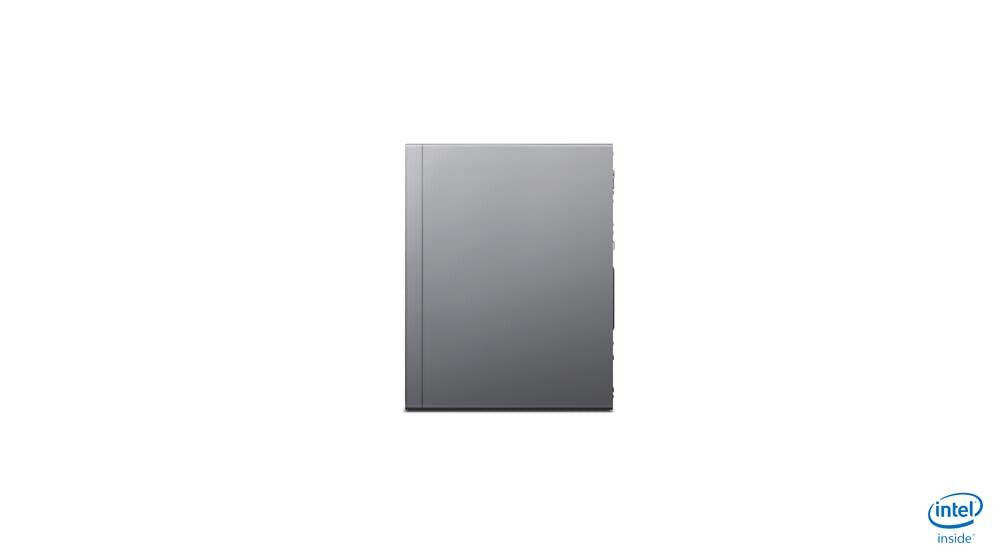

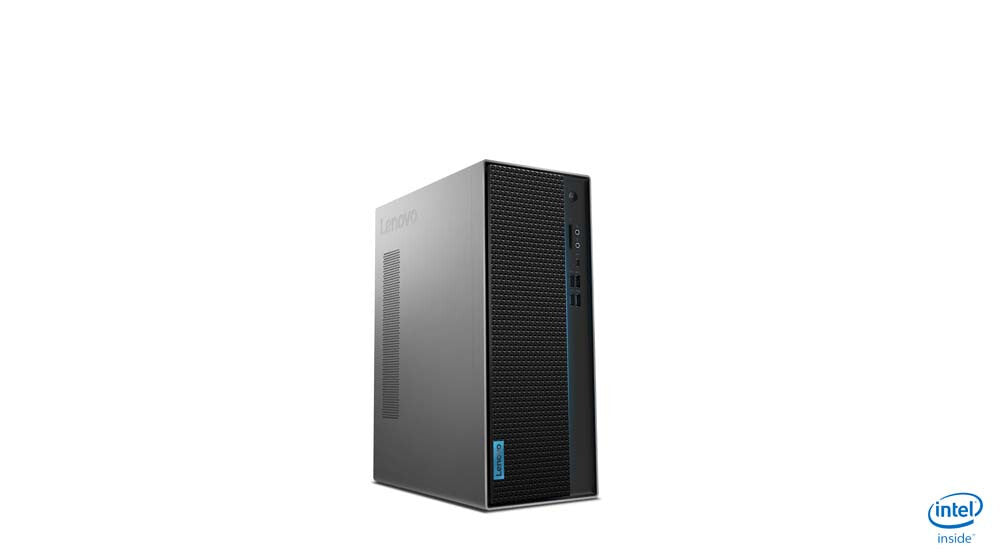

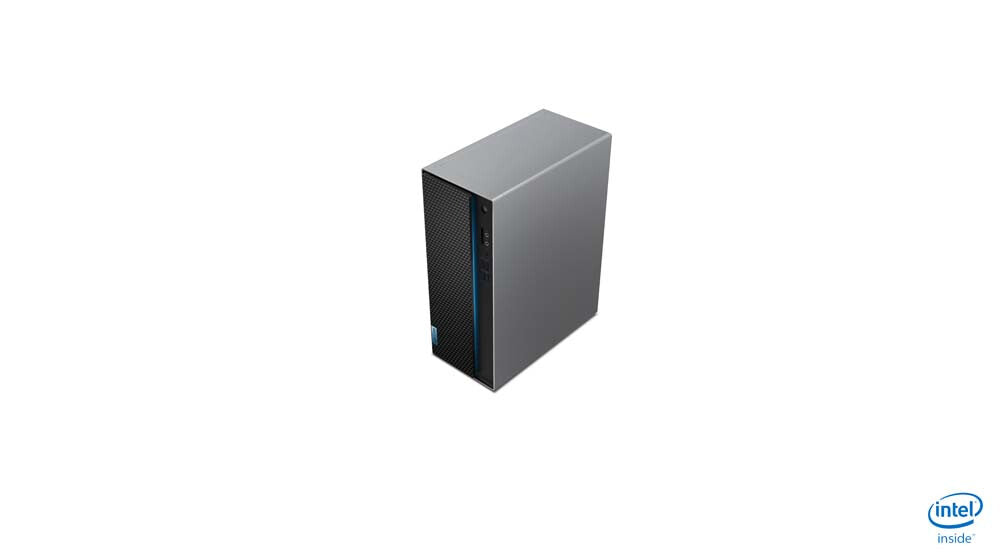

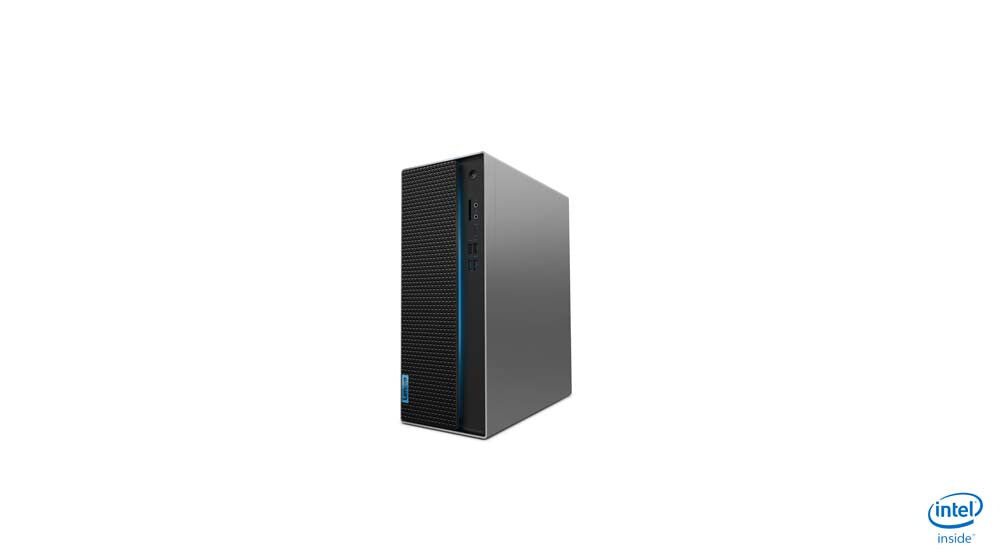

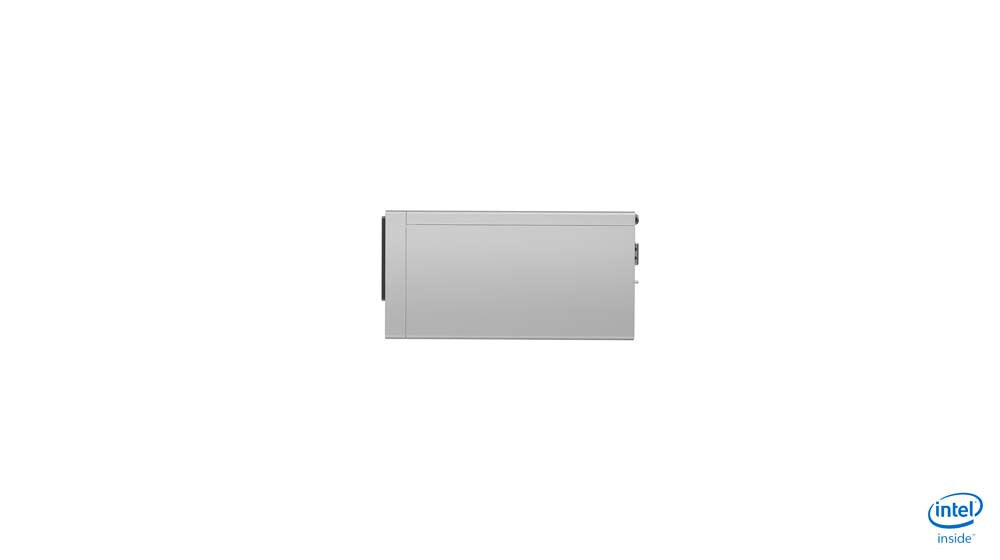

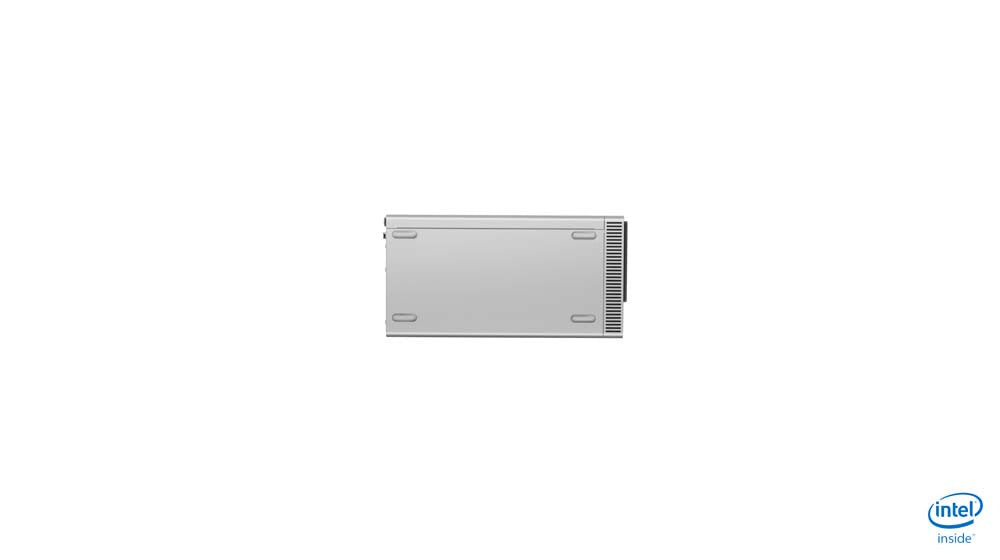

Lenovo IdeaCentre T540 Gaming Intel® Core™ i3 i3-9100 8 GB DDR4-SDRAM 1.13 TB HDD+SSD NVIDIA® GeForce® GTX 1650 Windows 10 Home Tower PC Grey
£696.99
Couldn't load pickup availability
- Intel Core i3-9100 (4C/4T, 3.6/4.2GHz, 6MB)
- 2x 4GB UDIMM DDR4-2666
- 128GB SSD M.2 2242 PCIe NVMe + 1TB HDD 7200rpm 3.5"
- NVIDIA GeForce GTX 1650 4GB GDDR5
- Windows 10 Home 64
Gaming power, family practicality
The IdeaCentre T540 Gaming is a powerful contemporary desktop that offers the best of two worlds—gaming and mainstream family use. Powered by the latest Intel® Core™ processor, NVIDIA® gaming-grade graphics, and fast DDR4 memory and PCIe SSD storage, it’s up to the task of having fun.
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Number of processors installed | 1 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor socket | LGA 1151 (Socket H4) |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | i3-9100 |
| Processor generation | 9th gen Intel® Core™ i3 |
| Processor family | Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 2666 MHz |
| Memory slots | 2x DIMM |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of HDDs installed | 1 |
| Total HDDs capacity | 1 TB |
| Number of storage drives installed | 2 |
| Storage media | HDD+SSD |
| Optical drive type | No |
| Total storage capacity | 1.13 TB |
| Graphics | |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card memory | 64 GB |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board GPU manufacturer | Intel |
| Number of discrete graphics cards | 1 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Network | |
|---|---|
| Bluetooth version | 4.0 |
| Bluetooth | Yes |
| Antenna type | 1x1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |

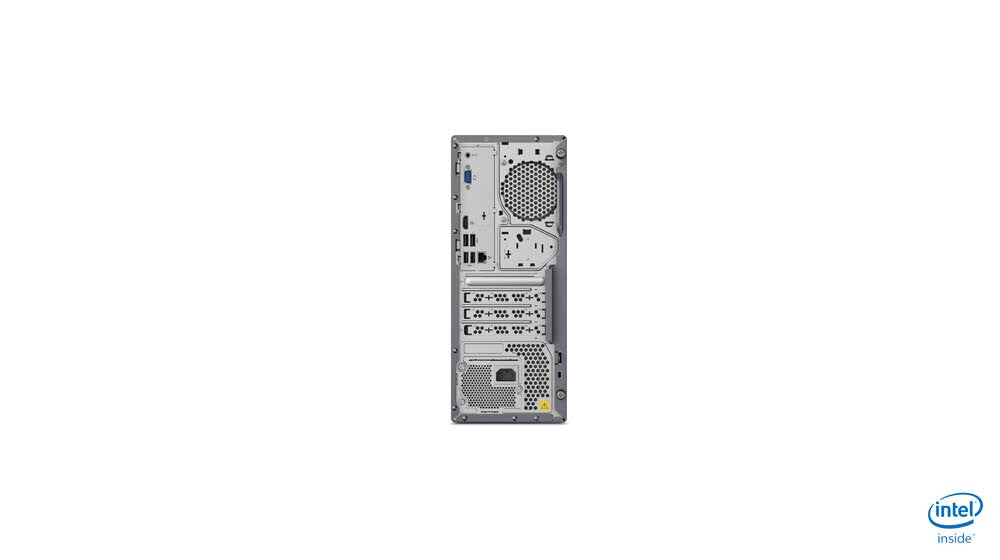

| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Design | |
|---|---|
| Housing material | Metal |
| Product colour | Grey |
| Placement supported | Vertical |
| Volume | 15 L |
| Chassis type | Tower |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | No |
| Password protection type | Power on, Supervisor |
| Password protection | Yes |
| Audio system | High Definition Audio |
| Audio chip | Realtek ALC222-CG |
| Motherboard chipset | Intel B365 |
| Market positioning | Gaming |
| Product type | PC |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Home |
| Processor special features | |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Thermal Monitoring Technologies | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| Intel® Secure Key | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® OS Guard | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Processor package size | 37.5 x 37.5 mm |
| Intel Trusted Execution Technology | No |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Execute Disable Bit | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Processor ARK ID | 134870 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Power | |
|---|---|
| Power supply | 210 W |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 6.24 kg |
| Height | 366 mm |
| Depth | 302.7 mm |
| Width | 145 mm |
| Packaging content | |
|---|---|
| Keyboard included | Yes |
| Mouse included | Yes |
| General | |
|---|---|
| Product family | IdeaCentre |
