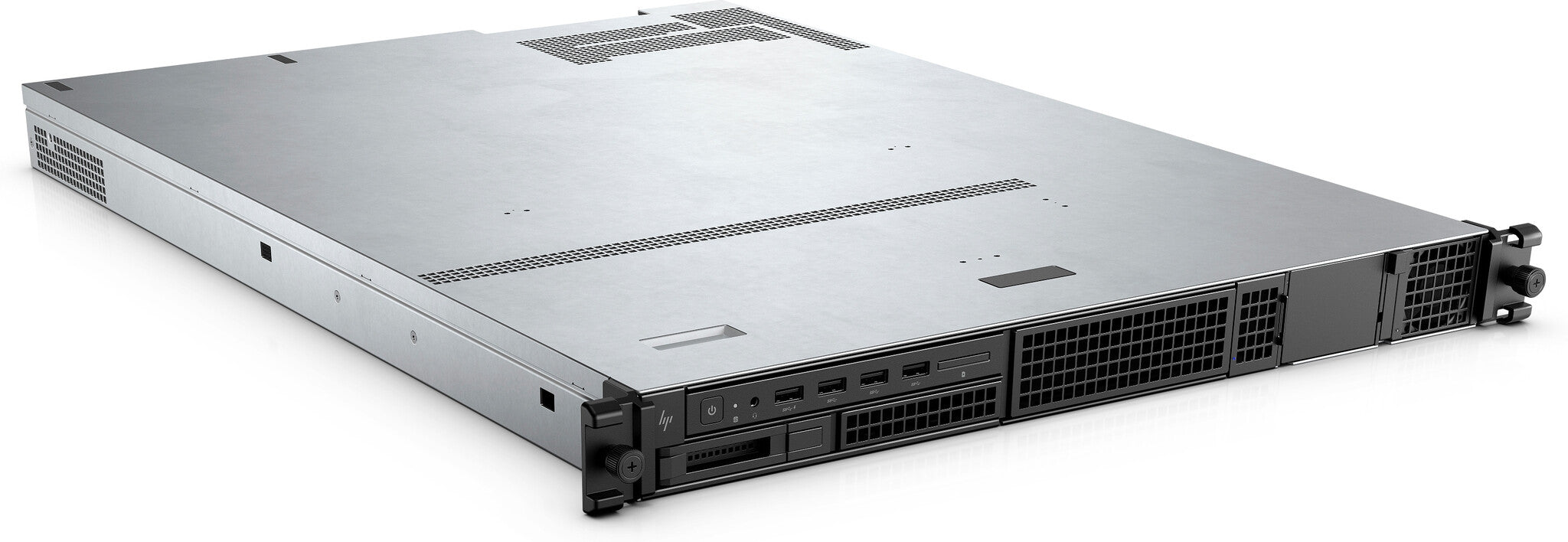

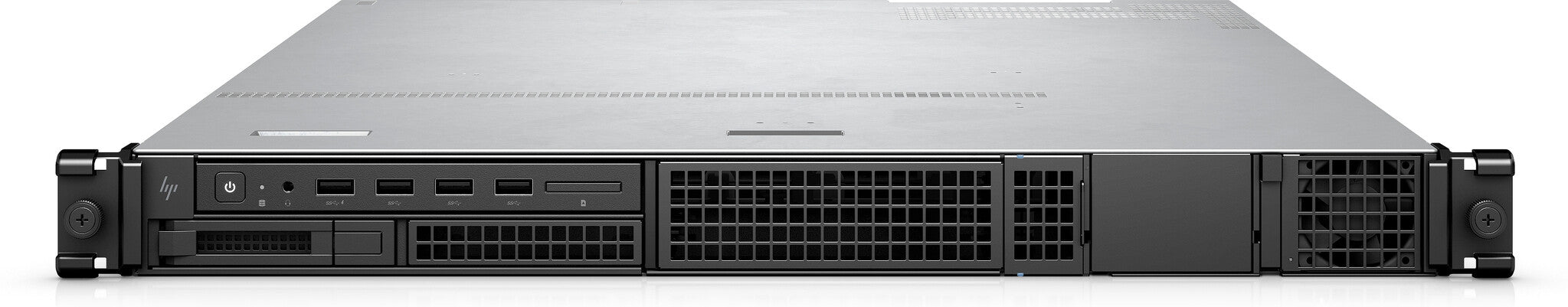

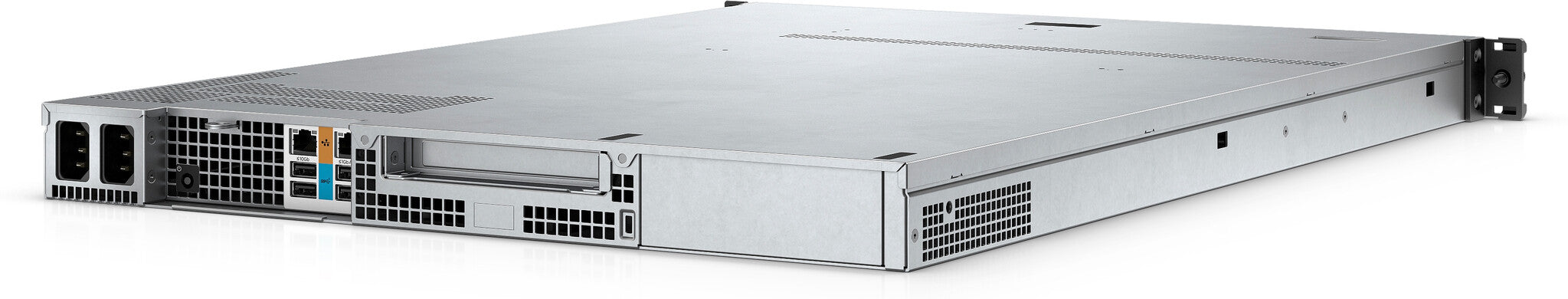

HP ZCentral 4R Intel Xeon W W-2223 32 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro P2200 Windows 10 Pro for Workstations Rack-mounted chassis Workstation Black
£3,542.99
Couldn't load pickup availability
- Intel® Xeon® W-2223 (3.6 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 8.25 MB cache, 4 cores)
- Windows 11 Pro for Workstations
- NVIDIA® Quadro® P2200 (5 GB GDDR5X dedicated)
- 32 GB memory; 512 GB SSD storage
Our most powerful 1U rack workstation.
For the first time ever, get Z performance in a high-density 1U footprint. This slim powerhouse lets you pack more units—and power—into your data closet. Perfect for use with HP ZCentral, our single-source remote workstation solution frees power users to work from anywhere.[1]
| Processor | |
|---|---|
| Processor cache type | L3 |
| Processor cache | 8 MB |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor model | W-2223 |
| Processor family | Intel Xeon W |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory slots | 2x DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 256 GB |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD interface | NVMe |
| NVMe | Yes |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| Discrete graphics memory type | GDDR5X |
| Discrete graphics card memory | 5 GB |
| Discrete graphics card model | NVIDIA Quadro P2200 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | No |
| Discrete graphics card | Yes |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Design | |
|---|---|
| Country of origin | China |
| Product colour | Black |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 1 |
| Chassis type | Rack-mounted chassis |
| Performance | |
|---|---|
| Audio chip | Realtek ALC3601 |
| Motherboard chipset | Intel® C422 |
| Market positioning | Performance |
| Product type | Workstation |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro for Workstations |
| Processor special features | |
|---|---|
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Demand Based Switching | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Brand-specific features | |
|---|---|
| HP segment | Business |
| HP Software provided | HP Performance Advisor; HP ZCentral Remote Boost 2020; HP Sure Recover Gen3 |
| HP Security tools | HP Keyed Cable Lock Kit; HP Secure Erase; HP Sure Click; HP MIK/SCCM Gen2; HP Sure Sense; HP Sure Start Gen6; HP BIOSphere Gen6; HP Client Security Manager Gen6 |
| HP Support Assistant | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 10.7 kg |
| Height | 43 mm |
| Depth | 487 mm |
| Width | 646 mm |
| Packaging content | |
|---|---|
| Display included | No |
| Other features | |
|---|---|
| Graphics card interface | PCIe x16 |
