iiyama TW1025LASC-B1PNR computer monitor 25.6 cm (10.1") 1280 x 800 pixels LED Touchscreen
Couldn't load pickup availability
- Touchscreen 25.6 cm (10.1") LED IPS
- 1280 x 800 pixels 16:10
- 25 ms 450 cd/m² 1000:1
- 18 W

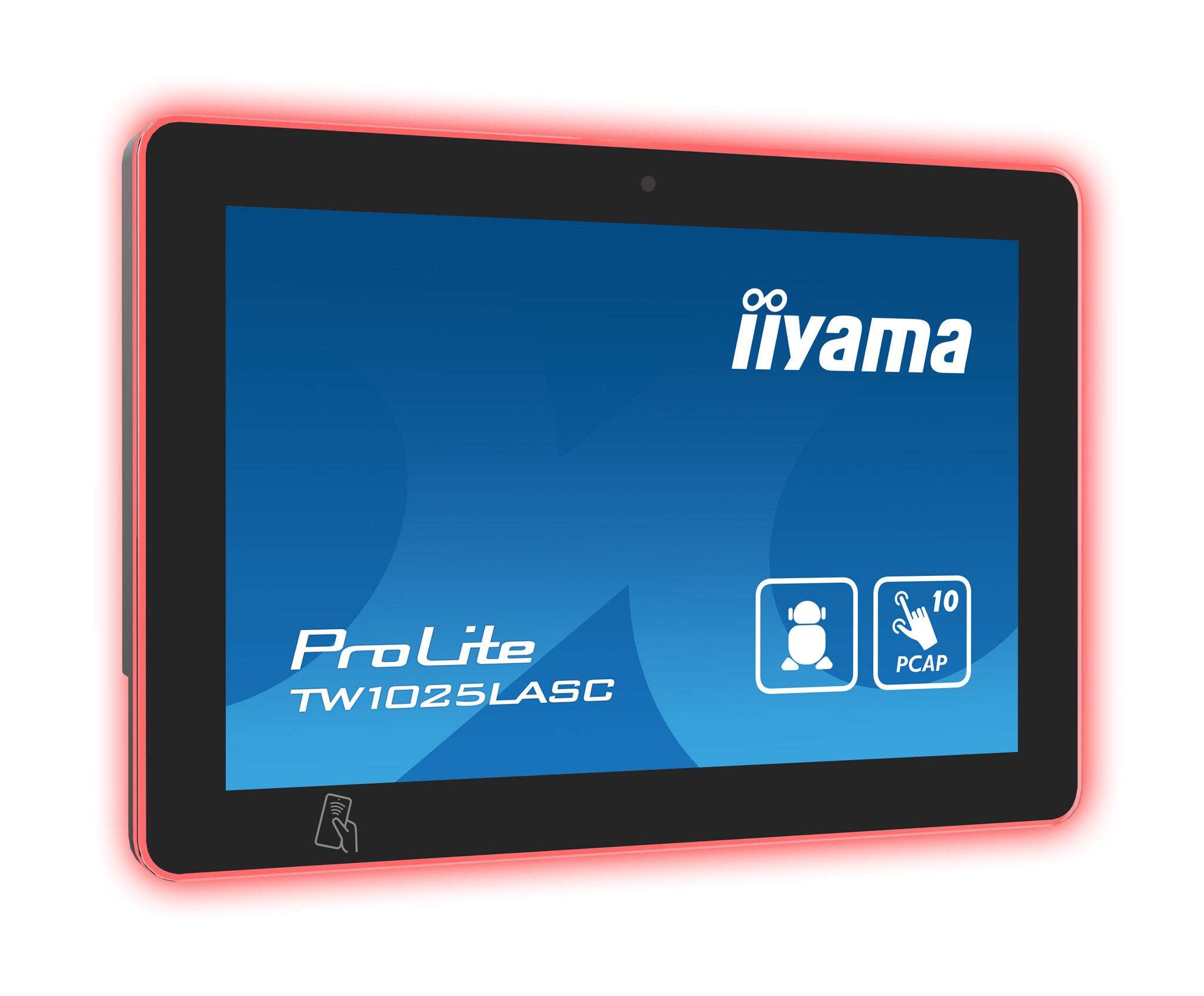

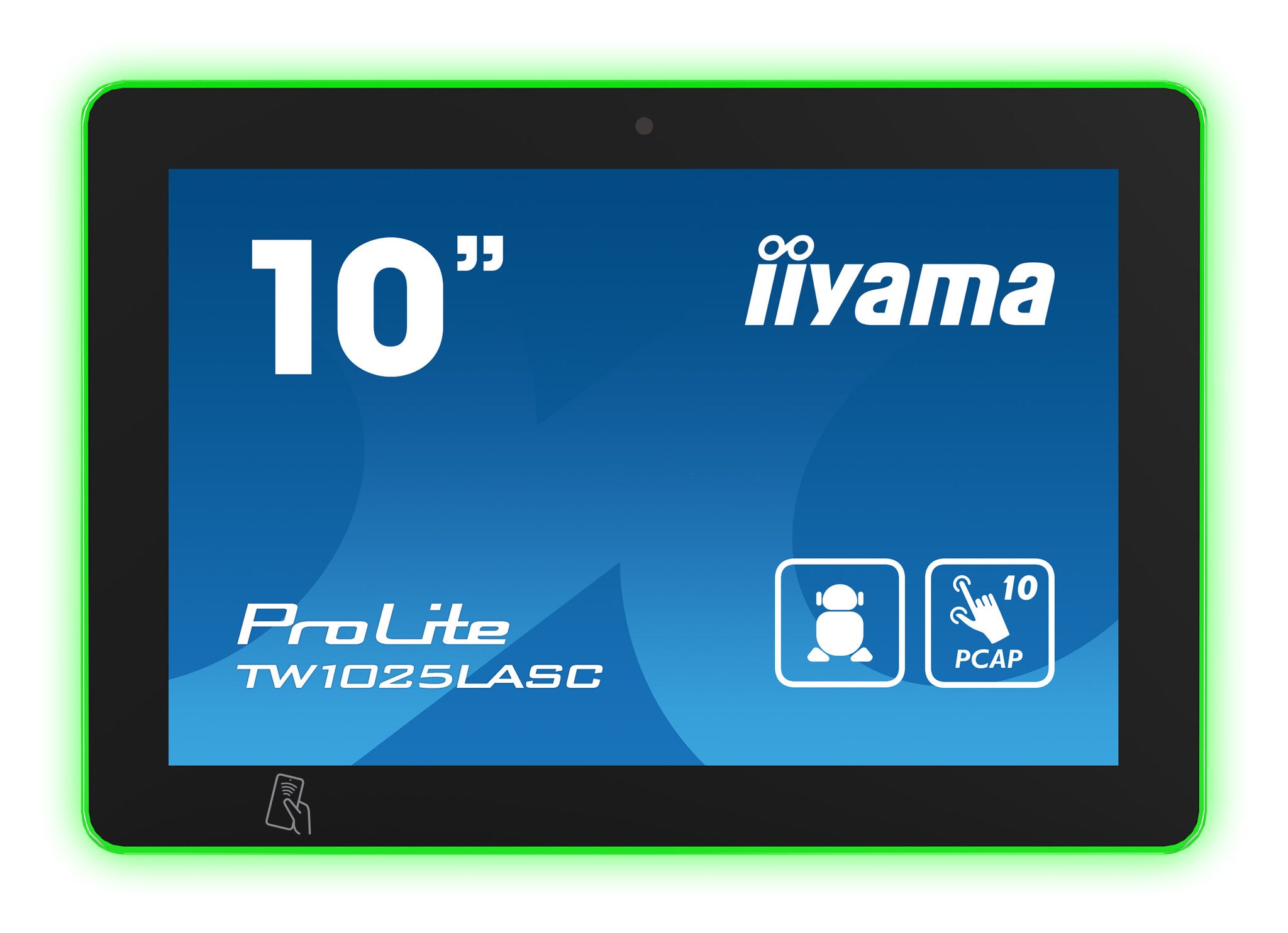

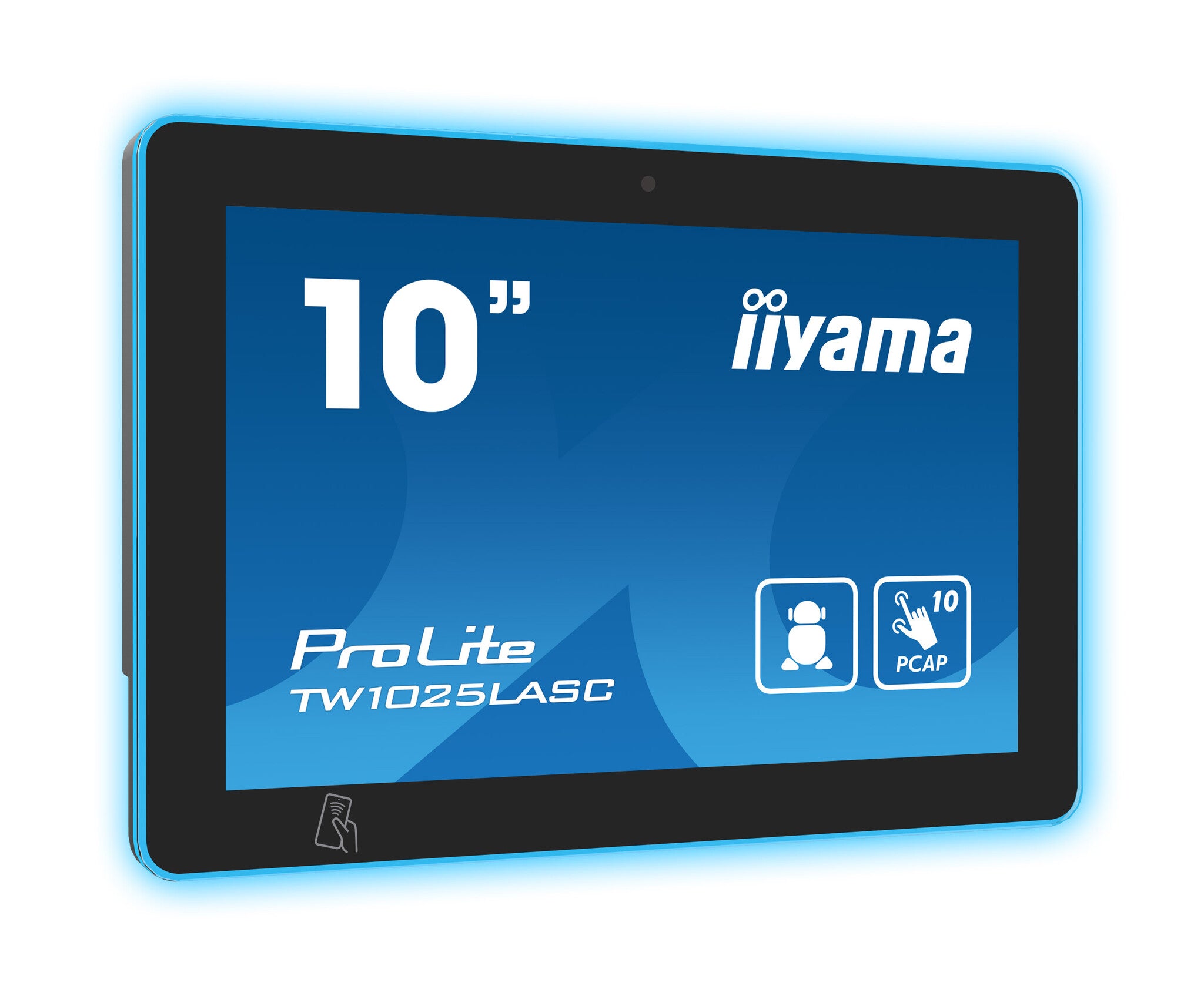

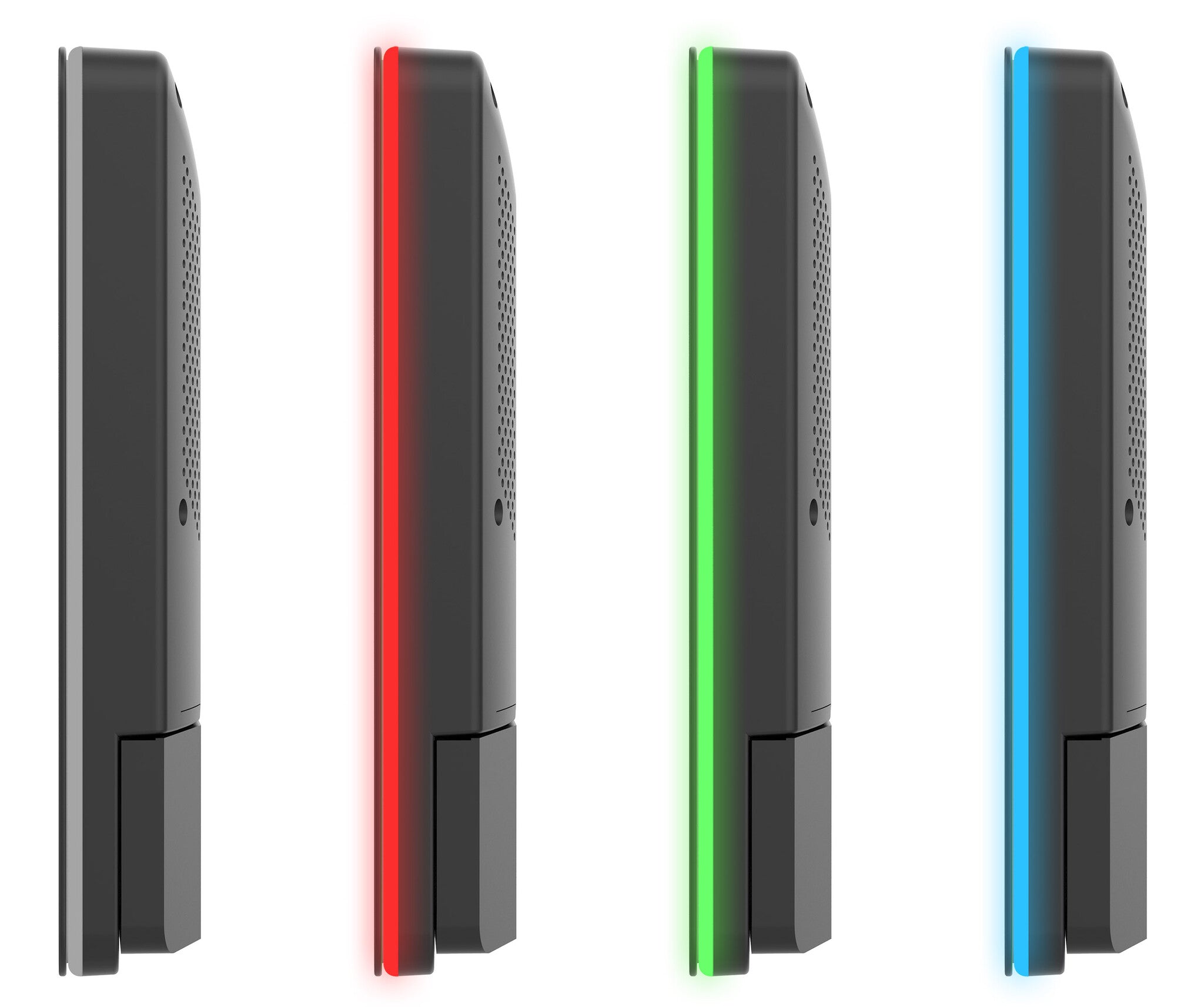

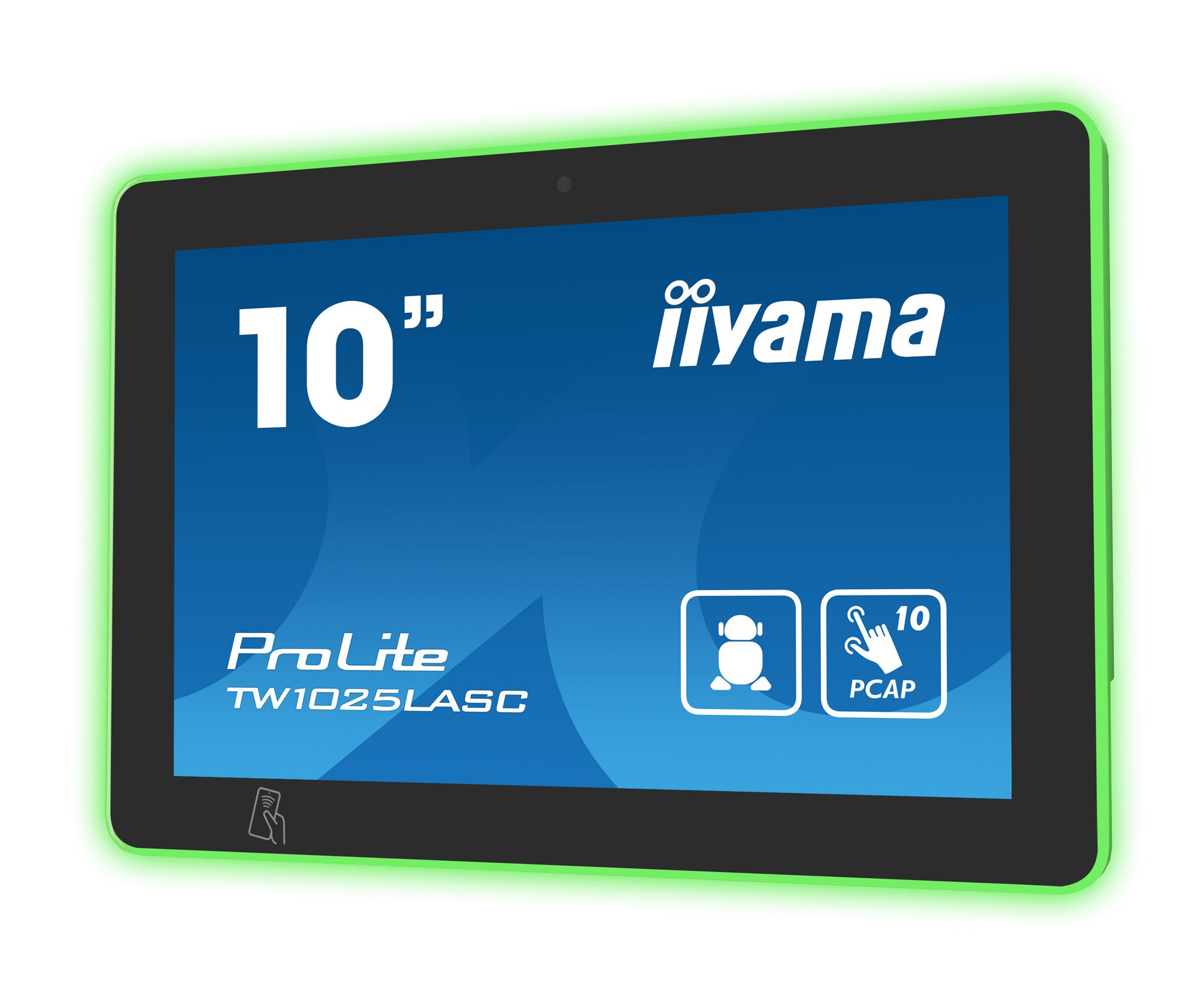

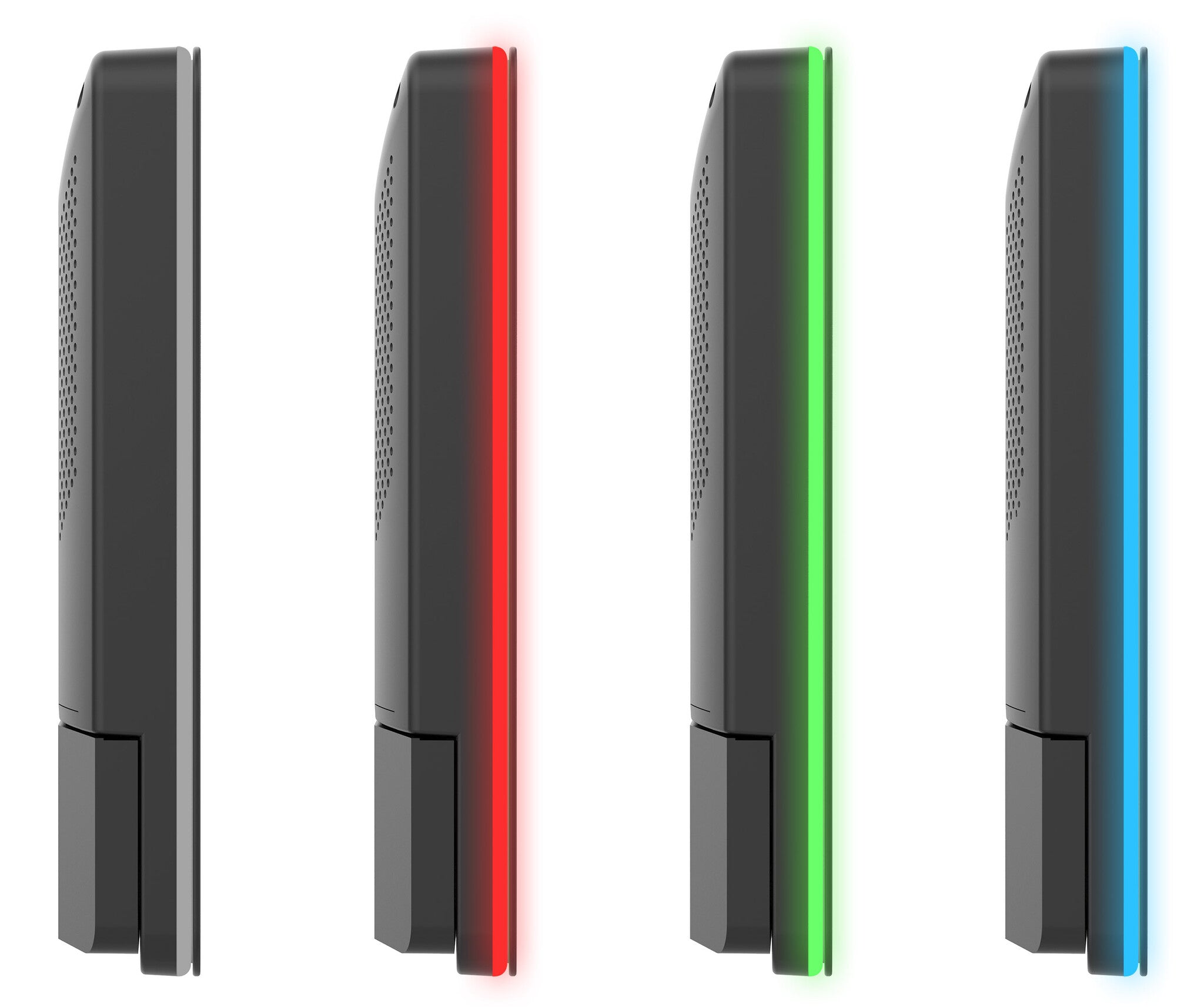

The ProLite TW1025LASC-B1PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display | |
|---|---|
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Display diagonal (metric) | 25.5 cm |
| Viewable size, vertical | 13.7 cm |
| Viewable size, horizontal | 21.8 cm |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 160° |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:10 |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 25 ms |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1") |
| Performance | |
|---|---|
| Operating system installed | Android |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in camera | Yes |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 1.85 mm |
| Front bezel colour | Black |
| Housing material | Plastic |

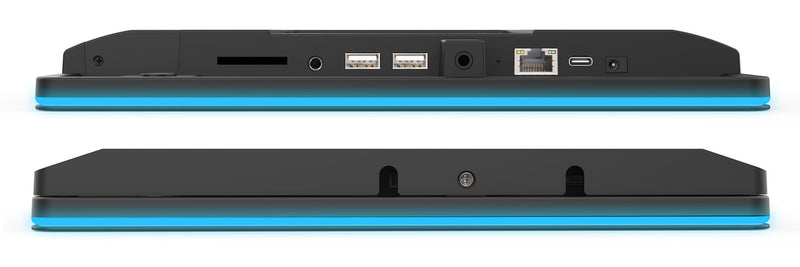

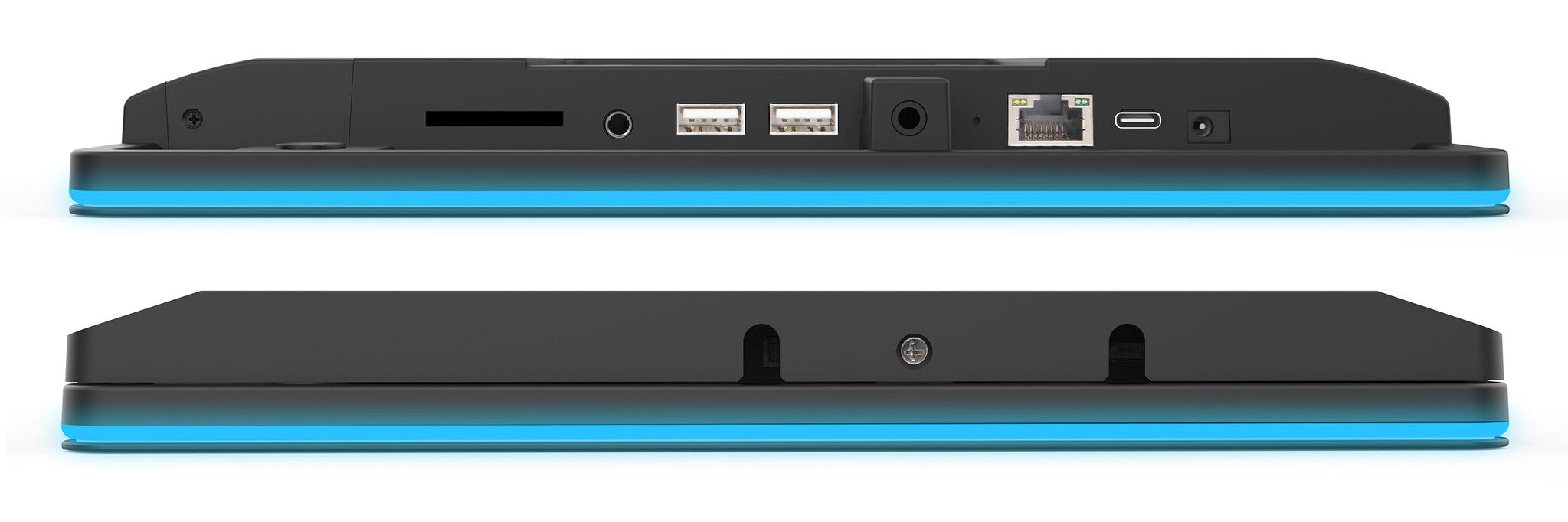

| Ports & interfaces | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| USB Touch port | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ergonomics | |
|---|---|
| Cable management | Yes |

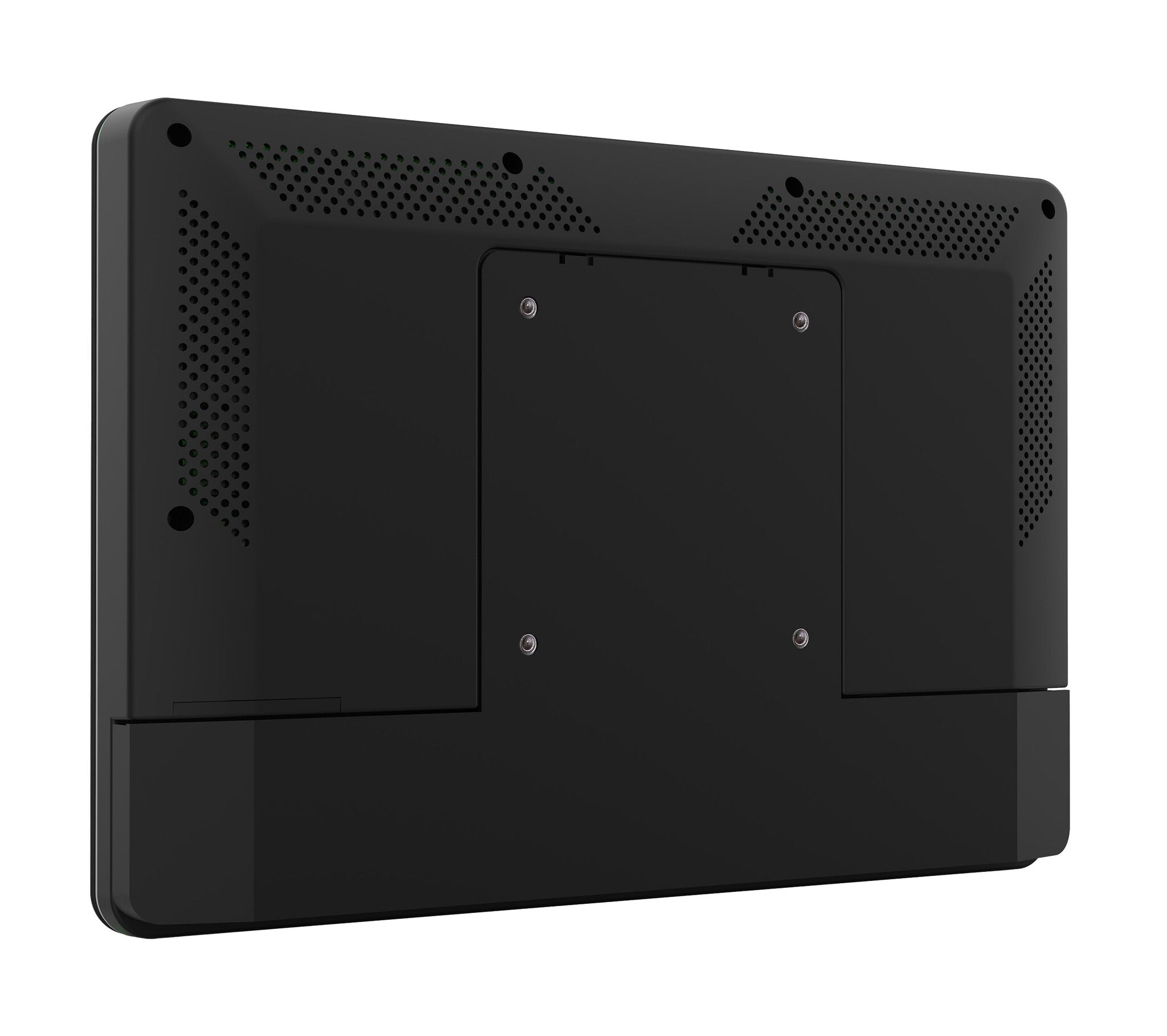

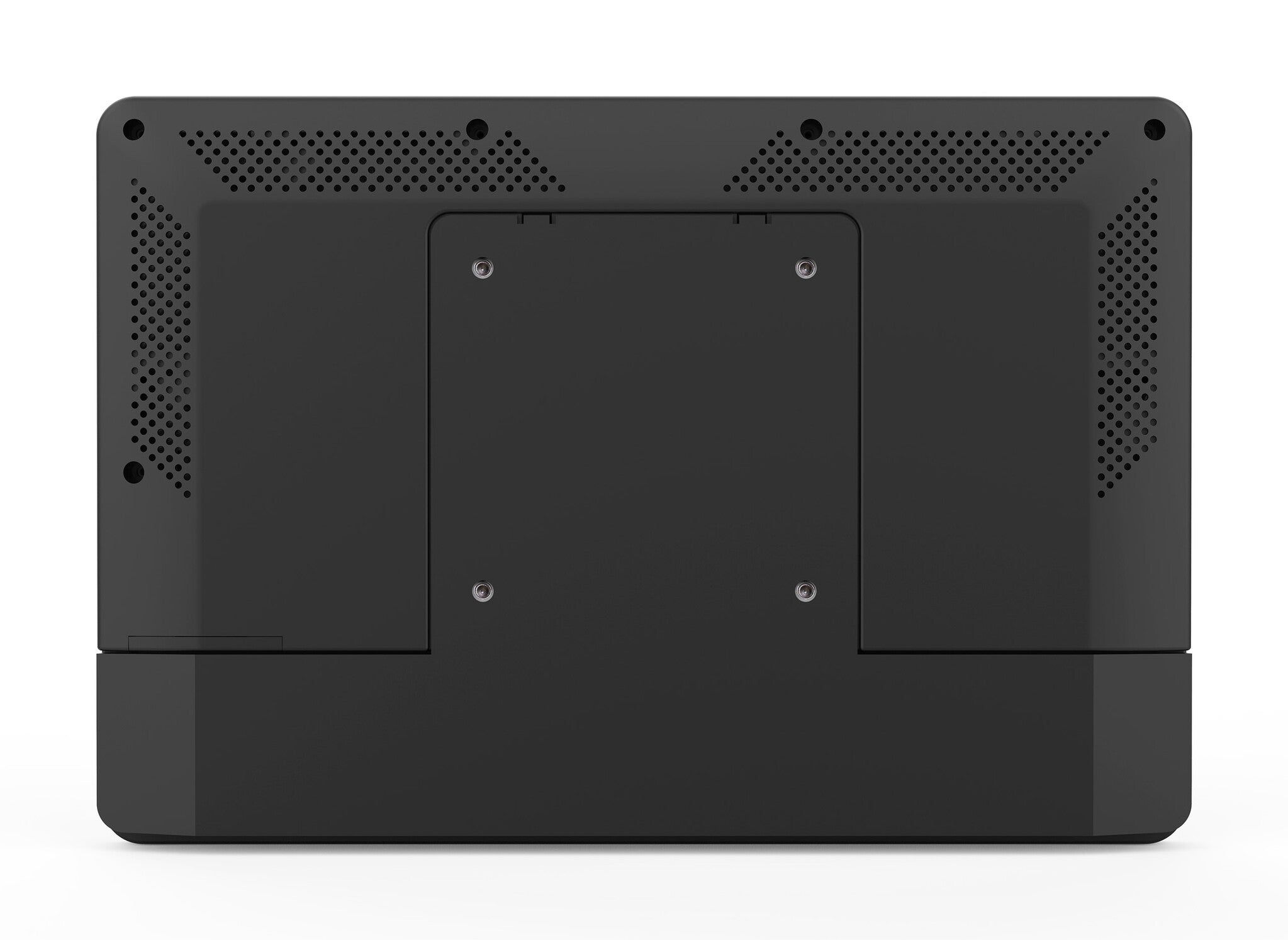

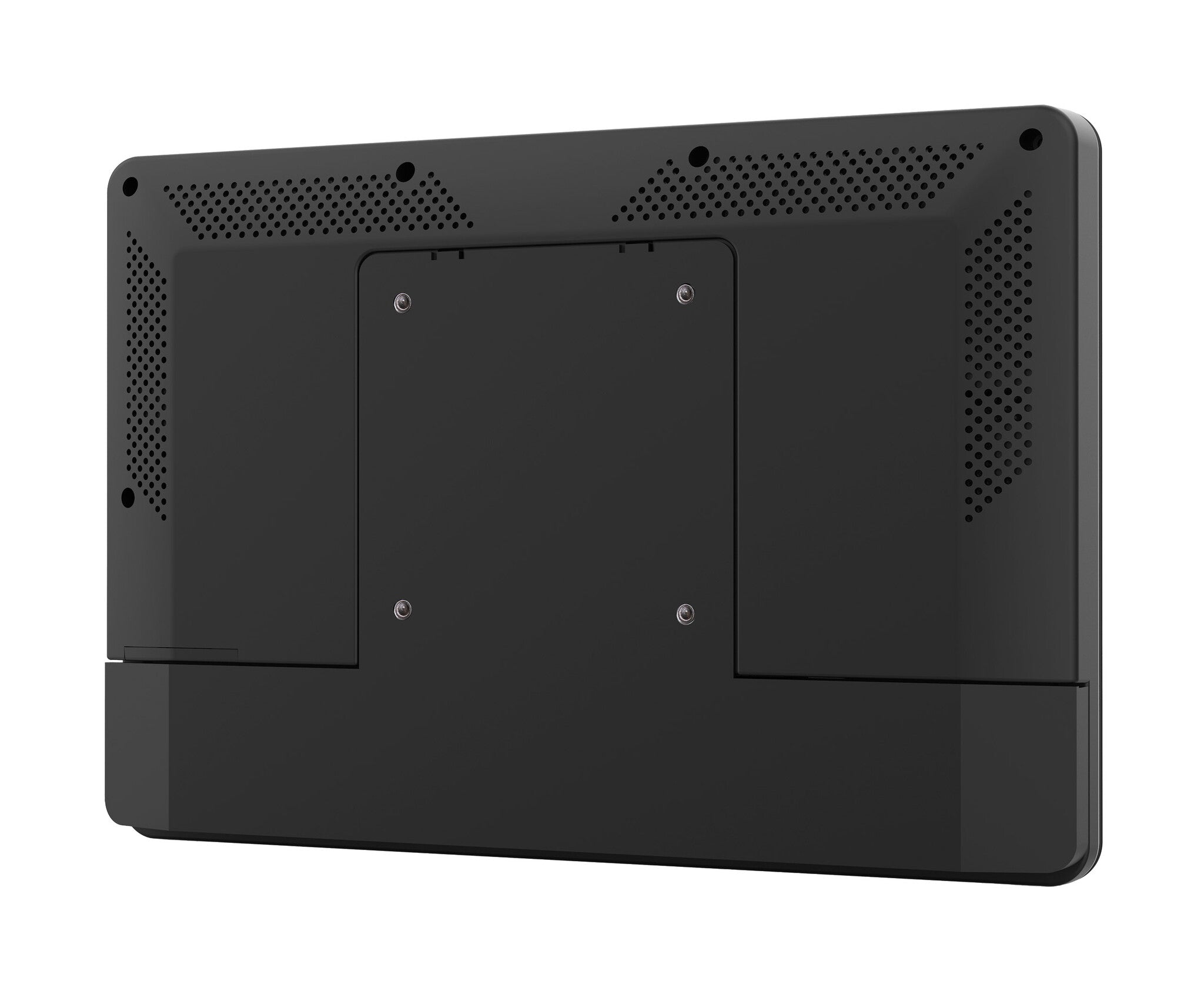

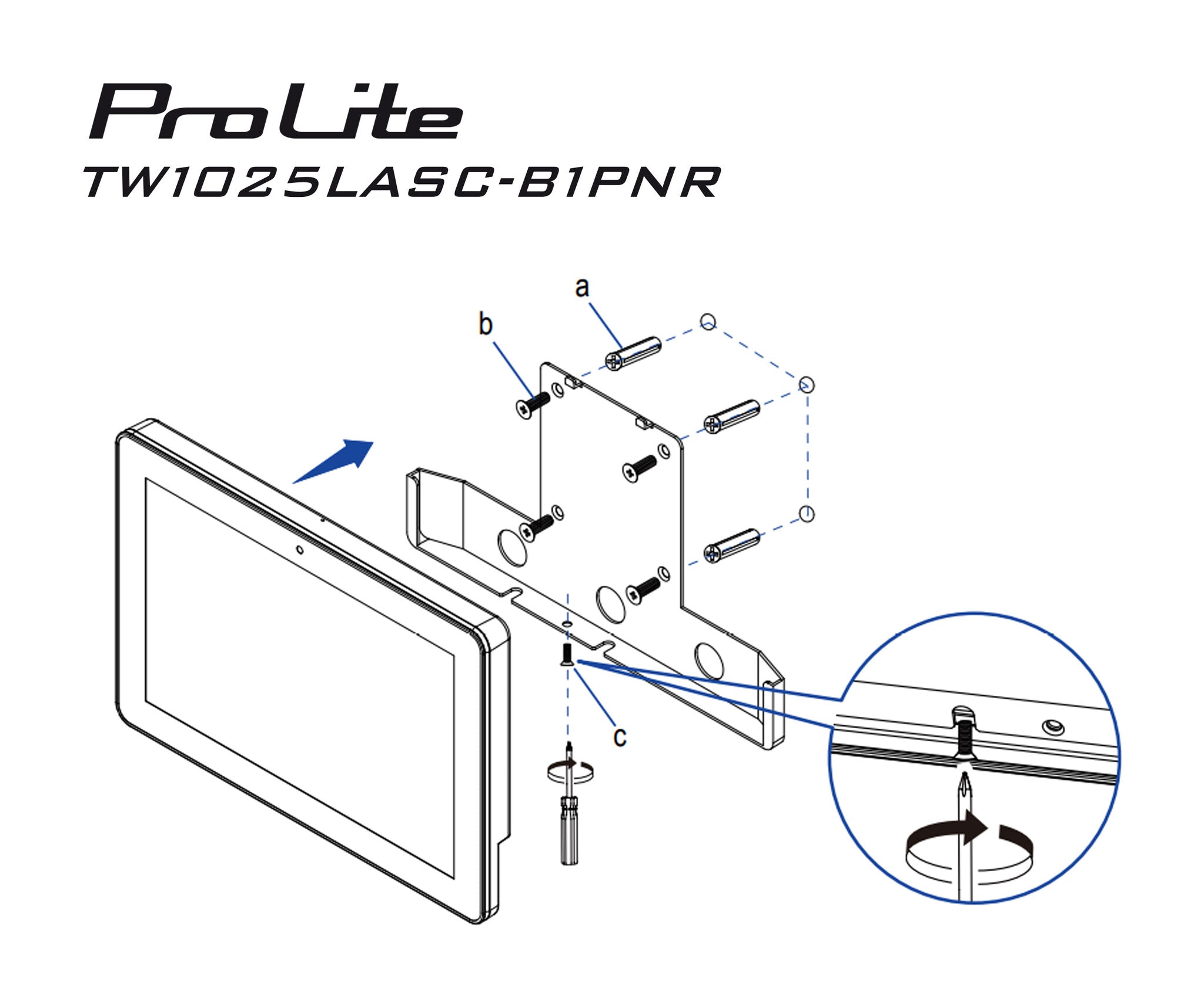

| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 18 W |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 1.1 kg |
| Height (with stand) | 178.5 mm |
| Depth (with stand) | 28 mm |
| Width (with stand) | 259.5 mm |
| Packaging data | |
|---|---|
| Package height | 225 mm |
| Package depth | 363 mm |
| Package width | 363 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Other features | |
|---|---|
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| Near Field Communication (NFC) | Yes |
| Built-in processor | Yes |
| Weight | 1.1 kg |
| Height | 178.5 mm |
| Width | 259.5 mm |
| Depth | 28 mm |
