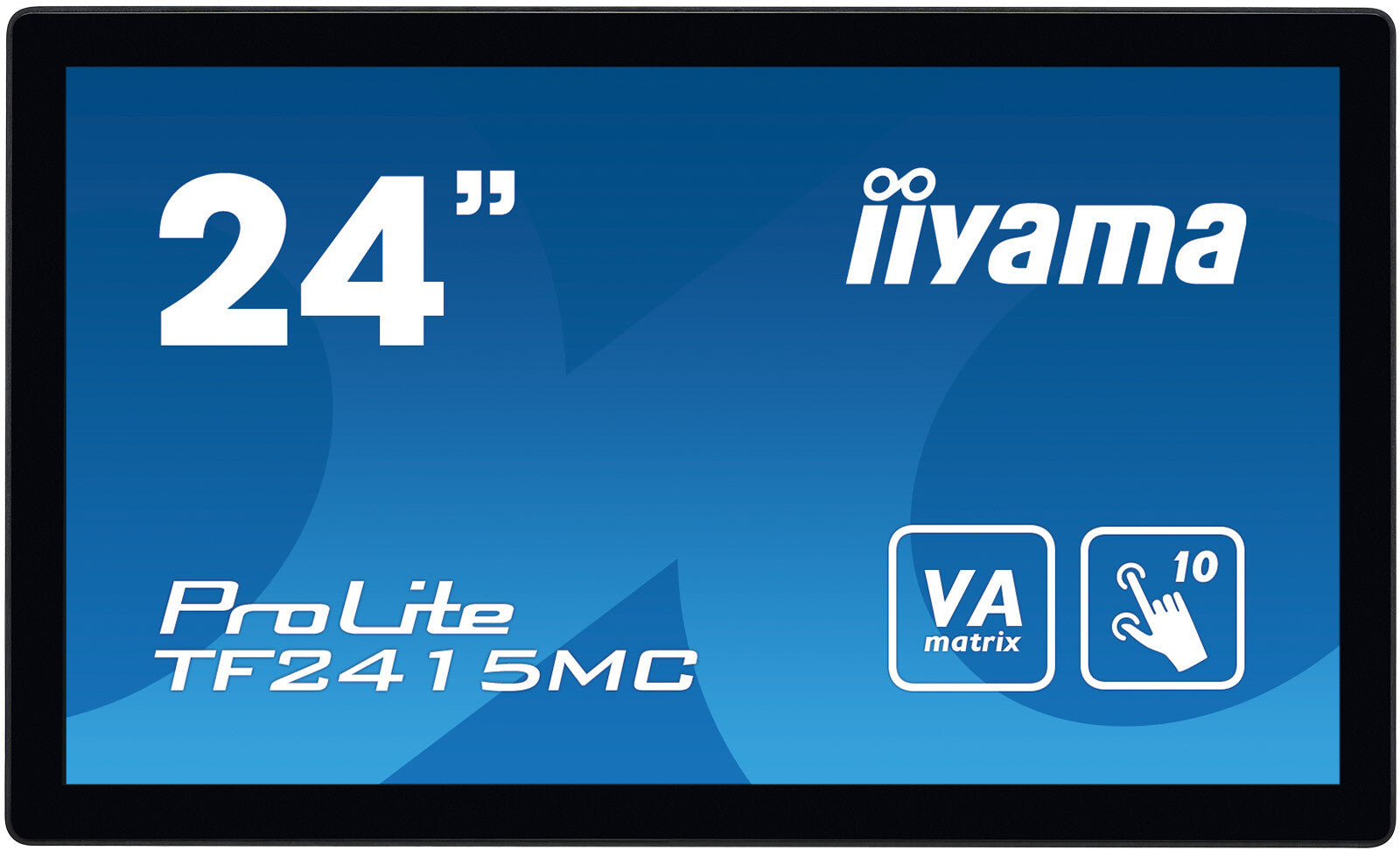

iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Couldn't load pickup availability
- Touchscreen 60.5 cm (23.8") LED VA
- Full HD 1920 x 1080 pixels 16:9
- 16 ms 350 cd/m² 3000:1
- F 22 kWh 24.4 W

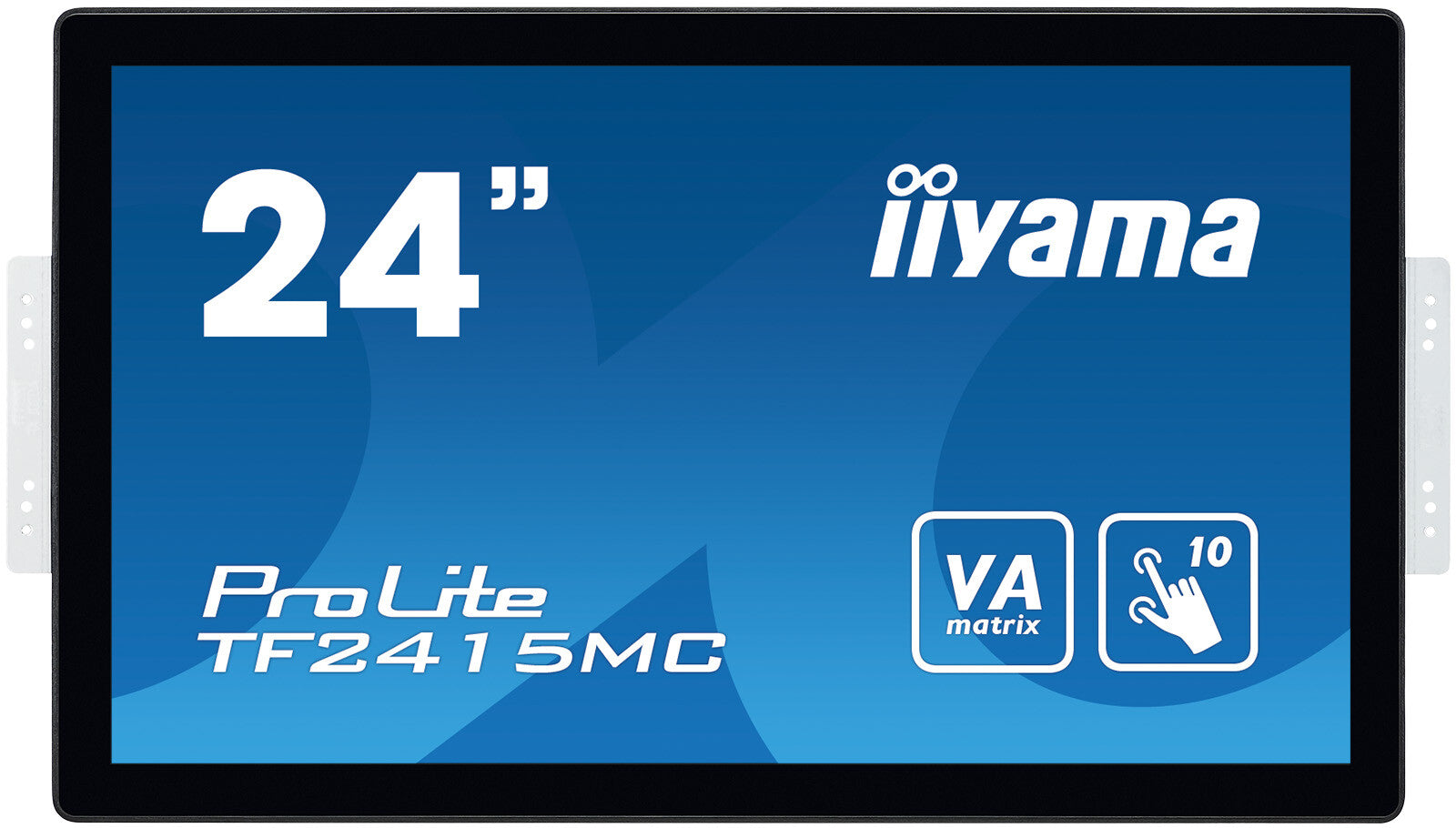

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| Surface hardness | 7H |
| Display diagonal (metric) | 60.5 cm |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Vertical scan range | 56 - 75 Hz |
| Horizontal scan range | 31.4 - 82 kHz |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 16:9 |
| Screen shape | Flat |
| Response time | 16 ms |
| Display brightness | 315 cd/m² |
| Display brightness (typical) | 350 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| OmniTapps Multitouch compatibility | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
|---|---|
| Front bezel colour | Black |
| Product colour | Black |

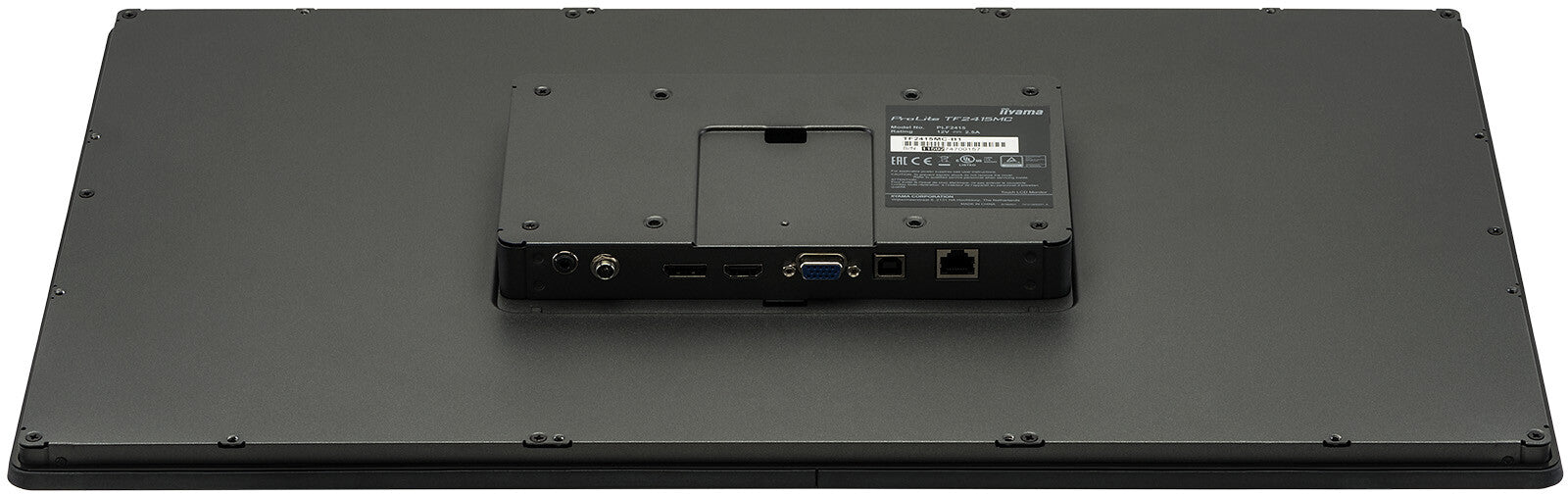

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Audio output | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.32 W |
| Power consumption (standby) | 1.06 W |
| Power consumption (typical) | 24.4 W |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.8 kg |
| Height (without stand) | 347 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 575 mm |
| Weight (with stand) | 5.8 kg |
| Height (with stand) | 347 mm |
| Depth (with stand) | 42.5 mm |
| Width (with stand) | 575 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |

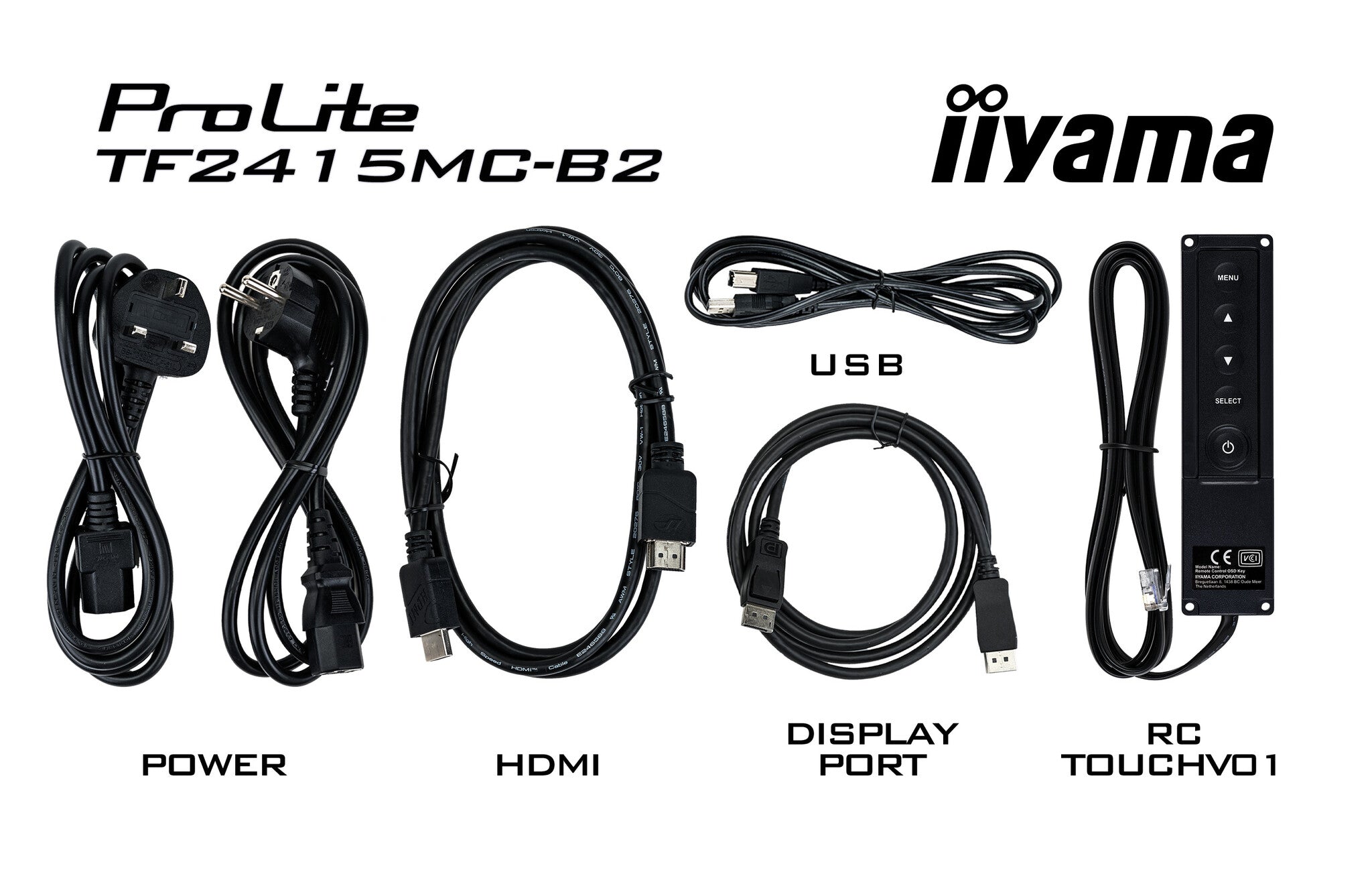

| Cables included | AC, DisplayPort, HDMI, USB |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Placement supported | Horizontal/Vertical |
| Glass protection | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Full HD | Yes |
| AC adapter included | Yes |
| International Protection (IP) code | IP65 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
