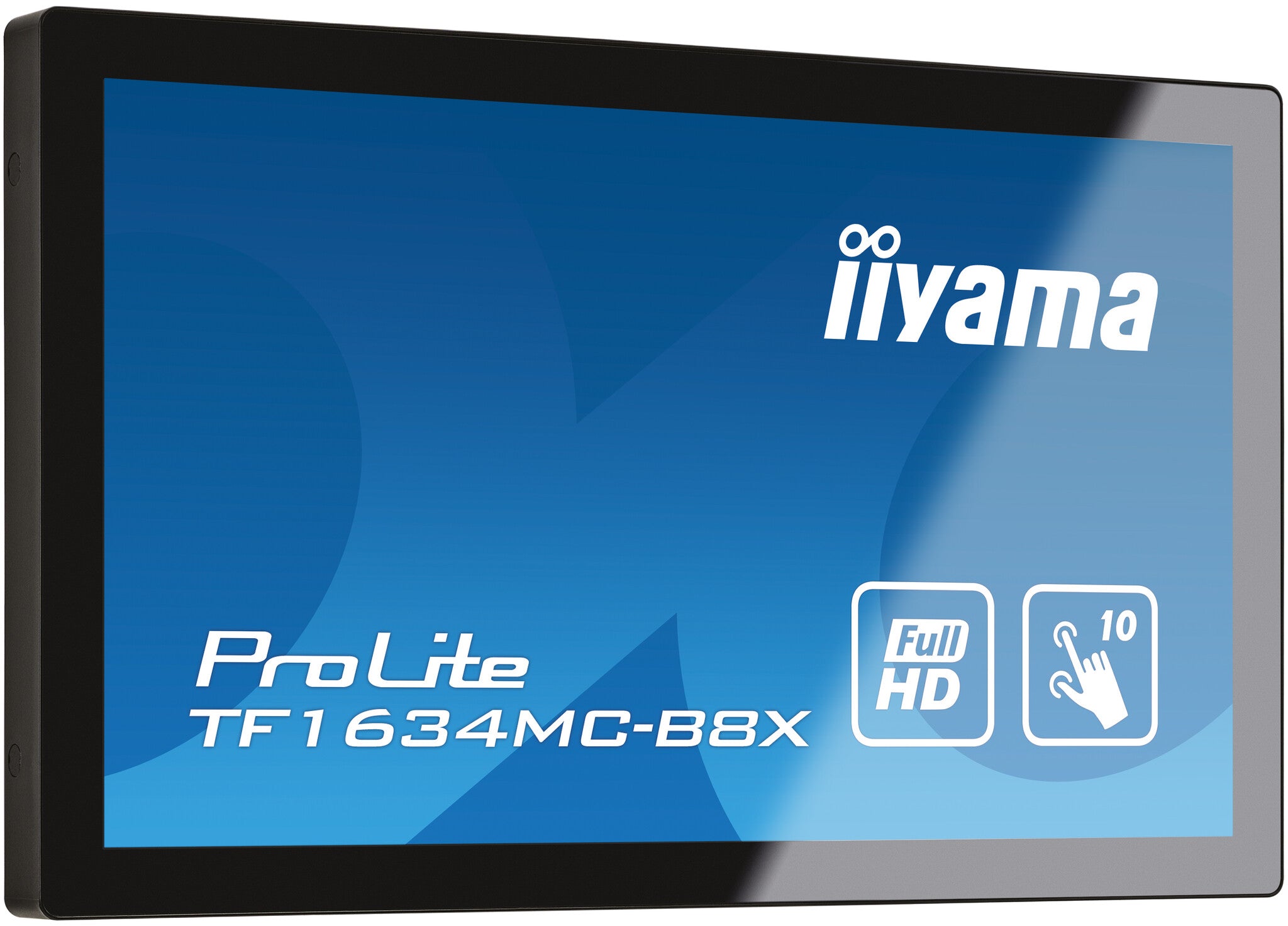

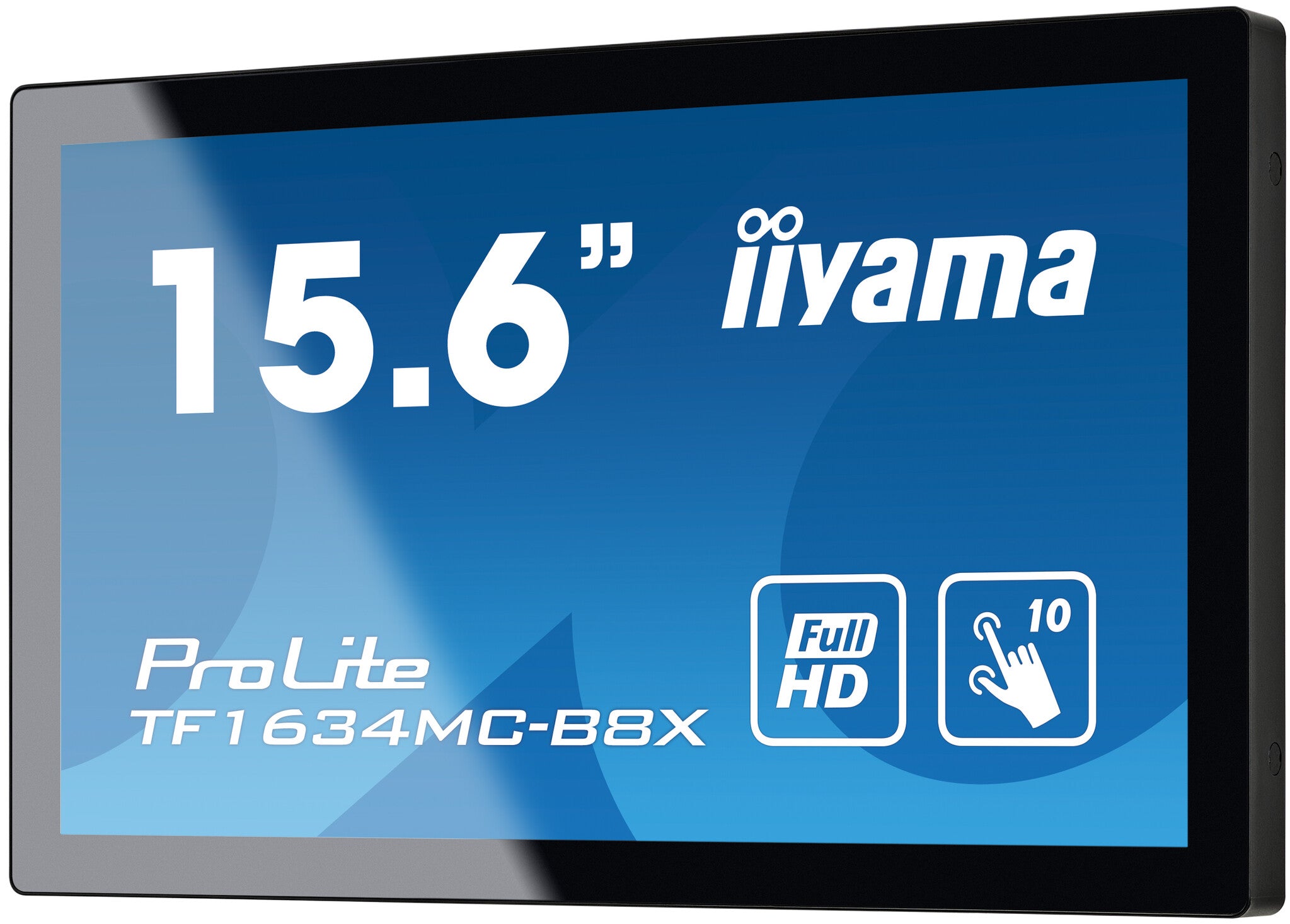

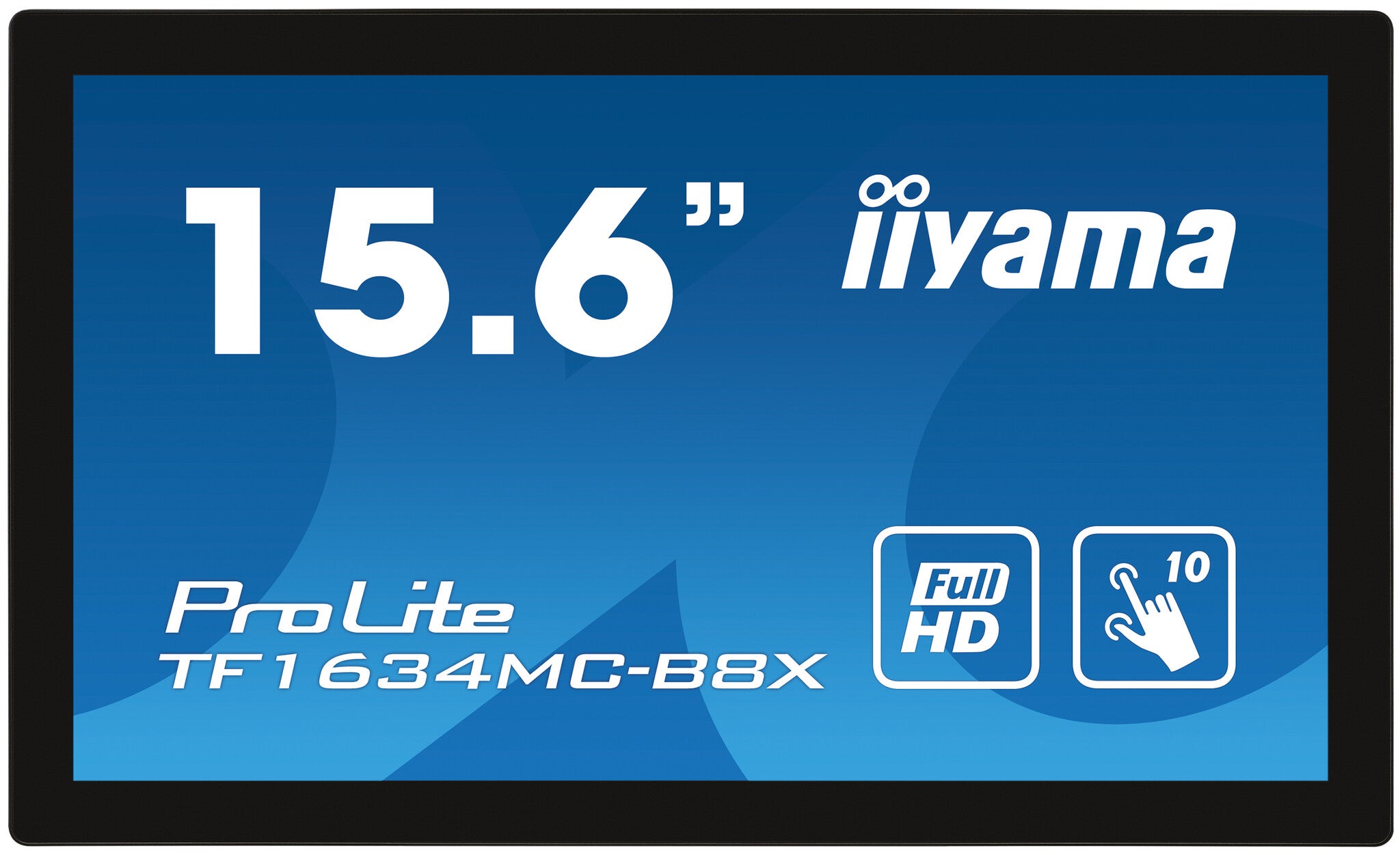

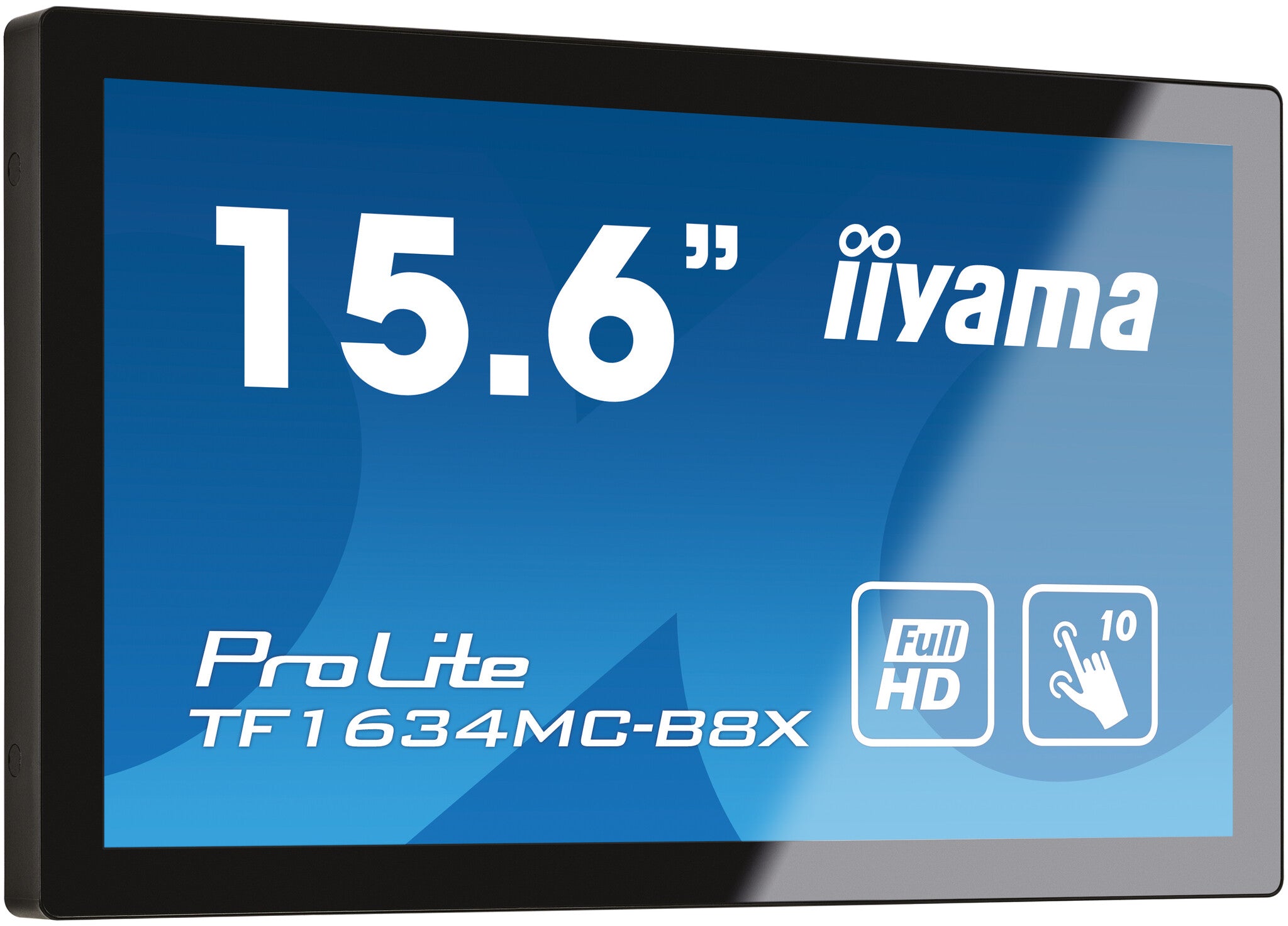

iiyama ProLite TF1634MC-B8X computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Couldn't load pickup availability
- Touchscreen 39.6 cm (15.6") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 25 ms 450 cd/m² 700:1
- F 12 kWh 18 W
The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
| Display | |
|---|---|
| Surface hardness | 7H |
| Display diagonal (metric) | 39.5 cm |
| Viewable size, vertical | 19.4 cm |
| Viewable size, horizontal | 34.4 cm |
| Horizontal scan range | 30 - 84 kHz |
| Pixel pitch | 0.179 x 0.179 mm |
| Display number of colours | 16.2 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 700:1 |
| Screen shape | Flat |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 25 ms |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
|---|---|
| Glass thickness | 2.4 mm |
| Front bezel colour | Black |
| Product colour | Black |

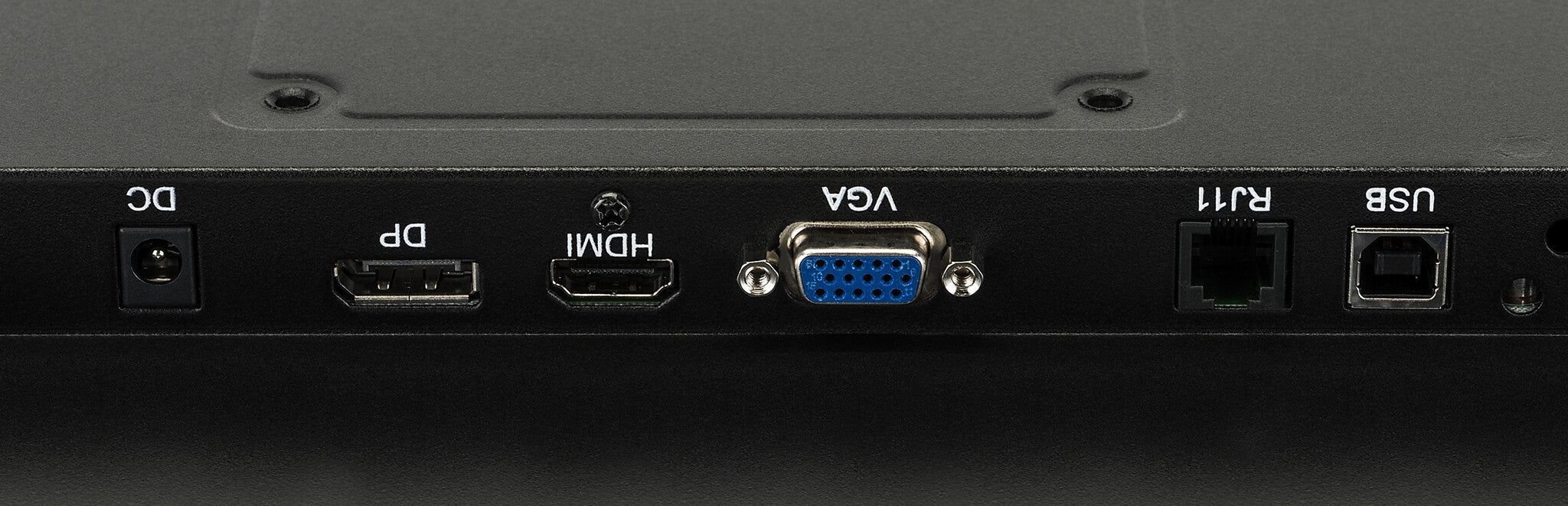

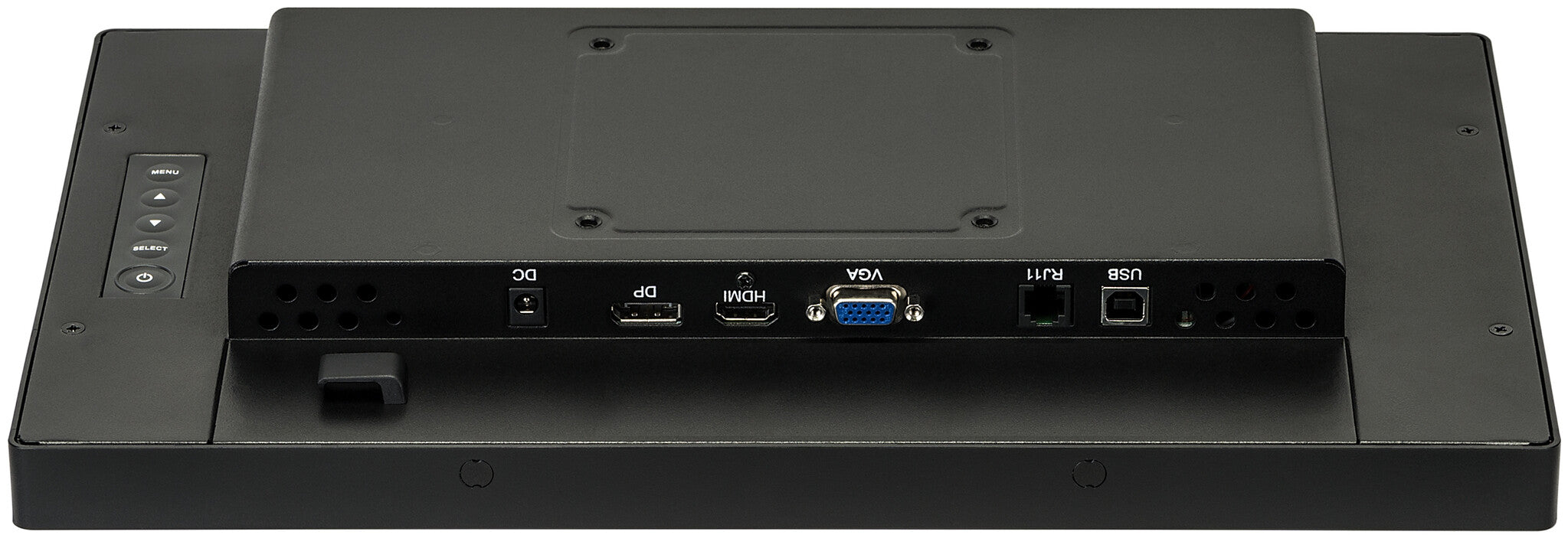

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| Number of OSD languages | 7 |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |

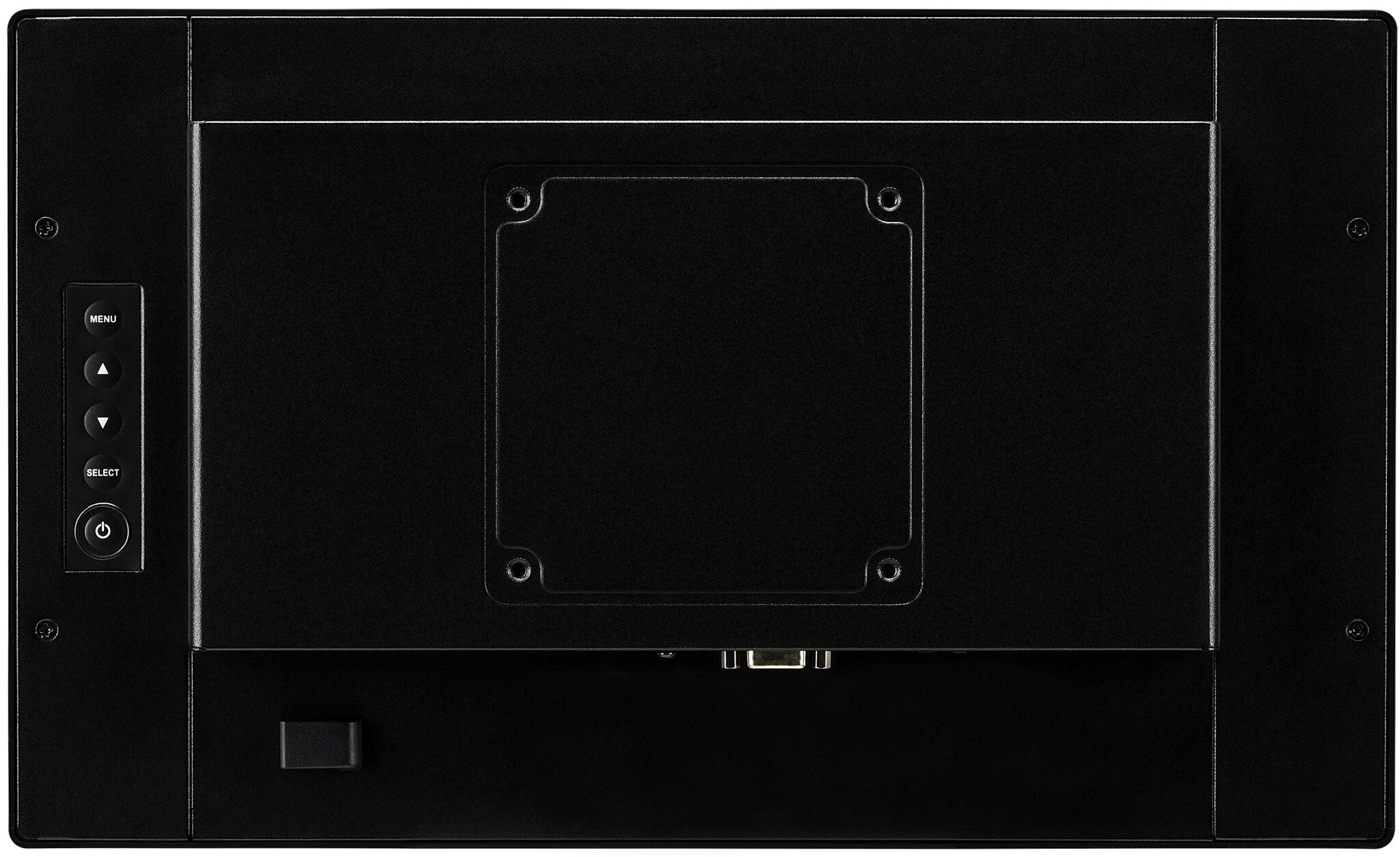

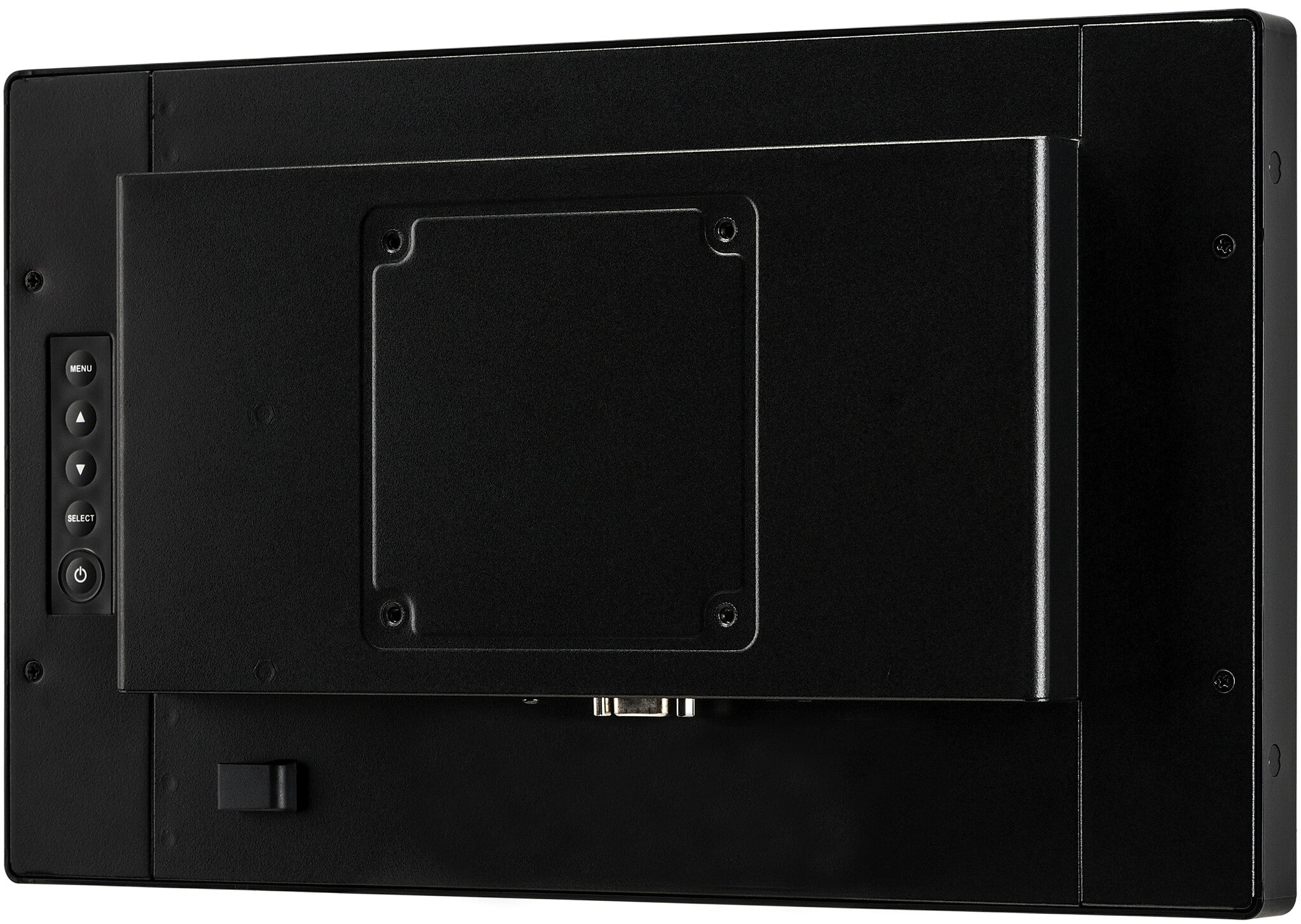

| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 391713 |
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.6 W |
| Power consumption (typical) | 18 W |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 2 kg |
| Height (without stand) | 230.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 381 mm |
| Weight (with stand) | 2 kg |
| Height (with stand) | 230.5 mm |
| Depth (with stand) | 46 mm |
| Width (with stand) | 381 mm |
| Packaging data | |
|---|---|
| Package weight | 3.9 kg |
| Package height | 365 mm |
| Package depth | 455 mm |
| Package width | 455 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |

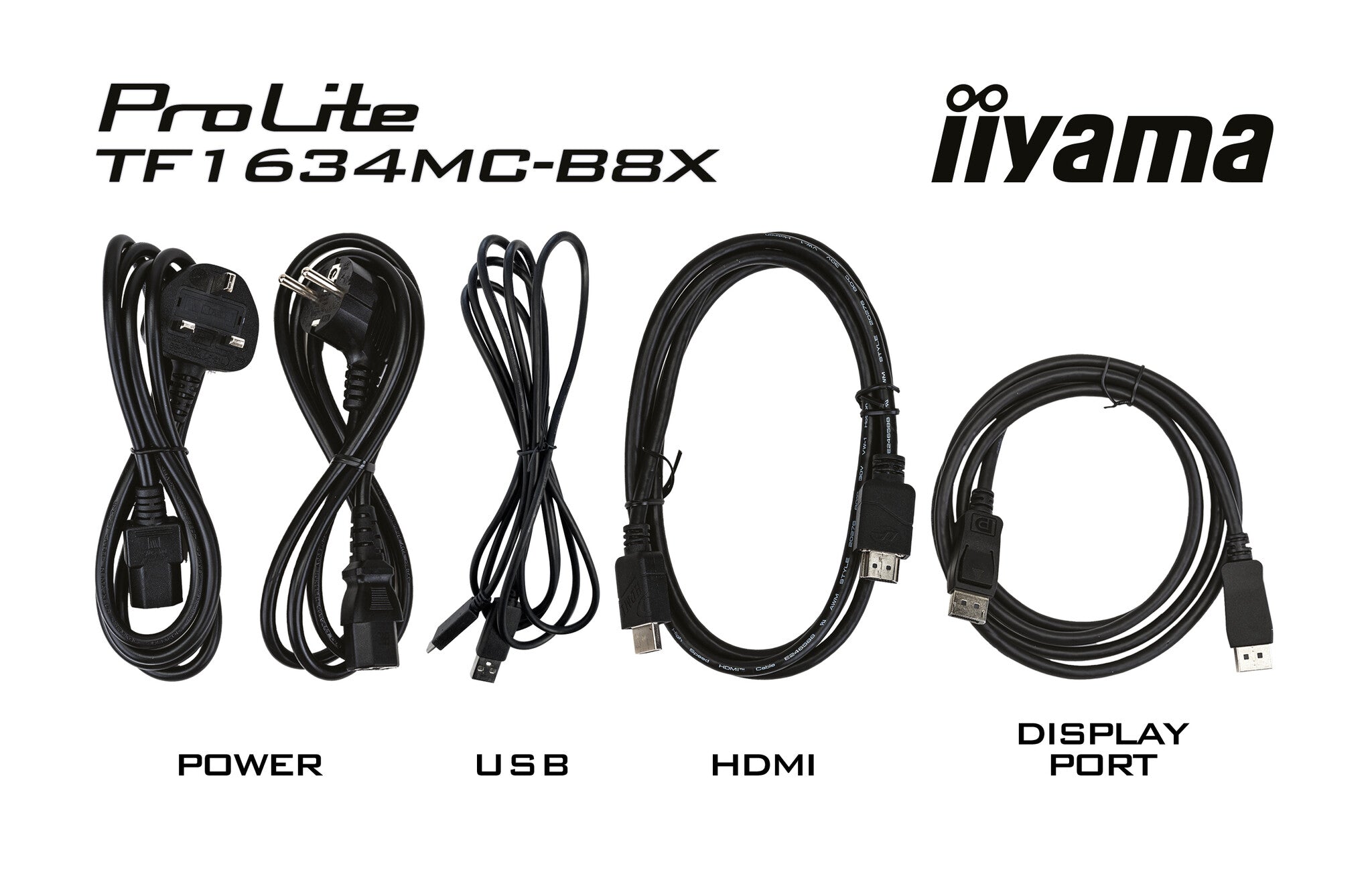

| Cables included | AC, DisplayPort, HDMI, USB |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Placement supported | Horizontal/Vertical |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| International Protection (IP) code | IP65 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Pallet net height | 9.7 cm |
| Pallet net length | 20.4 cm |
| Pallet net width | 11.5 cm |
| Products per pallet | 78 pc(s) |
