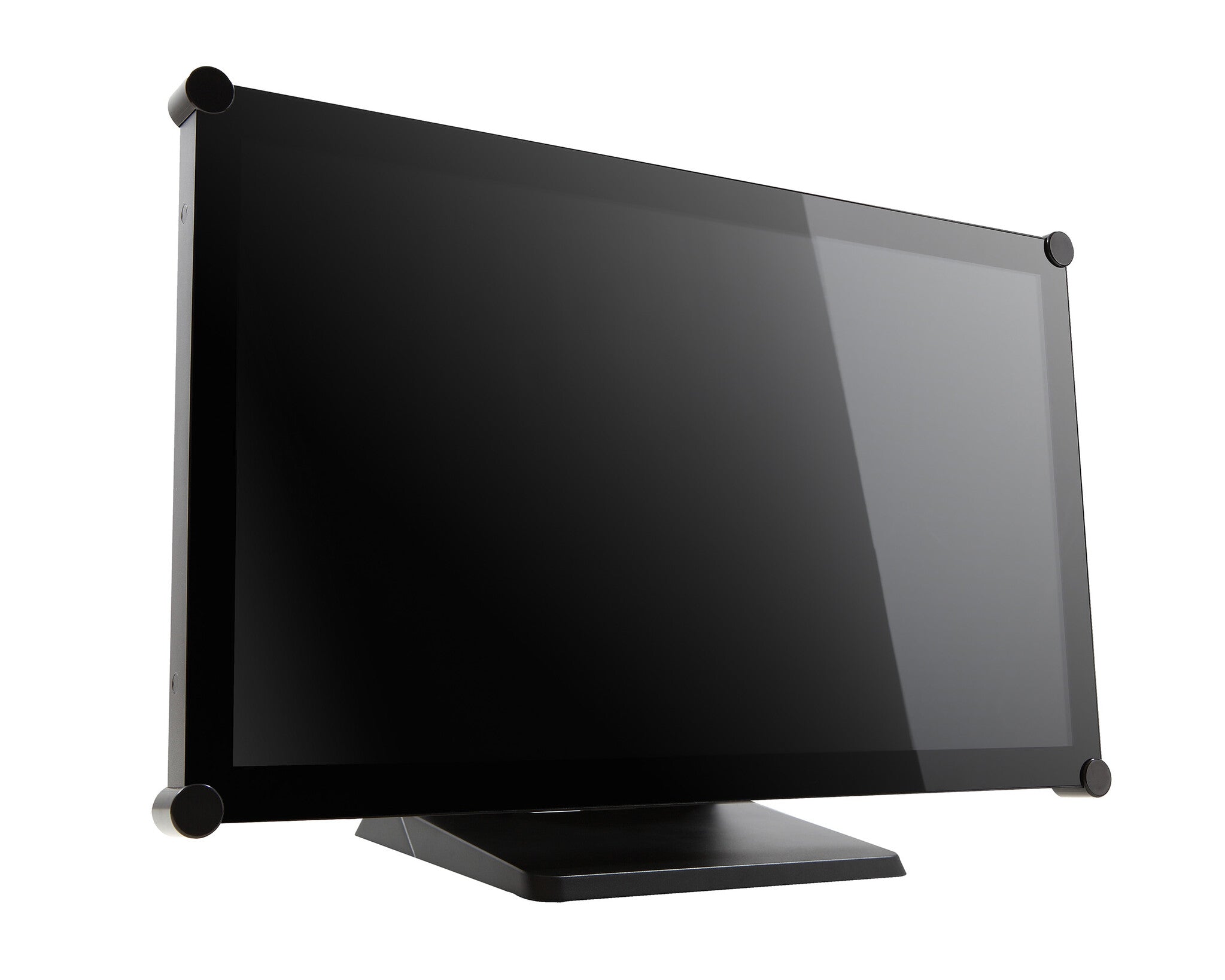

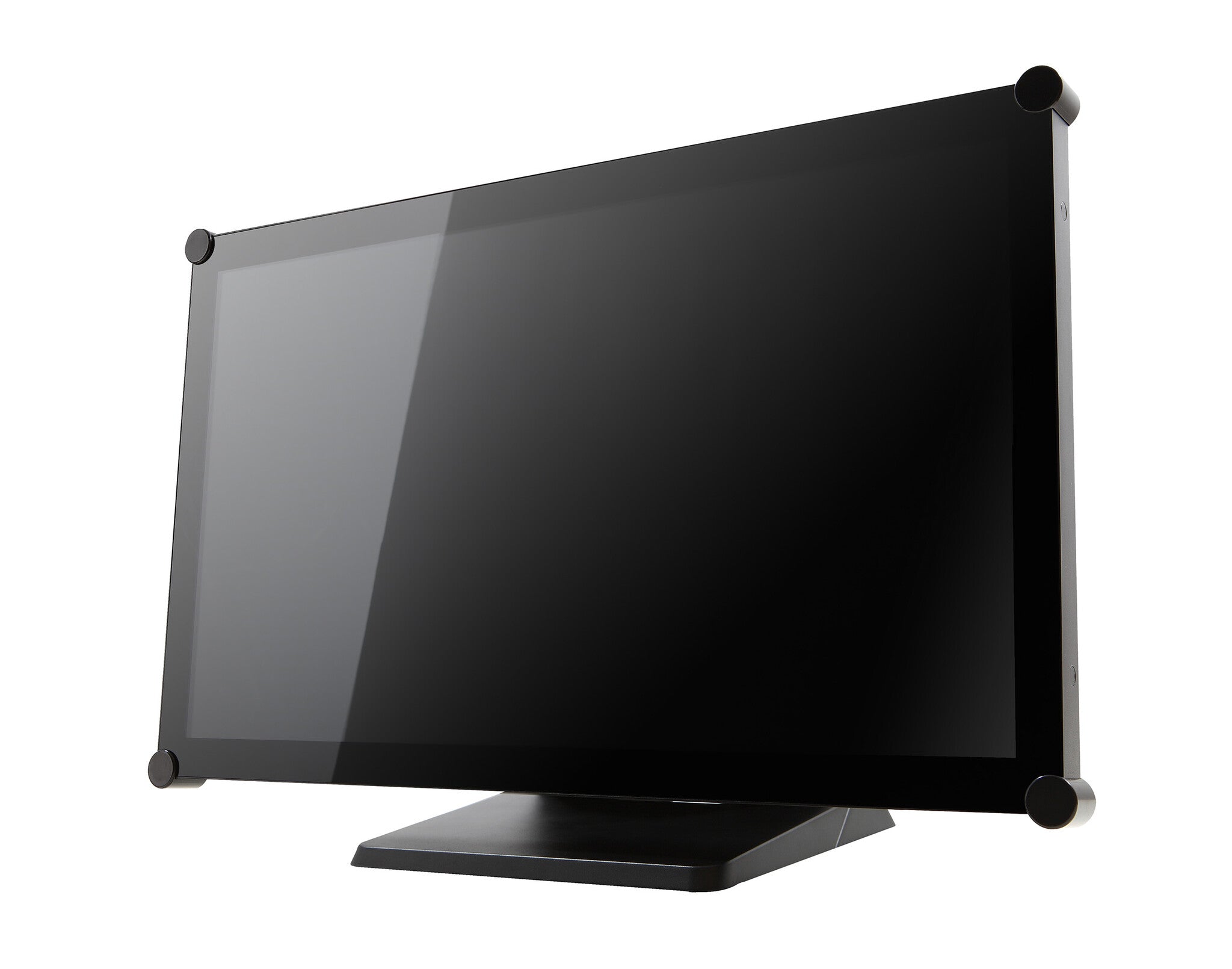

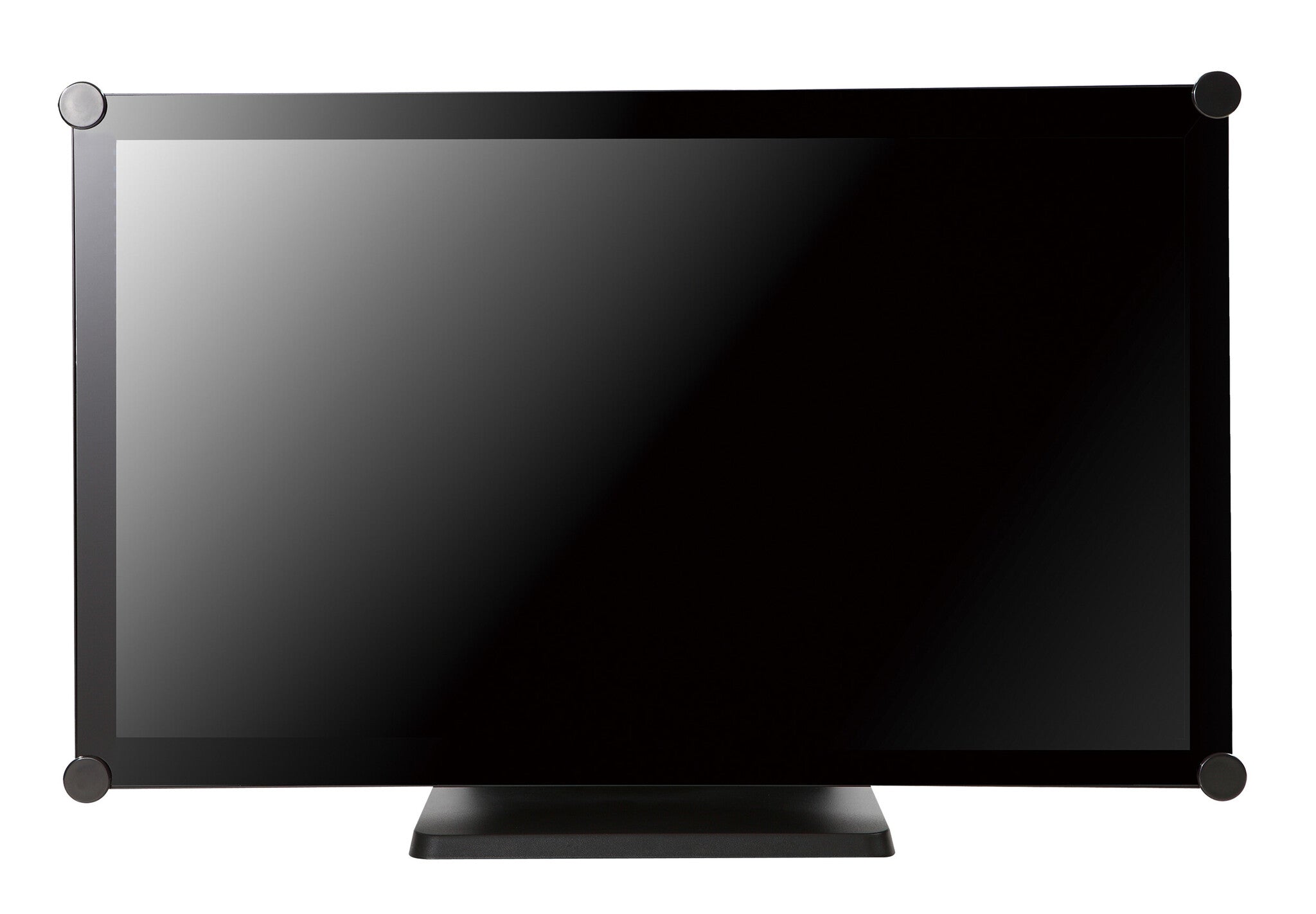

AG Neovo TX-2202A computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Couldn't load pickup availability
- FHD 1920 x 1080 resolutions
- 10-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
- Plug-and-play support for Windows 7/8/10/11, Linux 3.08, Android 3.08, Mac OS 10.11-10.14
- Designed and developed for continuous 24/7 operation
The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-point PCAP Touch Screen
The TX-2202A 22” 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
Seamless Integration
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.
Front IP65 Dust and Water Protection
This 22” 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

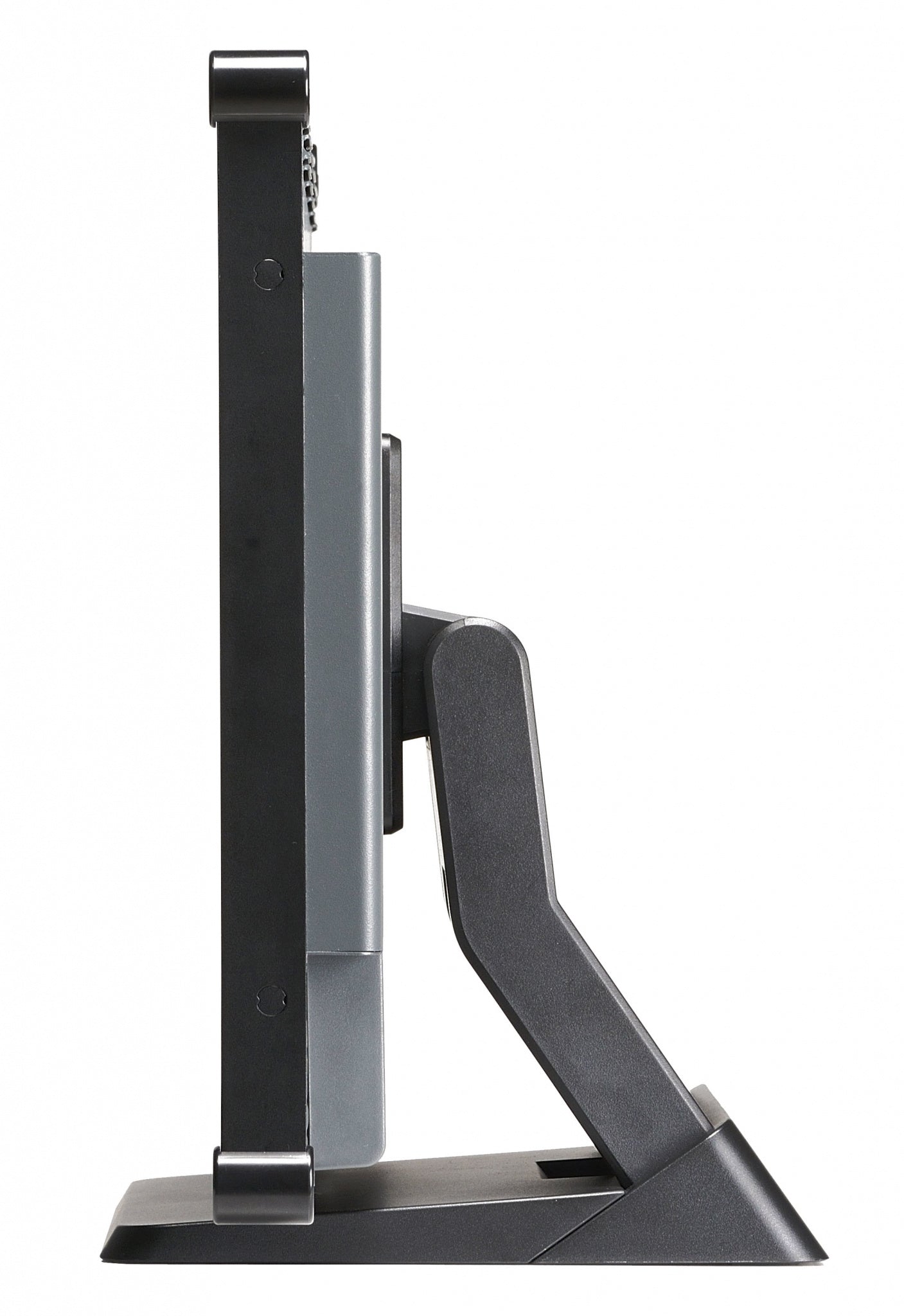

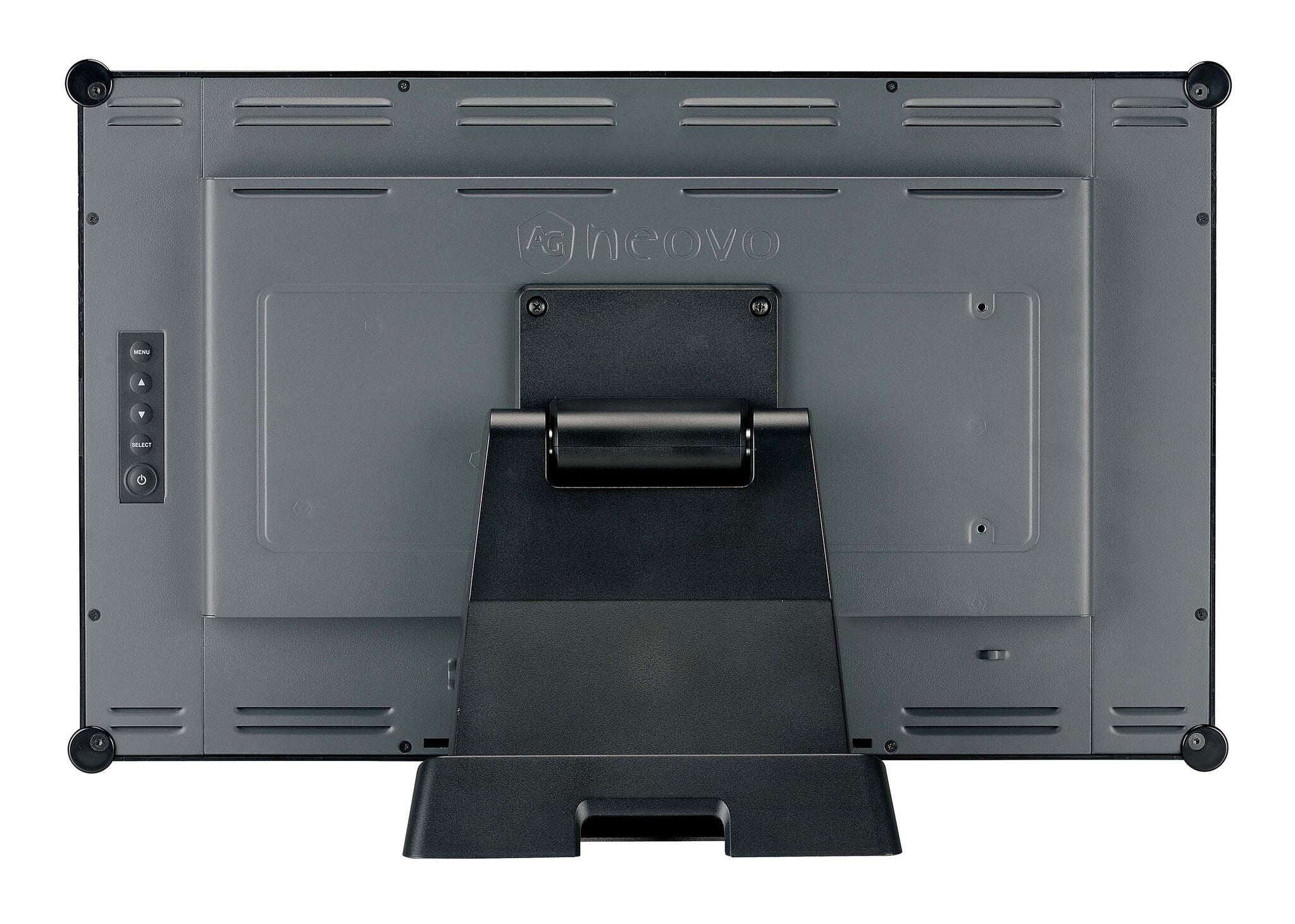

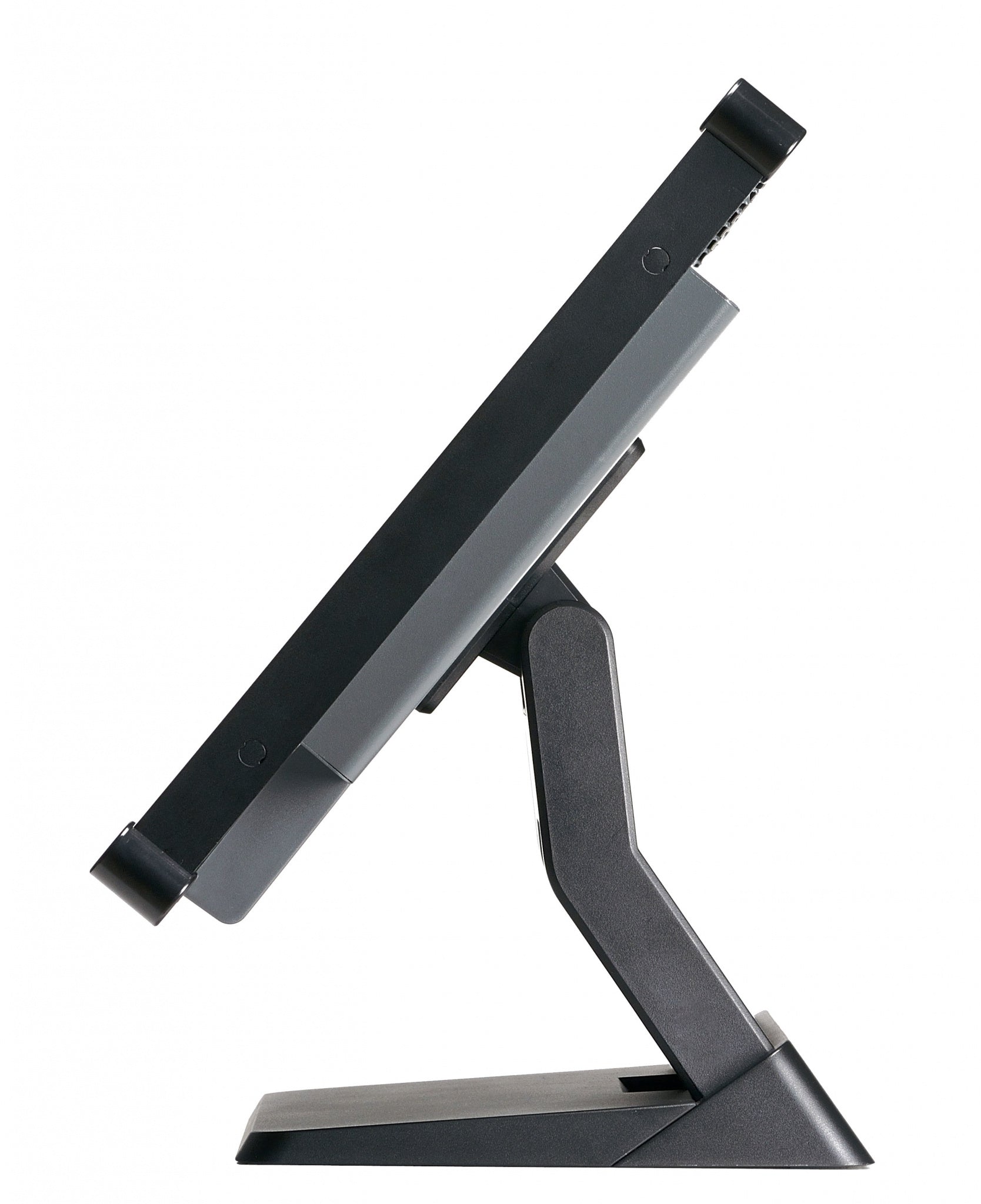

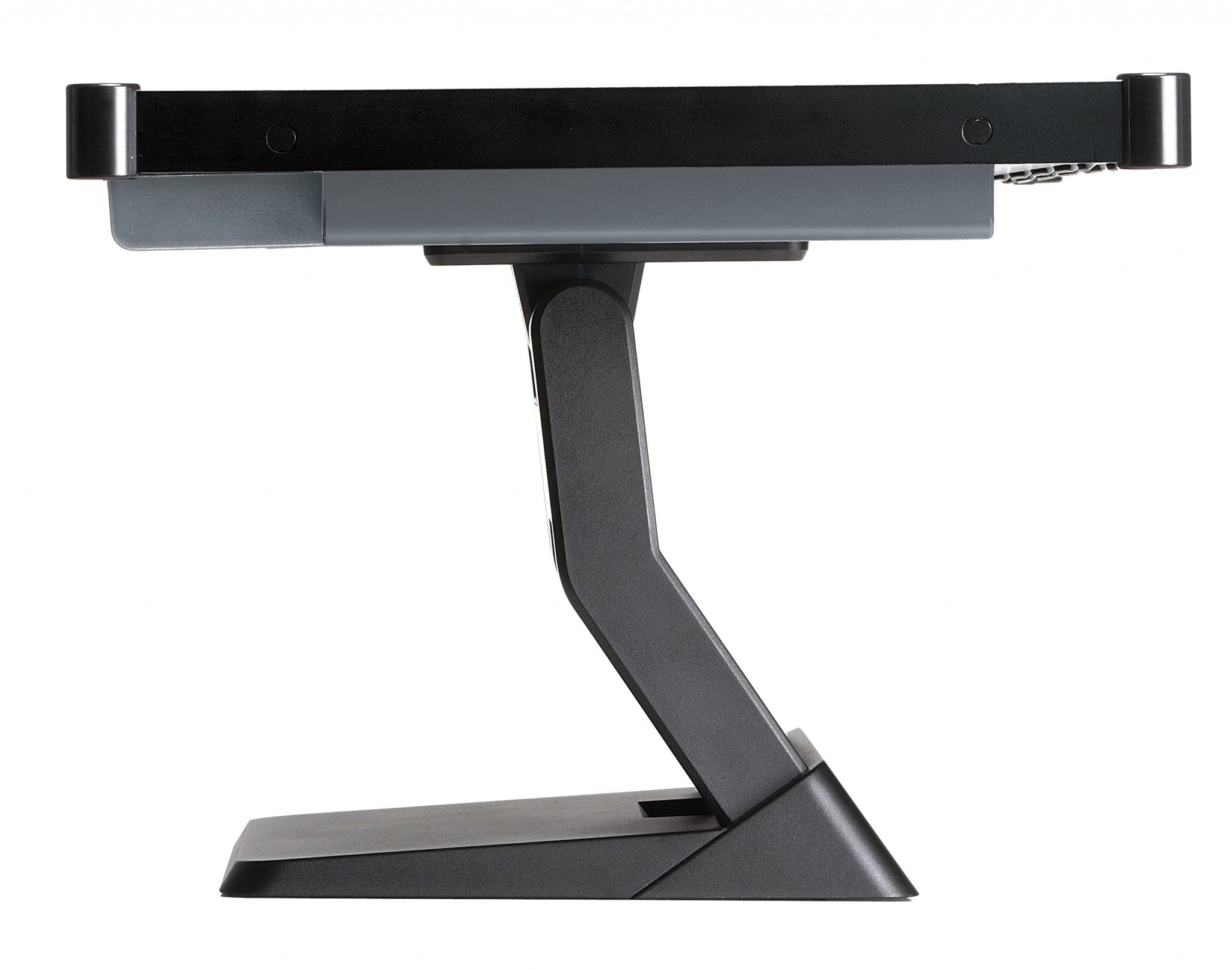

Thanks to VESA compatibility, the TX-2202A 22” 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

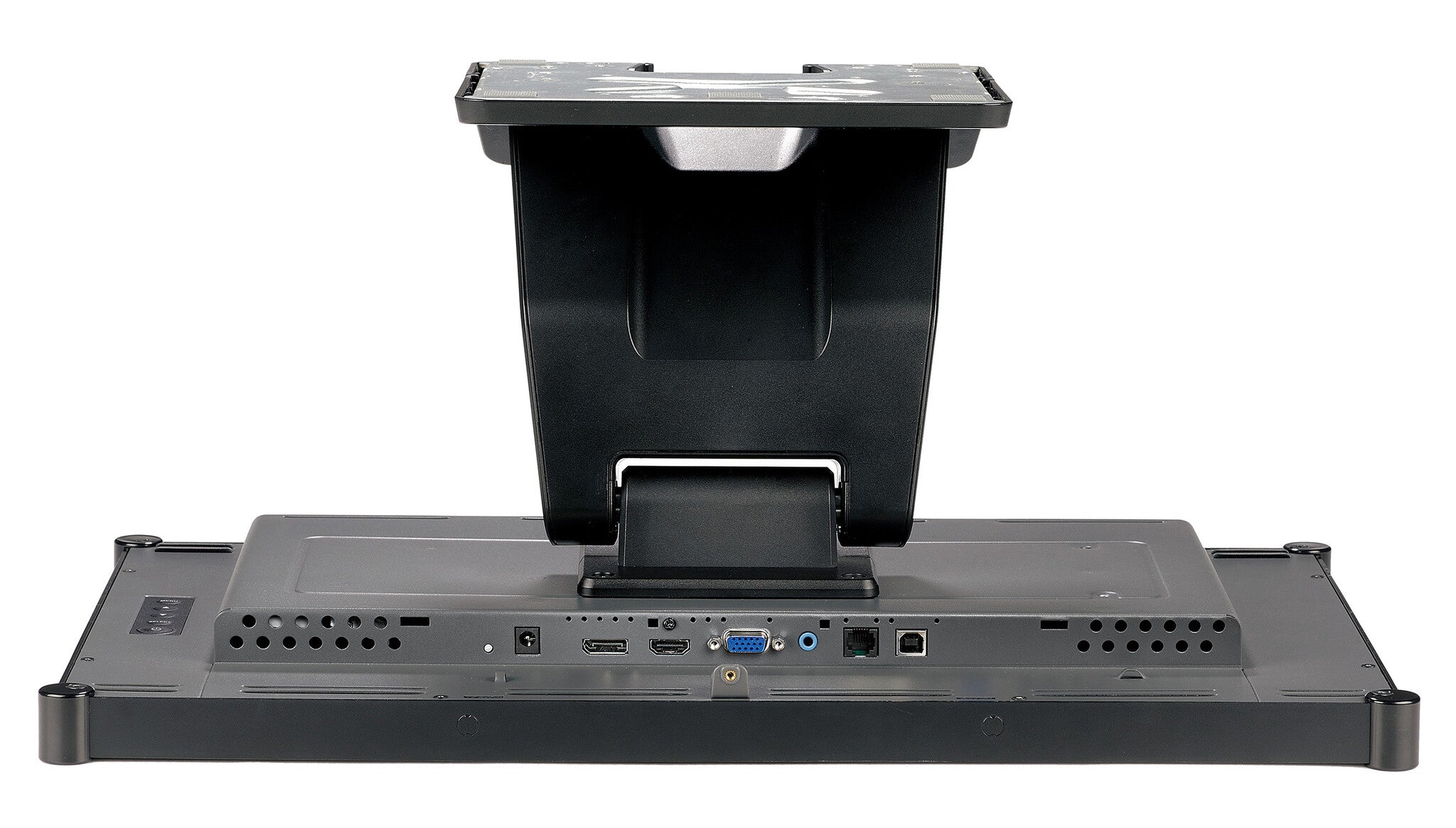

Versatile Connectivity
The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.
| Display | |
|---|---|
| Surface hardness | 7H |
| Haze rate | 25% |
| Vertical scan range | 50 - 76 Hz |
| Horizontal scan range | 30 - 84 kHz |
| Pixel pitch | 0.248 x 0.248 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Capacitive |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| Other operating systems supported | Android |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 2.05 mm |
| Housing material | Metal |
| Product colour | Black |
| Market positioning | Medical |
| Ports & interfaces | |
|---|---|
| Headphone out | No |
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB upstream port type | USB Type-B |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt angle range | -5 - 90° |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1372216 |
| Power supply type | External |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (typical) | 15 W |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 4.8 kg |
| Height (without stand) | 324.3 mm |
| Depth (without stand) | 48.5 mm |
| Width (without stand) | 528.6 mm |
| Weight (with stand) | 6.7 kg |
| Height (with stand) | 346.7 mm |
| Depth (with stand) | 214.2 mm |
| Width (with stand) | 528.6 mm |
| Packaging data | |
|---|---|
| Package weight | 9.8 kg |
| Package height | 460 mm |
| Package depth | 320 mm |
| Package width | 610 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Power adapter included | Yes |
| Cables included | AC, Audio, HDMI, USB, VGA |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Transmission rate | 90% |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Protection features | Dust resistant, Waterproof |
| International Protection (IP) code | IP65 |
