£96.99

Stock Available: 0
  • Low Profile (Slimline) PC
  • Mini-DTX, Mini-ITX
  • Supported HDD sizes: 2.5"
  • Number of 2.5" bays: 4
  • Plastic, Steel
  • Black

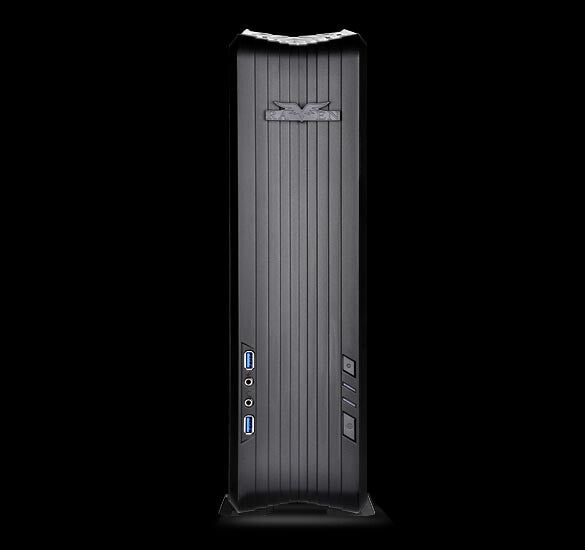

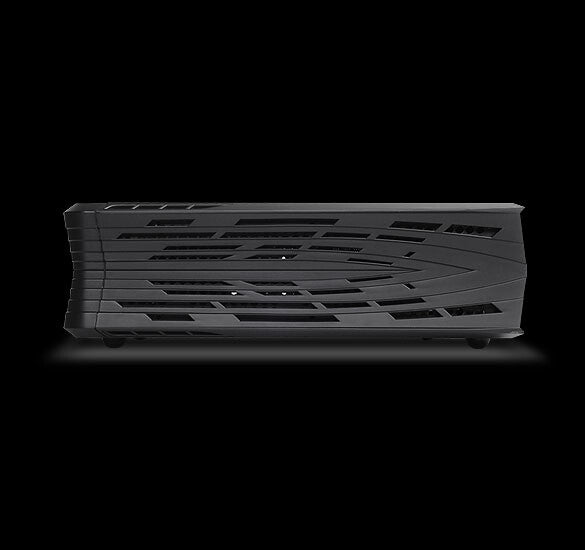

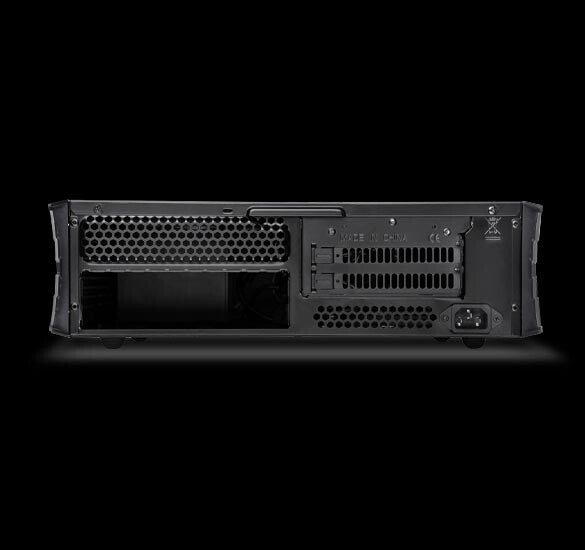

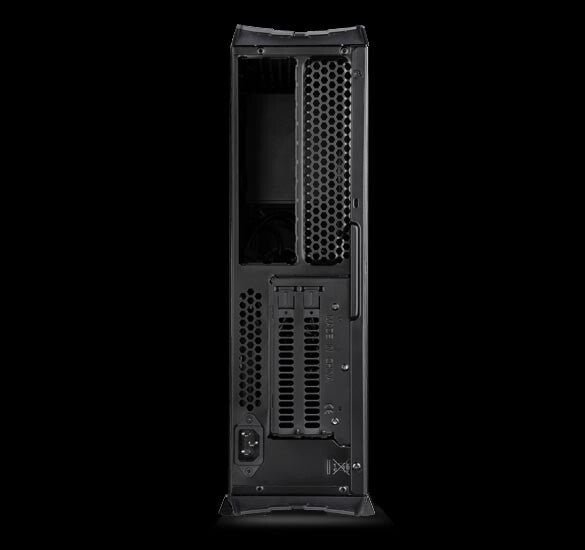

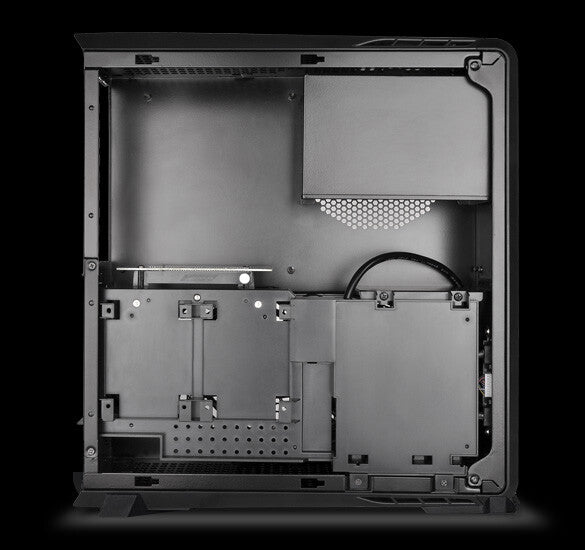

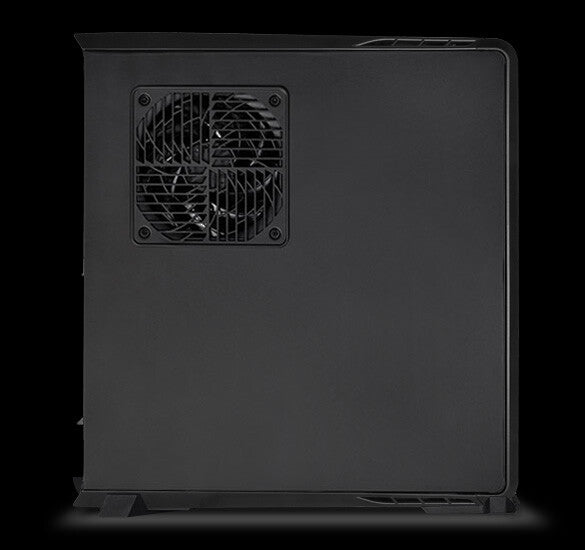

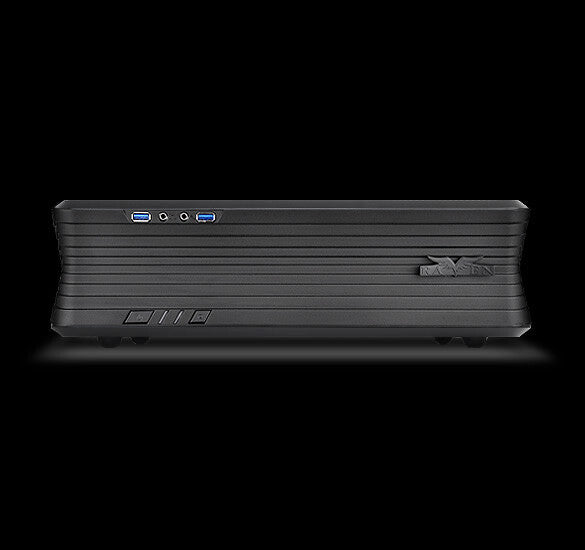

RVZ01-E Introduction
SilverStone RVZ01-E is an evolution of the ground-breaking RAVEN Z RVZ01, a slim form factor case with tremendous capability. While maintaining the same volume size and appearance as the original model, the RVZ01-E’s interior was reworked to convert SFX power supply space into one for standard ATX (PS2) power supply. This amazing change came with little sacrifice as the case still has support for the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a slim form factor PC, the RVZ01-E’s ability to accommodate standard ATX power supply will help to open up more flexible and varied assembly option.

- Mini-ITX motherboard & ATX PSU compatible
- Signature RAVEN styling touches
- Support graphics card up to 13 inches
- Maximum performance in slim form factor with support for liquid cooling*
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Fits in nearly any environment with horizontal or vertical orientation

Design
Maximum PSU length 15 cm
Maximum graphics card length 14.9 cm
Maximum CPU cooler height 8.3 cm
Reset button Yes
Side window No
Number of expansion slots 2
Number of 2.5" bays 4
Supported motherboard form factors Mini-DTX, Mini-ITX
Product colour Black
Material Plastic, Steel
Type PC
Form factor Low Profile (Slimline)
Power supply
Power supply location Top
Power supply included No
Ports & interfaces
Audio output Yes
Audio input Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Cooling
Noise level (high speed) 18 dB
Fan speed 1500
Bottom fans diameters supported 120 mm
Number of bottom fans supported (max) 2
Top fans diameters supported 120 mm
Number of top fans supported (max) 1
Storage
Supported HDD sizes 2.5"
Weight & dimensions
Weight 3.7 kg
Depth 350 mm
Width 382 mm
