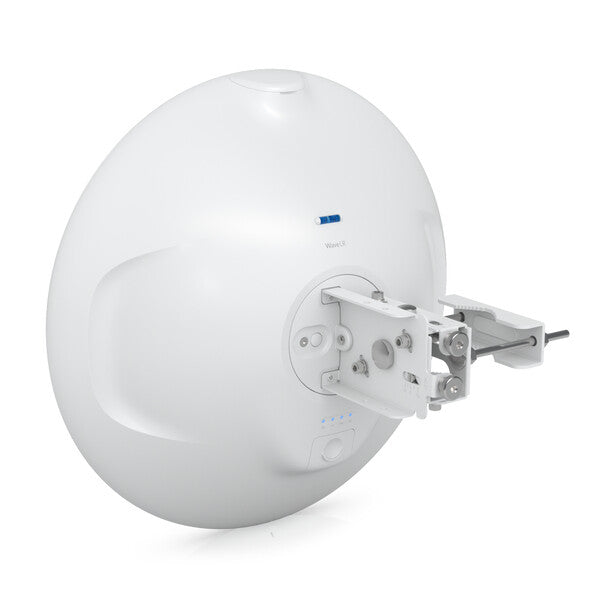

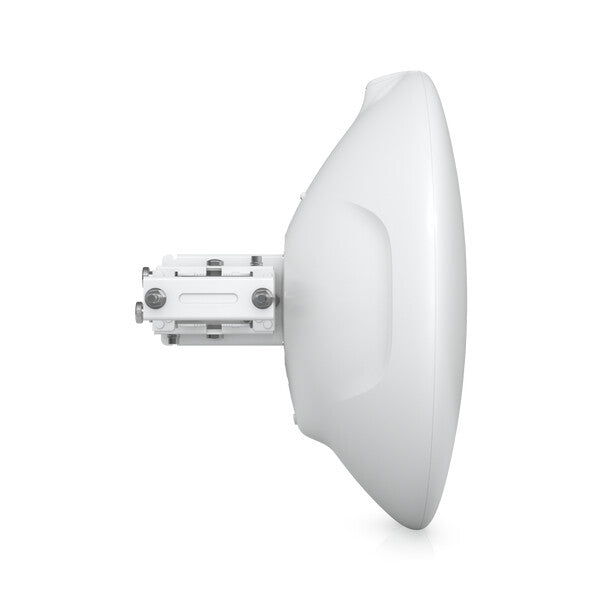

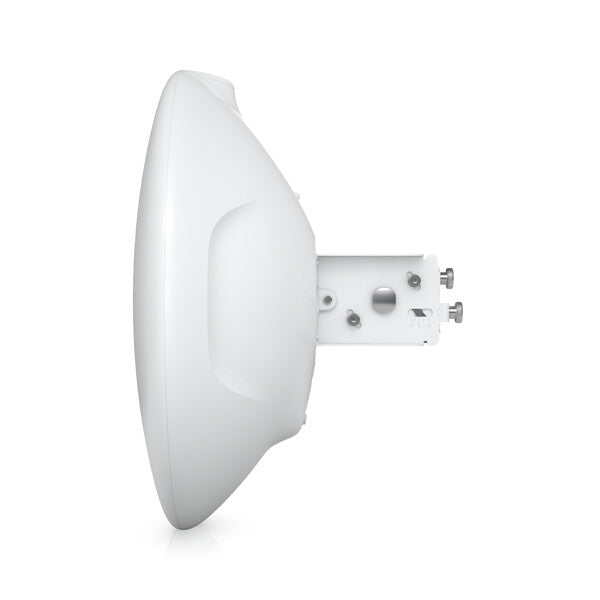

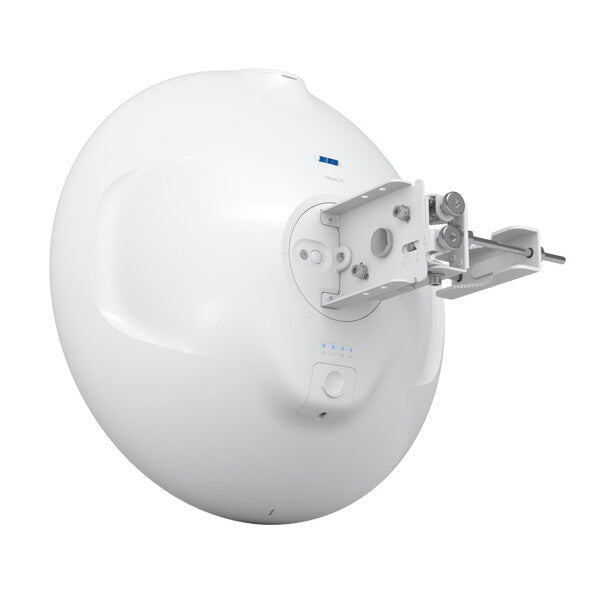

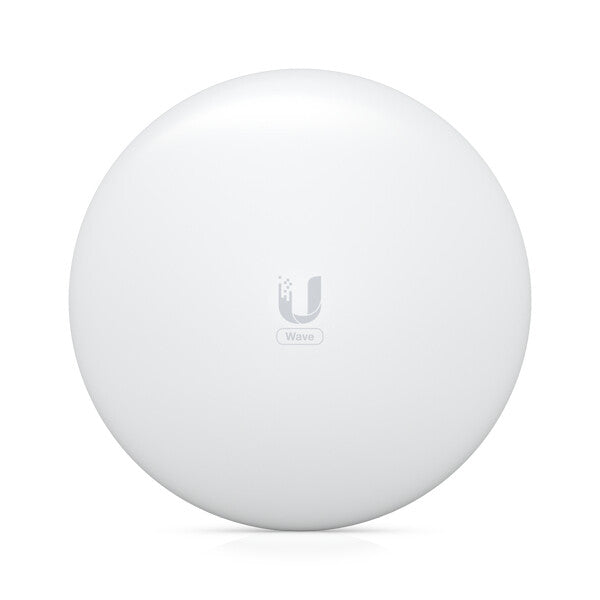

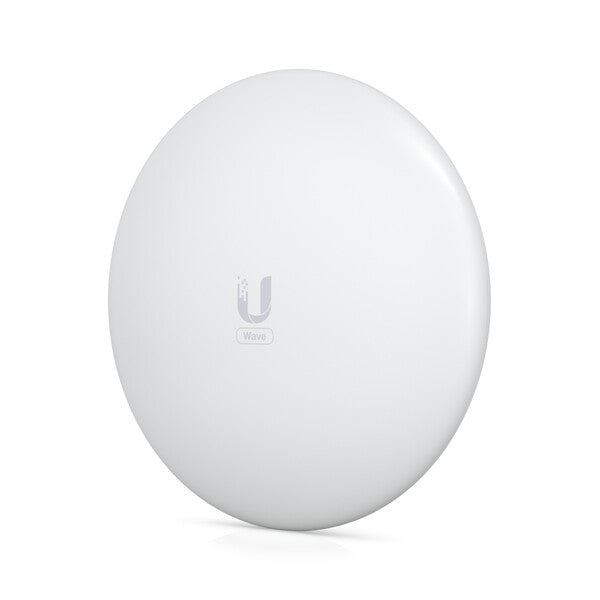

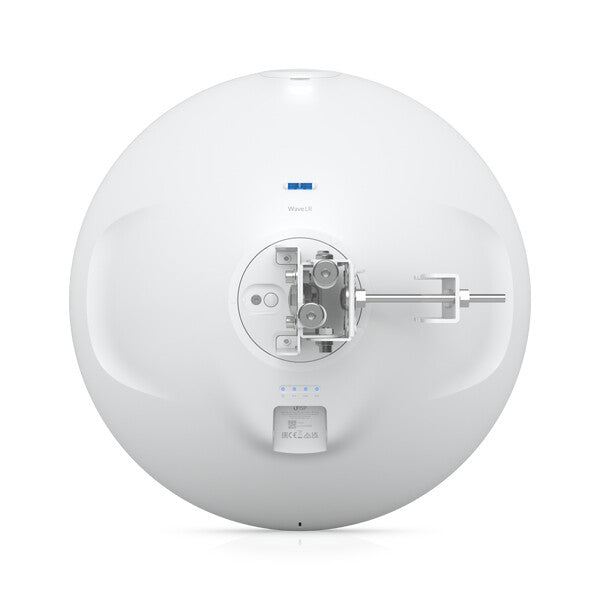

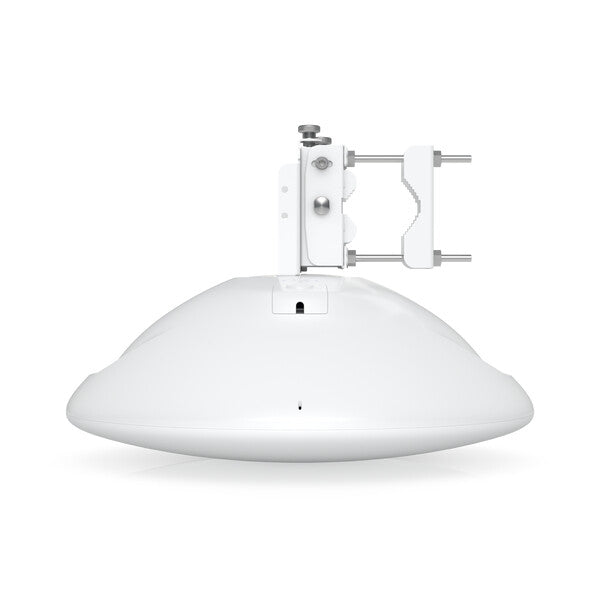

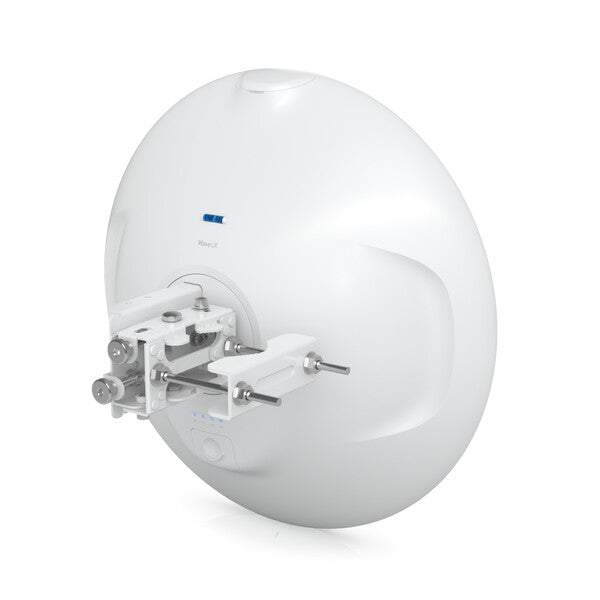

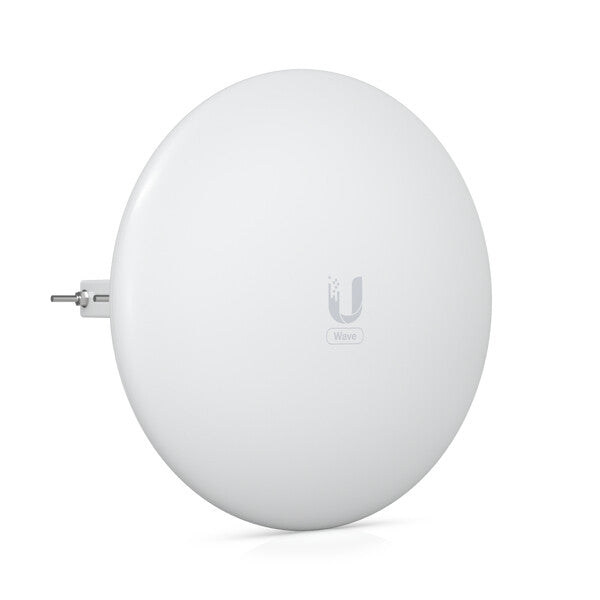

Ubiquiti WAVE-LR bridge/repeater White
iFrame
£342.99
Couldn't load pickup availability
- 8000 m
- Wi-Fi Single-band (60 GHz)
- IPX6
- 46 dBi
- White
60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
| Data transmission | |
|---|---|
| Maximum transfer distance | 8000 m |
| Antenna | |
|---|---|
| Antenna gain level (max) | 46 dBi |
| Wireless LAN features | |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Wi-Fi band | Single-band (60 GHz) |
| Wi-Fi | Yes |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Security algorithms | AES, WPA2-PSK |
| Management features | |
|---|---|
| Web-based management | Yes |
| Features | |
|---|---|
| Internal memory | 512 MB |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| LED indicators | Yes |
| Product colour | White |
| Rack mounting | No |
| Mounting type | Pole |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 18 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Certificates | |
|---|---|
| Certification | FCC, ICE |
| Compliance certificates | CE |
| Weight & dimensions | |
|---|---|
| Weight | 2.59 kg |
| Height | 424.4 mm |
| Depth | 166.2 mm |
| Width | 424.4 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
