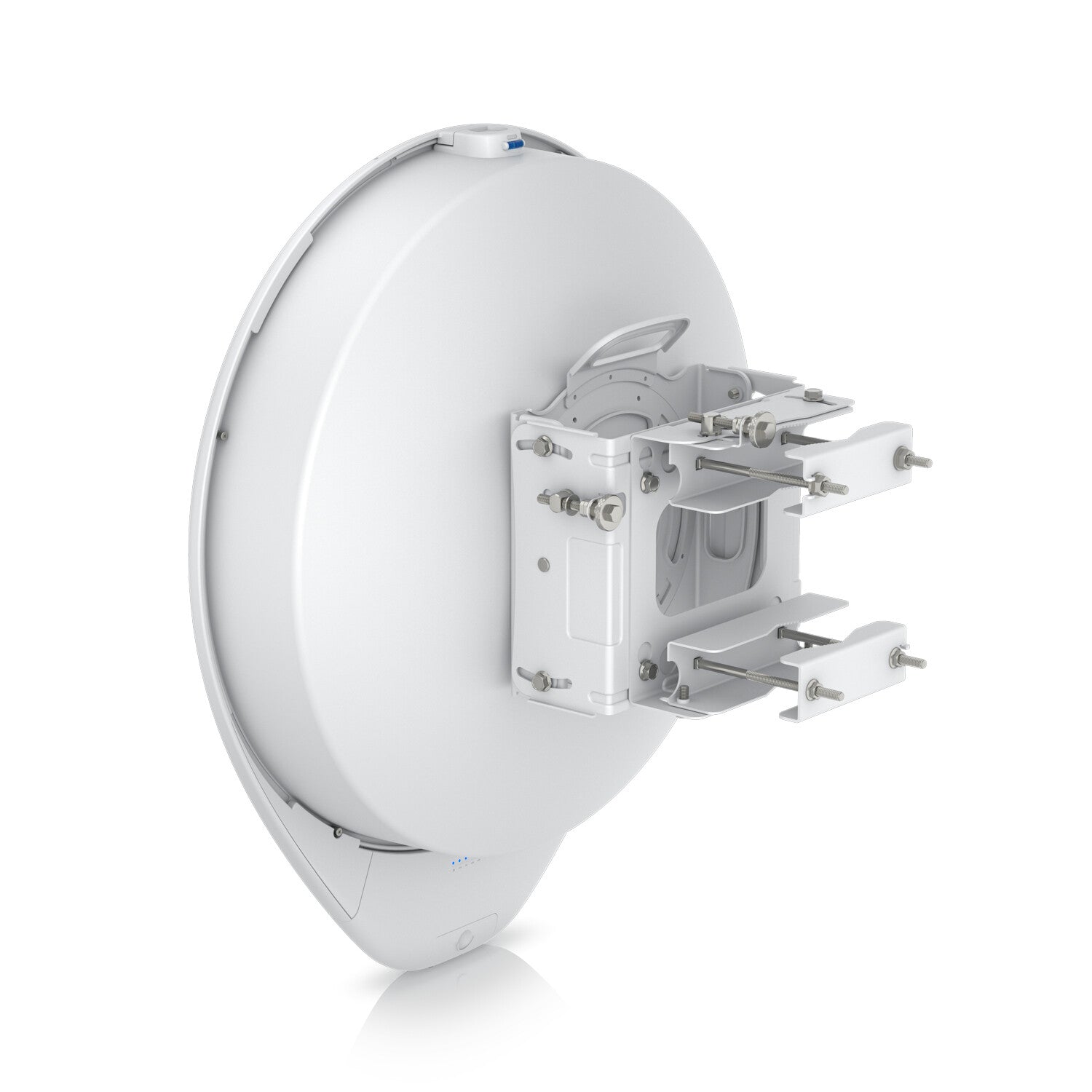

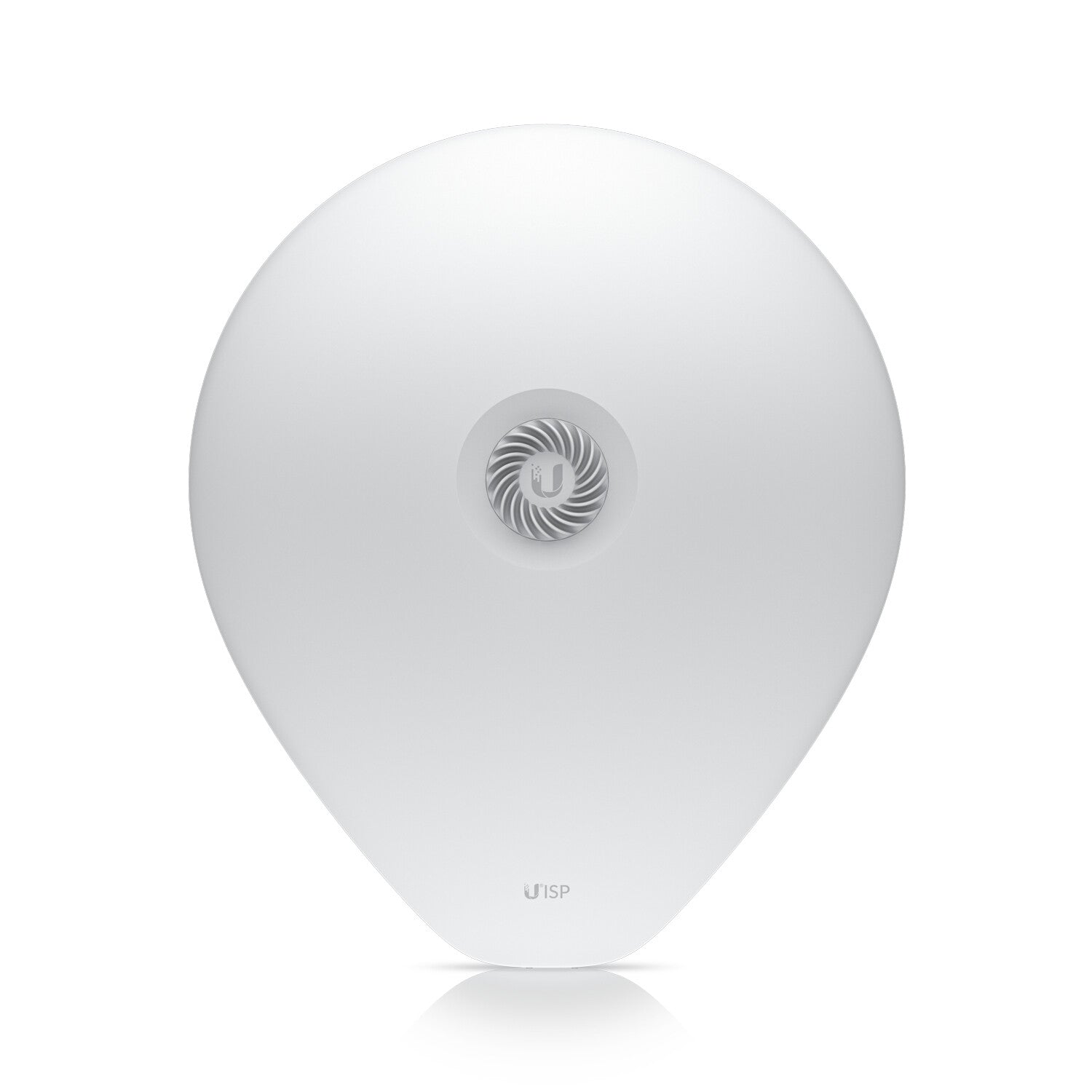

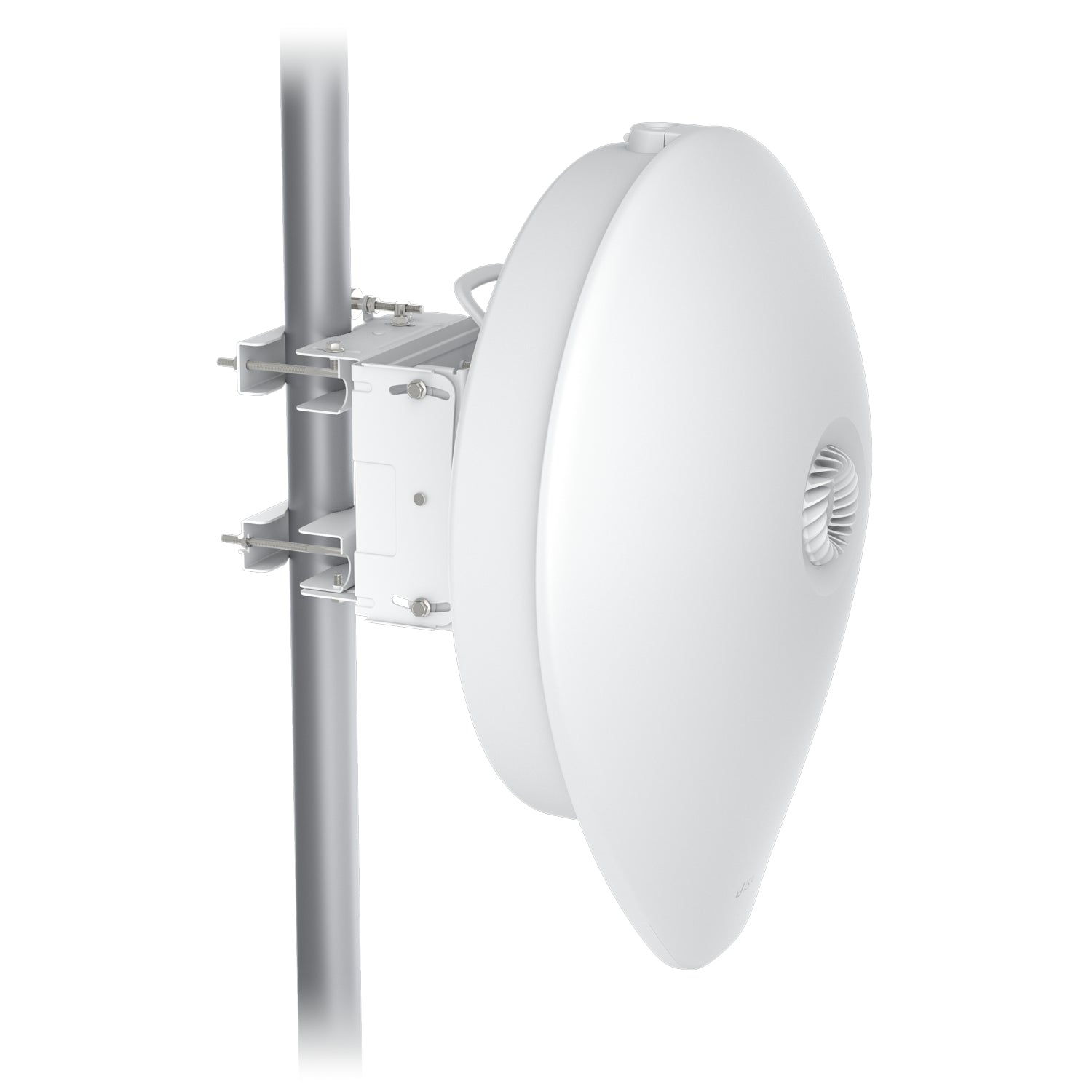

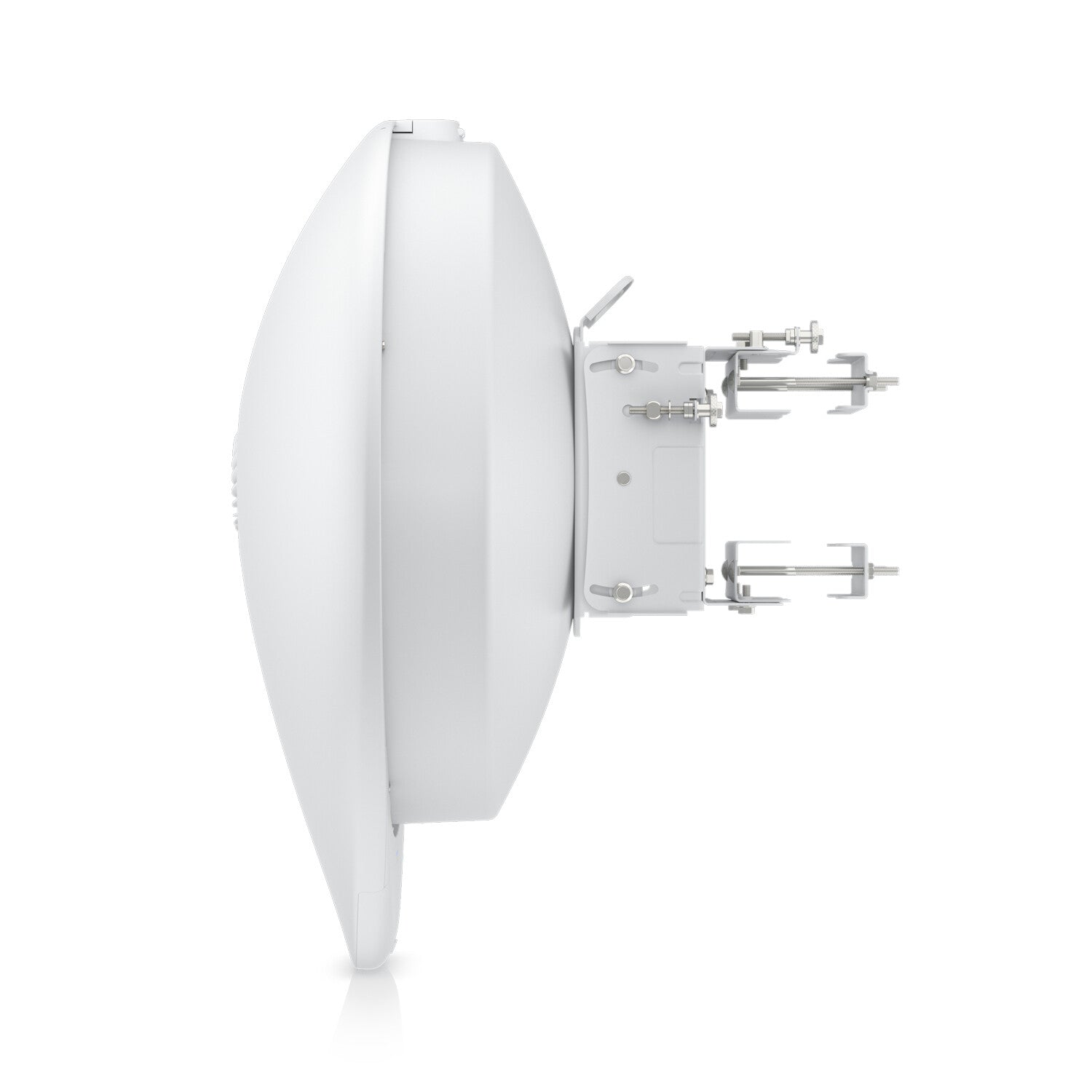

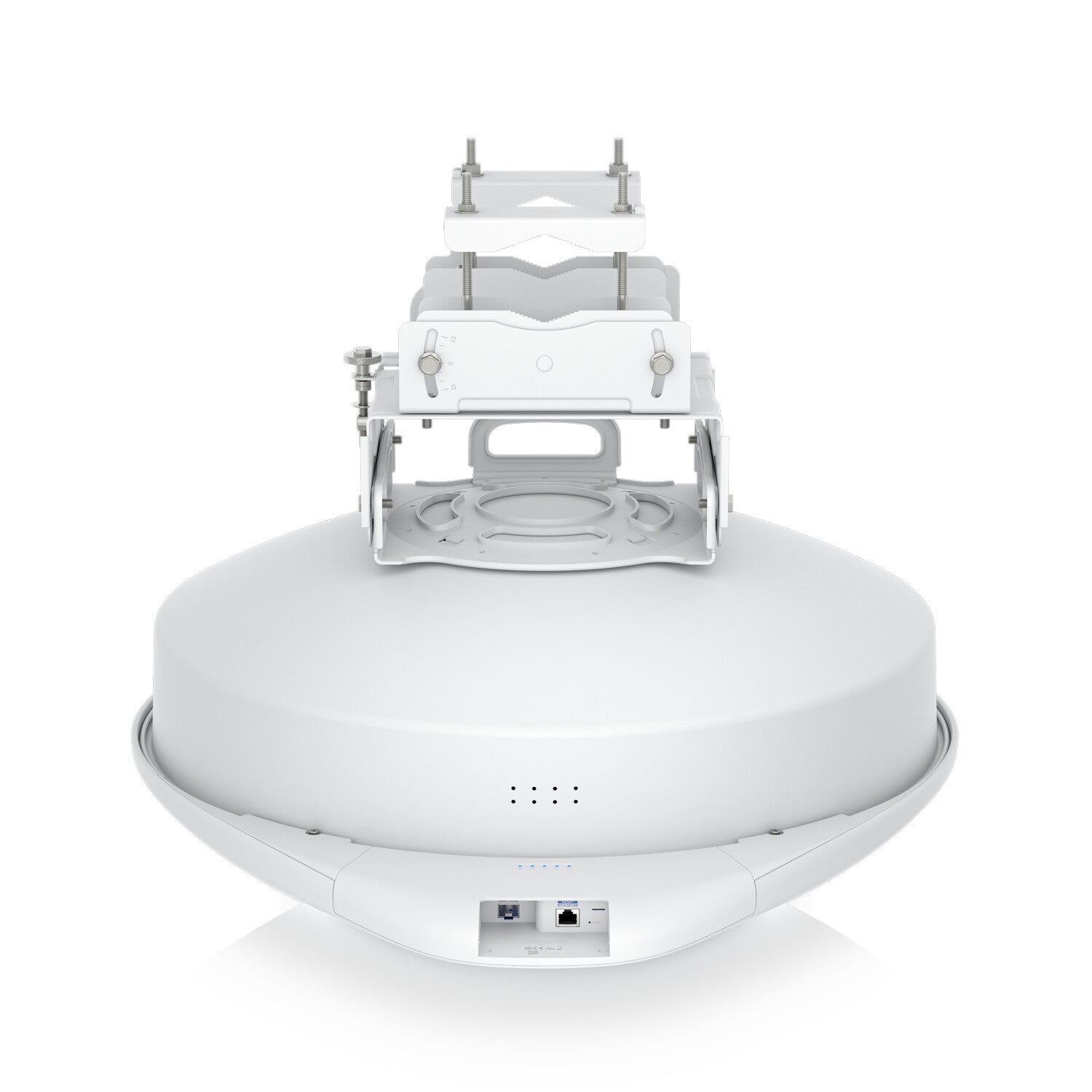

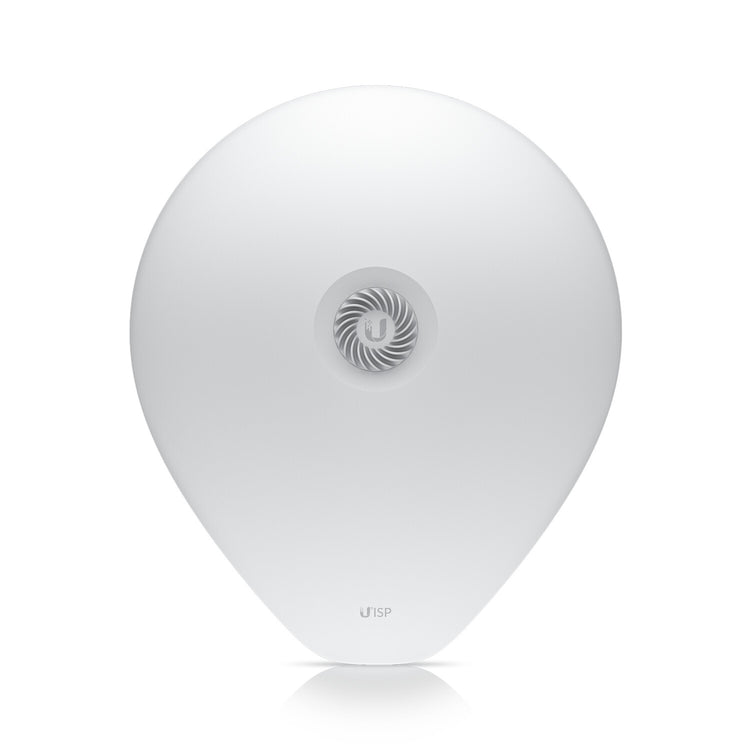

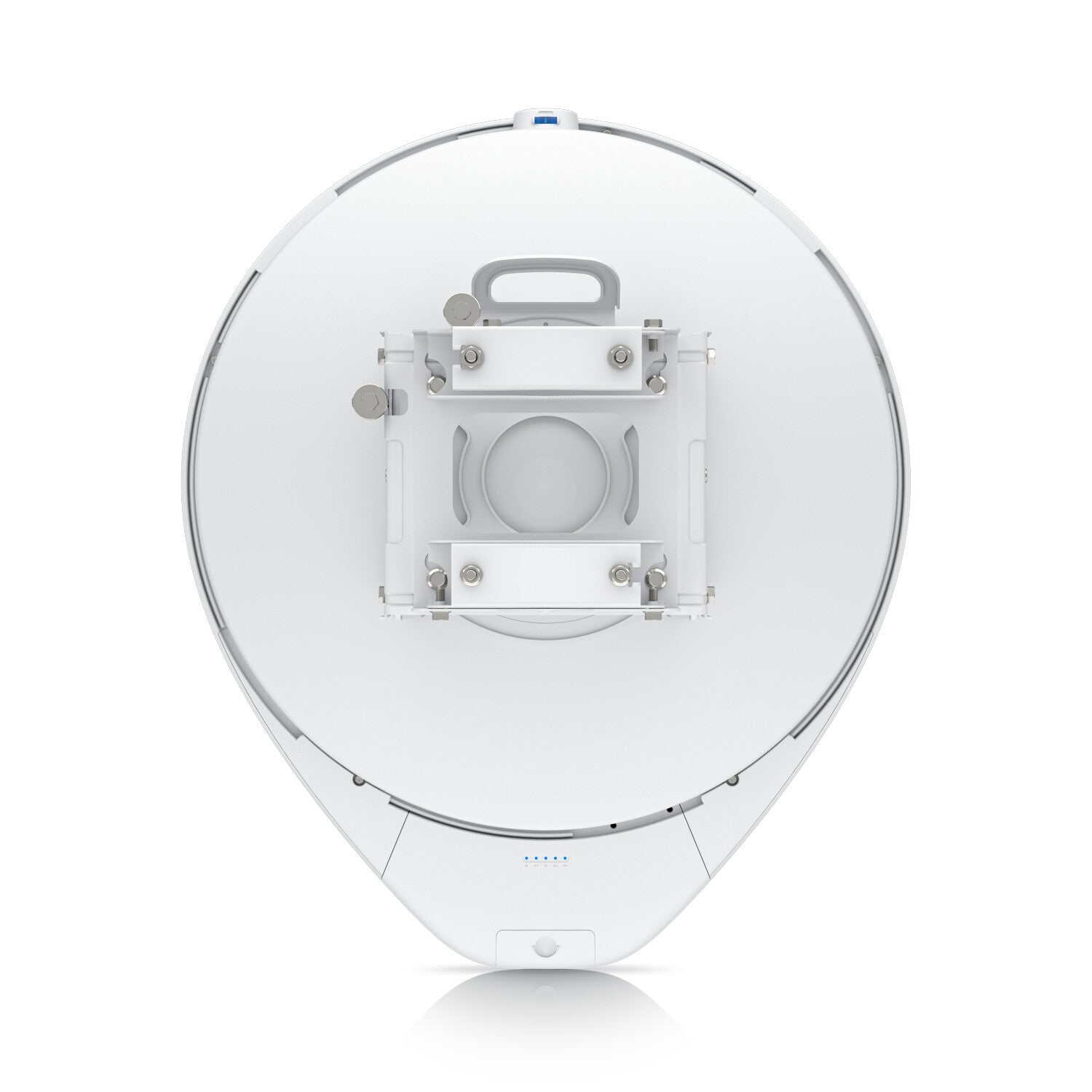

Ubiquiti UISP airFiber 60 Xtreme-Range Network bridge 2700 Mbit/s White
iFrame
£1,177.99
Couldn't load pickup availability
- 15+ km link range
- 2.7 Gbps duplex
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS & Bluetooth
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
| Data transmission | |
|---|---|
| Maximum transfer distance | 15000 m |
| Maximum data transfer rate | 2700 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 26 dBi |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Features | |
|---|---|
| RAM type | DDR3L |
| Internal memory | 1024 MB |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor frequency | 1400 MHz |
| Processor model | Cortex-A53 |
| Network Time Protocol (NTP) client | Yes |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| Power LED | Yes |
| LED indicators | GPS, LAN, Link, Power |
| Product colour | White |
| Mounting type | Pole |
| Material | Polycarbonate (PC), Steel |
| Product type | Network bridge |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 24 W |
| DC input voltage | 22 - 27, 44 - 54 V |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 55 °C |
| Certificates | |
|---|---|
| Certification | FCC, IC, CE |
| Weight & dimensions | |
|---|---|
| Weight | 8.6 kg |
| Height | 779 mm |
| Depth | 383 mm |
| Width | 664 mm |
| General | |
|---|---|
| Product family | UISP |
| Packaging content | |
|---|---|
| Manual | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
