Ubiquiti LocoM5 150 Mbit/s
£75.99
Couldn't load pickup availability
- 150 Mbit/s
- Ethernet LAN
- Antenna design: MIMO 13 dBi

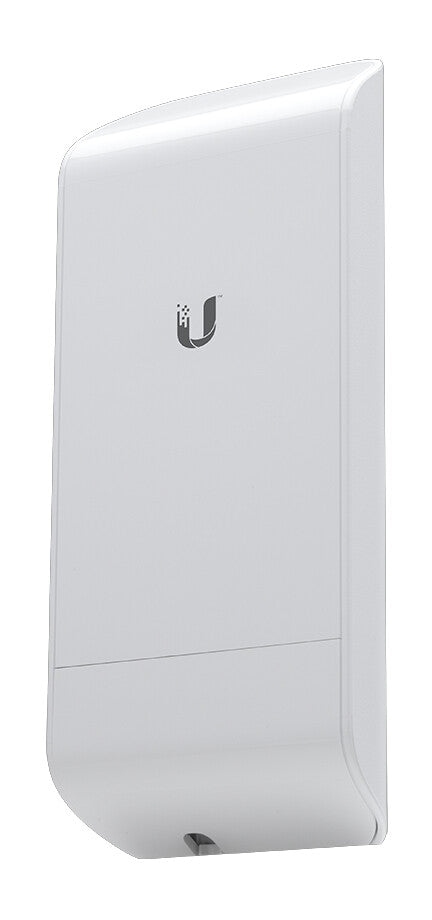

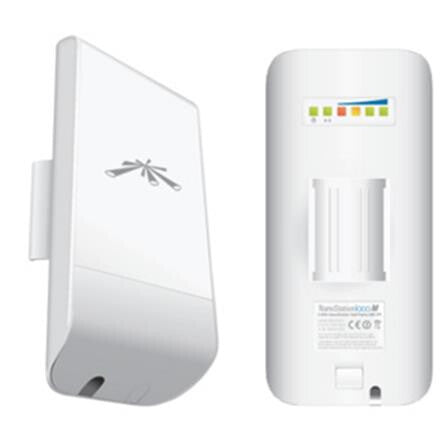

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
| Data transmission | |
|---|---|
| Supported data transfer rates | 10/100/150 Mbit/s |
| Maximum data transfer rate | 150 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Antenna design | MIMO |
| Wireless LAN features | |
|---|---|
| Frequency band | 5.170 - 5.875 GHz |
| Network | |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE802.3, IEEE802.3u |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Management features | |
|---|---|
| Data link protocols | TCP/IP, MIMO TDMA |
| Power | |
|---|---|
| Power requirements | 24V, 0.5A |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 5.5 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 75 °C |
| Certificates | |
|---|---|
| Certification | FCC, IC, CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 180 g |
| Dimensions (WxDxH) | 80 x 31 x 163 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
