Ubiquiti LBE-M5-23 bridge/repeater 1x1 SISO 100 Mbit/s White
£55.99
Couldn't load pickup availability
- 1x1 SISO 100 Mbit/s
- 23 dBi
- White

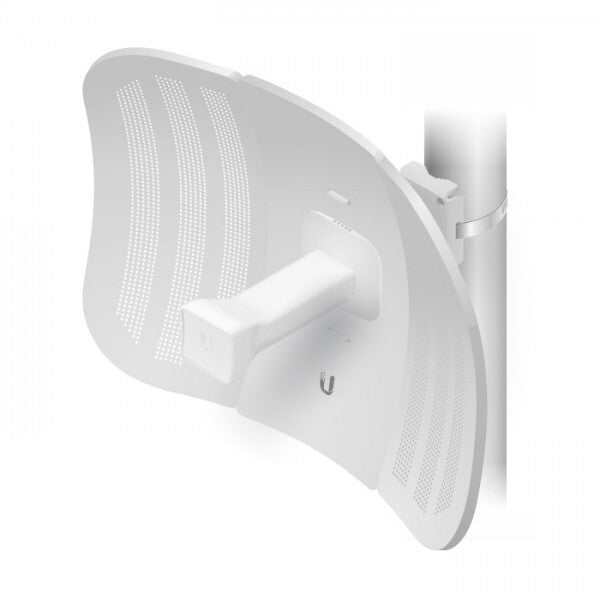

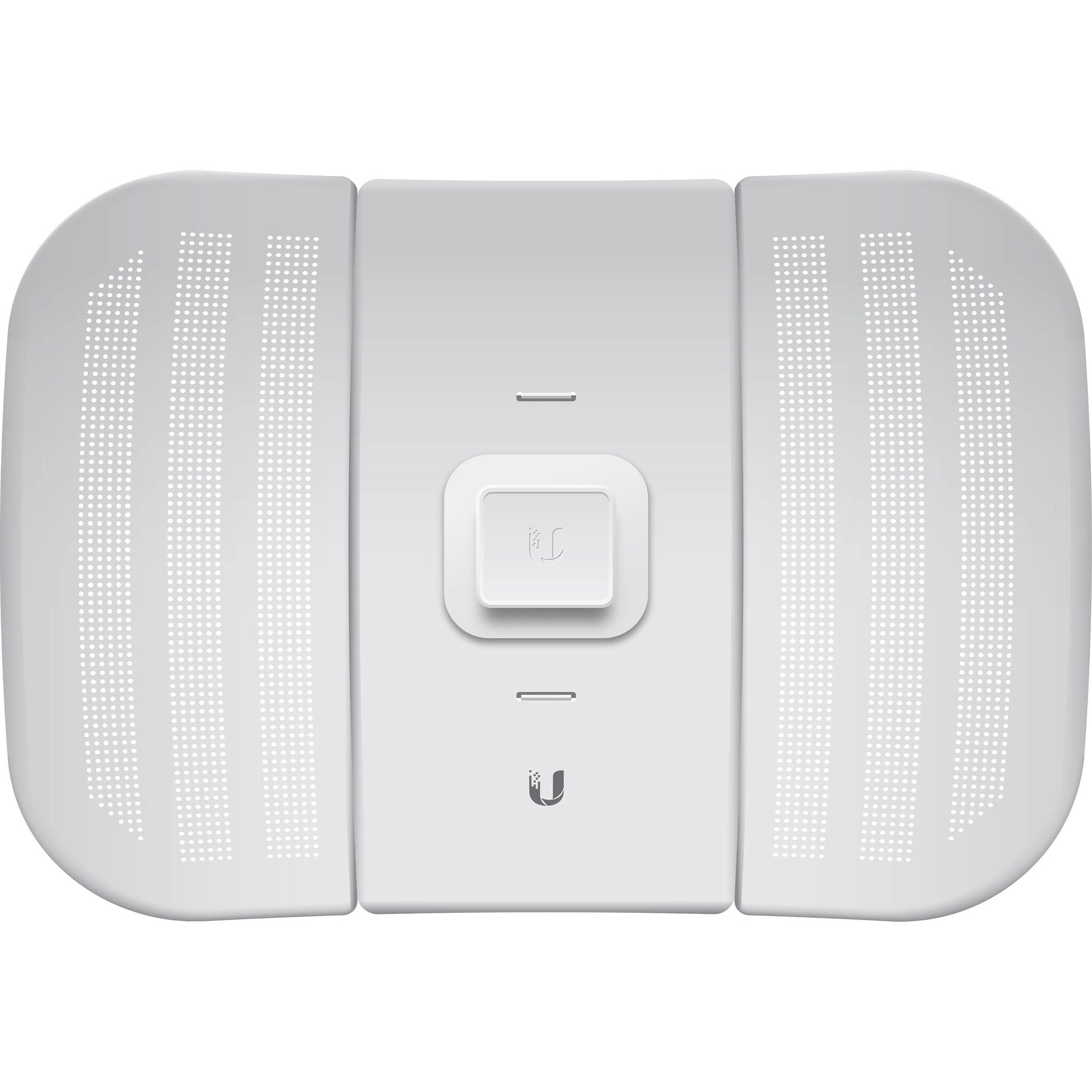

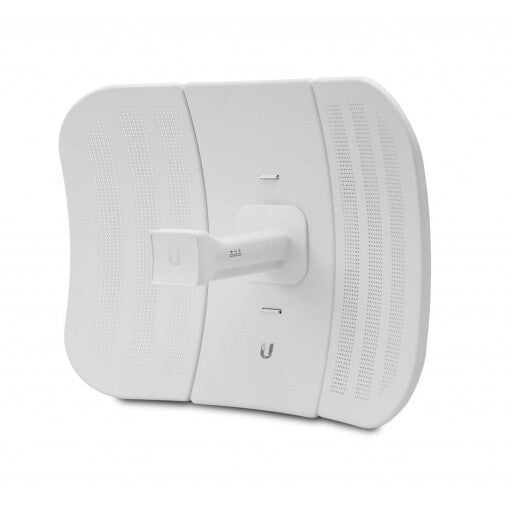

Long-Range, Lightweight airMAX® CPE
The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.
High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 23 dBi |
| Wireless LAN features | |
|---|---|
| Frequency band | 5.15 - 5.875 GHz |
| Network | |
|---|---|
| Networking standards | IEEE 802.11n |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Features | |
|---|---|
| Internal memory | 64 MB |
| LED indicators | Yes |
| Product colour | White |
| Product type | 1x1 SISO |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power supply | 5.5 W |
| AC input voltage | 24 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Certificates | |
|---|---|
| Certification | FCC, IC, CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Dimensions (WxDxH) | 362 x 267 x 184 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
