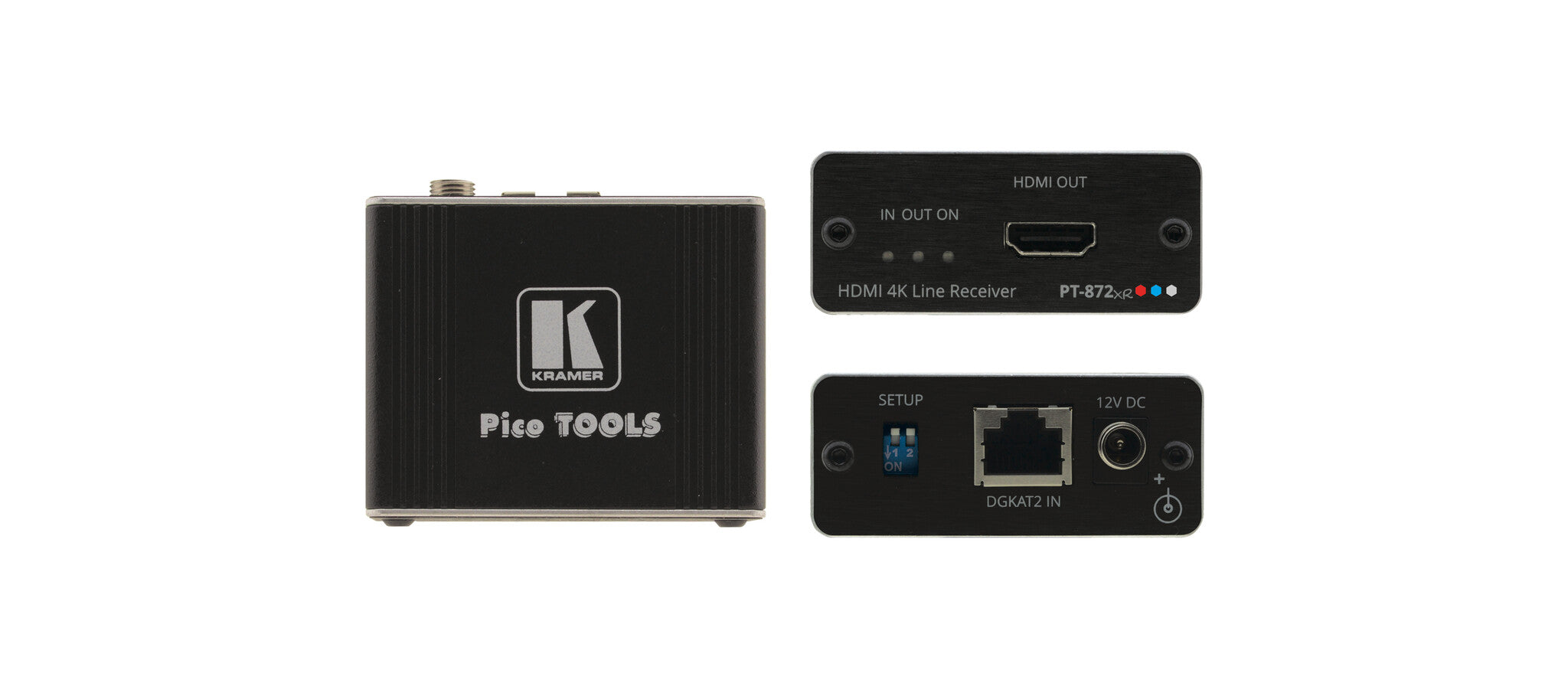

Kramer Electronics PT-872XR AV transmitter & receiver Black
£182.99
Couldn't load pickup availability
- Compact, low–heat DGKat™ 2.0 receiver
- Up to 60m (200ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at 4K@30Hz (4:4:4)
- HDR, HDCP 2.2 compliance
- Two–way powering
PT−872xr is a high−performance, long−reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2−way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT−872xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
| Features | |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum resolution | 4096 x 2160 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| Number of HDMI outputs | 1 |
| RJ-45 input ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Input current | 2 A |
| Operating voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 100 g |
| Height | 24.4 mm |
| Depth | 51.8 mm |
| Width | 62.2 mm |
| Packaging data | |
|---|---|
| Package weight | 500 g |
| Package height | 588 mm |
| Package depth | 186 mm |
| Package width | 490 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS, WEEE |
