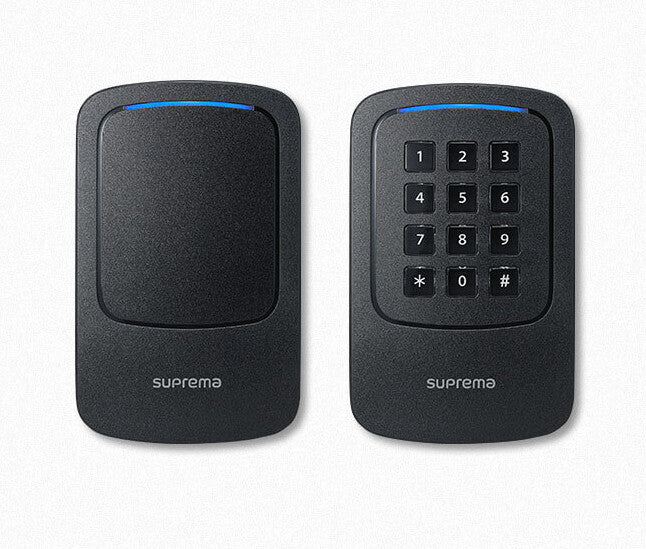

Suprema XP2-GKDPB access control reader Basic access control reader Black
£672.99
Couldn't load pickup availability
- Basic access control reader
- Access chip/card Access chip/card reader
- Built-in processor 1000 MHz
- Bluetooth Near Field Communication (NFC)
- Black
XPass 2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass 2 can be installed in various environments. XPass 2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.
| Technical details | |
|---|---|
| Certification | CE, FCC, KC, RoHS, REACH, WEEE, SIG |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black |
| Fingerprint reader | No |
| Access chip/card reader | Yes |
| Access chip/card reader type | Contactless |
| GSM module | No |
| Iris reader | No |
| Waterproof | Yes |
| Built-in relay | No |
| GPRS | No |
| Buzzer | Yes |
| LED indicators | Status |
| Vandal-proof | Yes |
| Authentication type | Access chip/card |
| Type | Basic access control reader |
| Display | |
|---|---|
| Built-in display | No |
| Camera | |
|---|---|
| Front camera | No |
| Performance | |
|---|---|
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| RS-485 ports | 1 |
| Near Field Communication (NFC) | Yes |
| Bluetooth | Yes |
| Wi-Fi | No |
| Power | |
|---|---|
| DC voltage range | 12 - 24 V |
| Weight & dimensions | |
|---|---|
| Width | 80 mm |
| Depth | 25 mm |
| Height | 130 mm |
| Weight | 235 g |
| Mounting bracket weight | 52 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -35 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
