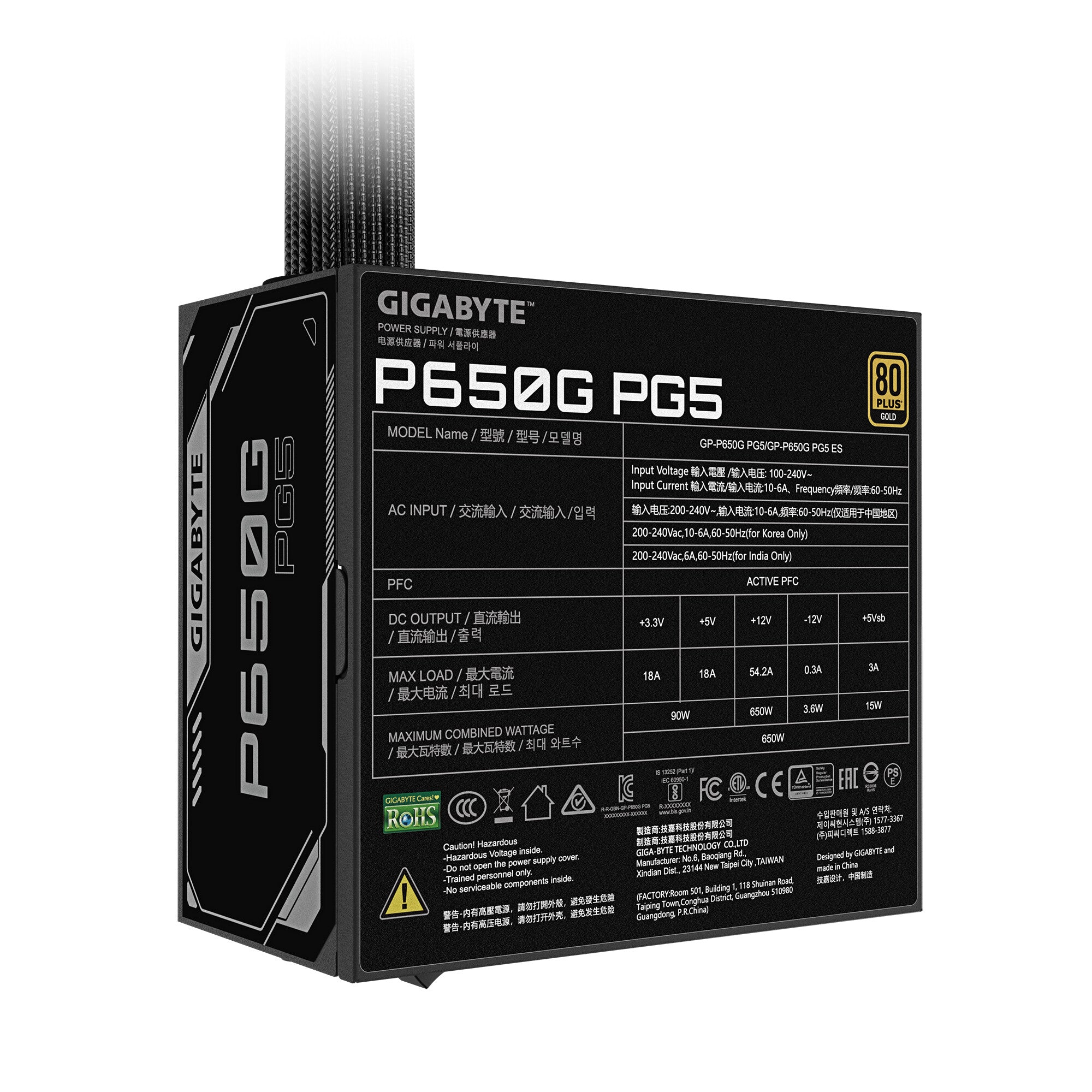

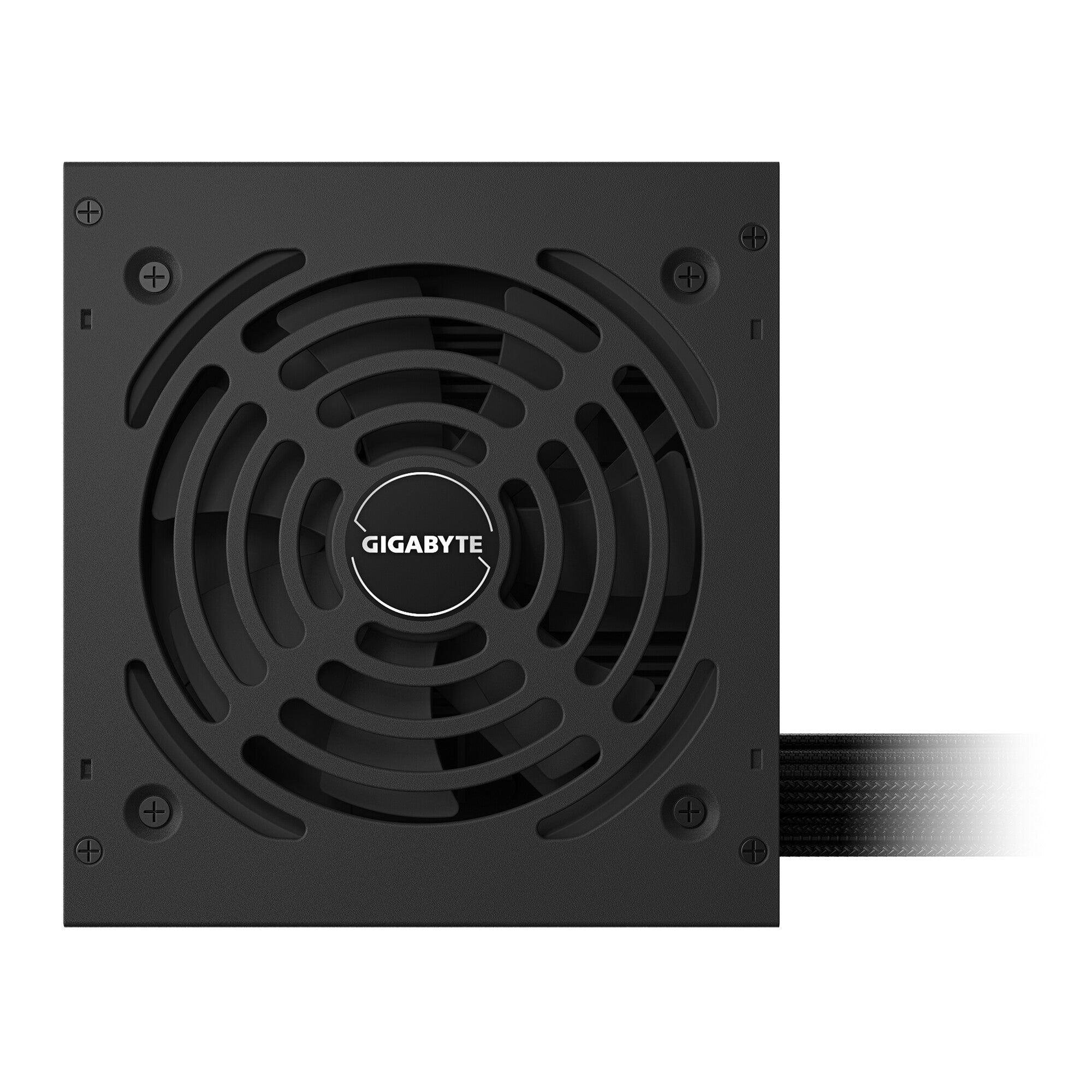

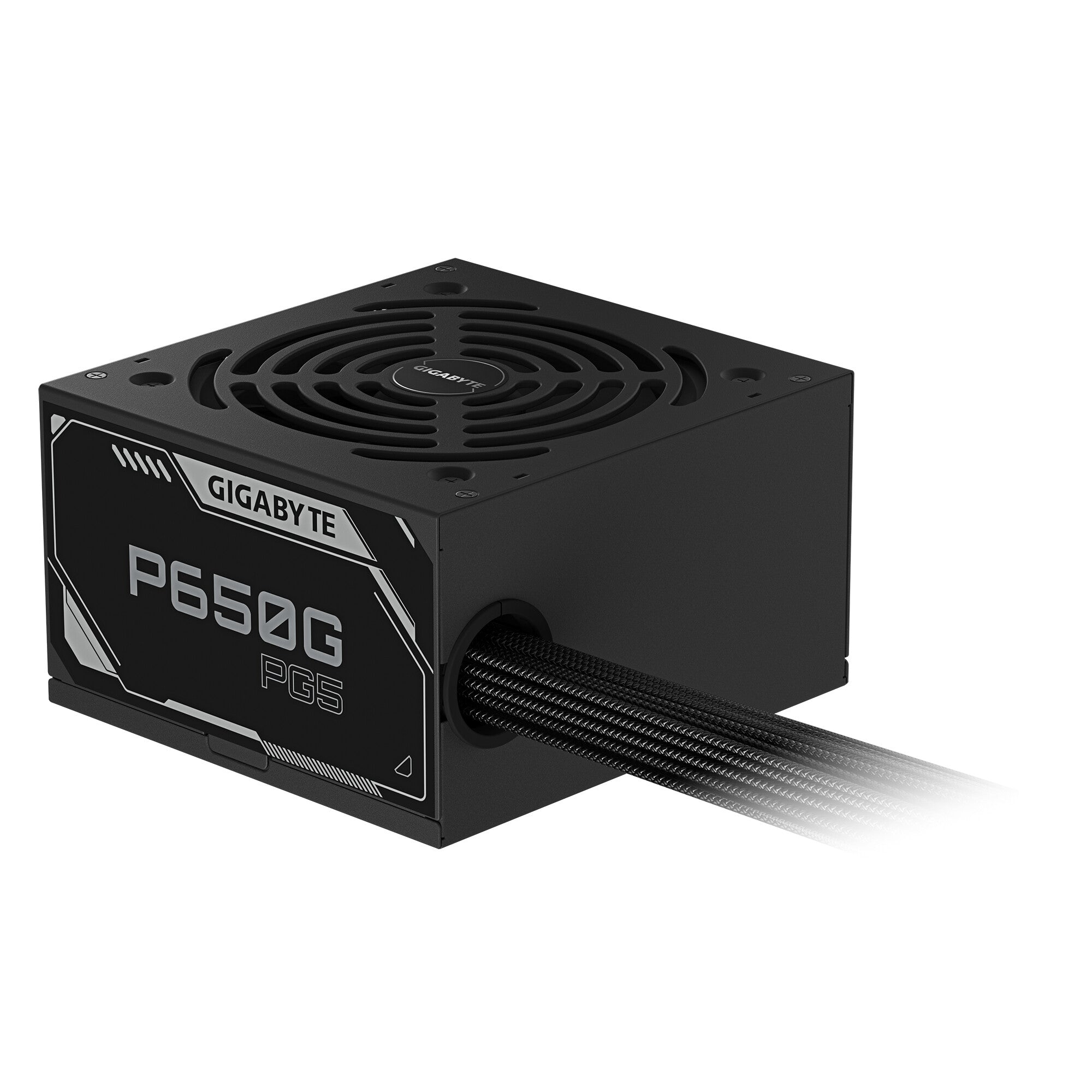

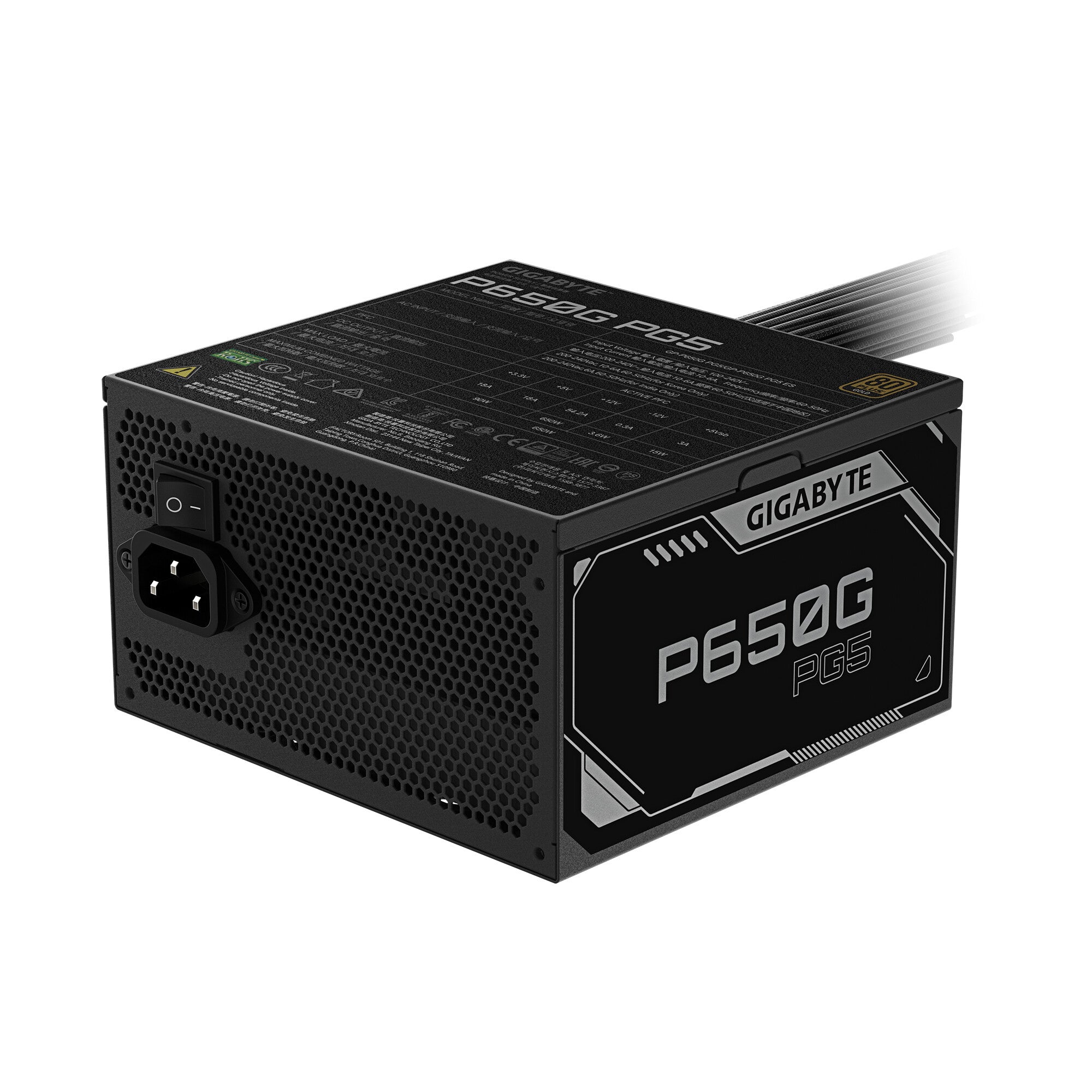

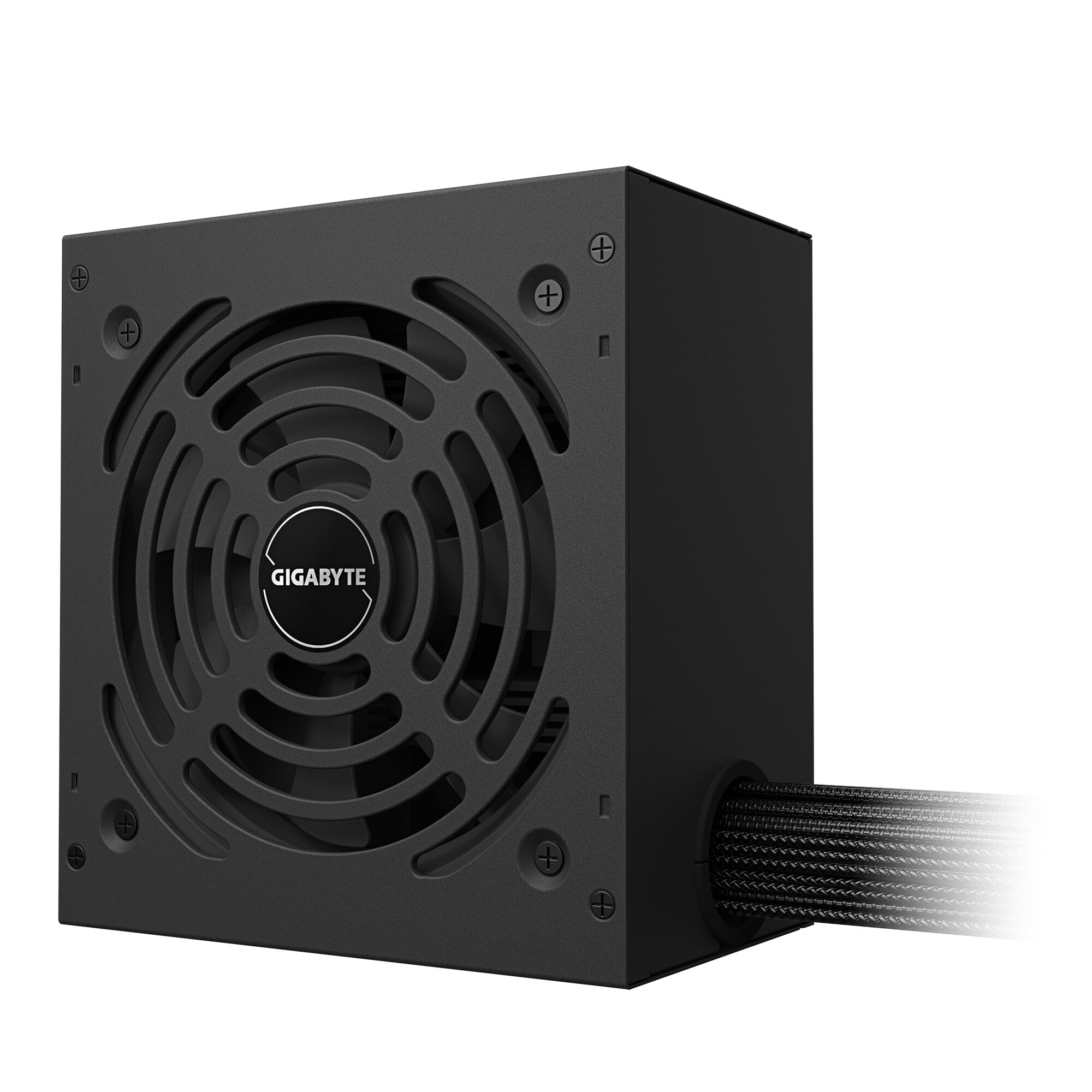

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, UK Plug
iFrame
£58.99
Couldn't load pickup availability
- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Power | |
|---|---|
| Power protection features | Over power, Overcharge, Short circuit, Under voltage |
| Power Good signal delay range | 100 - 150 ms |
| Max output current (+5Vsb) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+3.3V) | 18 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 650 W |
| Combined power (+12V) | 650 W |
| Combined power (+3.3V) | 90 W |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@220V) | 6 A |
| Maximum input current (@110V) | 10 A |
| Input current | 10 - 6 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 120,500 mm |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 1.76 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.92 kg |
| Package height | 180 mm |
| Package depth | 110 mm |
| Package width | 260 mm |
| Logistics data | |
|---|---|
| Warranty period | 5 year(s) |
