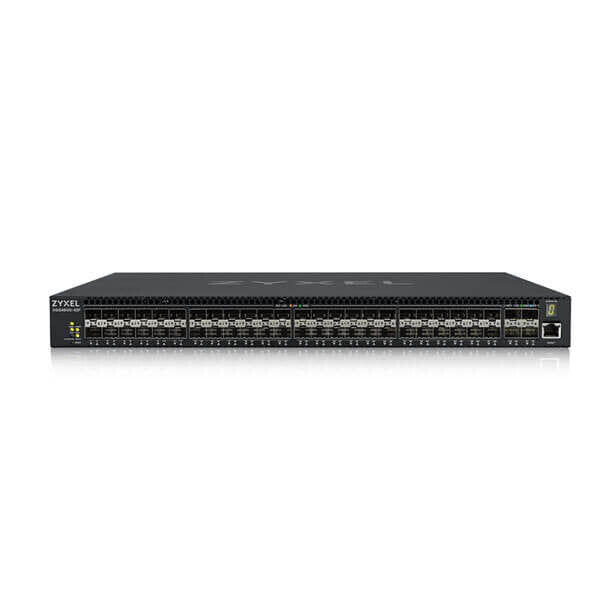

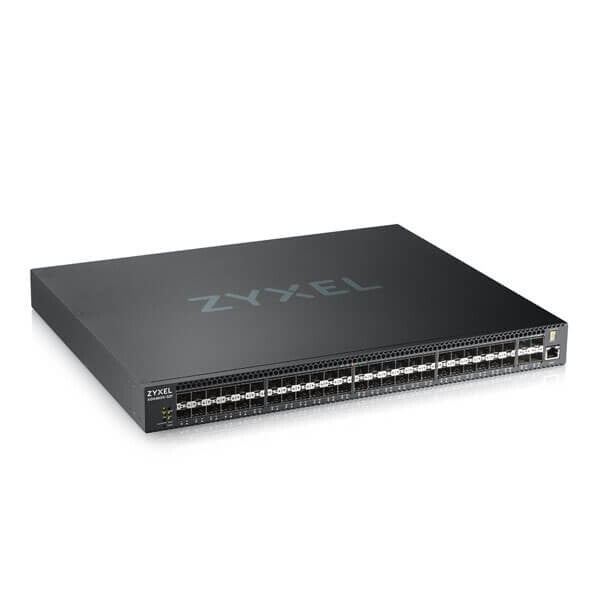

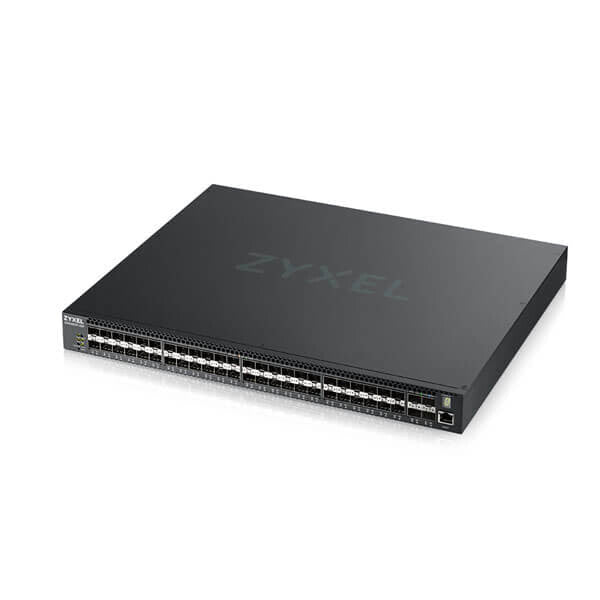

Zyxel XGS4600-52F Managed L3 Black
Couldn't load pickup availability
- Managed L3 Web-based management
- 10G support
- MAC address table: 32000 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- Rack mounting
Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency

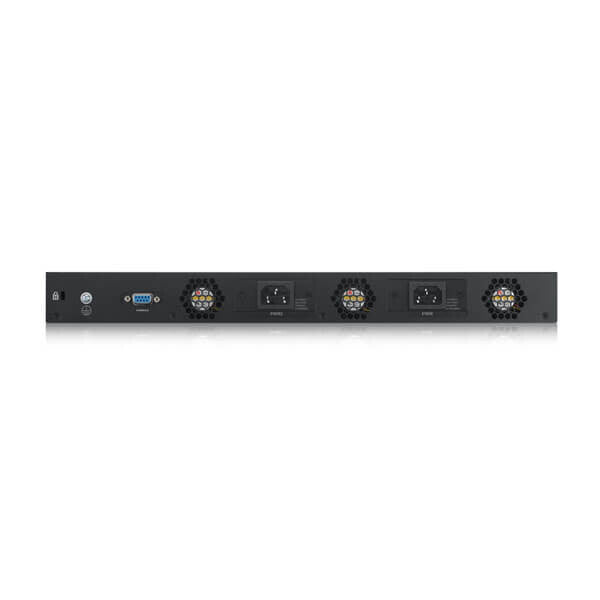

The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
| Management features | |
|---|---|
| Web-based management | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| SFP module slots quantity | 48 |
| Network | |
|---|---|
| IP routing | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Switching capacity | 176 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Security algorithms | SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 815860 h |
| Noise level | 42.6 dB |
| Flash memory | 64 MB |
| Internal memory | 1024 MB |
| Power | |
|---|---|
| Power consumption (max) | 70.16 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 252.68 BTU/h |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.97 kg |
| Height | 44 mm |
| Depth | 360 mm |
| Width | 441 mm |
| Packaging data | |
|---|---|
| Package weight | 6.6 kg |
| Package height | 107 mm |
| Package depth | 355 mm |
| Package width | 616 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
