£141.99

Stock Available: 1
  • Managed Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 16000 entries Switching capacity: 66 Gbit/s
  • AC/DC Power supply included

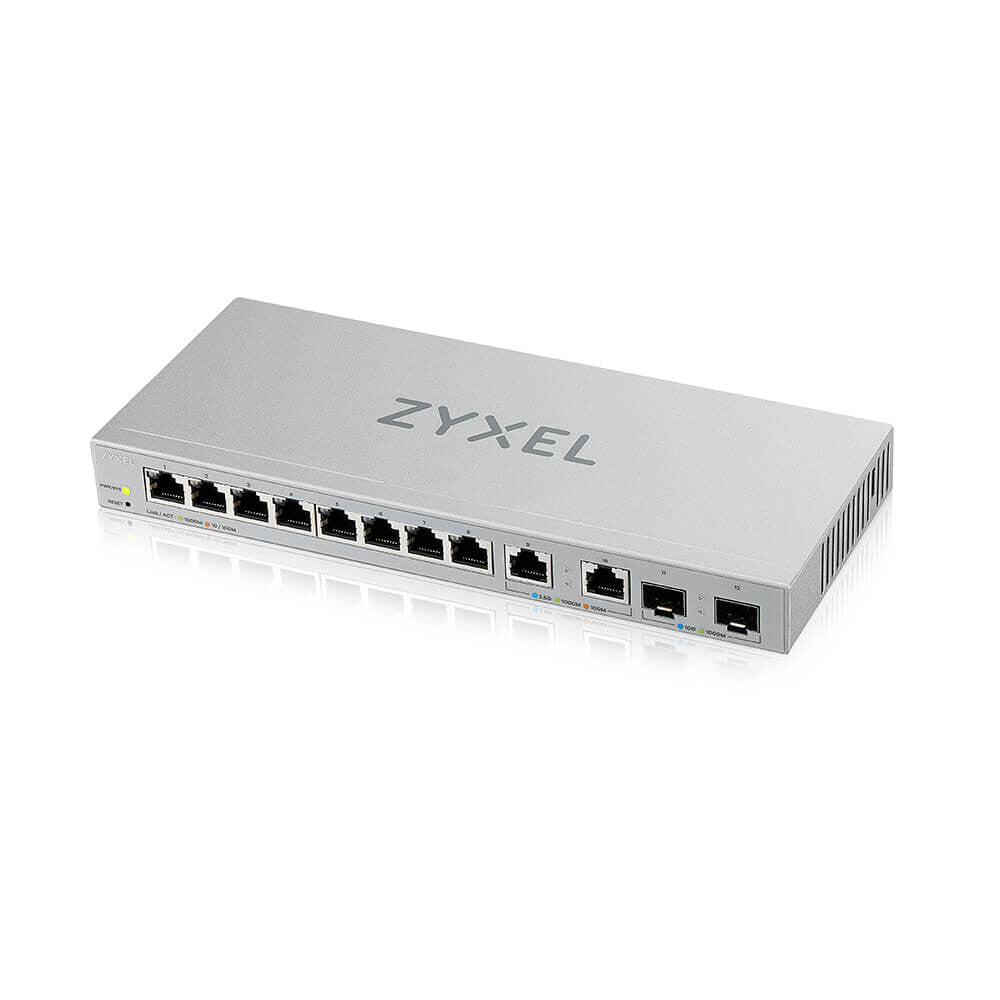

The Zyxel XGS1210-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with an easy-to-use Web GUI allowing users to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simplified management over a variety of home to office environments.

Maximums the flexibility for your network.

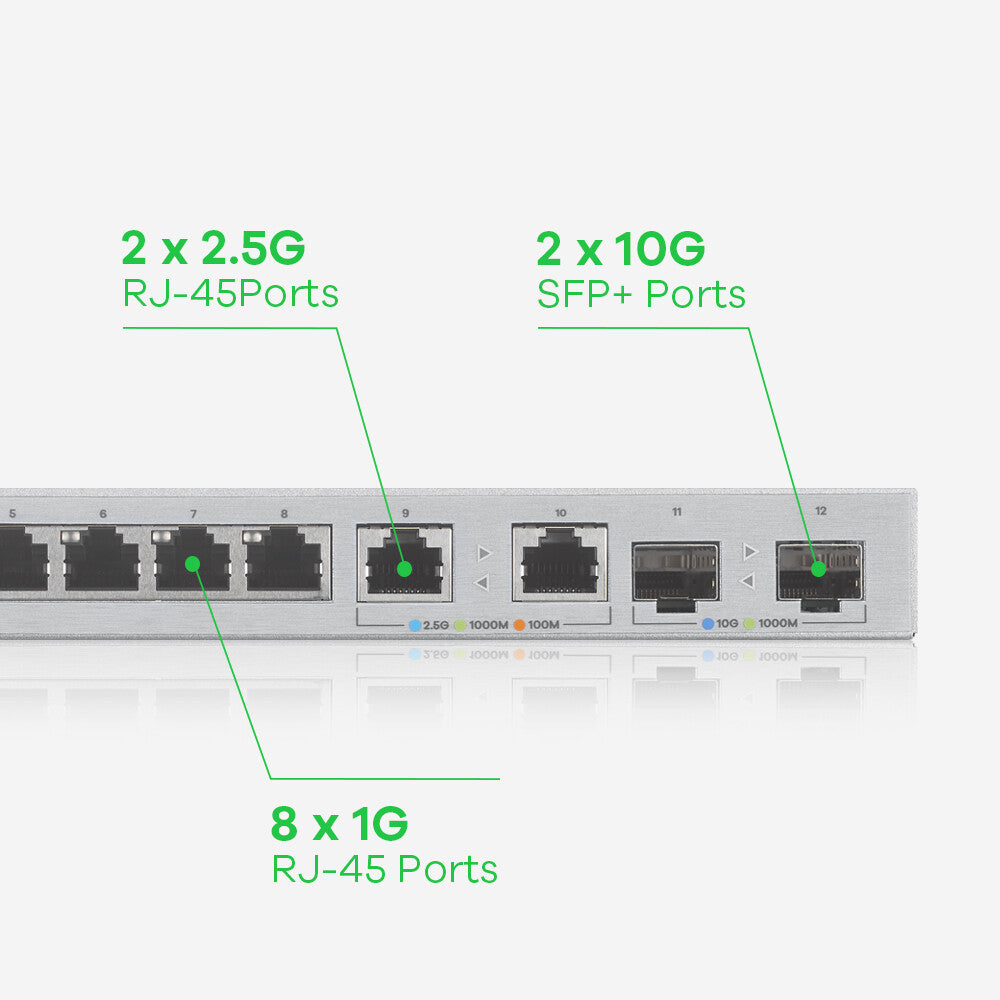

The XGS1210-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.

Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file

10G SFP+ ultra-speed uplink
Provide two SFP+ ports compatible with 10GbE and which offers higher transmission speeds and get customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

Easy management with intuitive GUI
XGS1210-12 comes with a user-friendly web-based setup wizard that quickly and easily walks you through setup, configuration and management, including configuration backups and firmware upgrades. With a few simple clicks, your network will be up and running, so you can get back to business.

Comprehensive smart features
XGS1210-12 caters to most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring. Does not require any additional software. Simplified for home and small office users’ network.

Saving energy and space.

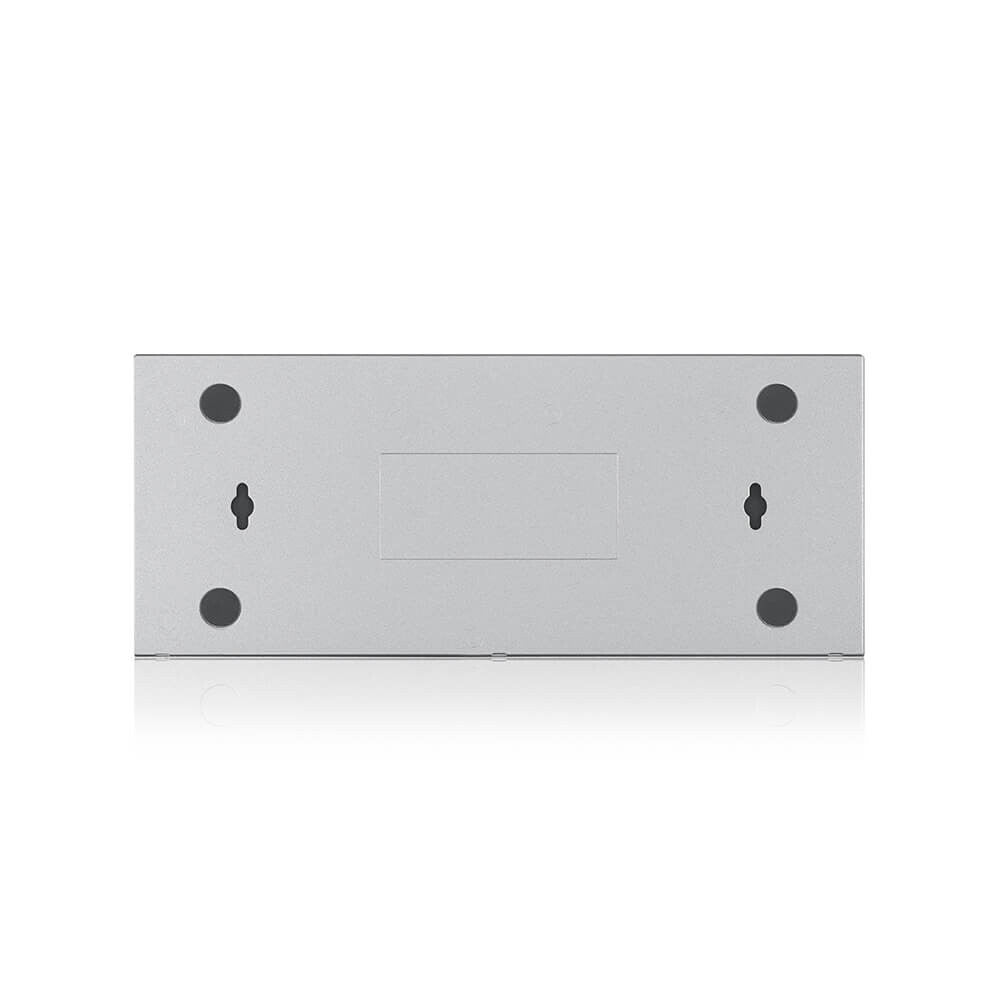

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 2
2.5G Ethernet (copper) ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Broadcast storm control Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Full duplex Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 12000
Jumbo frames support Yes
Static route Yes
Forwarding rate 49 Mpps
Switching capacity 66 Gbit/s
MAC address table 16000 entries
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
Number of fans 0 fan(s)
LED indicators Yes
Reset button Yes
Product colour Grey
Power
Power consumption (max) 15.61 W
Input current 1.5 A
DC input voltage 12 V
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC/DC
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 768 g
Height 24 mm
Depth 104 mm
Width 250 mm
Packaging data
Package weight 1.22 kg
Package height 64 mm
Package depth 225 mm
Package width 306 mm
Logistics data
Harmonized System (HS) code 85176990
