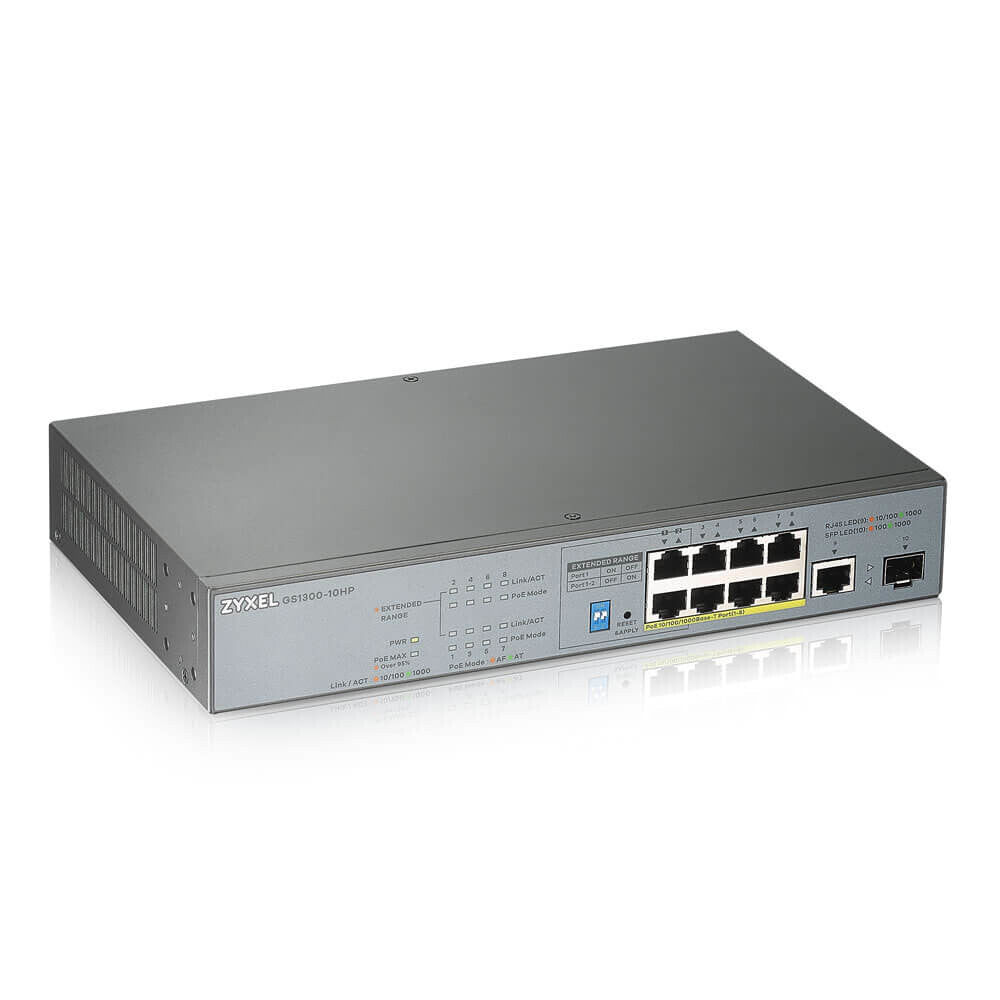

Zyxel GS1300-10HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £47.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Large power budget for surveillance installations
- Extended range for distant deployments
- Check power status intuitively through PoE status LED
- Easy installation with internal power supply

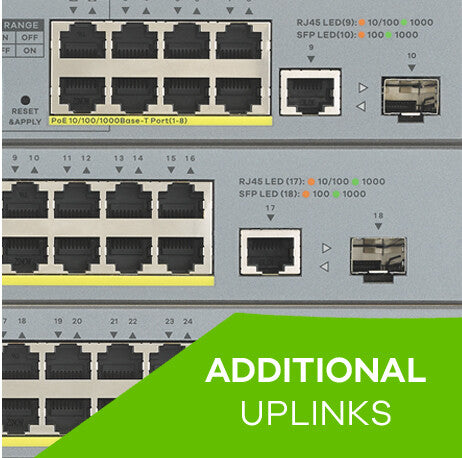

- Support both copper and fiber uplink ports for connection to core networks
Design For Surveillance

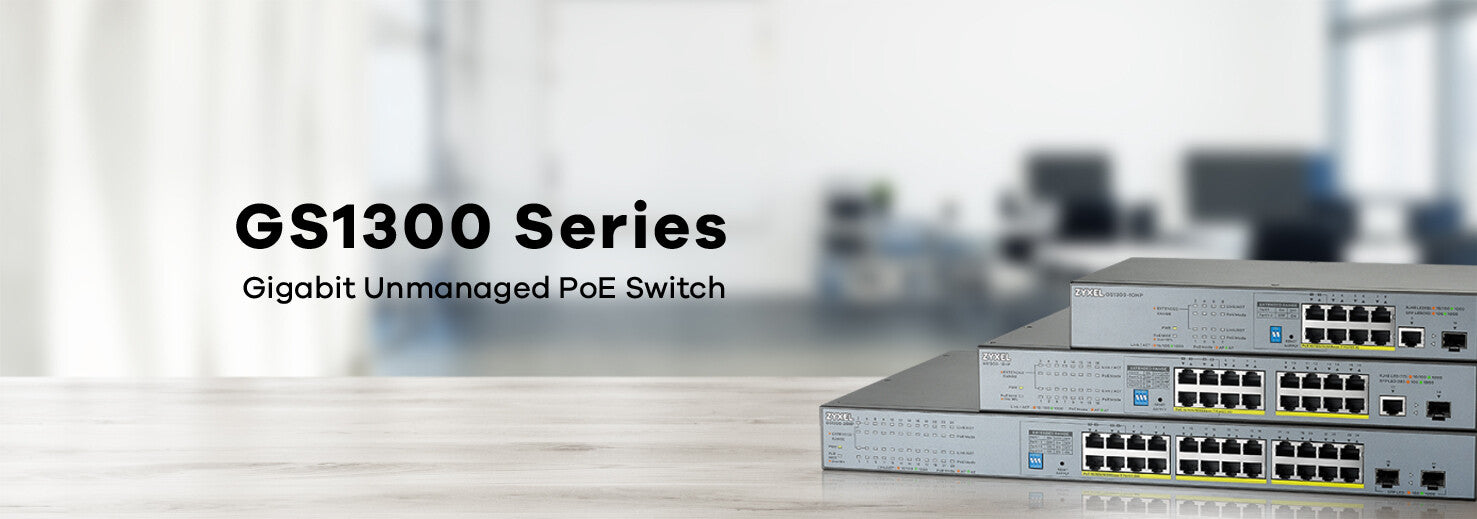

Crafted for CCTV, Zyxel introduces the brand-new GS1300 unmanaged switch for surveillance applications.
New outlook
Coated in titanium grey, the GS1300 excels with an eye-catching identity dedicated for surveillance Switch. On top of the conventional unmanaged switch, GS1300 comes with special design for CCTV adoption.
Easy for long-distance deployment
The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.
High power budget, intuitive front panel design
The GS1300 series includes 3 models with a range of large power budgets from 130 W to 250 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status.
Best fit for surveillance installation
Without the use of an adaptor, the internal power supply design is suitable for mounting onto server racks allowing more freedom and utilization of space.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| SFP module slots quantity | 1 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
Show all 38 specificationsShow fewer specifications
Network
| Flow control support | Yes |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Optical fiber
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
Data transmission
| Packet buffer memory | 0.525 MB |
|---|---|
| Forwarding rate | 14.8 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
Design
| Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
Performance
| Mean time between failures (MTBF) | 394567 h |
|---|---|
| Noise level | 44 dB |
Power
| Power consumption (max) | 155.8 W |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget | 130 W |
|---|---|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Heat dissipation | 531.278 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
Weight & dimensions
| Weight | 1.65 kg |
|---|---|
| Height | 44 mm |
| Depth | 162 mm |
| Width | 267 mm |
Packaging content
| Rack mount kit | Yes |
|---|---|
| Cables included | AC |
Certificates
| Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
|---|
