iFrame
×
£62.99

Stock Available: 16

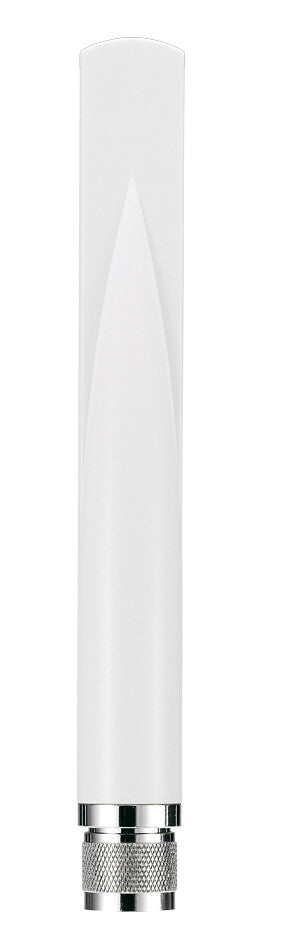

  • Omni-directional antenna N-type White
  • 7 dBi
  • 2.4/5 GHz
  • 50 Ω
  • Vertical polarization

Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories

- Compatible with ZyXEL WLAN devices to get optimal signal quality
- Matching colors and exterior looks
- Multiple options to meet your current network environments

When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.

To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.

The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.

Performance
Horizontal beam width (5 GHz) 360°
Vertical beam width (5 GHz) 15°
Horizontal beam width (2.4 GHz) 360°
Vertical beam width (2.4 GHz) 30°
Horizontal beam width 360°
Vertical beam width 30°
Impedance 50 Ω
Antenna gain (2.4 GHz) 4.5 dBi
Antenna gain (5 GHz) 7 dBi
Frequency band 2.4/5 GHz
Antenna gain level (max) 7 dBi
Features
Purpose Outdoor
Product colour White
Polarization Vertical polarization
Antenna connector type N-type
Antenna type Omni-directional antenna
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -10 - 70 °C
Weight & dimensions
Weight 70 g
Diameter 2.2 cm
Height 183 mm
Logistics data
Harmonized System (HS) code 85177100
