Western Digital · MPN: 1ES2853
£62,120.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £20,706.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.2PB1 raw capacity in 4U using 20TB SMR HDDs
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

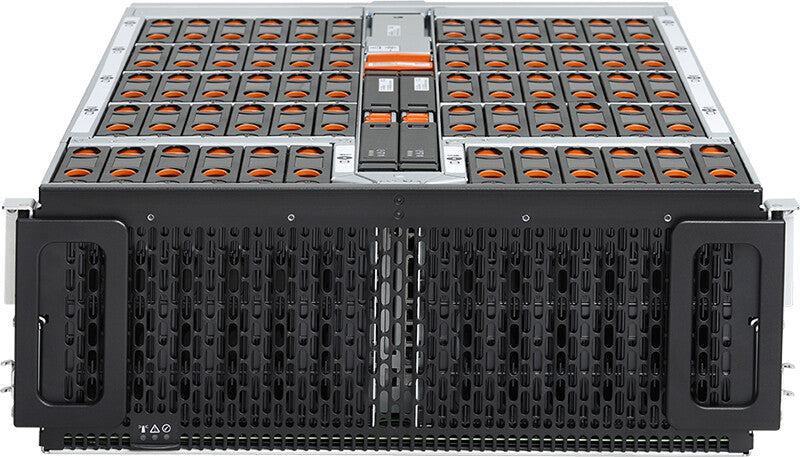

Designed for High Density and Flexibility

The Ultrastar Data60 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data60 provides up to 1.2PB1 of raw storage using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology

By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager

A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

Specifications

Storage

Storage drives installedYes
Installed storage drive typeHDD
Total installed storage capacity96 TB
Supported storage drive typesHDD & SSD
Number of storage drives supported60
Storage drive interfaceSerial Attached SCSI (SAS)
Storage drive size3.5"
Supported storage drive interfacesSAS, Serial ATA
Storage drive sizes supported3.5"
Data transfer rate12 Gbit/s
Hot-swap drive baysYes

Ports & interfaces

USB connectivityNo
Number of mini-SAS host ports12
Mini-SAS host portYes
Show all 36 specificationsShow fewer specifications

Design

Device classLarge Enterprise Business
Chassis typeRack (4U)
Product colourBlack, Grey
LED indicatorsYes
Noise level72 dB
Number of fans6 fan(s)
Redundant fans supportYes
Built-in displayNo

Power

Power supply unit (PSU) capacity1600 W
Number of power supply units2
Redundant power supply (RPS) supportYes
AC input voltage200 - 240 V
AC input frequency50 / 60 Hz

Weight & dimensions

Width447 mm
Depth712 mm
Height175 mm
Disk enclosure weight27.3 kg

General

Product familyUltrastar

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-40 - 60 °C
Operating altitude0 - 915 m
