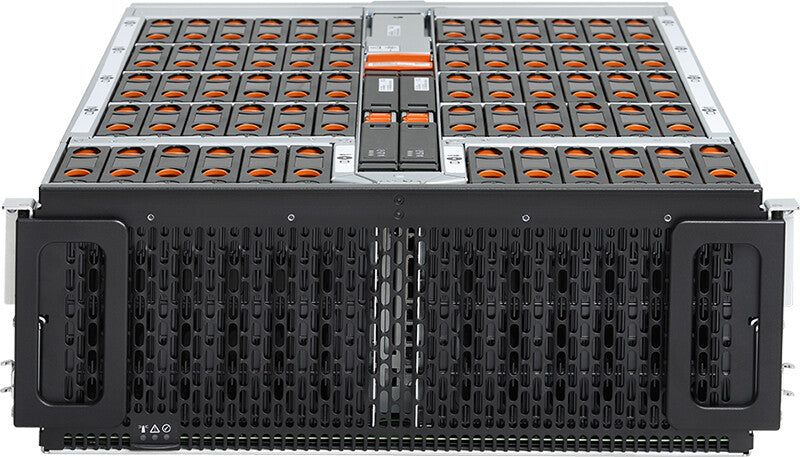

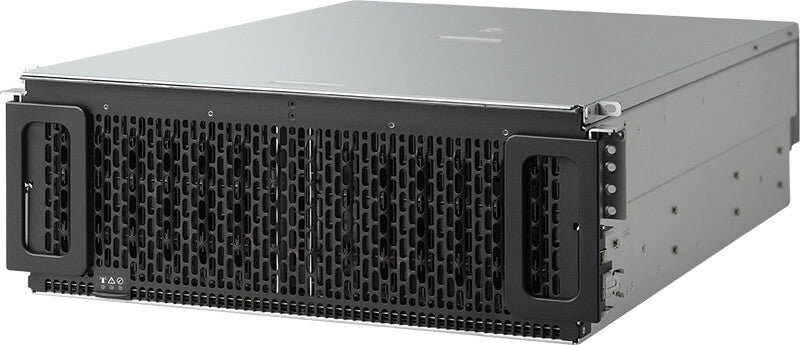

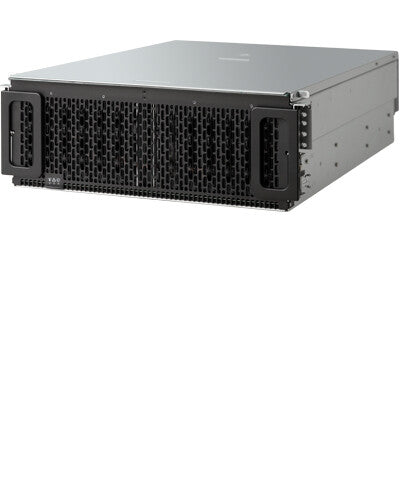

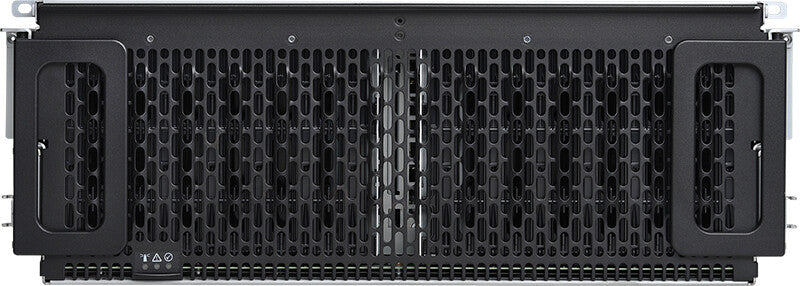

Western Digital Ultrastar Data60 disk array 840 TB Rack (4U) Black
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £11,456.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

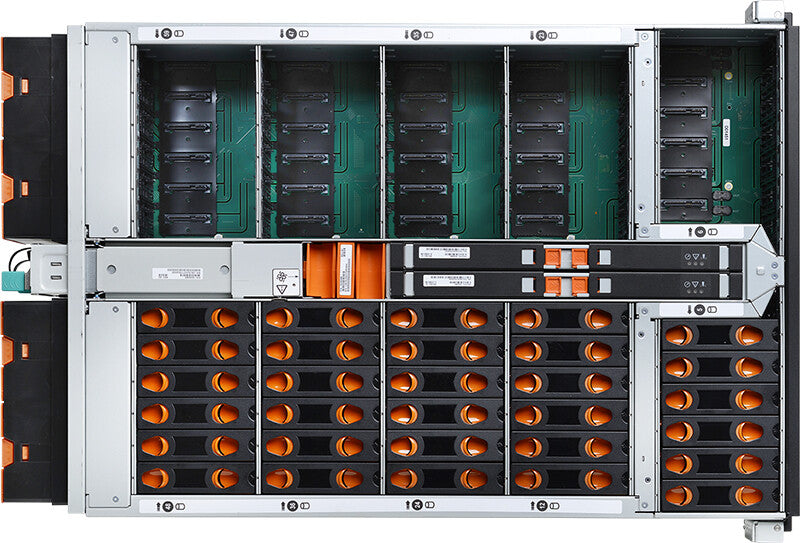

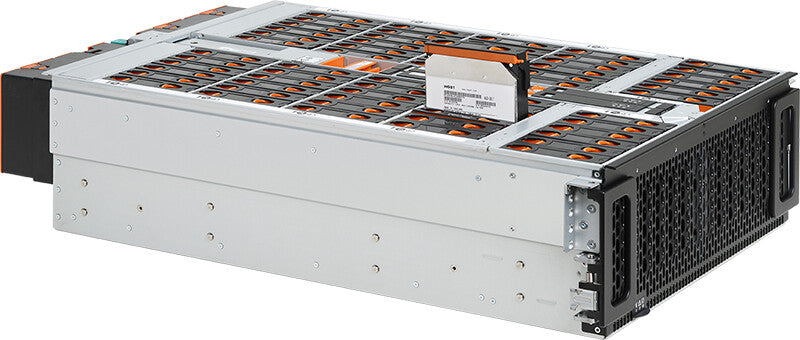

- Up to 60 Ultrastar HDDs (SAS or SATA)
- Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
- Dual-port SAS for high availability or single-port SATA for low cost

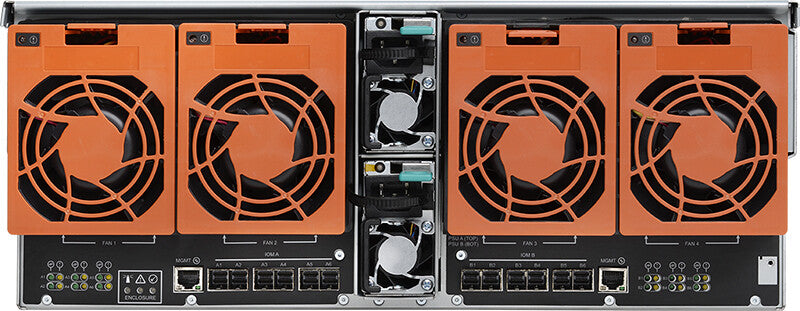

- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.
Specifications
Storage
| Hot-swap drive bays | Yes |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Storage drive size | 3.5" |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Number of storage drives supported | 60 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 840 TB |
| Number of storage drives installed | 60 |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
Ports & interfaces
| Mini-SAS host port | Yes |
|---|---|
| Number of mini-SAS host ports | 12 |
| USB connectivity | No |
Show all 34 specificationsShow fewer specifications
Design
| Redundant fans support | Yes |
|---|---|
| Noise level | 72 dB |
| Number of fans | 6 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (4U) |
| Device class | Small & Medium Business |
Power
| AC input frequency | 50 - 60 Hz |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1600 W |
Weight & dimensions
| Disk enclosure weight | 23.7 kg |
|---|---|
| Weight | 79.4 kg |
| Height | 175 mm |
| Depth | 712 mm |
| Width | 447 mm |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 5 - 35 °C |
General
| Product family | Ultrastar |
|---|
