Western Digital · MPN: 1ES1868
£21,481.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £7,160.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

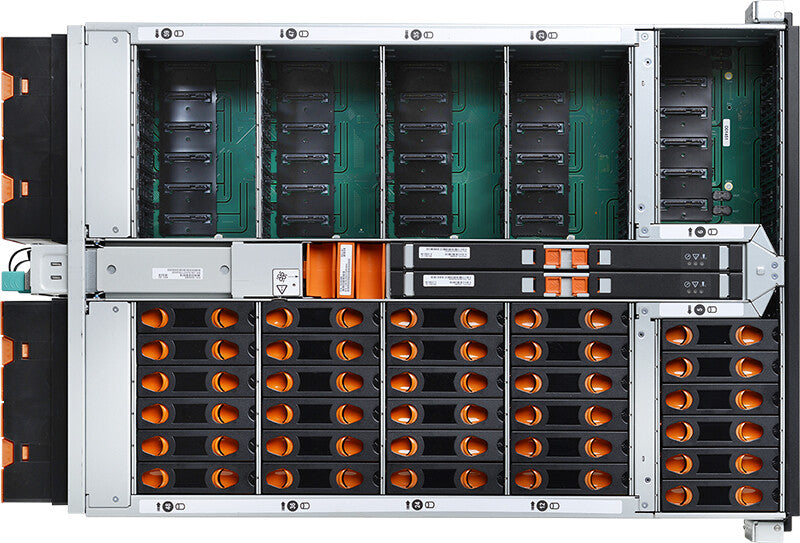

  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost

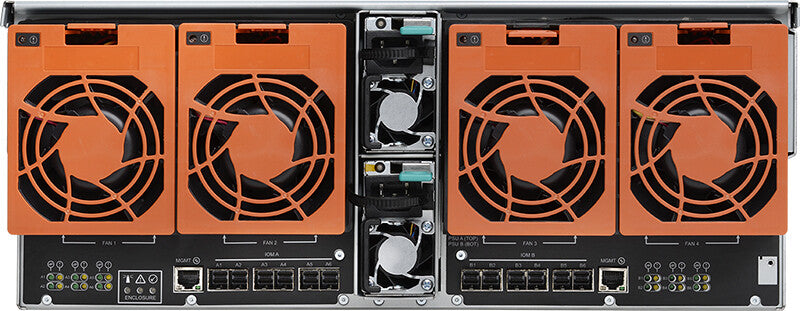

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.

Specifications

Storage

Hot-swap drive baysYes
Data transfer rate12 Gbit/s
Supported storage drive interfacesSAS-3, Serial ATA III
Storage drive size3.5"
Storage drive interfaceSerial Attached SCSI (SAS) III
Storage drive capacity18 TB
Number of storage drives supported60
Supported storage drive typesHDD & SSD
Total installed storage capacity432 TB
Number of storage drives installed24
Installed storage drive typeHDD
Storage drives installedYes

Ports & interfaces

Mini-SAS host portYes
Number of mini-SAS host ports12
USB connectivityNo
Show all 34 specificationsShow fewer specifications

Design

Redundant fans supportYes
Noise level72 dB
Number of fans6 fan(s)
LED indicatorsYes
Product colourBlack
Chassis typeRack (4U)
Device classSmall & Medium Business

Power

AC input frequency50 - 60 Hz
Redundant power supply (RPS) supportYes
Number of power supply units2
Power supply unit (PSU) capacity1600 W

Weight & dimensions

Disk enclosure weight23.7 kg
Height175 mm
Depth712 mm
Width447 mm

General

Product familyUltrastar

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Operating temperature (T-T)5 - 35 °C
