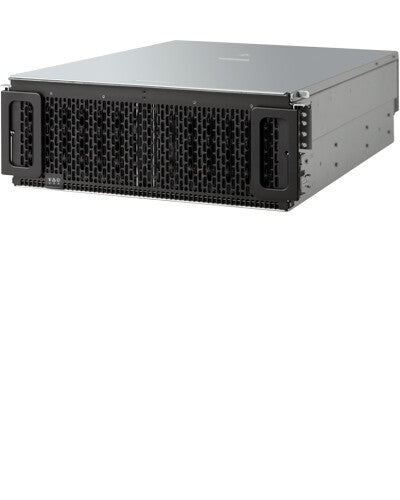

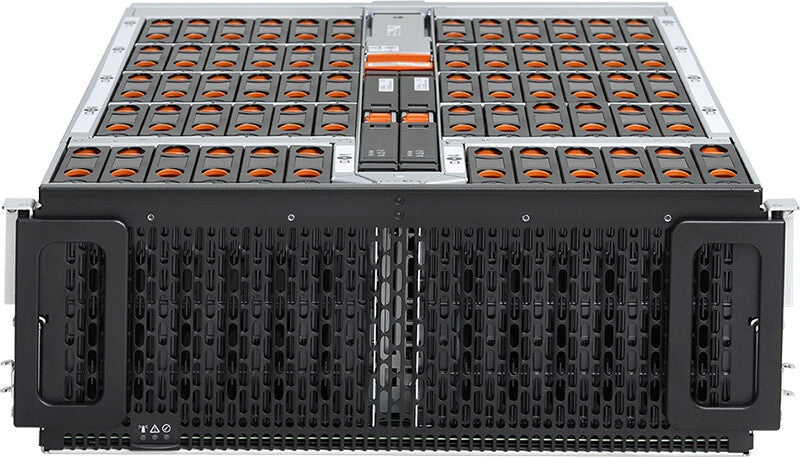

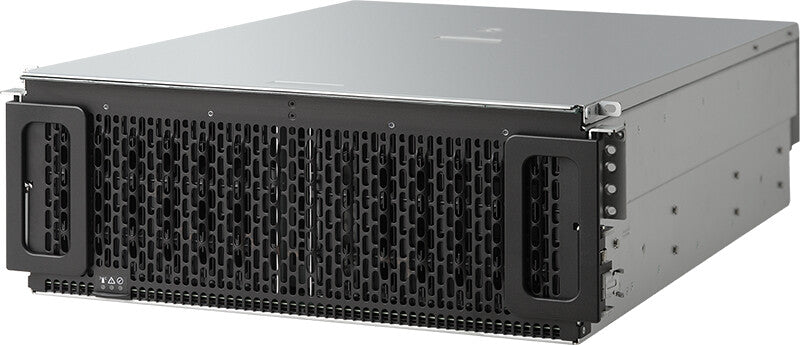

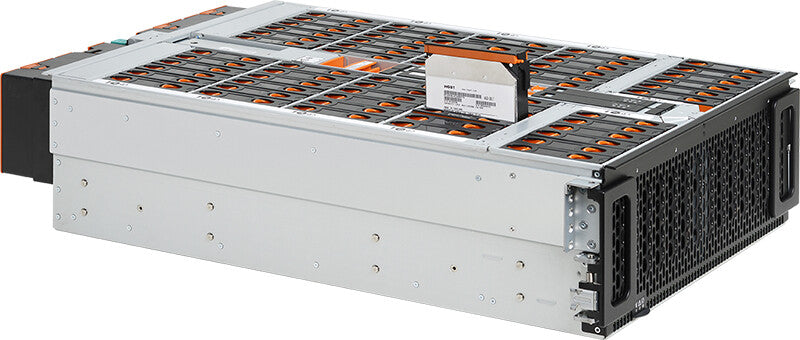

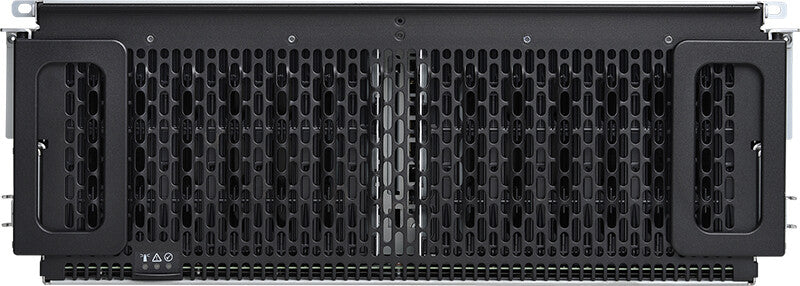

Western Digital Ultrastar Data60 disk array 192 TB Rack (4U) Black, Grey
£13,707.99
Couldn't load pickup availability
- Small & Medium Business
- Rack (4U) Black, Grey
- HDD Storage drives installed 192 TB
- Hot-swap drive bays
- 1600 W
The Ultrastar Data60 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost.

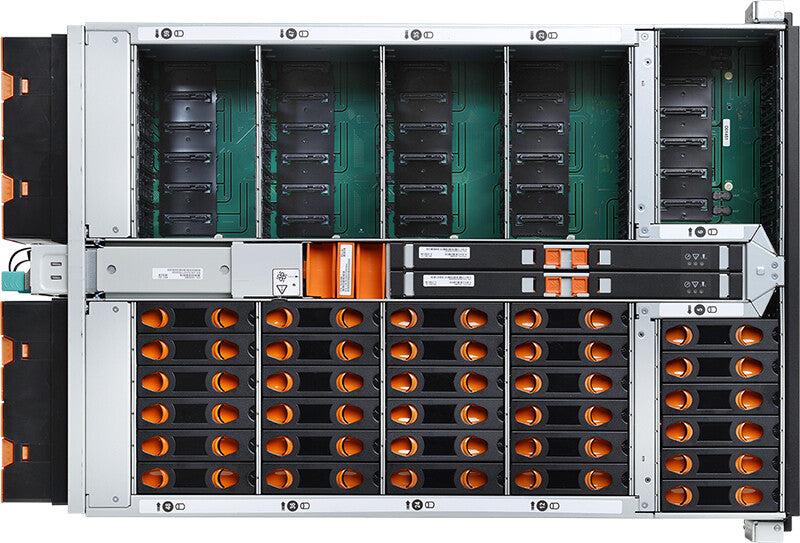

- High density – Up to 60 HGST HelioSeal® HDDs providing up to 720TB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Data transfer rate | 12 Gbit/s |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Storage drive size | 3.5" |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Storage drive capacity | 8 TB |
| Number of storage drives supported | 60 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 192 TB |
| Number of storage drives installed | 24 |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 12 |
| USB connectivity | No |
| Design | |
|---|---|
| Built-in display | No |
| Redundant fans support | Yes |
| Noise level | 72 dB |

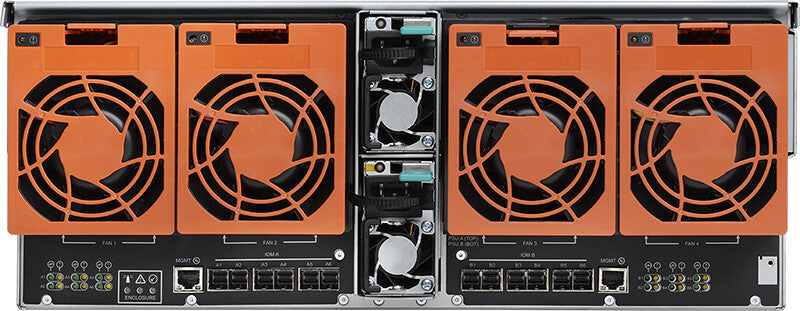

| Number of fans | 6 fan(s) |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Chassis type | Rack (4U) |
| Device class | Small & Medium Business |
| Power | |
|---|---|
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 200 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1600 W |
| Weight & dimensions | |
|---|---|
| Disk enclosure weight | 27.3 kg |
| Height | 175 mm |
| Depth | 712 mm |
| Width | 447 mm |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 915 m |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717020 |
