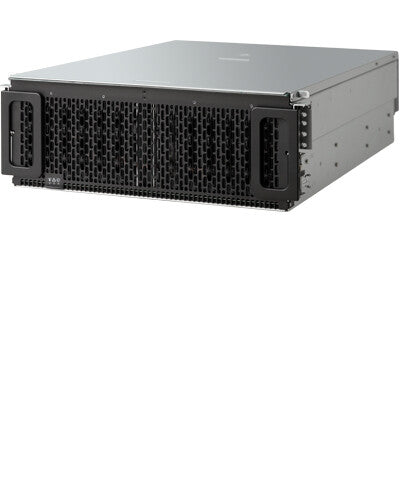

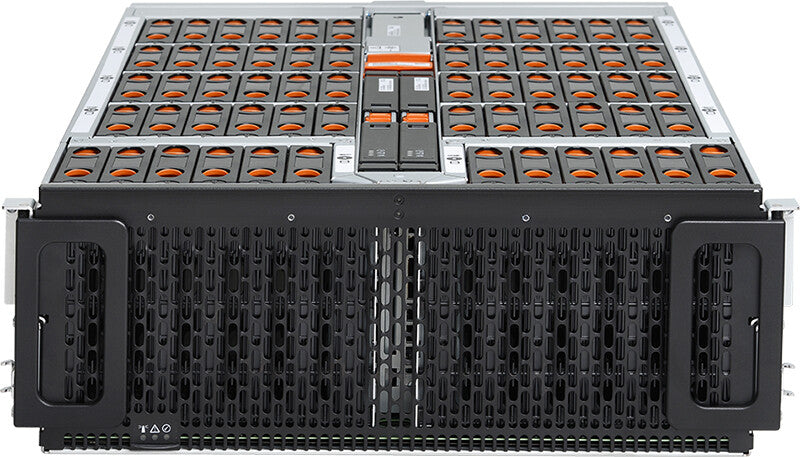

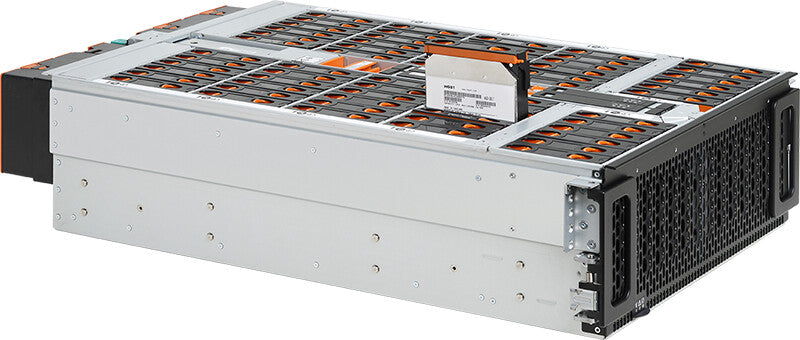

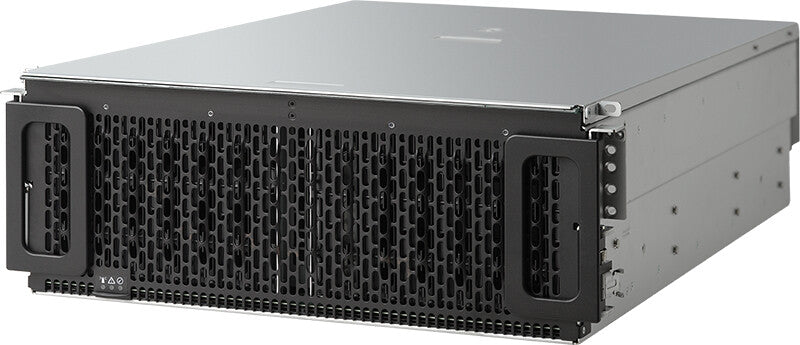

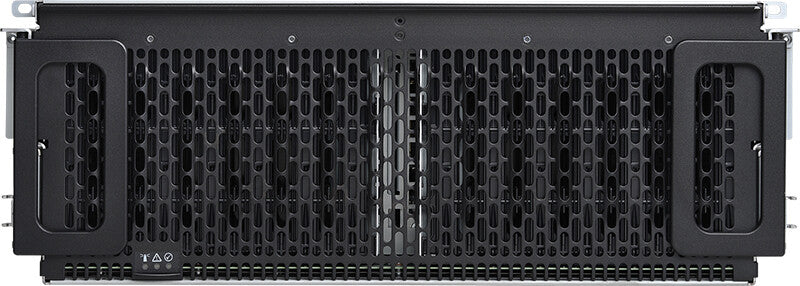

Western Digital Ultrastar Data60 disk array 1200 TB Rack (4U) Black
Now £97,467.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

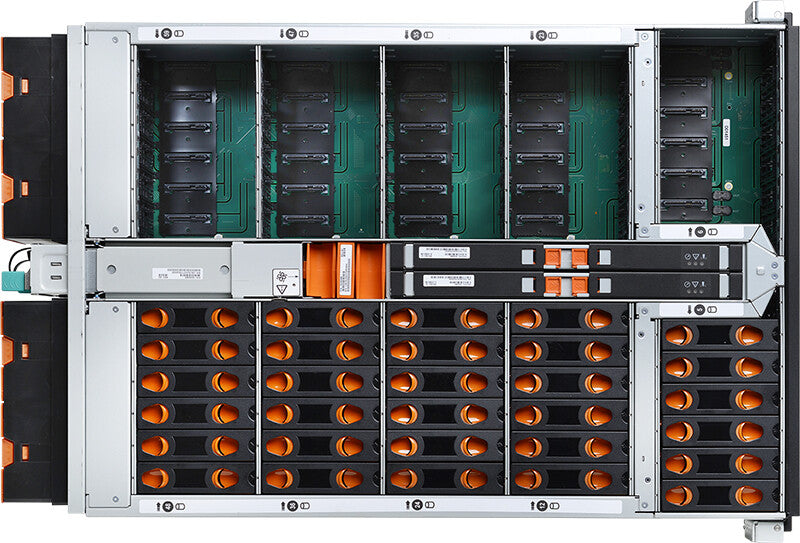

  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost

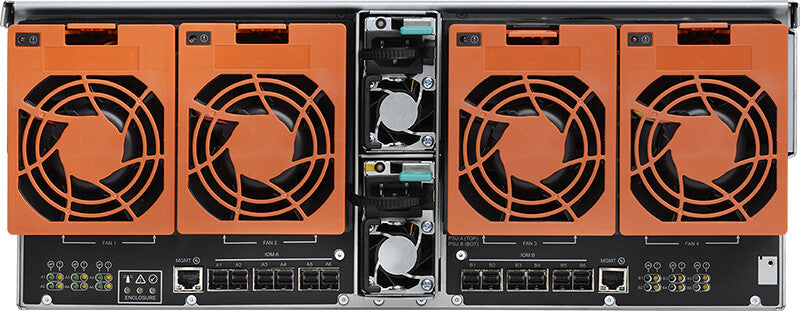

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.

Specifications

Storage

Storage drives installedYes
Installed storage drive typeHDD
Total installed storage capacity1200 TB
Supported storage drive typesHDD & SSD
Number of storage drives supported60
Storage drive interfaceSerial ATA III
Storage drive size3.5"
Supported storage drive interfacesSAS-3, Serial ATA III
Data transfer rate6 Gbit/s
Hot-swap drive baysYes

Ports & interfaces

USB connectivityNo
Number of mini-SAS host ports12
Mini-SAS host portYes
Show all 33 specificationsShow fewer specifications

Design

Device classSmall & Medium Business
Chassis typeRack (4U)
Product colourBlack
LED indicatorsYes
Noise level72 dB
Number of fans6 fan(s)
Redundant fans supportYes

Power

Power supply unit (PSU) capacity1600 W
Number of power supply units2
Redundant power supply (RPS) supportYes
AC input frequency50 - 60 Hz

Weight & dimensions

Width447 mm
Depth712 mm
Height175 mm
Weight79.4 kg
Disk enclosure weight23.7 kg

General

Product familyUltrastar

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-40 - 70 °C
