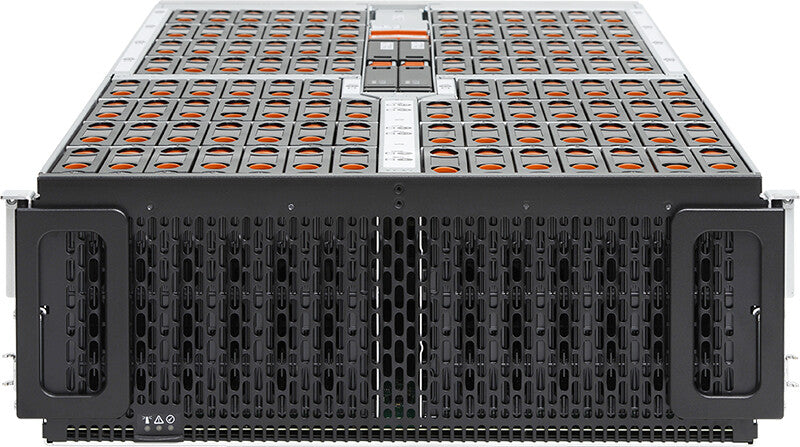

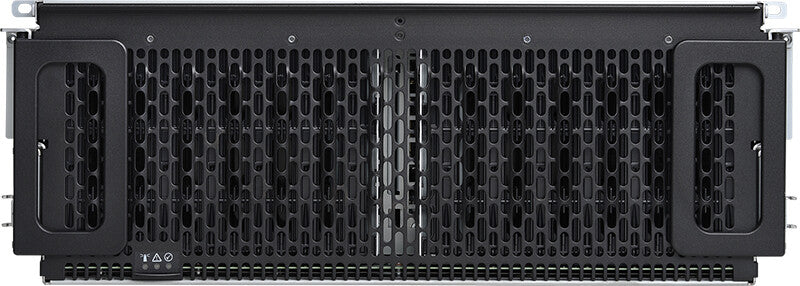

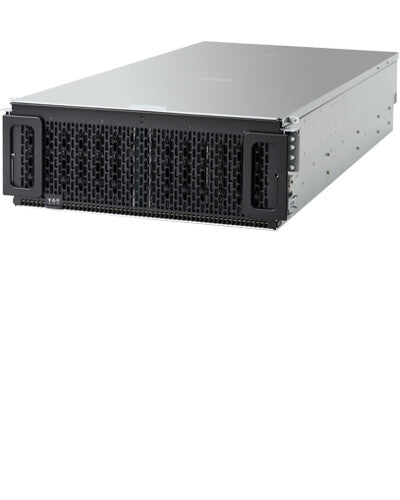

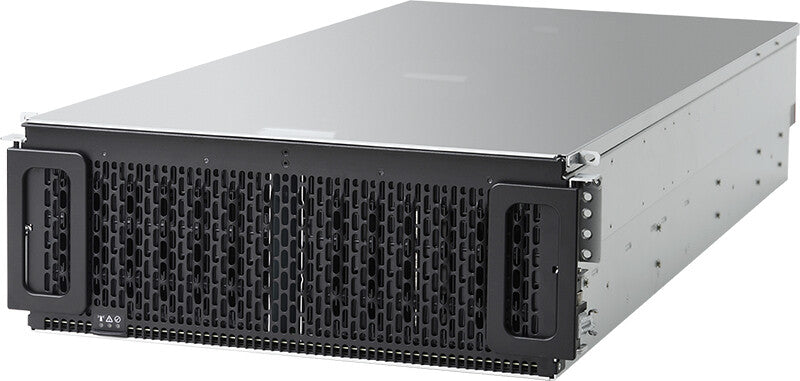

Western Digital Ultrastar Data102 disk array 720 TB Rack (4U) Black, Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £10,958.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Small & Medium Business
- Rack (4U) Black, Grey
- HDD Storage drives installed 720 TB

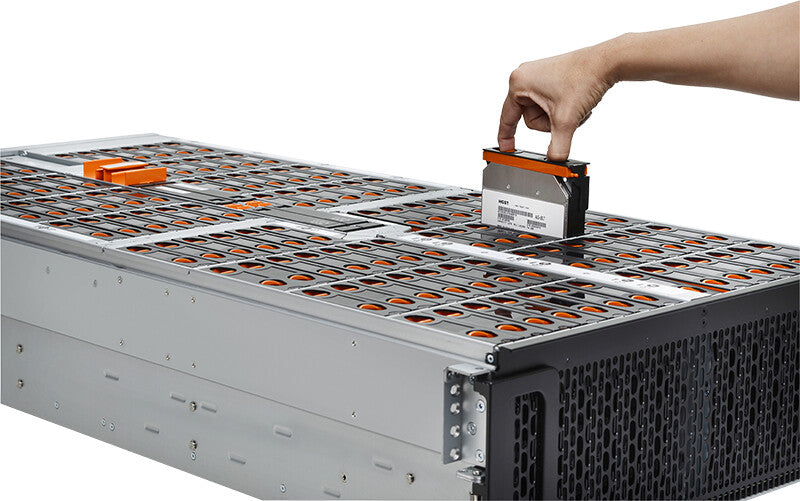

- Hot-swap drive bays
- 1600 W
The Ultrastar Data102 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.

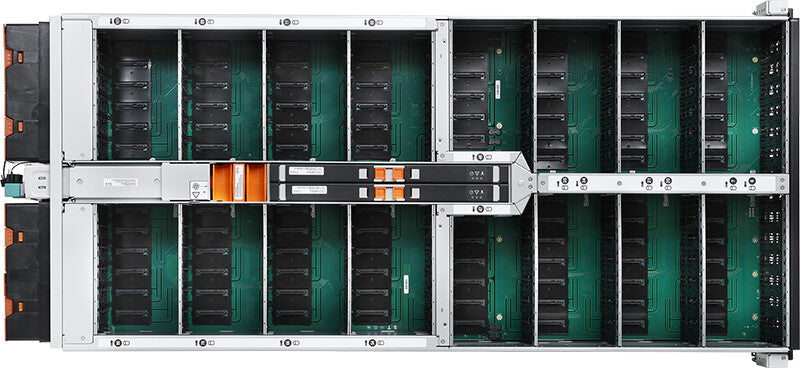

- High Density – Up to 102 HGST HelioSeal® HDDs providing up to 1.2PB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
Specifications
Storage
| Hot-swap drive bays | Yes |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Storage drive size | 3.5" |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Storage drive capacity | 12 TB |
| Number of storage drives supported | 102 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 720 TB |
| Number of storage drives installed | 60 |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
Ports & interfaces
| Mini-SAS host port | Yes |
|---|---|
| Number of mini-SAS host ports | 12 |
| Serial interface type | RJ-45 |
| USB connectivity | No |
Show all 37 specificationsShow fewer specifications
Design
| Built-in display | No |
|---|---|

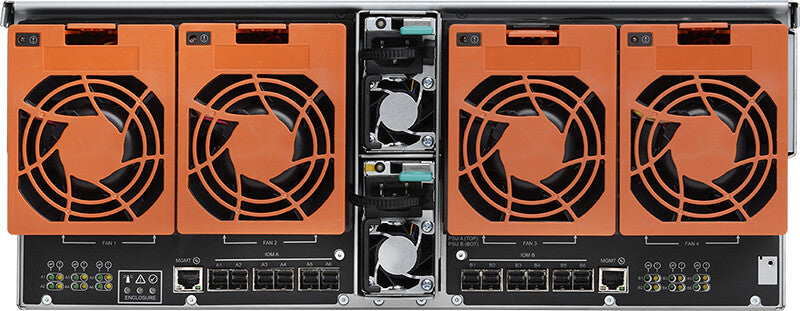

| Redundant fans support | Yes |
| Noise level | 72 dB |
| Number of fans | 6 fan(s) |
| LED indicators | Yes |
| Product colour | Black, Grey |
| Chassis type | Rack (4U) |
| Device class | Small & Medium Business |
Power
| AC input frequency | 50 / 60 Hz |
|---|---|
| AC input voltage | 200 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1600 W |
Weight & dimensions
| Disk enclosure weight | 31.8 kg |
|---|---|
| Height | 175 mm |
| Depth | 1047 mm |
| Width | 447 mm |
Operational conditions
| Operating altitude | 0 - 915 m |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
