Western Digital · MPN: 1EX2953
£33,834.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £11,278.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

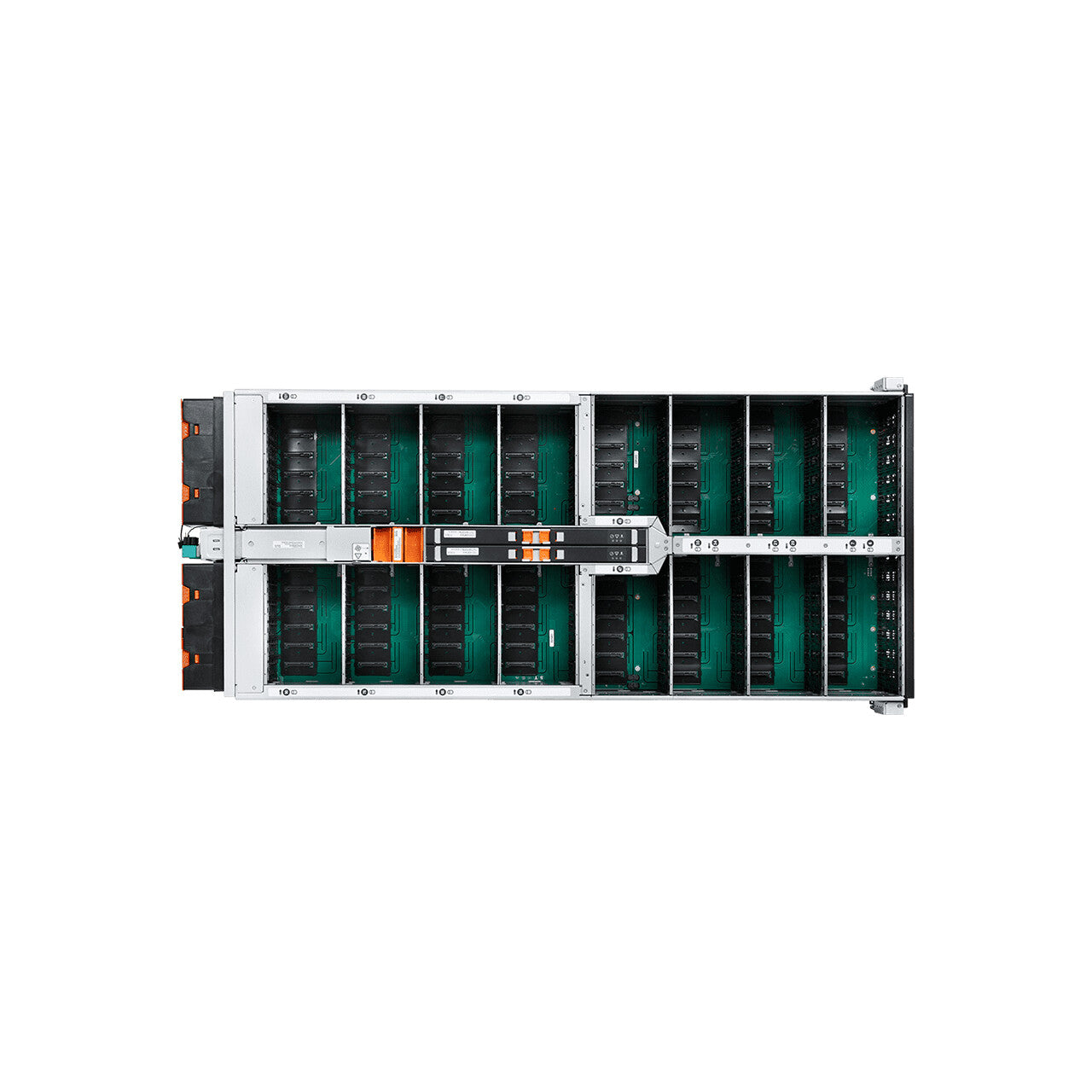

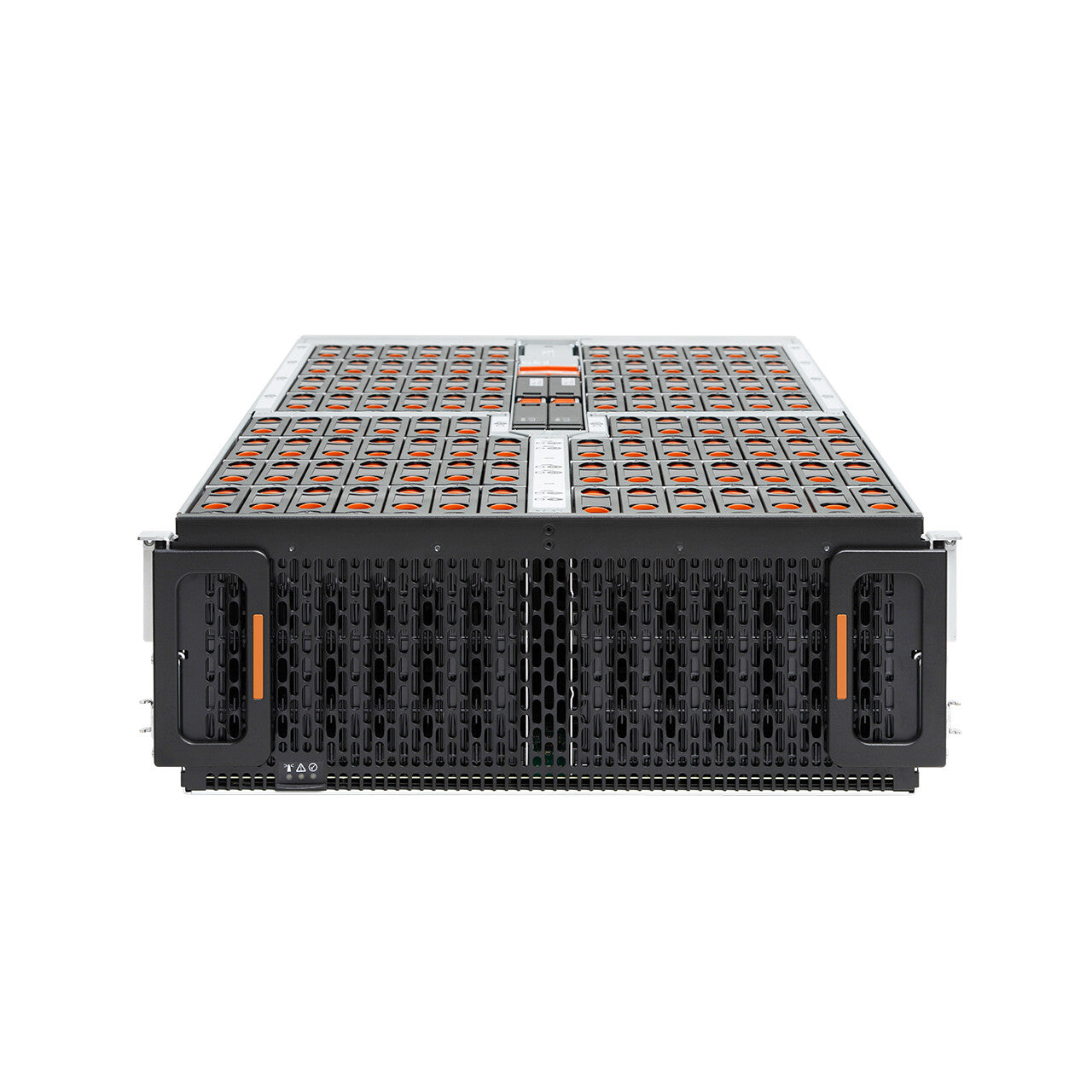

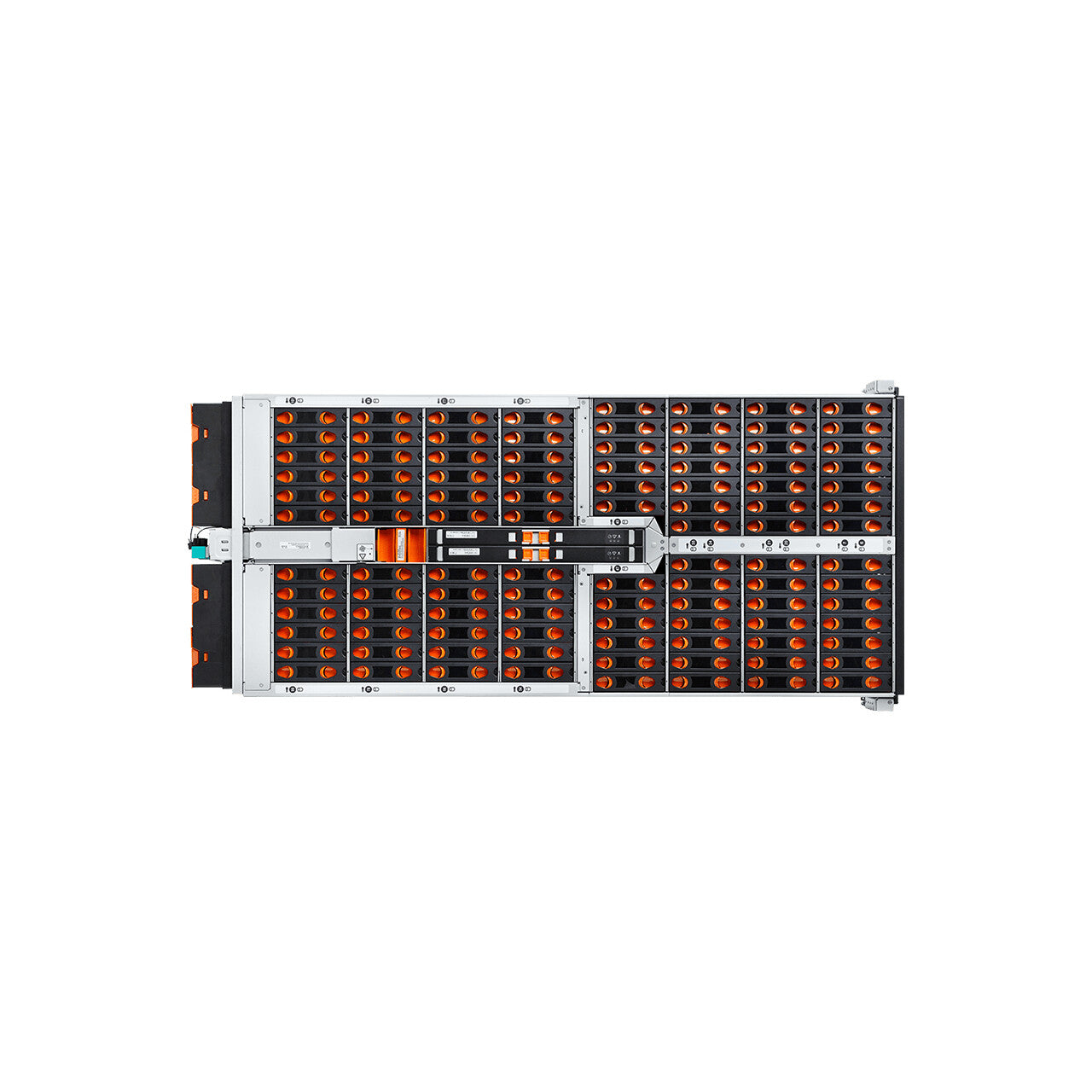

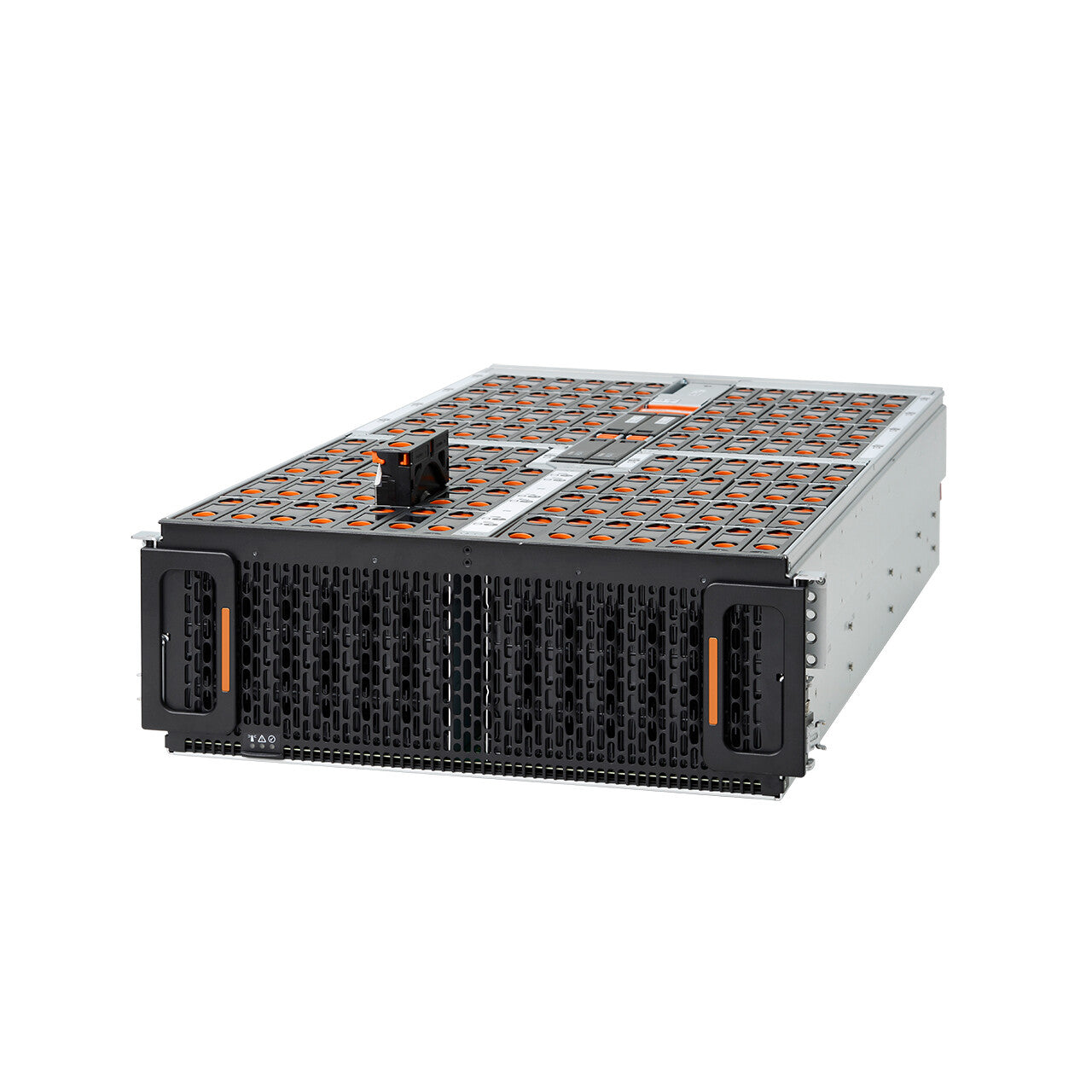

Western Digital Ultrastar Data102 disk array 308 TB Rack (4U) Black, Grey
Now £33,834.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.0PB1 raw capacity in 4U using 20TB SMR HDDs
  • Dual-port SAS for high availability or single-port SATA for low cost

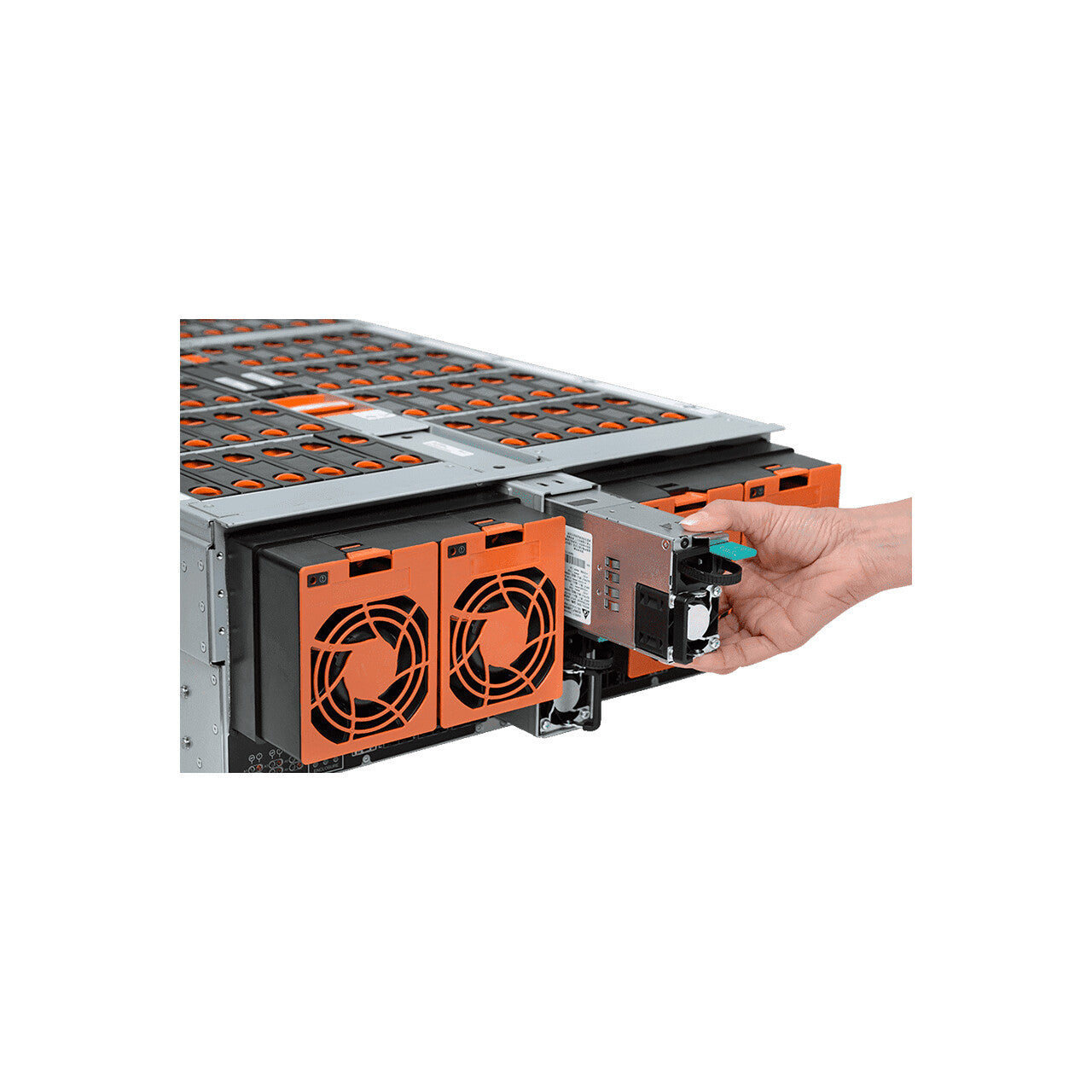

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

The Ultrastar Data102 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2PB1 of raw storage in 4U using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

Specifications

Storage

Storage drives installedYes
Installed storage drive typeHDD
Total installed storage capacity308 TB
Supported storage drive typesHDD
Number of storage drives supported102
Storage drive interfaceSerial Attached SCSI (SAS)
Storage drive size3.5"
Supported storage drive interfacesSAS, Serial ATA III
Data transfer rate12 Gbit/s
Hot-swap drive baysYes

Ports & interfaces

USB connectivityNo
Number of mini-SAS host ports12
Mini-SAS host portYes
Show all 34 specificationsShow fewer specifications

Design

Device classLarge Enterprise Business
Chassis typeRack (4U)
Product colourBlack, Grey
Noise level72 dB
Number of fans8 fan(s)
Redundant fans supportYes

Power

Number of power supply units2
Redundant power supply (RPS) supportYes
AC input voltage220 - 240 V
AC input frequency50 / 60 Hz

System requirements

Linux operating systems supportedYes
Server operating systems supportedWindows Server 2016, Windows Server 2019

Weight & dimensions

Width447 mm
Depth1047 mm
Height175 mm
Weight31.8 kg
Disk enclosure weight31.8 kg

General

Product familyUltrastar

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-40 - 70 °C
