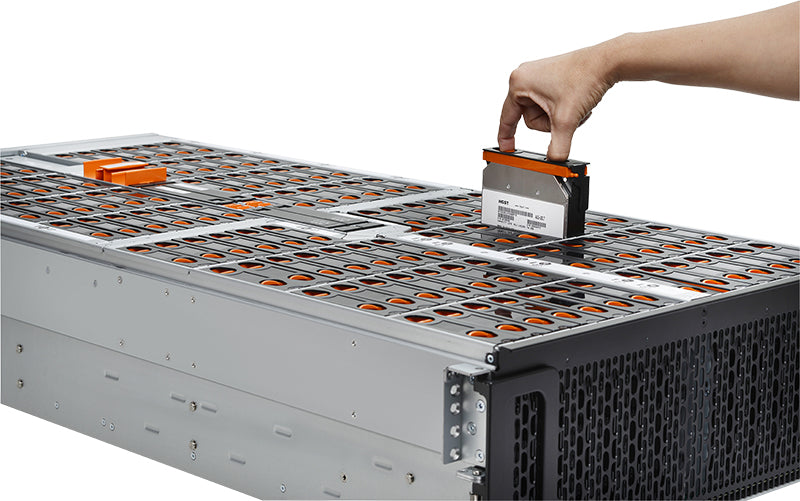

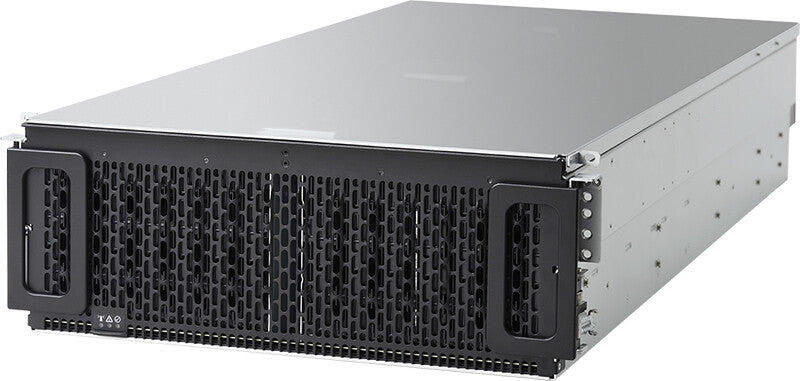

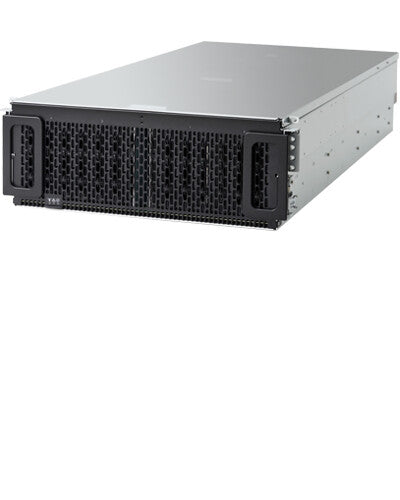

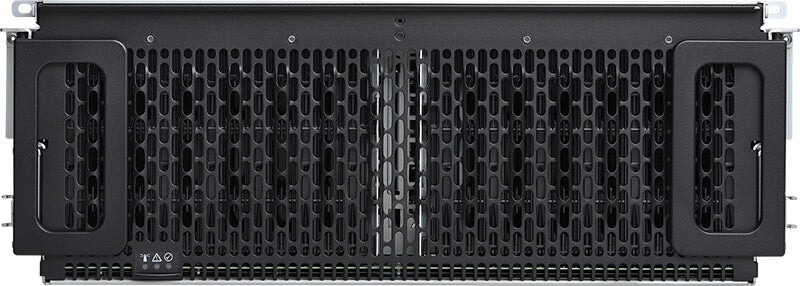

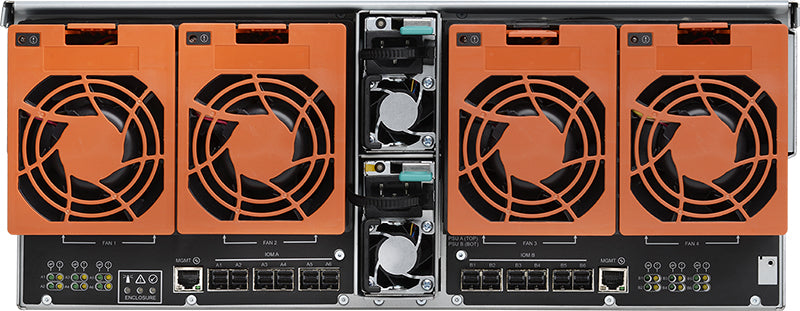

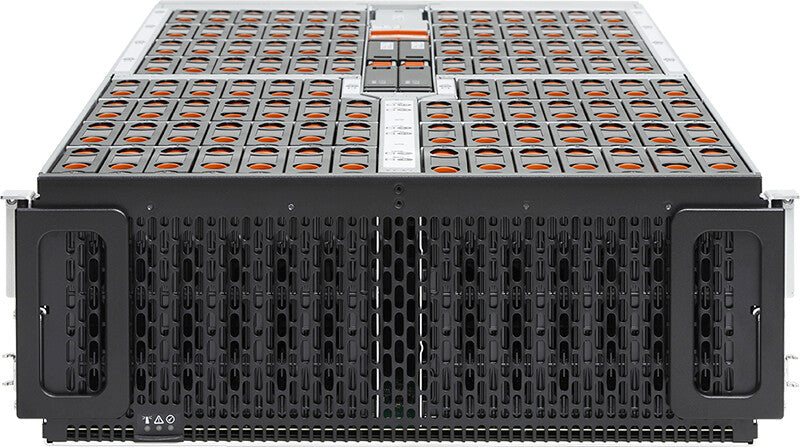

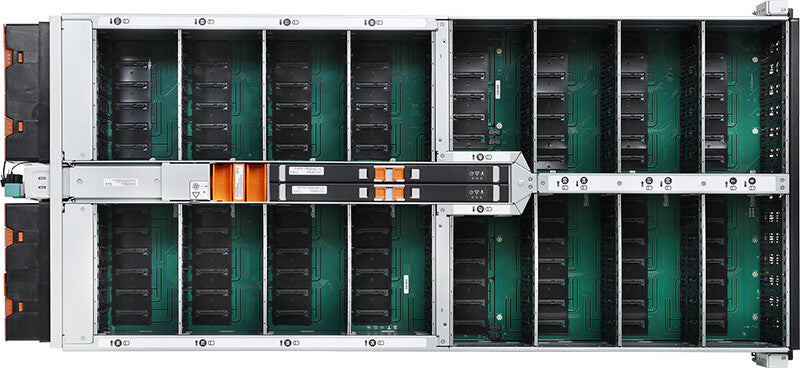

Western Digital Ultrastar Data102 disk array 2244 TB Rack (4U) Black, Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £84,912.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Small & Medium Business
- Rack (4U) Black, Grey
- HDD Storage drives installed 2244 TB
- Hot-swap drive bays
- 1600 W
The Ultrastar Data102 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.
- High Density – Up to 102 HGST HelioSeal® HDDs providing up to 1.2PB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling
Specifications
Storage
| Storage drives installed | Yes |
|---|---|
| Installed storage drive type | HDD |
| Total installed storage capacity | 2244 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 102 |
| Storage drive interface | Serial ATA III |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Storage drive sizes supported | 3.5" |
| Data transfer rate | 6 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| USB connectivity | No |
|---|---|
| Number of mini-SAS host ports | 12 |
| Mini-SAS host port | Yes |
| Serial interface type | RJ-45 |
Show all 36 specificationsShow fewer specifications
Design
| Device class | Small & Medium Business |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Number of fans | 6 fan(s) |
| Redundant fans support | Yes |
| Built-in display | No |
Power
| Power supply unit (PSU) capacity | 1600 W |
|---|---|
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Width | 447 mm |
|---|---|
| Depth | 1047 mm |
| Height | 175 mm |
General
| Product series | DC HC570 |
|---|---|
| Product family | Ultrastar |
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating altitude | 0 - 915 m |
