Western Digital · MPN: 1EX2488
£5,810.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,936.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.2PB1 raw capacity in 4U using 22TB CMR HDDs
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

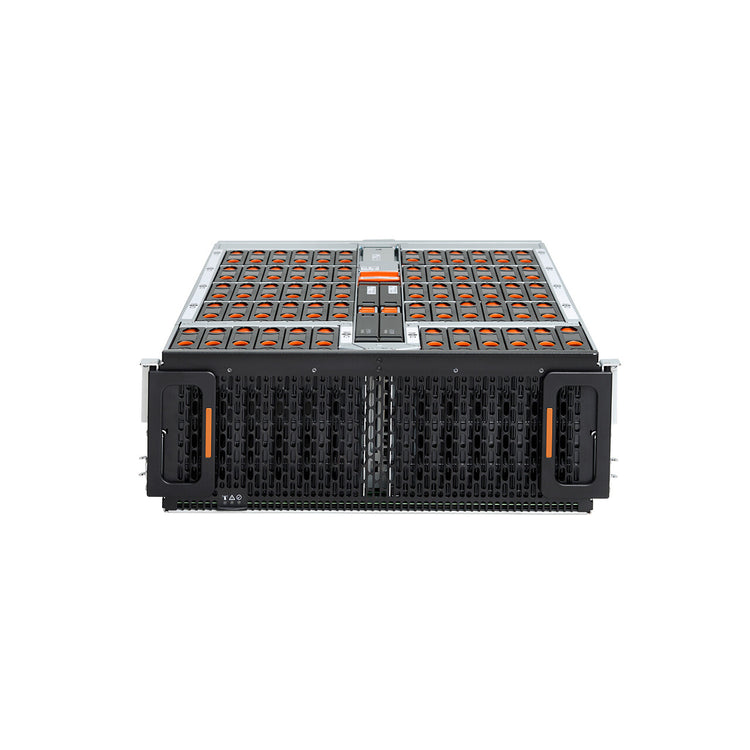

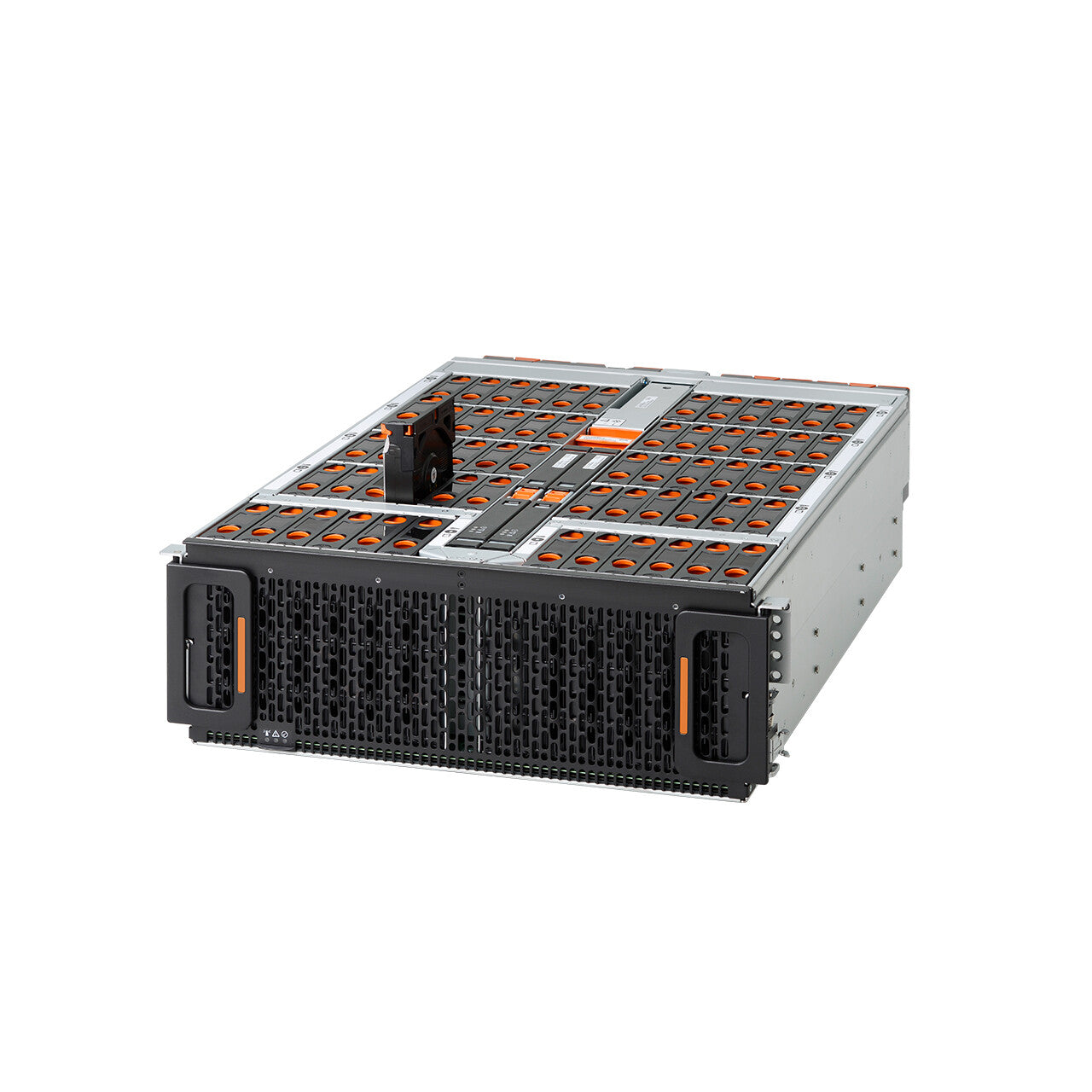

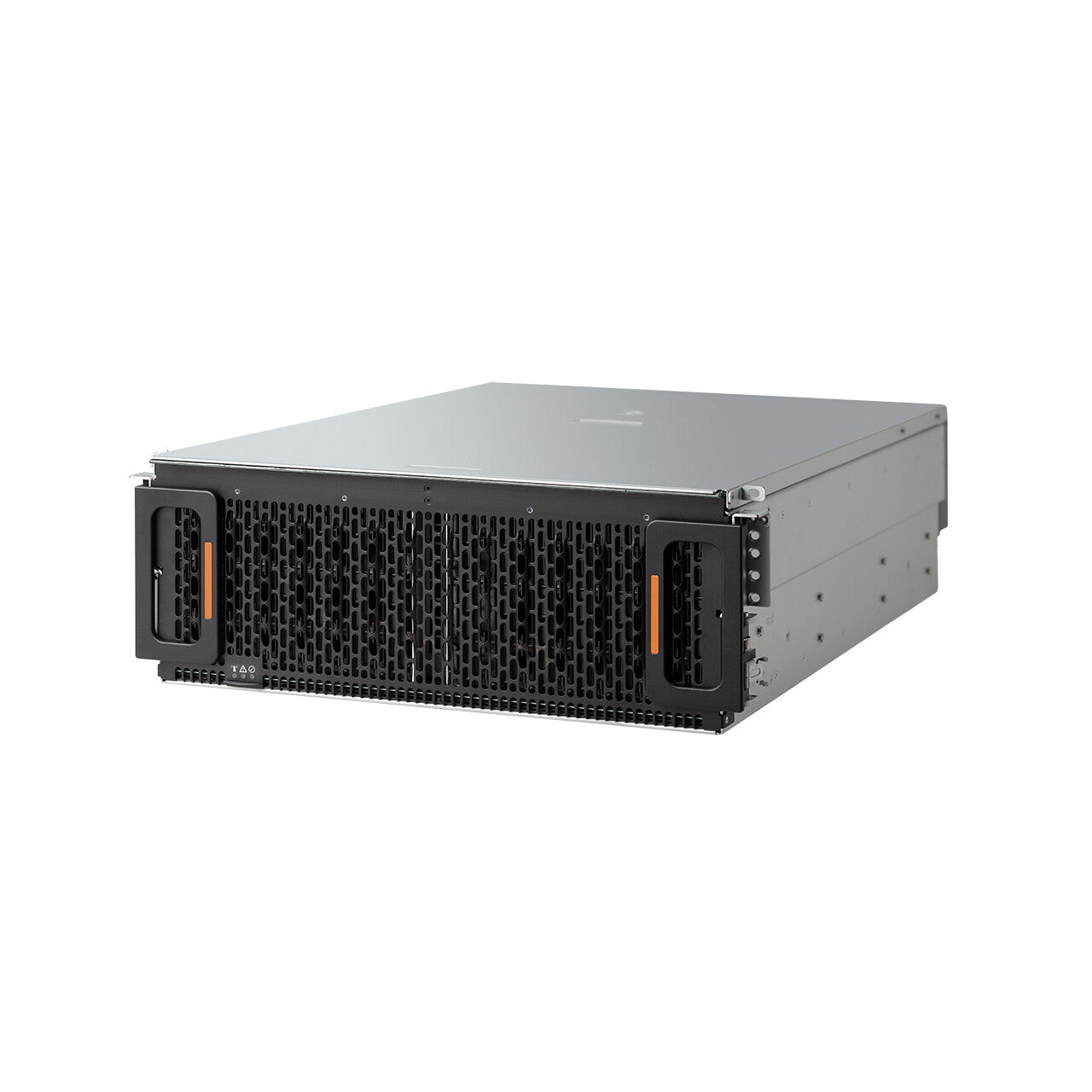

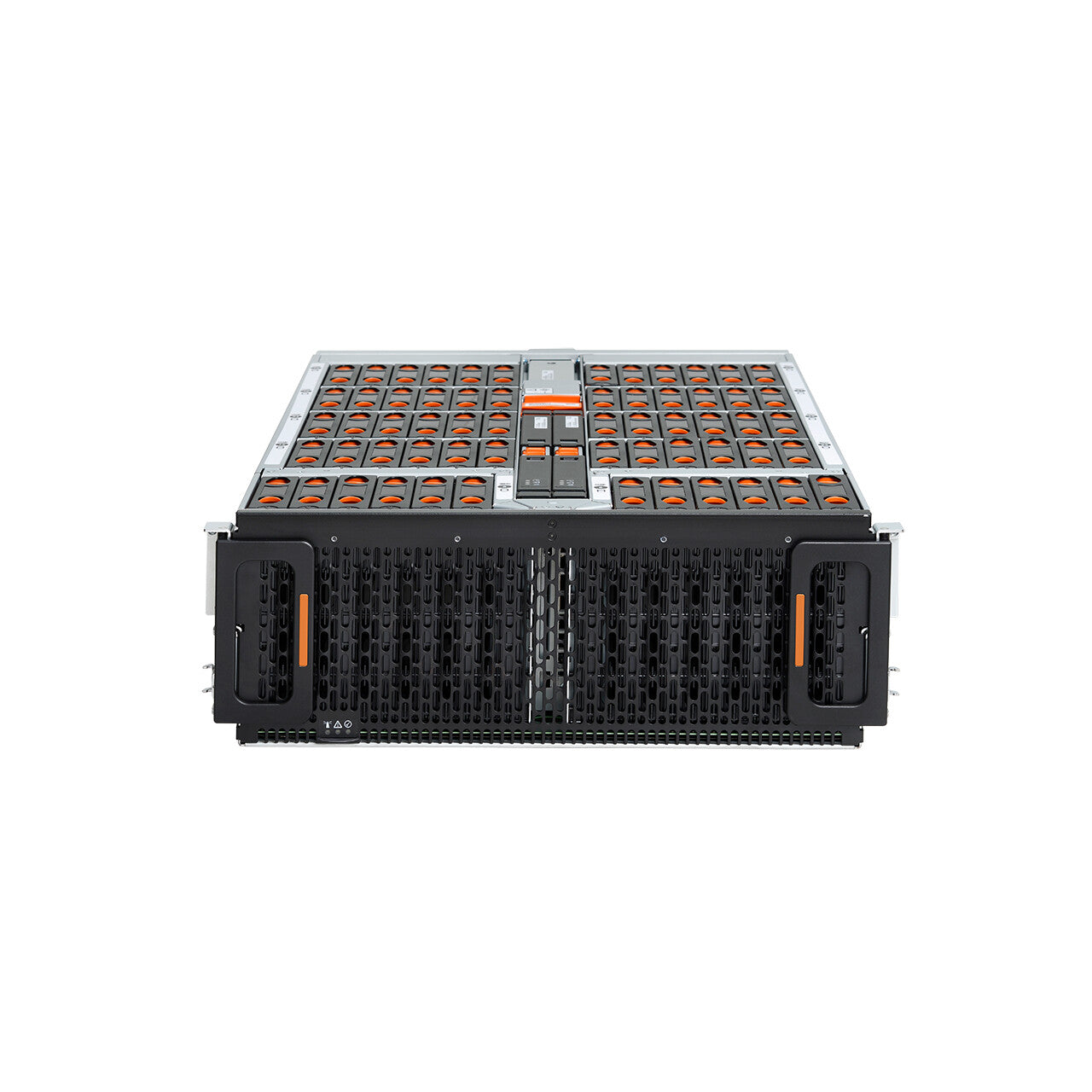

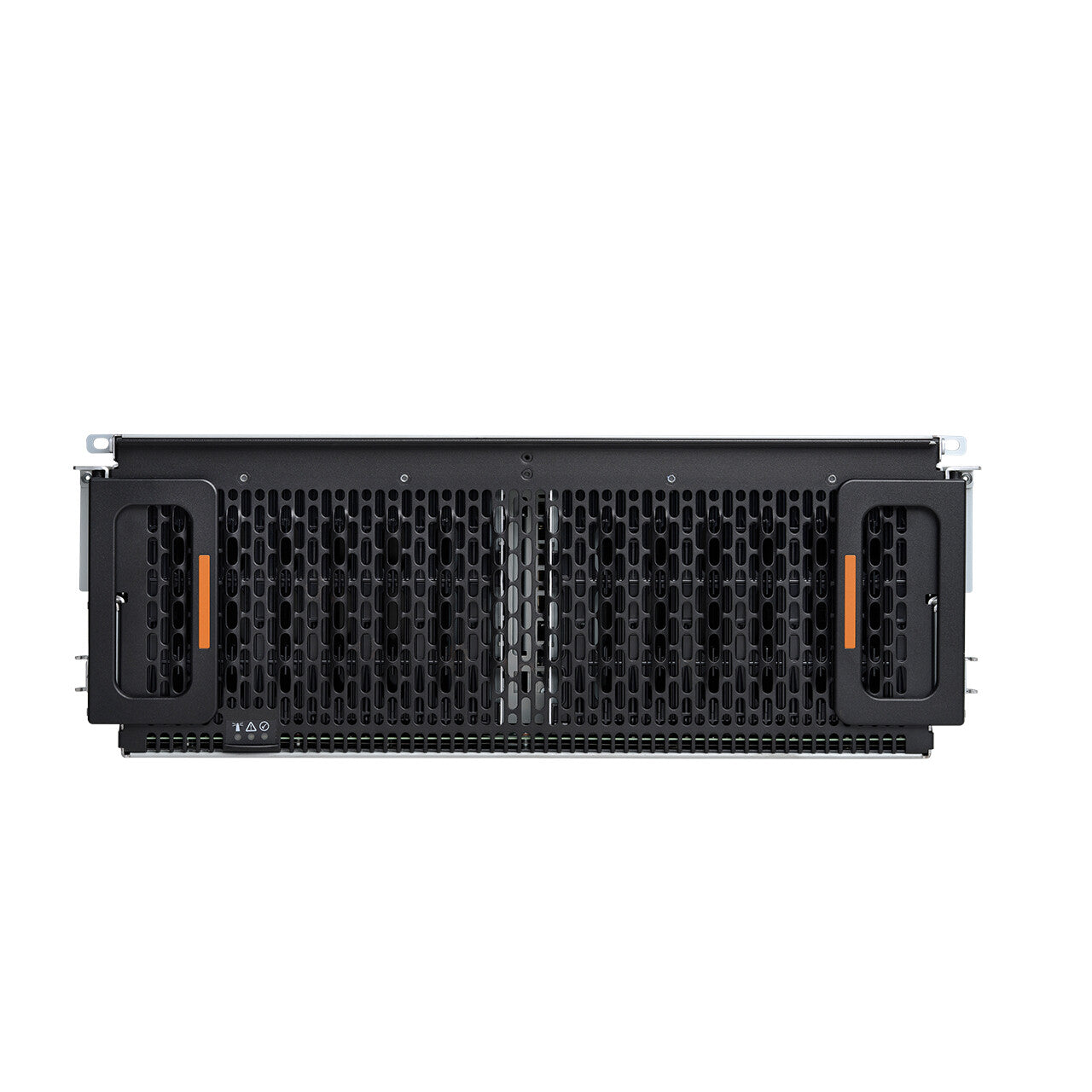

The Ultrastar Data102 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2.2PB1 of raw storage in 4U using our 22TB CMR HDDs in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology

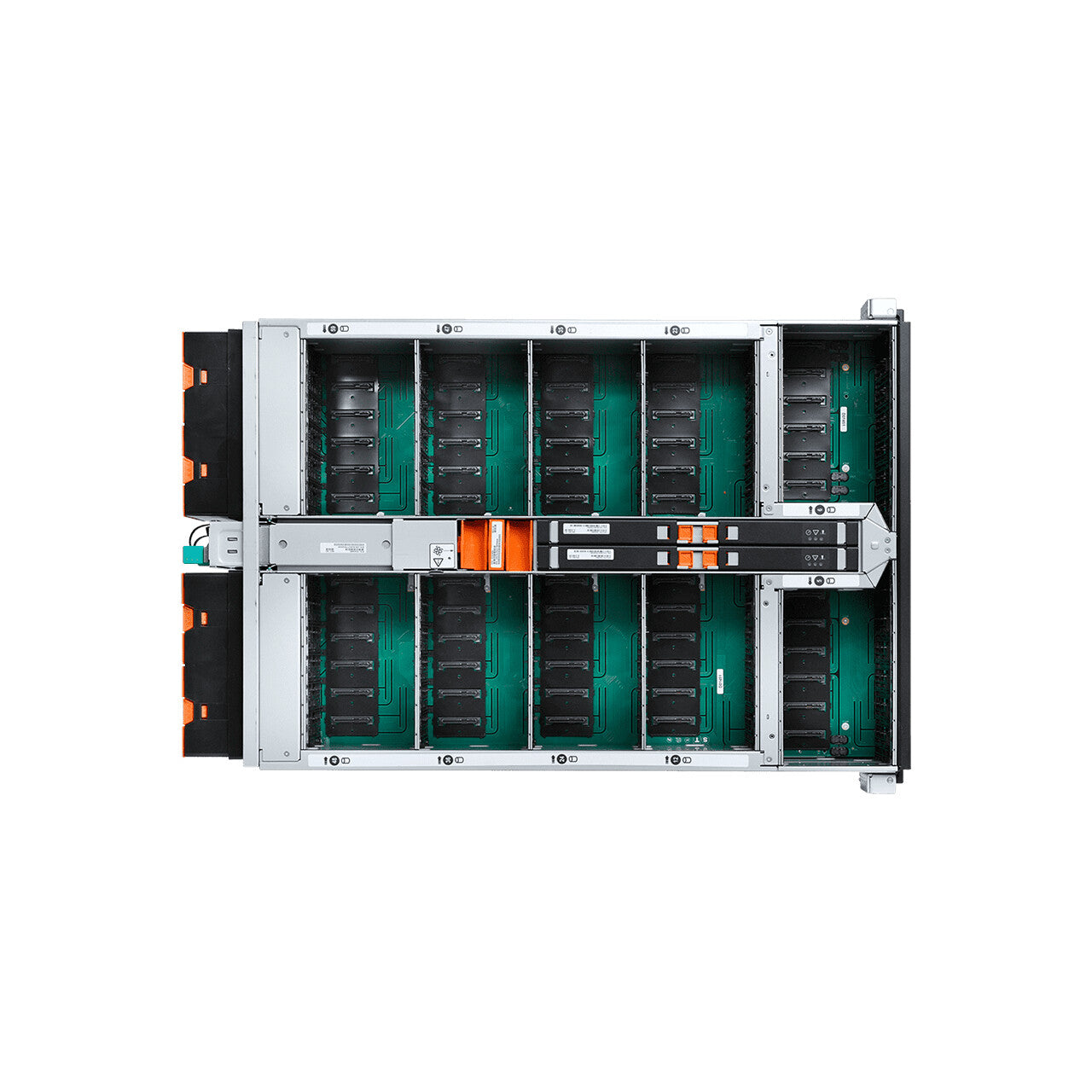

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

Specifications

Storage

Hot-swap drive baysYes
Supported storage drive interfacesSAS, Serial ATA III
Storage drive size3.5"
Storage drive interfaceSerial ATA III
Maximum supported storage capacity22000 TB
Number of storage drives supported102
Supported storage drive typesHDD & SSD
Total installed storage capacity216 TB
Installed storage drive typeHDD
Storage drives installedYes

Ports & interfaces

Mini-SAS host portYes
USB connectivityNo
Show all 33 specificationsShow fewer specifications

Design

Redundant fans supportYes
Number of fans4 fan(s)
LED indicatorsActivity, Fault, Power
Product colourBlack
Chassis typeRack (4U)
Device classLarge Enterprise Business

Power

AC input frequency50 / 60 Hz
AC input voltage200 - 240 V
Power consumption (max)1800 W
Redundant power supply (RPS) supportYes

System requirements

Linux operating systems supportedYes
Server operating systems supportedWindows Server 2016, Windows Server 2019

Weight & dimensions

Weight31.8 kg
Height175 mm
Depth1047 mm
Width447 mm

Operational conditions

Operating altitude-300 - 3048 m
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Operating temperature (T-T)5 - 35 °C

General

Product familyUltrastar
