Western Digital · MPN: 1ES1450
£52,918.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £17,639.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

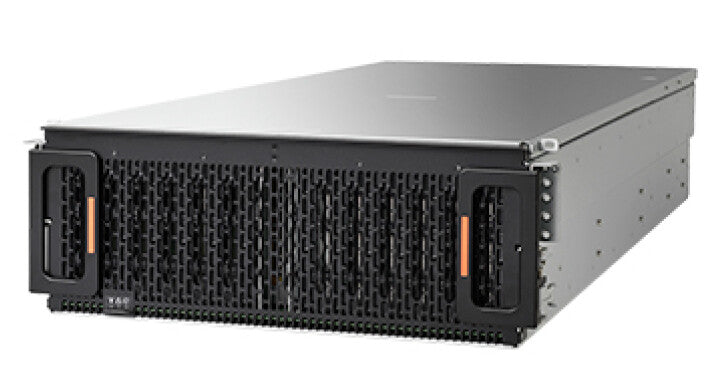

Western Digital Ultrastar Data102 disk array 1428 TB Rack (4U) Black, Grey
Now £52,918.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.0PB1 raw capacity in 4U using 20TB SMR HDDs
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans

Designed for High Density and Flexibility

The Ultrastar Data102 storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2PB1 of raw storage in 4U using our 20TB SMR HDDs in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.

IsoVibe™ Vibration Isolation Technology

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology

By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Western Digital Resource Manager

A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.

Specifications

Storage

Hot-swap drive baysYes
Data transfer rate12 Gbit/s
Storage drive sizes supported3.5"
Supported storage drive interfacesSAS, Serial ATA III
Storage drive size3.5"
Storage drive interfaceSerial Attached SCSI (SAS)
Storage drive capacity14 TB
Number of storage drives supported102
Supported storage drive typesHDD
Total installed storage capacity1428 TB
Number of storage drives installed102
Installed storage drive typeHDD
Storage drives installedYes

Ports & interfaces

Mini-SAS host portYes
Number of mini-SAS host ports12
USB connectivityNo
Show all 40 specificationsShow fewer specifications

Design

Built-in displayNo
Redundant fans supportYes
Noise level72 dB
Number of fans8 fan(s)
CoolingYes
LED indicatorsYes
Product colourBlack, Grey
Chassis typeRack (4U)
Device classLarge Enterprise Business

Power

AC input frequency50 / 60 Hz
AC input voltage200 - 240 V
Redundant power supply (RPS) supportYes
Number of power supply units2
Power supply unit (PSU) capacity1800 W

Weight & dimensions

Disk enclosure weight31.8 kg
Weight118.8 kg
Height175 mm
Depth1047 mm
Width447 mm

Operational conditions

Operating altitude-300 - 3048 m
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Operating temperature (T-T)5 - 35 °C

General

Product familyUltrastar
