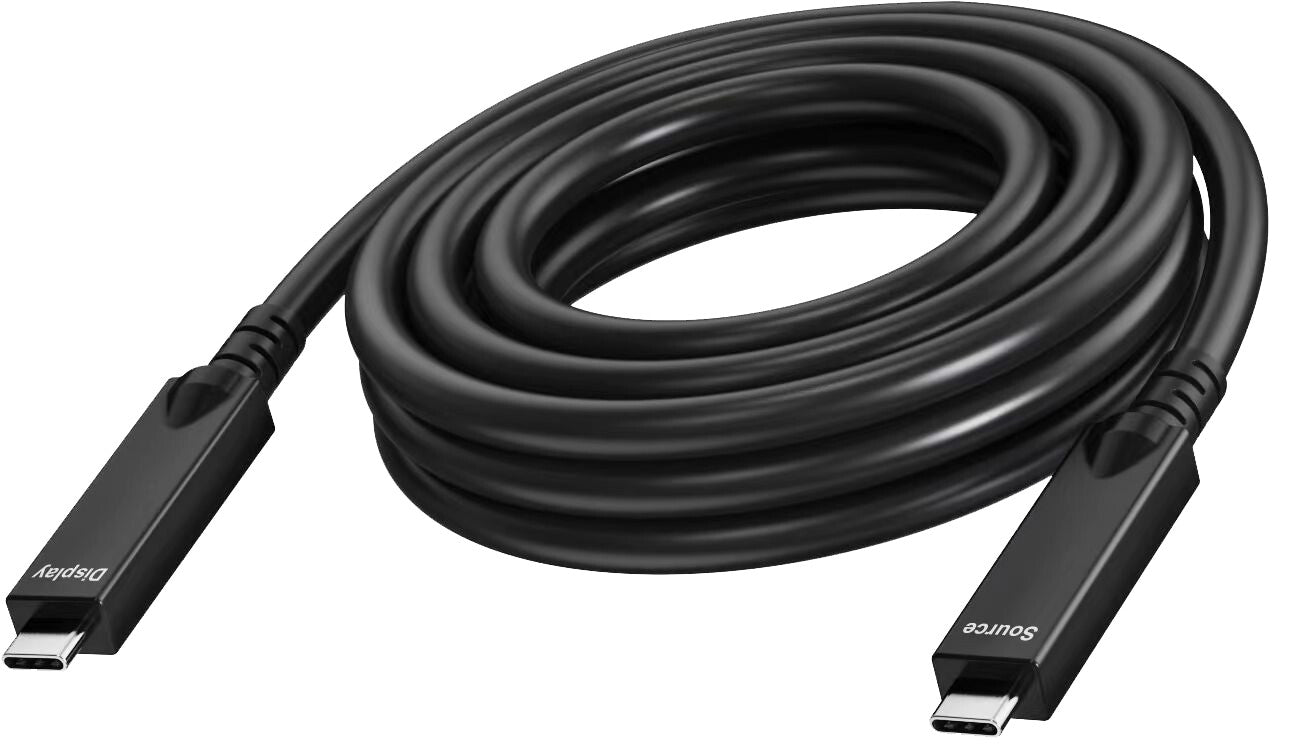

Vision TC 7MUSBC/BL USB cable USB 3.2 Gen 1 (3.1 Gen 1) 7 m USB C Black
Couldn't load pickup availability
- Optical Cable
- Backwards compatible with USB 2.0
- Transfers USB data and DisplayPort video data
USB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal.
This cable is compatible with both 2-lane and 4-lane configurations. For a 4-lane connection, both connected devices must support 4 lanes.
Very Tough
This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.
Tight Bends
Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.
Directional
This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.
| Features | |
|---|---|
| Power consumption | 1.2 W |
| Reinforced charging cable | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| DisplayPort version | 2.1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Fast charging | Yes |
| Plug and Play | Yes |
| Cable type | Round cable |
| Product colour | Black |
| Maximum data transfer rate | 10 Gbit/s |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 1 | USB C |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
|---|---|
| Input voltage | 5 V |
| Input current (max) | 3 A |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 44 x 13 x 8 mm |
| Bend radius (min) | 1 cm |
| Cable diameter | 6.5 mm |
| Cable length | 7 m |
| Packaging data | |
|---|---|
| Package weight | 600 g |
| Package height | 50 mm |
| Package depth | 150 mm |
| Package width | 175 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
