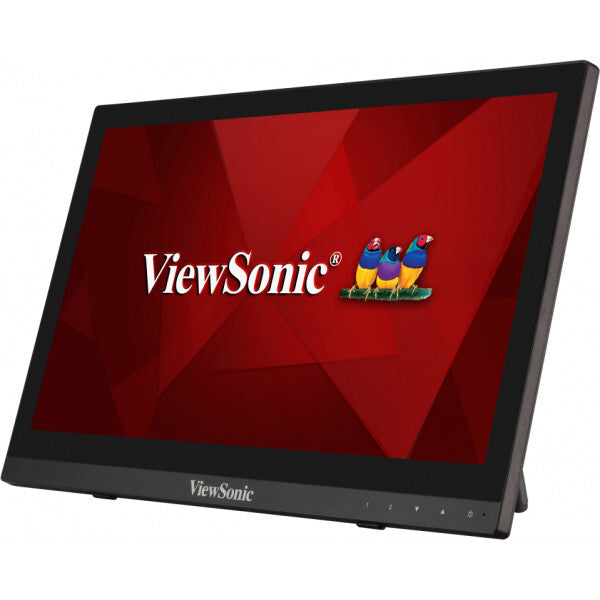

Viewsonic TD1630-3 computer monitor 39.6 cm (15.6") 1366 x 768 pixels HD LCD Touchscreen Multi-user Black
Couldn't load pickup availability
- 39.6 cm (15.6") Black
- Built-in speaker(s)
- HDMI HDMI version: 1.4
- Screen shape: Flat
- Maximum refresh rate: 60 Hz Response time: 12 ms
- 1366 x 768 pixels HD Panel type: TN
- Energy efficiency class (SDR): B ErP CE, REACH, RoHS

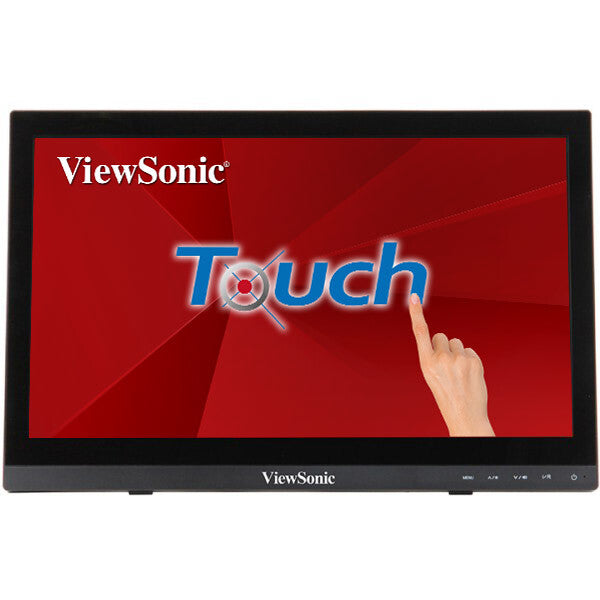

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
10-point Multi-touch

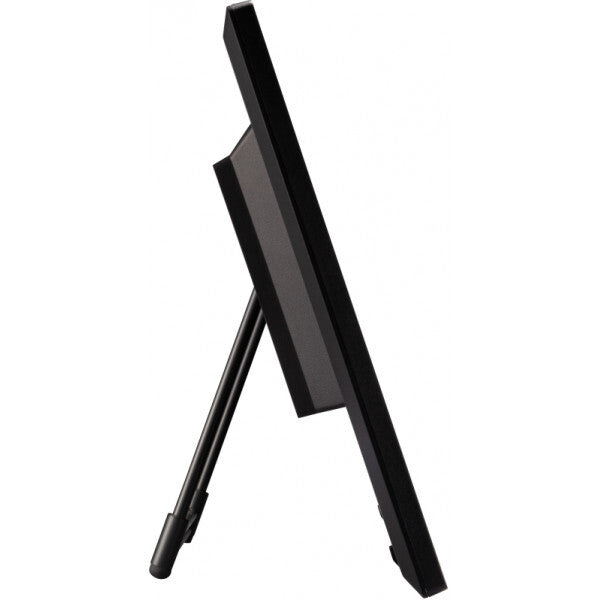

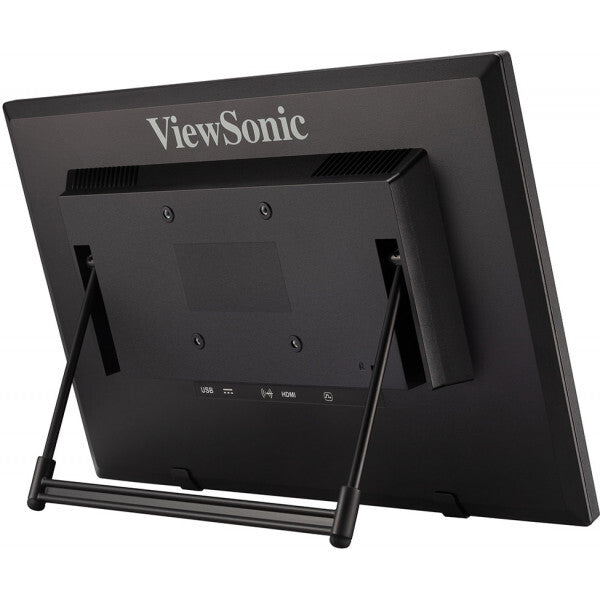

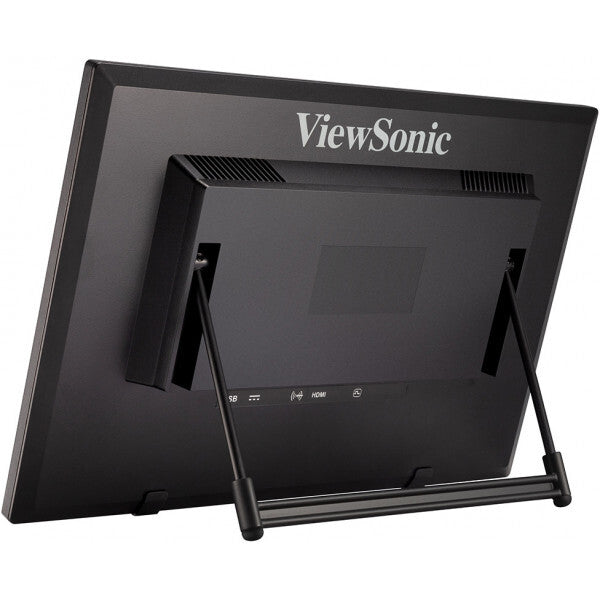

Advanced ergonomic stand design

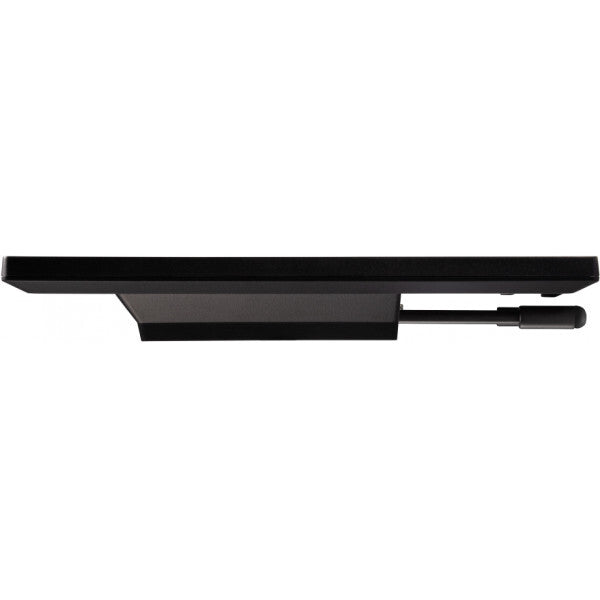

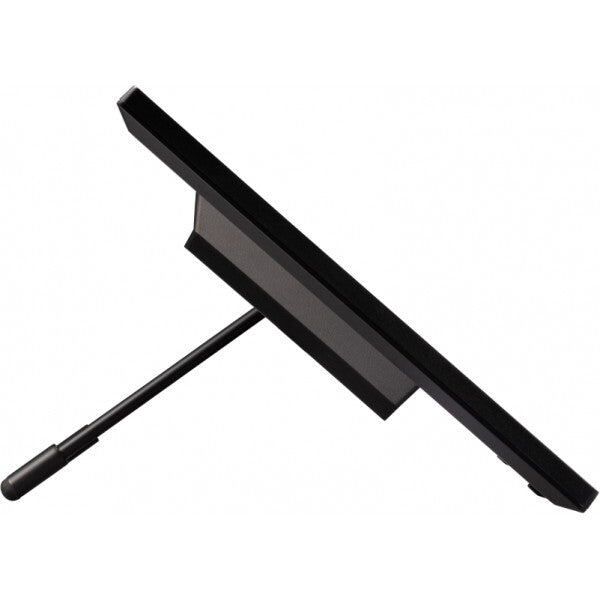

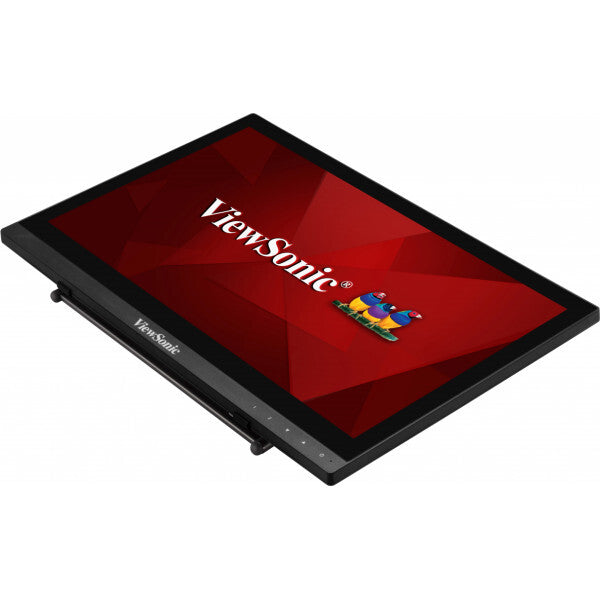

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
Ergonomic stand
Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform compatibility
Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.
Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
7H Hardness
Dual integrated speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual integrated speakers
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Blue light filter Flicker Free

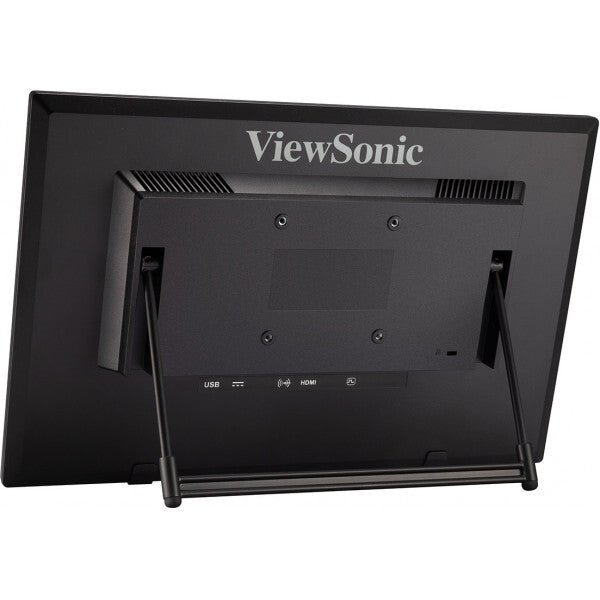

VESA-compatible mount
Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | HD |
| Panel type | TN |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 220 cd/m² |
| Response time | 12 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768 |
| Contrast ratio (typical) | 500:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Display number of colours | 262144 colours |
| Pixel pitch | 0.252 x 0.252 mm |
| Horizontal scan range | 30 - 61 kHz |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal (metric) | 39.6 cm |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | 1 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 15 - 50° |
| Power | |
|---|---|
| Energy efficiency class (SDR) | B |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| Power consumption (typical) | 5.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 379.2 mm |
| Depth (with stand) | 37.1 mm |
| Height (with stand) | 247.1 mm |
| Weight (with stand) | 1.32 kg |
| Packaging data | |
|---|---|
| Package width | 453 mm |
| Package depth | 86 mm |
| Package height | 389 mm |
| Package weight | 2.5 kg |
| Packaging content | |
|---|---|
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Other features | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Weight | 1.3 kg |
| Display viewable area (HxV) | 344.23 x 193.54 mm |
| Certification | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS |
| Technical details | |
|---|---|
| Native refresh rate | 60 Hz |
| Logistics data | |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.17 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
