Vertiv PowerIT rack power distribution unit, 57.6kW, hardwired input plug, TAA Compliance, RoHS, China RoHS, UL/CE dual listed
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,016.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
- Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

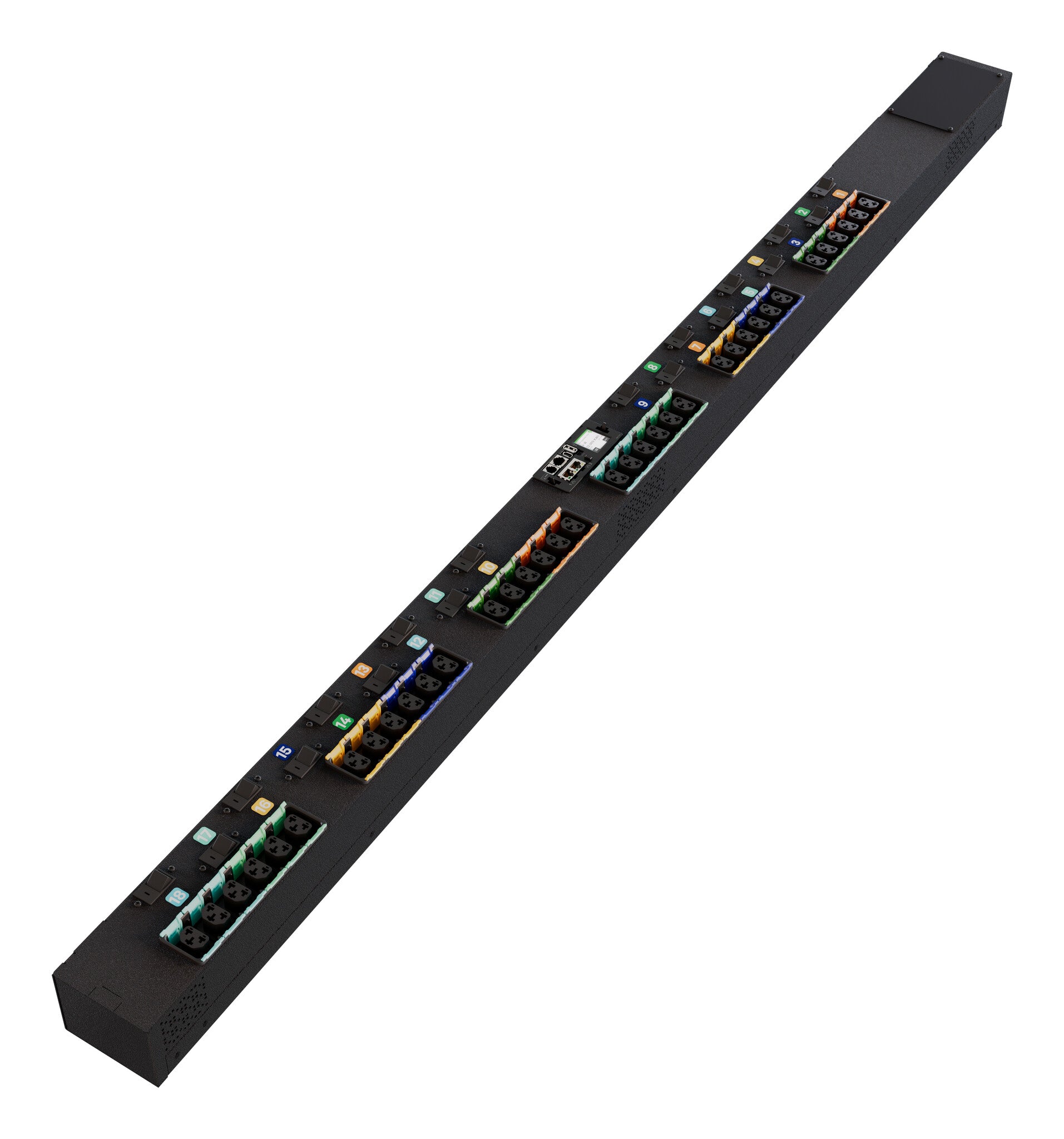

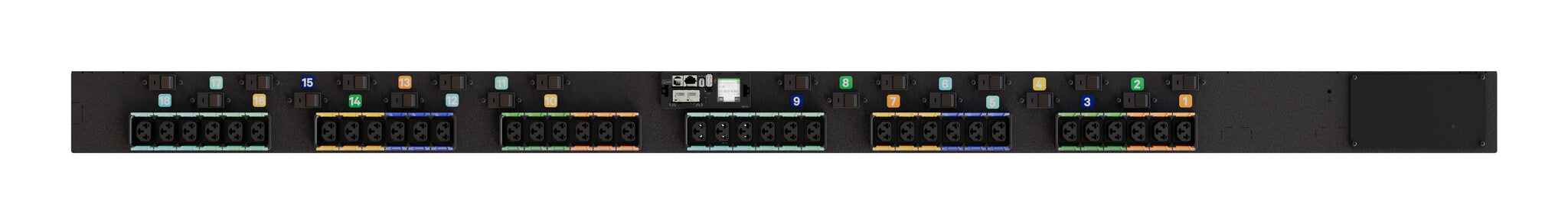

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
Design
| Product colour | Black |
|---|---|
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Three-phase |
| PDU types | Monitored |
Ports & interfaces
| USB ports quantity | 1 |
|---|---|
| Serial ports quantity | 1 |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 36 AC outlet(s) |
Show all 21 specificationsShow fewer specifications
Management features
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
|---|
Power
| Power protection features | Over current |
|---|---|
| Maximum power | 57600 W |
| Maximum current | 80 A |
| Nominal input voltage | 240 - 415 V |
Certificates
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
|---|---|
| Compliance certificates | China RoHS, RoHS, Trade Agreements Act (TAA) |
Weight & dimensions
| Weight | 8.62 kg |
|---|---|
| Height | 1682.8 mm |
| Depth | 76.2 mm |
| Width | 96.5 mm |
General
| Product family | PowerIT |
|---|
